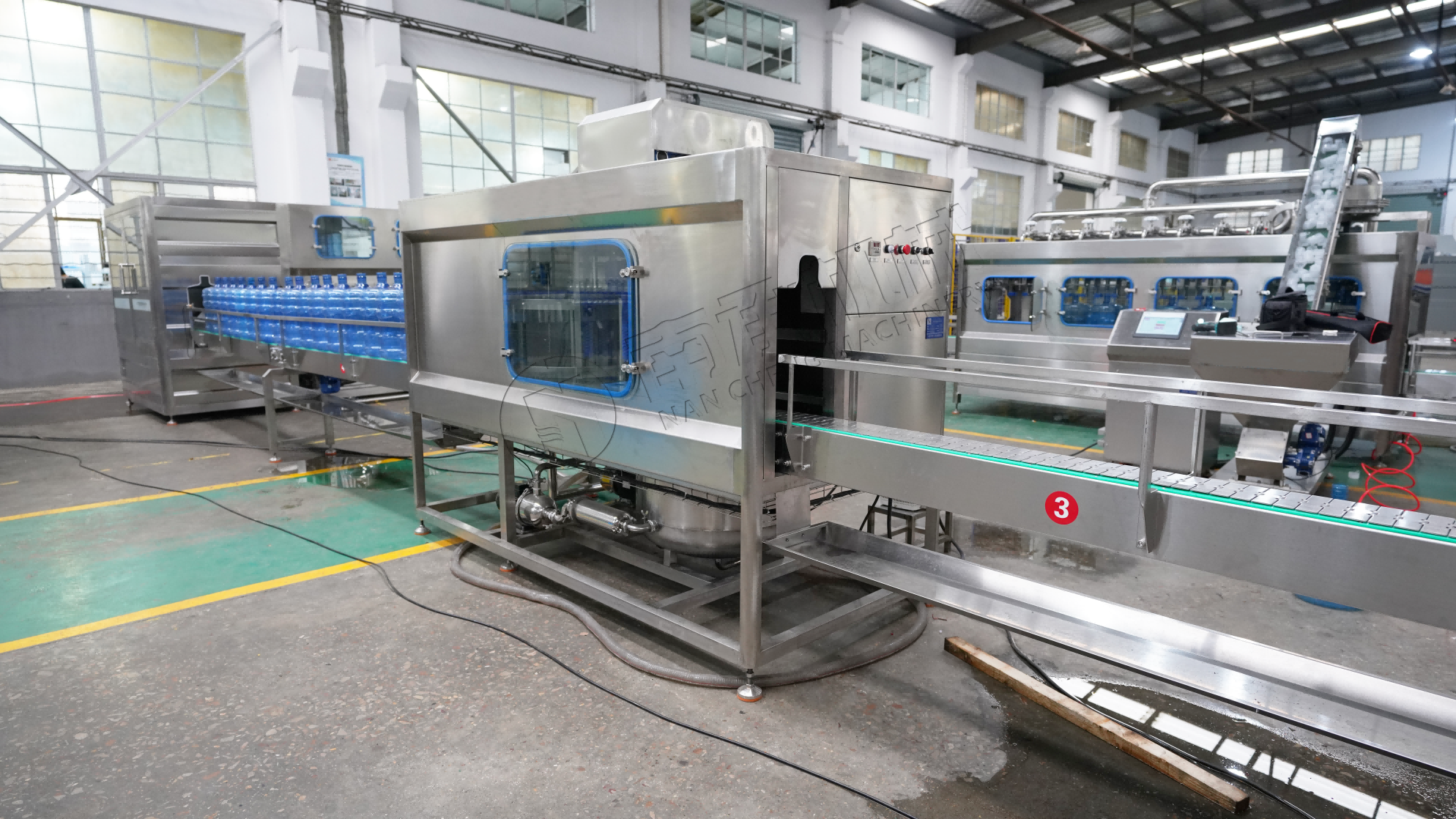

High-Efficiency 5 Gallon Water Production Line

✔ Wide Capacity Range

Available from 100–150 BPH semi-automatic systems to 2000 BPH fully automatic rotary production lines for growing businesses.

✔ Advanced Process Control

Equipped with intelligent PLC automation, touchscreen operation, fault diagnosis, and automatic production management for stable performance.

Get a Free Project Proposal

✔Reliable Filling Accuracy

Precision filling technology ensures consistent water levels, reduced product loss, and dependable sealing quality.

✔ Turnkey Project Support

From water treatment and bottle handling to filling, packaging, and palletizing, we provide complete 5 gallon water production line solutions.

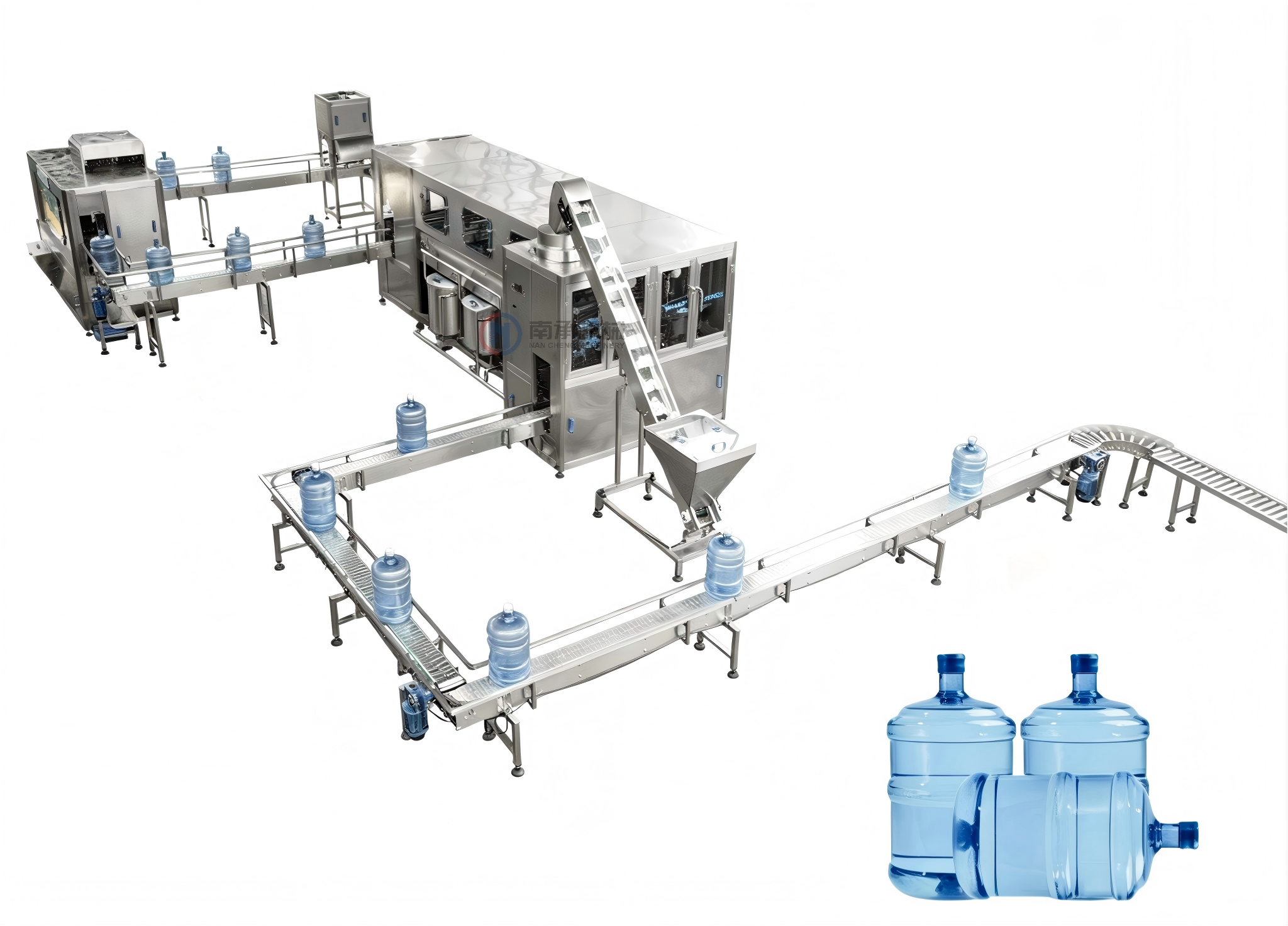

Turnkey 5 Gallon Water Production Line Solutions

Pre-Treatment
Blowing
De-capping
Internal & External Brushing
3-in-1 Monoblock (Wash-Fill-Cap)
Labeling
Bagging
Palletizing

The global demand for safe drinking water continues to grow rapidly, especially in commercial delivery services, offices, factories, schools, hospitals, and residential communities. In many countries across Africa, the Middle East, Southeast Asia, and Latin America, the 5 gallon water business has become one of the most profitable and stable segments in the drinking water industry.
A professional 5 gallon water production line is more than simply a filling machine. Because gallon bottles are reused repeatedly, the production process requires advanced bottle washing, internal sterilization, hygienic filling, leakage prevention, and efficient packaging systems.

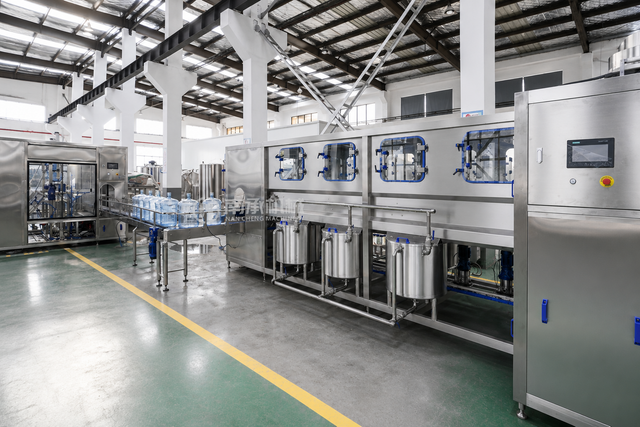

At Nancheng Machinery, we specialize in manufacturing turnkey 5 gallon water production line solutions for 18.9L, 19L, and 20L bottled water factories. From water treatment and reusable bottle washing to automatic filling, capping, bagging, palletizing, and factory planning, we help global customers build efficient and profitable gallon water bottling plants.
Our engineering team provides complete turnkey water bottling plant solutions including:
• Factory layout planning
• Water treatment system design
• Equipment manufacturing
• Installation and commissioning
• Operator training
• Long-term after-sales service
Whether you are building a fully automatic industrial 5 gallon water factory, we can customize the right solution for your market and budget.

Get Technical Proposal

What Is a 5 Gallon Water Production Line?

A 5 gallon water production line is a complete automated system used to produce large-capacity drinking water bottles such as:
• 18.9L water bottles
• 19L water bottles
• 20L gallon bottles
Compared with standard PET bottled water production lines, a 5 gallon water production line requires additional processes because the bottles are recyclable and reused multiple times.
A complete 5 gallon water bottling plant ncludes:
• Water treatment system
• Automatic decapper machine
• External bottle brushing machine
• PC/PET drum washing system
• Multi-stage internal rinsing system
• 5 gallon water filling machine
• Automatic cap loading system
• UV or ozone cap sterilizer
• Neck shrinking machine
• Leakage tester
• Automatic bagging machine
• Robotic palletizing system
The main goal of a professional 5 gallon water production line is to ensure:
• Hygienic safety
• Stable filling accuracy
• Efficient bottle sterilization
• Leakage prevention
• Long-term production stability

Why Invest in a 5 Gallon Water Bottling Plant?

The 5 gallon water delivery business continues growing rapidly because of its recurring customer demand and relatively low packaging cost.
Compared with small bottled water, a 5 gallon water production line offers several advantages:

carbon：tool-kit

Lower Packaging Cost

Reusable PC and PET gallon bottles can typically be reused 40–50 times, significantly reducing packaging costs.

• Lower cost per liter of water
• Reduced packaging material usage
• More eco-friendly and sustainable solution
• Lower logistics and storage costs

material

Recurring Revenue Model

Many gallon water suppliers operate on a subscription-based delivery model, generating stable monthly income.

• Predictable and steady cash flow
• Higher customer retention and loyalty
• selling Opportunities for upselling and cross
• Scalable business with long-term growth
• potential

automation (1)

High Market Demand

Large-capacity bottled water remains essential in:

• Offices
• Hospitals
• Schools
• Restaurants
• Residential communities
• Areas with poor tap water quality

puzzle-piece

High ROI Potential

A properly configured turnkey 5 gallon water production line can achieve fast return on investment through stable customer retention and repeat purchases.
In markets such as Nigeria, Saudi Arabia, UAE, Kenya, Indonesia, Mexico, and Iraq, demand for hygienic 19L and 20L bottled water continues increasing every year.

Complete 5 Gallon Water Production Process

A professional 5 gallon water production line usually follows the workflow below.

Raw Water Treatment System

Water quality is the foundation of every successful gallon water project.
Our water treatment systems are customized according to:
• Borehole water
• Underground water
• Municipal water
• River water
A professional water treatment system may include:
• Sand filtration
• Carbon filtration
• Water softener
• Precision filtration
• Reverse osmosis (RO)
• UV sterilization
• Ozone sterilization
The RO water treatment system helps remove:
• Bacteria
• Heavy metals
• TDS
• Odor
• Organic contamination
A stable treatment system can significantly enhance the long-term performance of the entire 5 gallon water production line while reducing maintenance costs.

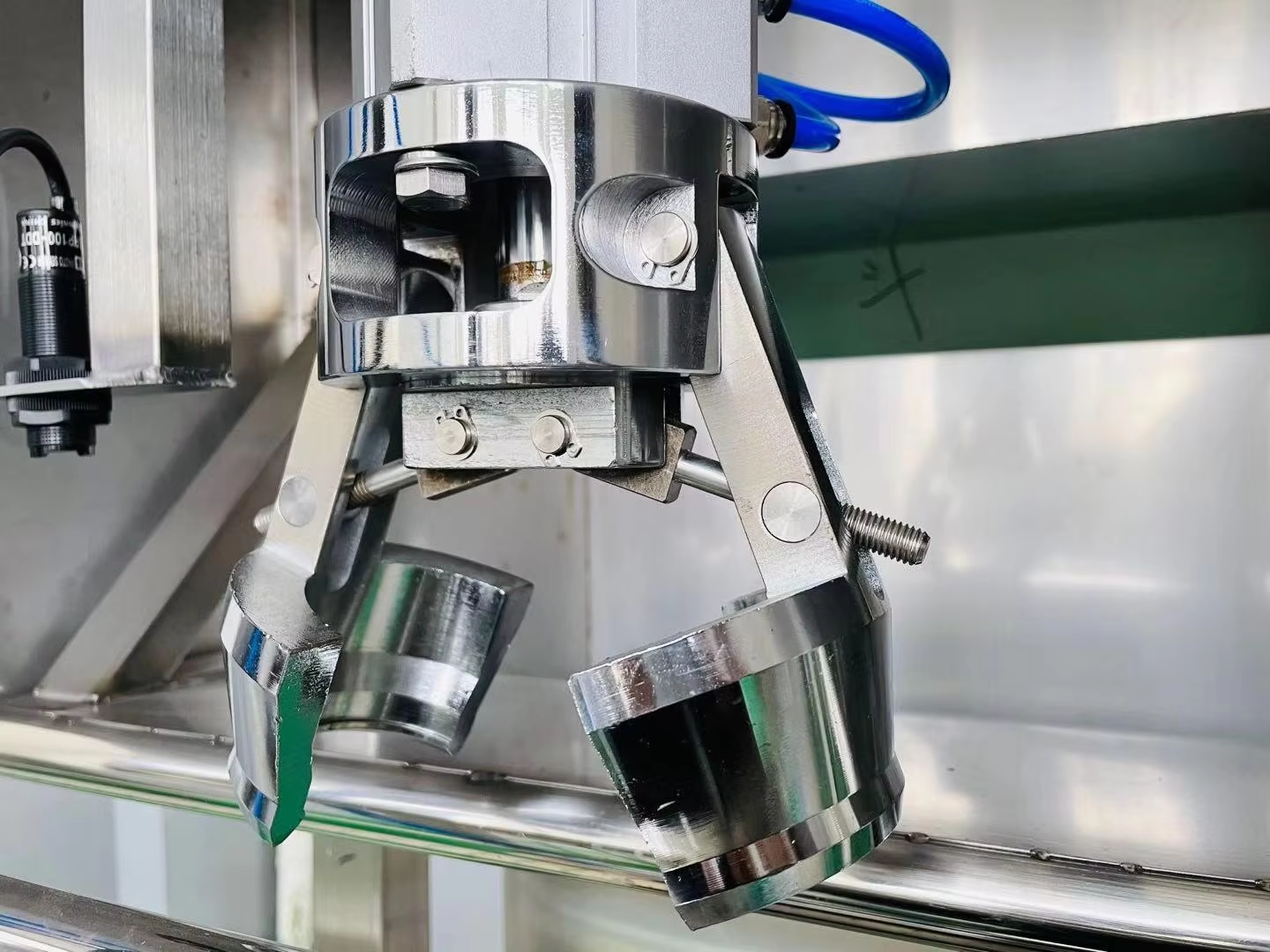

Automatic Decapper Machine

Returned gallon bottles first enter the automatic decapper machine where used caps are removed automatically.
This process improves:
• Production efficiency
• Labor reduction
• Hygiene consistency
The automatic decapper machine is especially important for medium and large-scale 5 gallon water production lines.

Main features include:
• Automatic bottle detection
• High-speed cap removal
• Stable mechanical structure
• Adjustable bottle compatibility
• Low maintenance requirements
• Continuous operation design

Advantages of automatic decapping:
• Reduce labor costs
• Improve production efficiency
• Minimize operator contact

By eliminating manual cap removal, the machine reduces worker fatigue and minimizes the risk of contamination. It also helps maintain a continuous production flow, ensuring higher productivity and more consistent bottle handling throughout the operation.

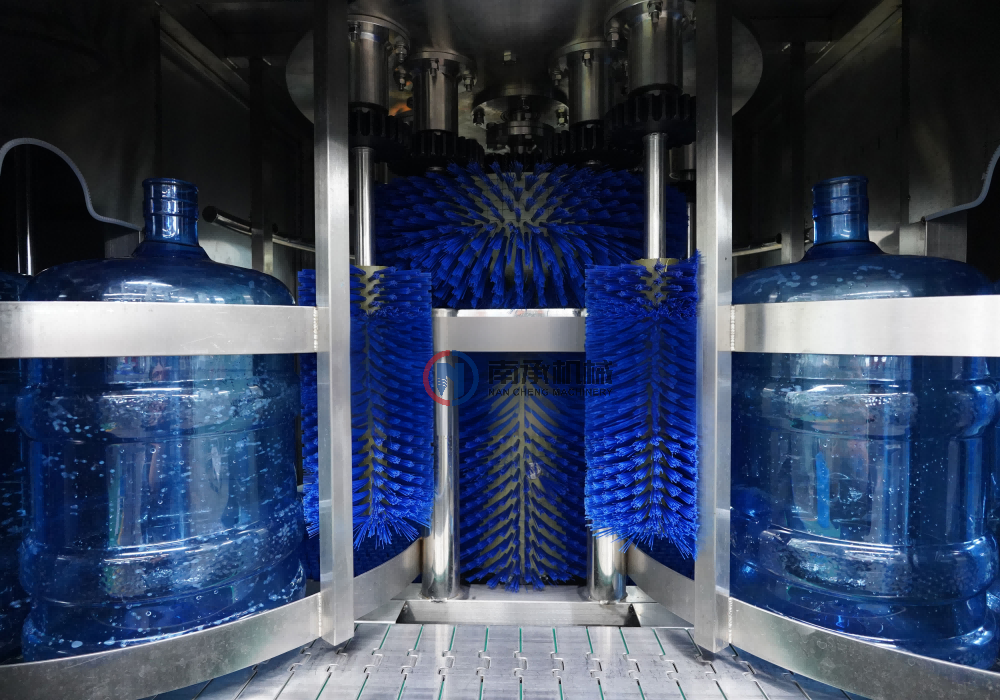

External Bottle Brushing System

The external brushing machine removes:
• Dust
• Mud
• Oil contamination
• Transportation dirt
The bottle body, bottle neck, and bottle bottom are thoroughly cleaned before entering the washing section.
For reusable PC bottle washing and PET drum washing applications, strong external cleaning is critical for food-grade safety.
The machine is equipped with multiple rotating brushes and high-pressure water spraying devices to ensure thorough cleaning of the bottle surface. Even stubborn dirt and contaminants attached during storage or transportation can be effectively removed.
Main features include:
• Multi-position brushing system
• High-efficiency cleaning performance
• Stable and continuous operation
• Low water consumption
• Easy maintenance design
• Suitable for various gallon bottle types
Proper external cleaning not only improves bottle appearance but also helps reduce contamination risks before the internal washing process, ensuring a higher level of hygiene throughout the entire production line.

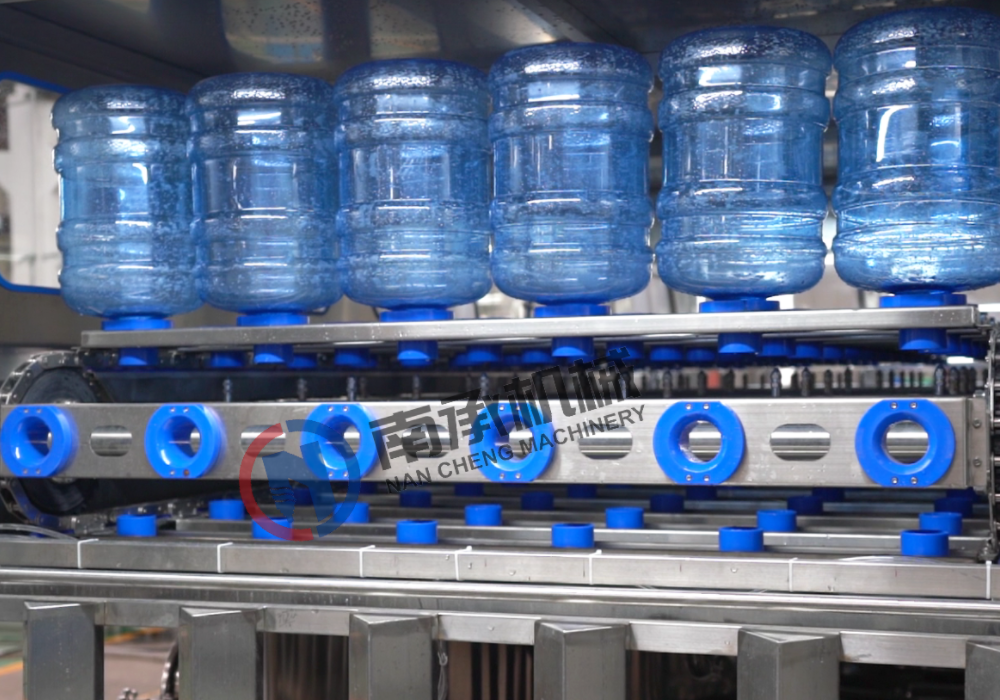

Multi-Stage Internal Bottle Washing

The internal washing process is one of the most important sections in a 5 gallon water production line.
Our systems use multi-stage high-pressure rinsing technology to ensure complete bottle sterilization.
Typical washing stages include:
1. Hot alkali washing
2. Recycled water rinsing
3. Disinfectant washing
4. Ozonated water sterilization
5. Pure water rinsing
6. Sterile water final rinsing
This process helps prevent:
• Bacterial contamination
• Odor retention
• Secondary pollution
• Product instability
The combination of multi-stage rinsing and ozone sterilization significantly improves hygienic safety for reusable gallon bottles.
The combination of multi-stage rinsing and ozone sterilization significantly improves hygienic safety for reusable gallon bottles.
This advanced washing process ensures that every bottle meets strict sanitation requirements before entering the filling section. It also helps extend bottle reuse cycles while maintaining consistent product quality and consumer safety.

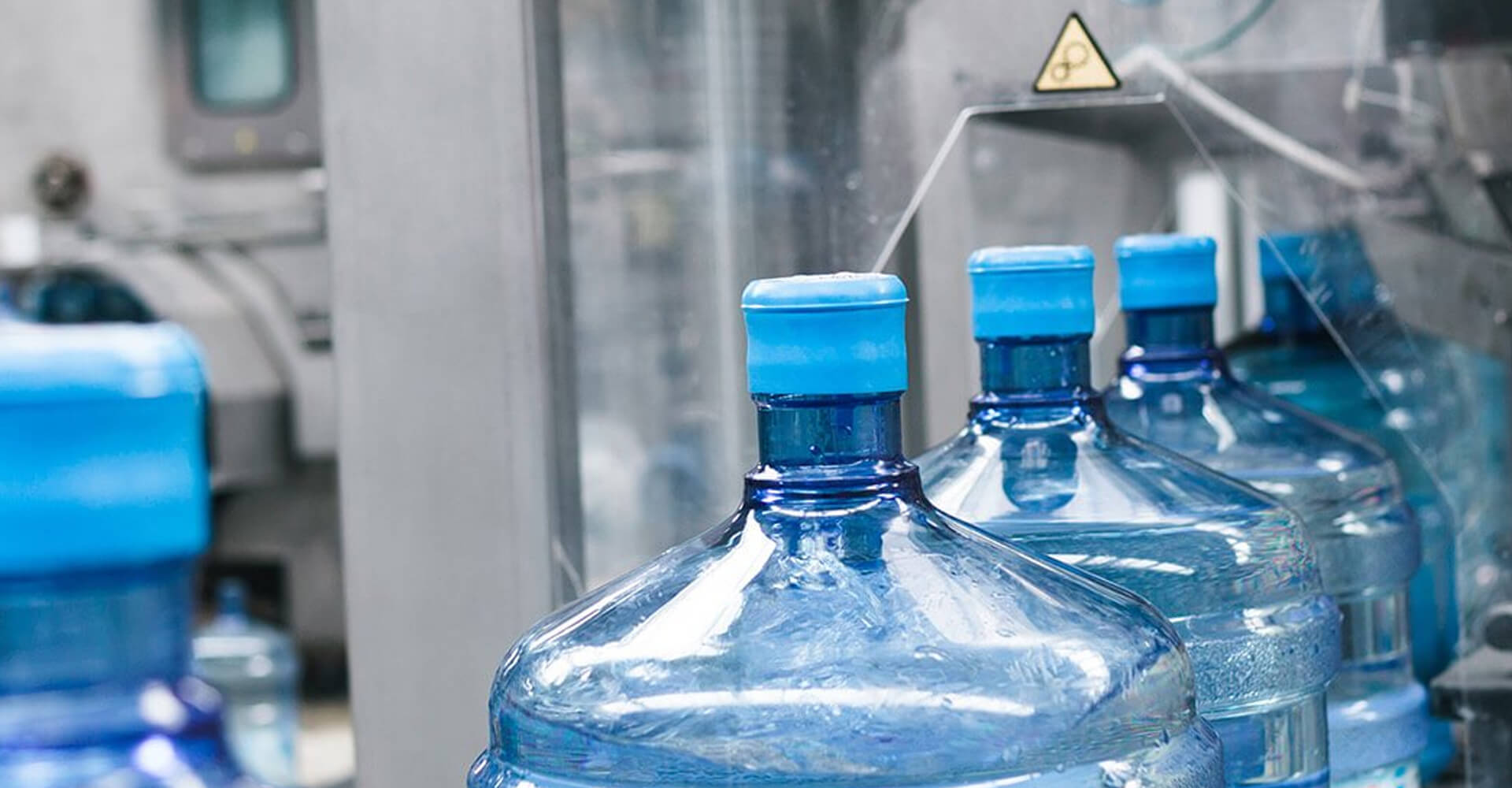

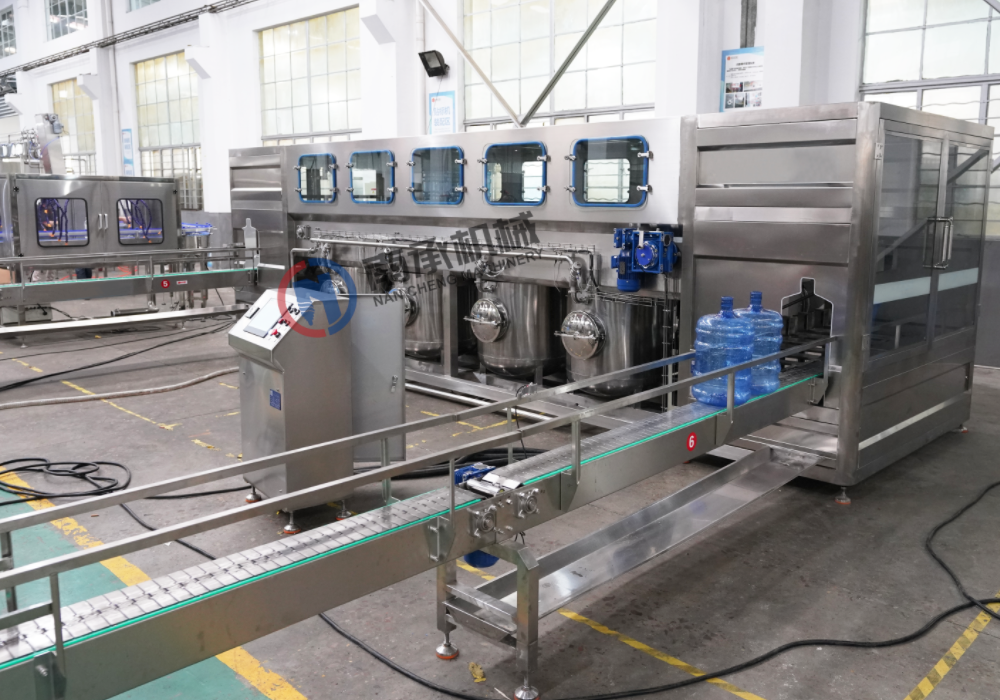

Automatic 5 Gallon Water Filling Machine

After washing, bottles enter the automatic 5 gallon water filling machine.
Our mono-block filling systems integrate:
• Bottle positioning
• Automatic filling
• Automatic capping
• Cap pressing
Main features include:
• SUS304/SUS316 stainless steel structure
• PLC automatic control
• Hygienic food-grade pipeline design
• Stable filling accuracy
• Low maintenance
• Leakage prevention system
• No bottle no filling sensor
The machine is widely used in drinking water factories producing reusable 3 gallon and 5 gallon bottled water, providing stable and continuous operation for large-scale production.

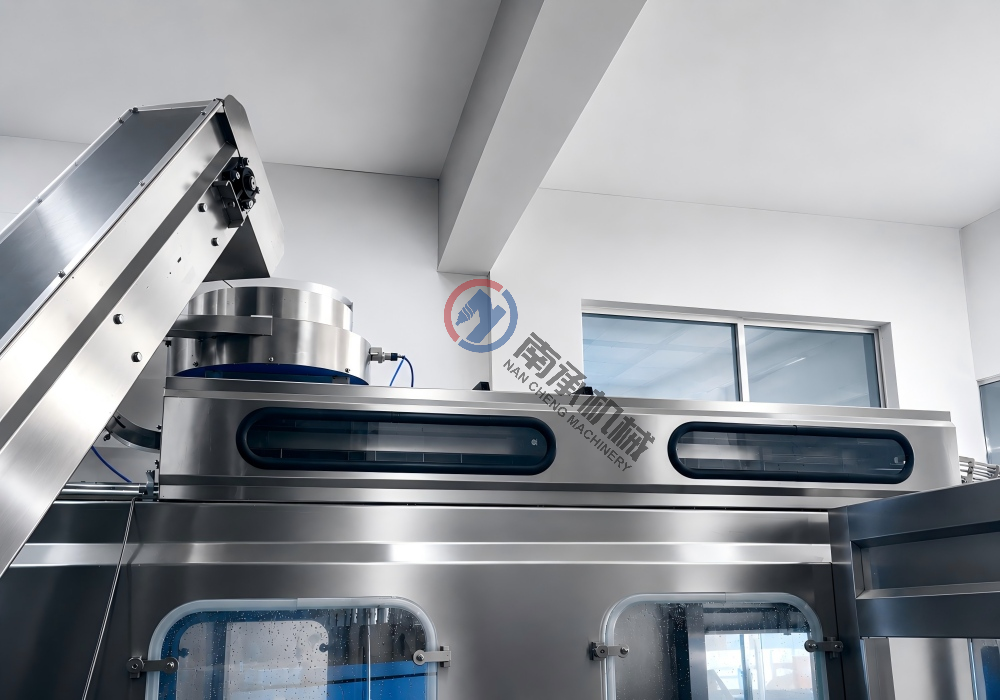

Cap Sterilization System

Cap hygiene directly affects final product safety.
Our automatic cap elevator systems can integrate:
• UV sterilization
• Ozone sterilization
• Hot air sterilization
Sterilized caps are automatically transferred to the capping system, reducing manual handling contamination.
The cap sterilization process effectively eliminates bacteria and microorganisms that may remain on cap surfaces during storage and transportation. This helps improve overall product safety and extends shelf life.
Main features include:
• Fully automatic cap feeding
• Continuous sterilization process
• Hygienic enclosed structure
• Stable cap conveying system
• Reduced manual contact
• Easy integration with filling lines

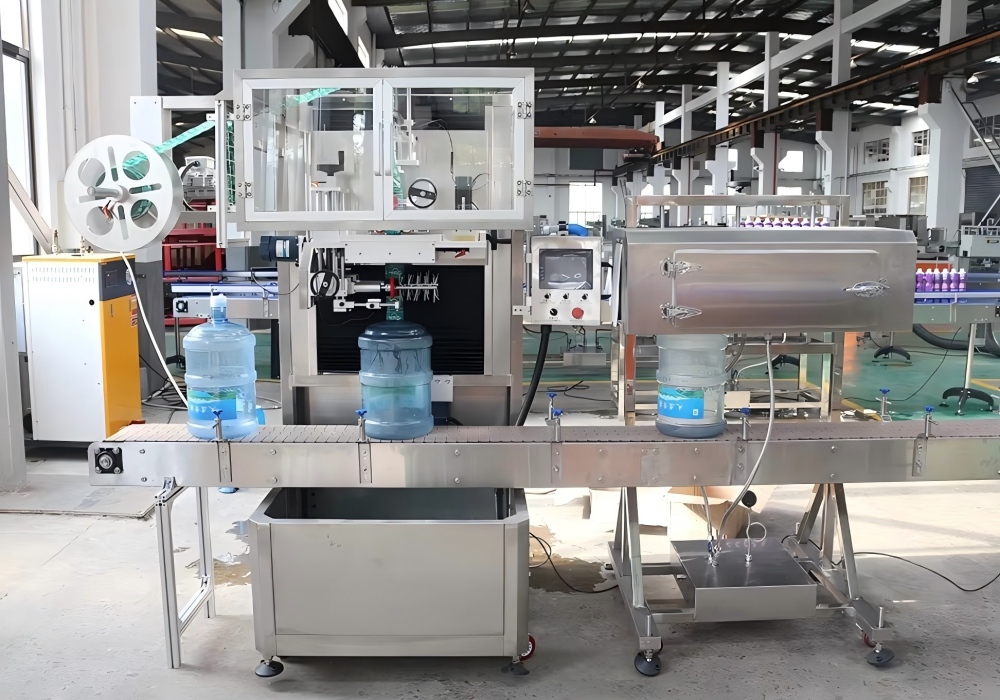

Leakage Tester and Neck Shrinking

To improve product quality and transportation safety, the production line can include:
• Automatic leakage tester
• Neck shrinking machine
The leakage tester helps prevent transportation losses and customer complaints caused by improperly sealed caps.
Neck shrinking improves product appearance and tamper evidence.
Main features include:
• Automatic leak detection
• High inspection accuracy
• Real-time defective bottle rejection
• Stable continuous operation
• Easy integration with production lines
• Low maintenance requirements
These systems provide an additional quality control checkpoint before products leave the factory. By identifying sealing defects early, manufacturers can reduce product waste, improve customer satisfaction, and ensure reliable transportation performance.

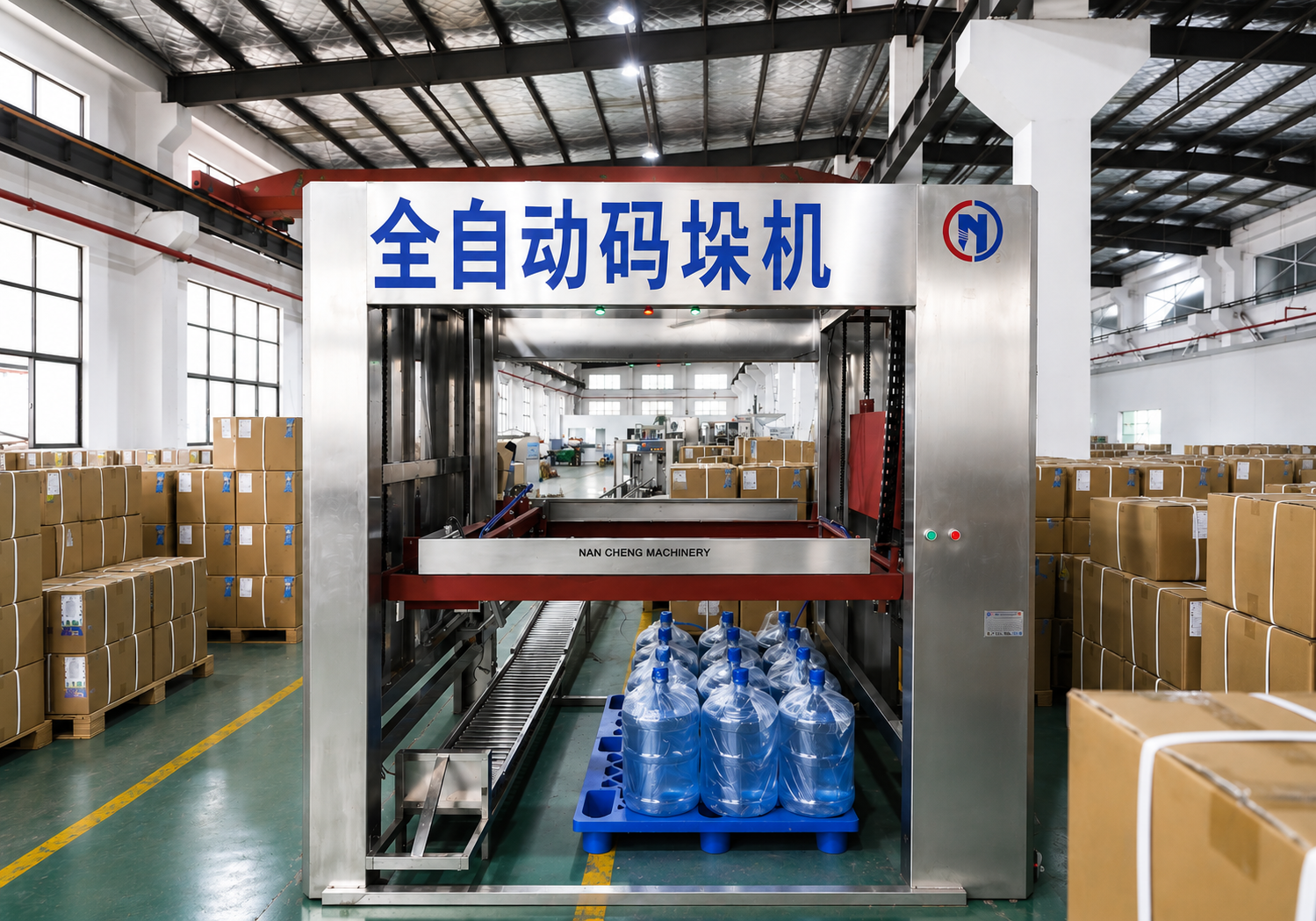

Automatic Bagging and Palletizing System

In many markets, automatic bagging is essential for hygienic transportation.
Bagging systems help protect bottles from:
• Dust
• Scratches
• Secondary contamination
Automatic palletizing systems improve:
• Labor efficiency
• Warehouse management
• Transportation efficiency
These systems are especially popular in:
• Saudi Arabia
• Nigeria
• UAE
• Mexico
• Indonesia
Automatic packaging solutions help reduce manual handling while maintaining product cleanliness during storage and delivery.

Start An Order With Us

Semi-Automatic vs Fully Automatic 5 Gallon Water Production Line

Choosing the right automation level depends on:
• Budget
• Labor cost
• Market demand
• Production target

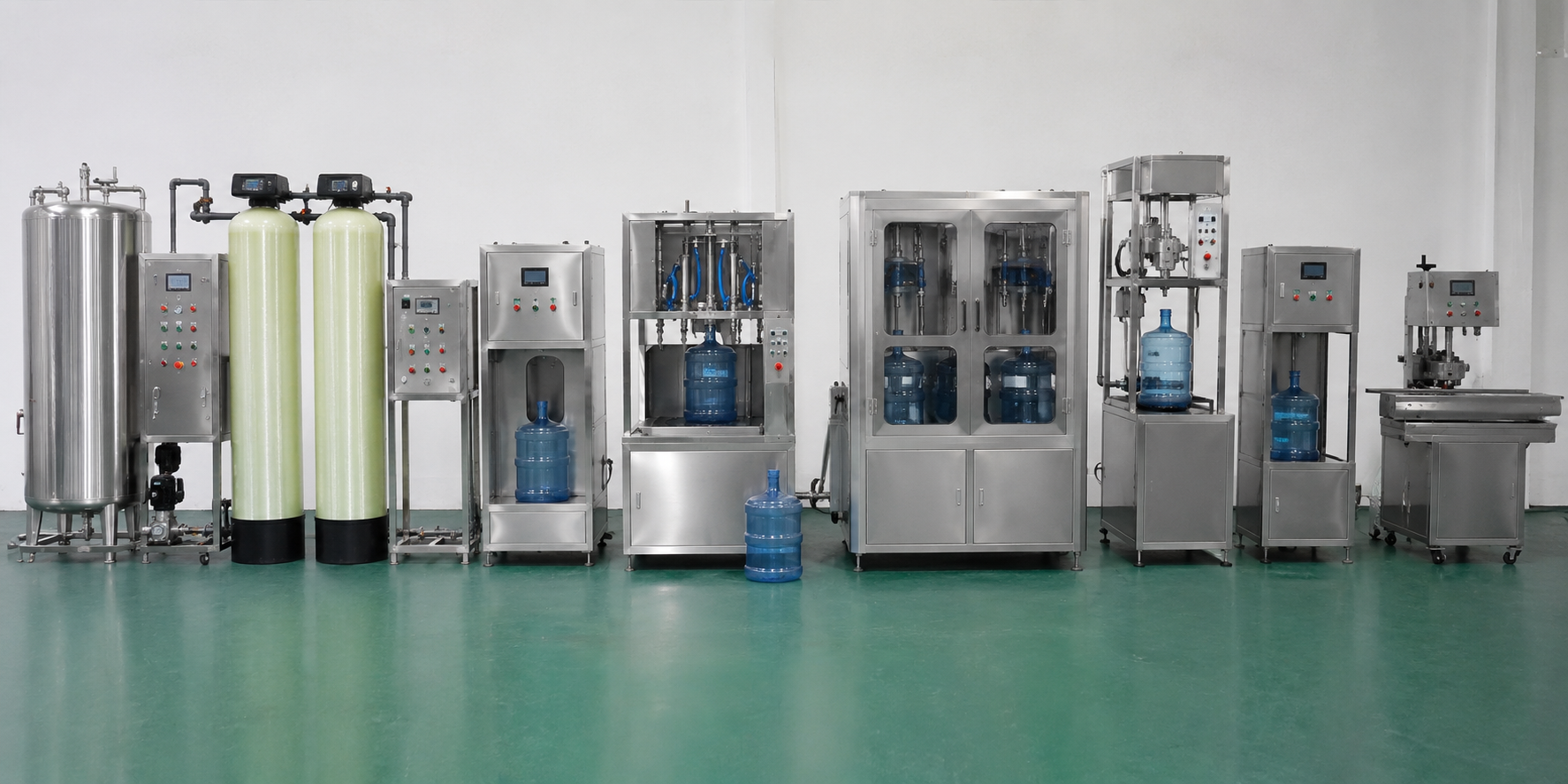

Semi-Automatic 5 Gallon Water Production Line

Suitable for:
• Startups
• Small water stations
• Local distribution businesses
Advantages:
• Lower investment
• Simple operation
• Easy maintenance
Disadvantages:
• Higher labor requirement
• Lower production efficiency

Fully Automatic 5 Gallon Water Production Line

Suitable for:
• Commercial water factories
• Regional distributors
• Industrial-scale water bottling plants
Advantages:
• Higher production speed
• Better hygiene consistency
• Lower labor cost
• Better long-term ROI
• Easier future expansion
For medium and large commercial projects, fully automatic turnkey 5 gallon water production line solutions are usually the preferred long-term investment.

Technical Specifications of 5 Gallon Water Production Line

Capacity selection should always match:

• Local market demand
• Distribution capability
• Workshop size
• Utility supply
• Investment budget

Capacity	Automation Level	Suitable For
100–300 BPH	Semi-Automatic	Small Water Stations
300–600 BPH	Fully Automatic	Regional Water Suppliers
600–1200 BPH	High-Speed Automatic	Commercial Water Plants
1200–2000 BPH	Industrial Automatic	Large Water Factories

Get Instant Quote

How to Choose the Right 5 Gallon Water Production Line

Choosing the correct 5 gallon water production line is critical for long-term profitability.
Before purchasing equipment, customers should consider several factors.

Bottle Material

Different markets use:
• PC gallon bottles
• PET gallon bottles
• BPA-free bottles
Bottle material affects:
• Washing system design
• Gripper configuration
• Heating requirements
• Production speed
Production Capacity

Avoid purchasing oversized equipment without sufficient market demand.
A properly sized turnkey 5 gallon water bottling plant usually provides better operational efficiency and ROI.
Hygiene Standard

For high-end drinking water brands, we recommend:
• Laminar flow protection
• Ozone sterilization
• SUS316 contact parts
• Automatic leakage detection
Labor Cost

In regions with high labor costs, fully automatic 5 gallon water production lines are usually more economical long-term.
Factory Space

Factory layout planning directly affects:
• Production workflow
• Operator movement
• Future expansion
• Hygiene management
At Nancheng Machinery, we provide CAD factory layout design services based on your workshop dimensions.

Send Us Your Inquiry Today

Why Work Directly With a 5 Gallon Water Production Line Manufacturer?

Choosing a real manufacturer instead of a trading company significantly reduces long-term operational risk.
At Nancheng Machinery, we are a professional manufacturer specializing in turnkey liquid packaging solutions.
Our advantages include:
• Independent engineering team
• Own manufacturing factory
• Customized equipment design
• Faster spare parts support
• Stable production quality
• Professional installation service
• Long-term after-sales support
Besides 5 gallon water production lines, we also provide:
• Bottled water production lines
• Carbonated beverage filling lines
• Juice filling machines
• PET bottle blowing machines

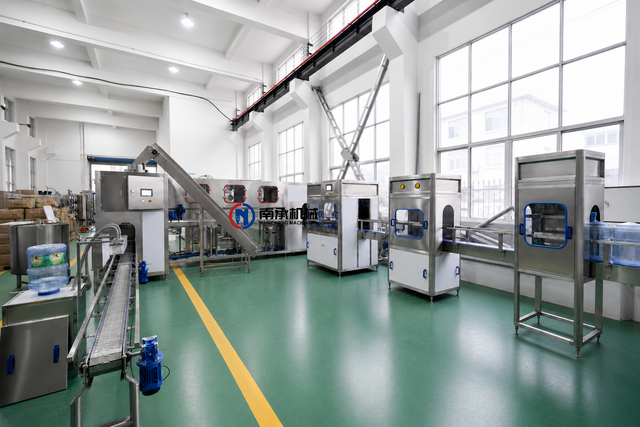

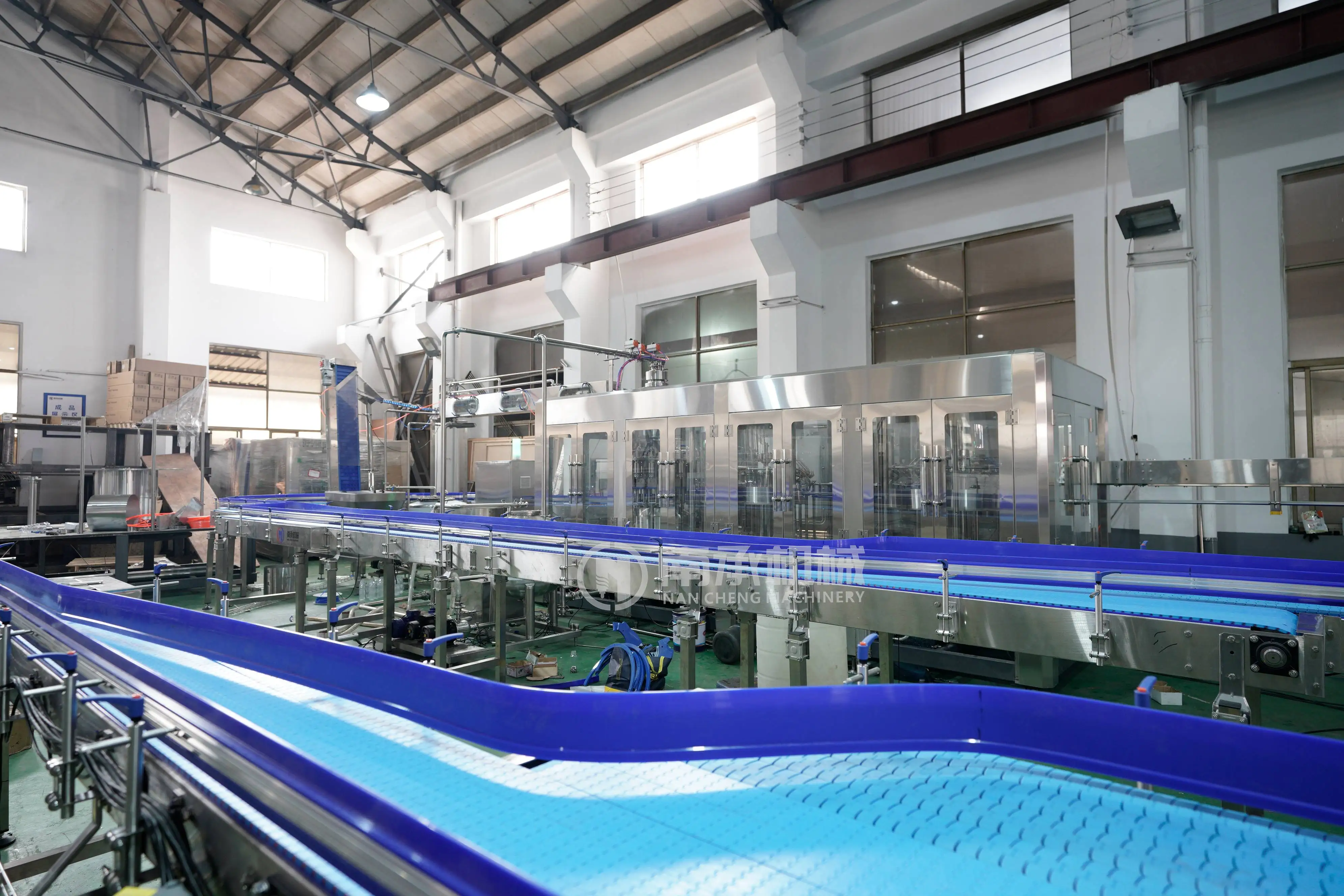

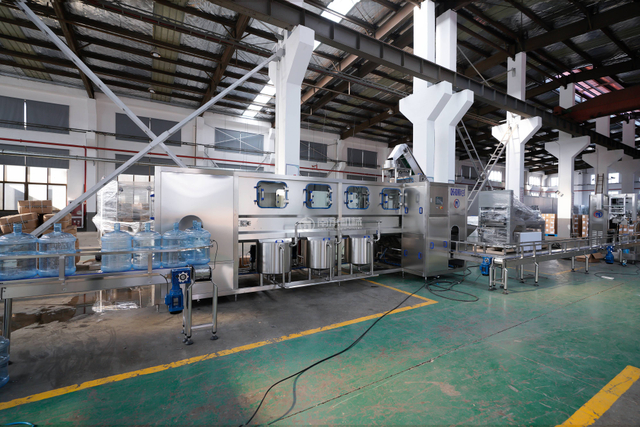

5 Gallon Water Production Line Manufacturer

Boost Your Business Now

Trusted By Leading Water & Beverage Brands Worldwide

Send Us Your Inquiry Today

Customer Reviews

Armenia

Hayko

We met Mr. Hayko from Armenia during the Moscow Food Processing & Packaging Exhibition. He showed strong interest in our filling solutions, and after several rounds of discussion and live demonstrations, he confirmed his order on-site. His project is now progressing smoothly, and we are proud to support his factory upgrade with Nancheng’s quality and efficiency. We truly appreciate his trust and look forward to long-term cooperation.

Brazil

Andre

Mr. Andre from Brazil selected Nancheng’s 10,000 BPH juice filling line after comparing several suppliers. He valued our advanced technology, hygienic design, and stable performance. Throughout the project, our team provided complete turnkey service—from juice preparation and UHT sterilization to hot filling and packaging. Andre was highly satisfied with our engineering support and strict quality control. His line now runs steadily and helps his brand grow in the Brazilian market.

Yemen

Manson

Mr. Masan chose Nancheng to modernize his beverage plant with a 20,000 BPH water line and an 8,000 BPH juice line. We designed an energy-efficient, fully automated system featuring precise filling and advanced sanitation control. He praised our smooth coordination, fast technical response, and stable FAT performance. Both lines are now operating successfully, greatly increasing his factory’s capacity and competitiveness.

Iraq

Saman

Mr. Saman was looking for reliable equipment for a multi-product beverage facility. After reviewing our engineering solutions, he selected a 2000 BPH 5-gallon water line and a customized beer filling line. We focused on durability, hygiene, and efficiency. Saman appreciated our installation guidance, trial performance, and overall build quality. Both lines now run smoothly and help expand his production capability in Iraq.

Venezuela

Ymail

At the 126th Canton Fair, Mr Ymail from Venezuela watched our machine and real -time communication at the scene. After good talking, He decided to purchase a 12,000 CPH CSD Can beverage production lines from us . paid the deposit at the exhibition site,The production line has been running well so far. customers are very satisfied.

Syria

Abdullah

The customer from Syria wil come to visit our factory in May 2019, and plan to set up a water plant project in Suria. He wilvisitour company to inspect equipment for import.Eventually, we cooperated with the bottled water project of 10000bph.

Latin America

ABU

ABU, who met us at the fair from Latin America, had been planning his new water plant for a year, and finding a reliable plantwas his main aoal.After we met each other at the exhibition, we had a good talk and aot to know the general needs ofcustomers. We customized a production line for his products. Now Mr. ABU produces more products in a year and has moremarkets than before.

Uzbekistan

Qodiri

Mr Qodiri from Uzbekistan, after the recommendation of cooperative customers, came to our factory and visited many production line factories. Finally, he chose us to purchase 15,000 bottles per hour of CSD beverage production line, and a 8000 bottles of fruit juice production line. What’s more we provide customers with the formula, process, raw materials, etc., the customer is satisfied and said that we have saved us a lot of time for him

Albania

Xhili

Mr. Xhili from Albania has always hoped to find a professional factory. Because the machine that he once purchased has no after -sales service, it is very difficult, so he wants to find a good supplier for his new factory. Finally he bought a 15,000 bottles of mineral water production line per hour, 8,000 bottles of CSD glass bottle production lines form us, and customer brand "Vlora" is named after the city name because customers recognize our production line!

Product Catalog

Name	Size	Downloads	Download
Nancheng Product Catalog.pdf	22.96MB	691	Download

FAQs – 5 gallon water production line

Q Start Your Turnkey 5 Gallon Water Bottling Project
A
Whether you are building a small water refilling station in Africa or a fully automatic industrial 20L water bottling plant in the Middle East, Nancheng Machinery can provide a customized turnkey 5 gallon water production line solution tailored to your production goals and local market.

From water treatment and reusable bottle washing to filling, capping, leakage testing, bagging, and palletizing, our engineering team helps customers build efficient and profitable gallon water factories worldwide.

Contact us today for:
- Factory layout design
- Equipment quotation
- ROI analysis
- Utility requirement planning
- Installation and commissioning
- Long-term after-sales service
Q Is clean-room protection necessary?

A

For premium drinking water brands, we highly recommend laminar flow protection and hygienic filling environments to reduce airborne contamination risk.
Q Do you provide installation and commissioning?
A
Yes. Our engineers provide:
- Equipment installation
- Commissioning
- Operator training
- Production guidance
- Long-term technical support
Q How much does a 5 gallon water production line cost?
A
The investment depends on:
- Production capacity
- Automation level
- Water treatment configuration
- Packaging system
- Factory layout
- Local electrical standards
We provide customized quotations based on customer requirements.
Q Can the production line handle 18.9L, 19L, and 20L bottles?

A

Yes. Our turnkey 5 gallon water production line solutions can support multiple bottle sizes with customized change parts.
Q Is ozone sterilization better than UV sterilization?

A

Both technologies are important. UV sterilization is effective for surface treatment, while ozone sterilization provides stronger penetration and bacterial control inside reusable bottles.
Q How often should reusable gallon bottles be sterilized?

A

Reusable gallon bottles should be sterilized during every production cycle using multi-stage washing and ozone sterilization systems.
Q What is the difference between PC and PET gallon bottles?

A

PC bottles are stronger and more reusable, while PET bottles are lighter and lower cost. Different bottle materials require different washing and handling configurations.
Q What is the lifespan of a 5 gallon water production line?

A

With proper maintenance and food-grade SUS304 stainless steel construction, a high-quality 5 gallon water production line can typically operate for 10–15 years or longer.

Get a Free Quote for Your Water Filling Machine Today

Ready to start your bottled water production business? Nancheng Machinery offers reliable water filling machines, competitive price, and full factory solutions.

Request a Free Quote

Explore More Machines
