5 Gallon Water Filling Machine: High-Efficiency Bottling Solutions

✔ High-Volume Output

Scalable solutions ranging from entry-level 150 BPH units to fully automated 2000 BPH rotary systems.

✔ Smart Automation

Integrated PLC & HMI control systems for real-time monitoring and "No Bottle - No Fill" precision.

Request 5 Gallon Water Filling Machine Quote

✔ Superior Hygiene

Engineered with SUS304/316L stainless steel and closed-loop designs to ensure zero-contamination production.

✔ Cost-Effective ROI

Optimized pneumatic systems and low-maintenance designs to minimize Opex and maximize long-term profits

Your Expert 5 Gallon Water Filling Machine Manufacturer

carbonated beverage filling machine supplier

With over 20 years of experience in water treatment and filling equipment manufacturing, Nancheng Machinery is a professional 5 gallon water filling machine manufacturer, providing reliable and customized solutions for large-capacity bottled water production.
Our 5 gallon water filling machines are specially designed for 18.9L / 20L barrel water filling, widely used in drinking water plants, mineral water factories, and commercial water delivery businesses. The machine integrates advanced technologies including automatic bottle washing, sterilization, filling, and capping, ensuring high hygiene standards and stable operation.
Using food-grade stainless steel (SS304/SS316) and intelligent PLC control systems, our equipment guarantees accurate filling, efficient production, and long service life. From semi-automatic systems to fully automatic solutions, we offer flexible configurations to meet different production needs.
As a trusted 5 gallon water filling machine supplier worldwide, we support customers with complete technical guidance, layout design, installation, and after-sales service. Our machines are exported to Africa, the Middle East, Southeast Asia, and South America, helping clients build profitable water bottling businesses.

Pre-Treatment
Blowing
De-capping
Internal & External Brushing
3-in-1 Monoblock (Wash-Fill-Cap)
Labeling
Bagging

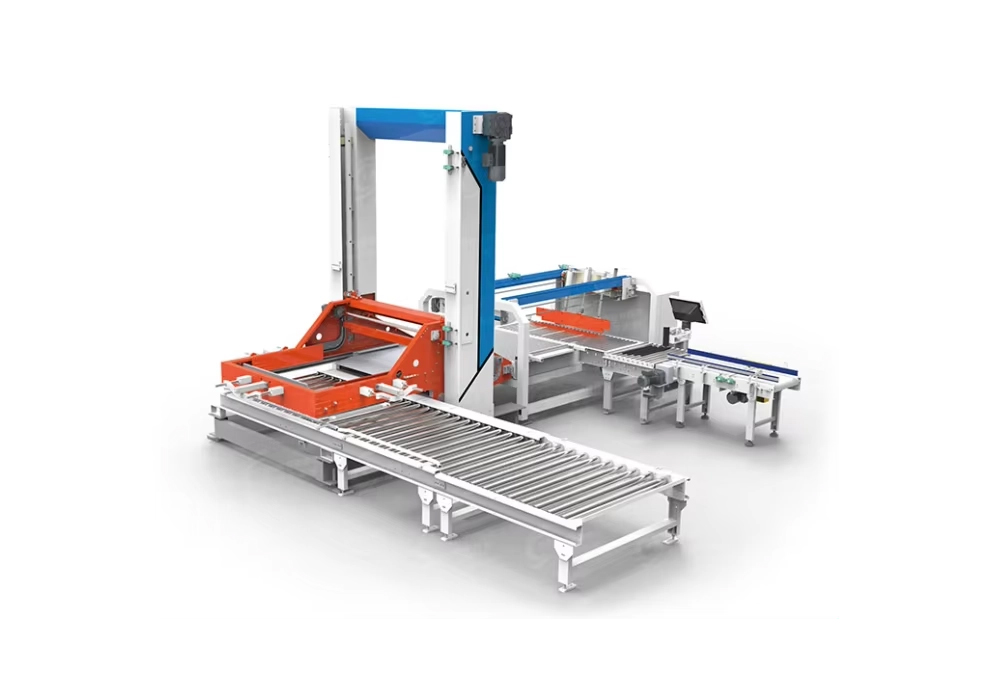

Palletizing

Send Us Your Inquiry Today

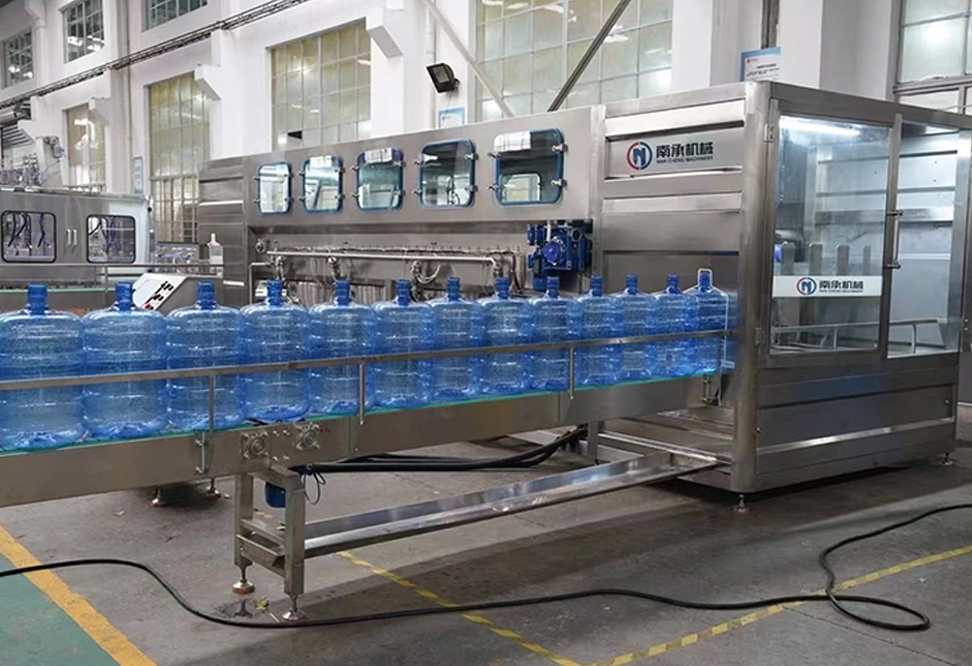

What Is a 5 Gallon Water Filling Machine?

A 5 gallon water filling machine is an automated system designed to fill purified water, mineral water, or drinking water into large reusable bottles (18.9L / 20L).
Unlike small PET bottle filling machines, this system focuses on:
Reusable barrel cleaning and sterilization
High-capacity filling operations
Heavy-duty bottle handling
Strict hygiene control

See how our 5 gallon water filling machine works in real production.
This system integrates automatic washing, filling, and capping for 18.9L / 20L barrels, ensuring efficient and hygienic operation.
Fully automatic process
Stable filling and capping
Suitable for drinking water and mineral water
Low labor, high efficiency
Ideal for water plants looking for a reliable 5 gallon water filling machine supplier

Applications of 5 Gallon Water Filling Machine

This 5 gallon water filling machine is widely used in:
Drinking water factories
Mineral water plants
Spring water bottling lines
Water delivery businesses
Industrial purified water production
With growing demand for safe drinking water, 5 gallon systems are essential for large-scale distribution and commercial supply.

5 Gallon Water Filling Machine For Sale

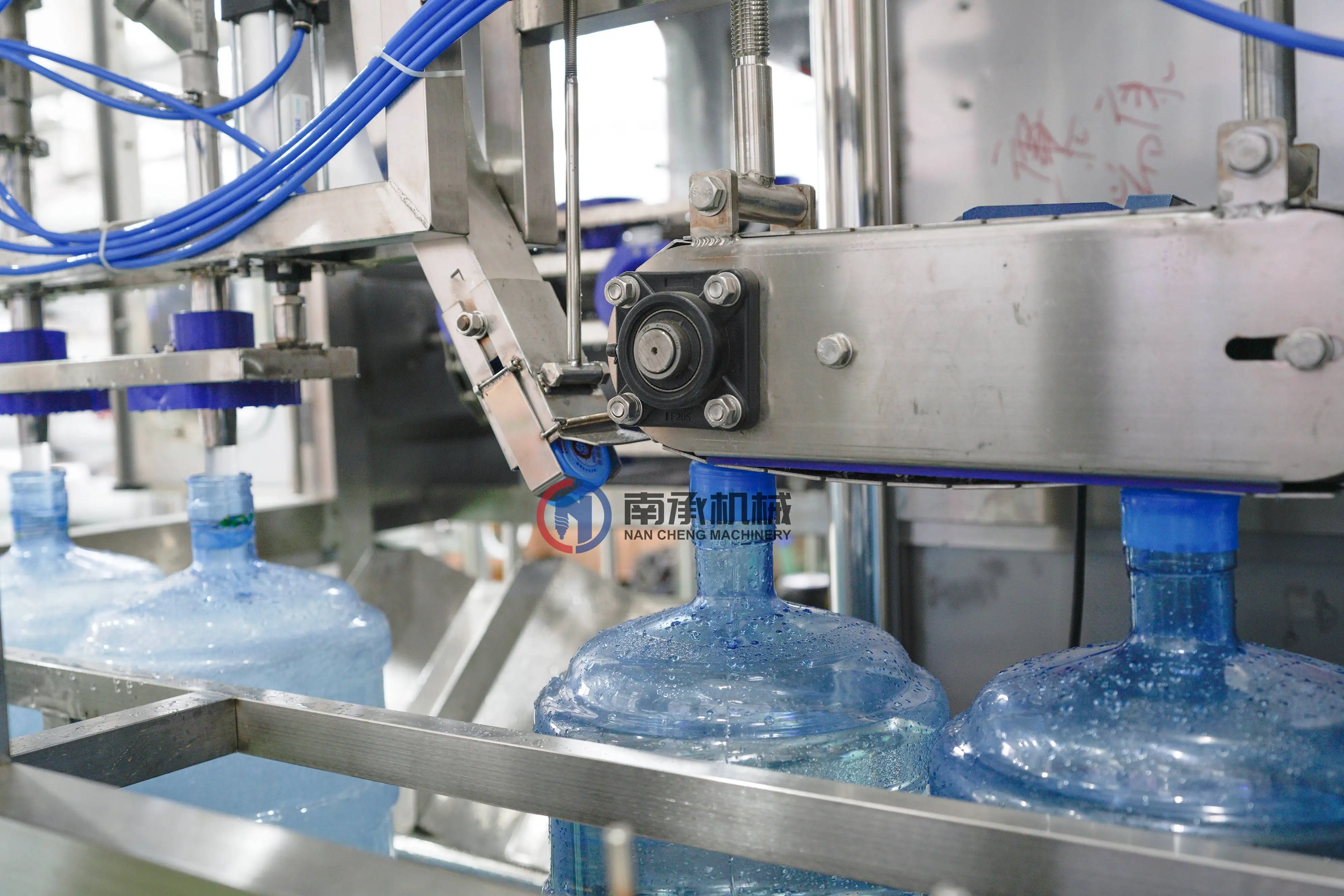

300BPH 5 Gallon Filling Machine

Nancheng’s 5 gallon bottle filling machine is engineered with heavy-duty stainless-steel frames, advanced PLC control, and reliable component brands to ensure sanitation, durability, and consistent production output. Whether you need a medium-capacity or high-capacity 5 gallon water filling machine, we provide a turnkey solution that guarantees efficiency and product quality.

600BPH Automatic 5 Gallon Water Production Line

Nancheng 5 Gallon Filling Machine is designed for fully automatic 5-gallon barrel washing, filling, and capping in water plants. It is widely used in producing 18.9L / 20L / 5-gallon bottled drinking water, suitable for 150–1200BPH production capacity.

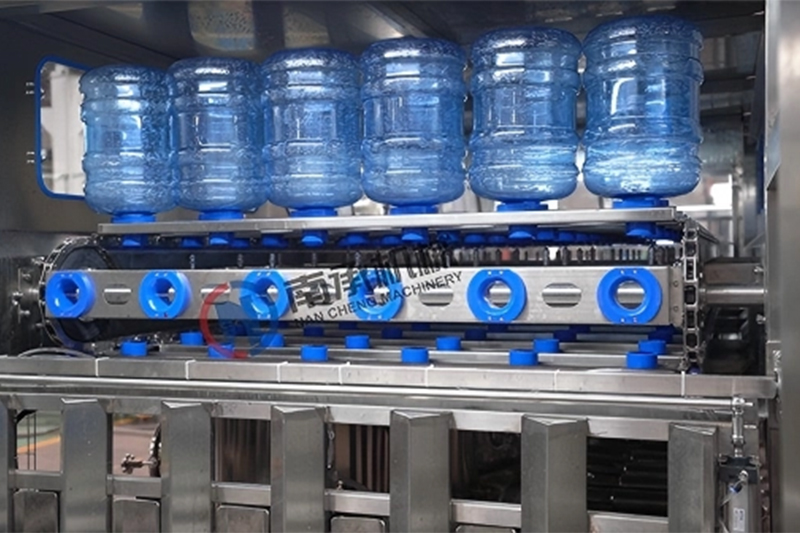

1200BPH Automatic 5 Gallon Water Filling Machine

Nancheng Machinery provides a complete range of automatic 5 gallon water filling machines, designed for 3–5 gallon barrels, 20L bottles, and gallon jugs. Our system integrates barrel washing, inner–outer brushing, disinfecting, pure water rinsing, filling, capping, leak-checking, and conveying to form a fully automatic and hygienic gallon water bottling line.

Technical Specifications: Finding Your Perfect Match

To help you select the right 18.9L bottling equipment, refer to our standardized model comparison:

Type	NC-150	NC-300	NC-450	NC-600	NC-900	NC-1200
Filling heads	1	2	3	4	6	8
Filling volume(L)	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)270*490	270*490	270*490	270*490	270*490	270*490	270*490
Production capacity(b/h)	150	300	450	600	900	1200
Gas pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas consumption(L/min)	0.37	0.6	0.8	1	1.5	1.8
Motor power(KW)7.5	1.38	3.8	3.8	7.5	9.75	13.5
Rated voltage(V)	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Weight	680kg	1500	2100	3000	3500	4500

Request a Quote Today

Key Features of 5 Gallon Water Filling Machines

Choosing the right carbonated beverage filling machine is critical to maintaining carbonation levels, filling accuracy, and product quality.

At Nancheng Machinery, our carbonated beverage filling solutions are engineered to meet international standards and the demanding requirements of modern soft drink and sparkling water plants.

Fully Automatic System

Combines internal bottle washing, filling, and capping into one integrated machine, reducing labor cost and improving production efficiency. The automated process ensures smooth operation and consistent output for large-capacity water production.

High Hygiene & Food Grade Design

Constructed with food-grade stainless steel (SUS304/316) and equipped with automatic rinsing and sterilization functions. The system meets strict hygiene standards, ensuring safe and clean drinking water for every bottle.

Stable Performance & Low Maintenance

Uses high-quality components and an advanced control system to ensure reliable, long-term operation. The machine is designed for easy maintenance, minimizing downtime and reducing overall operating costs.

Talk With Our Technical Specialist

Complete 5 Gallon Water Prodution Line

For turnkey projects, we provide a complete 5 gallon water filling machine line from start to finish, designed for efficient and hygienic production of large-capacity bottled water.

A 5 gallon water production line includes:

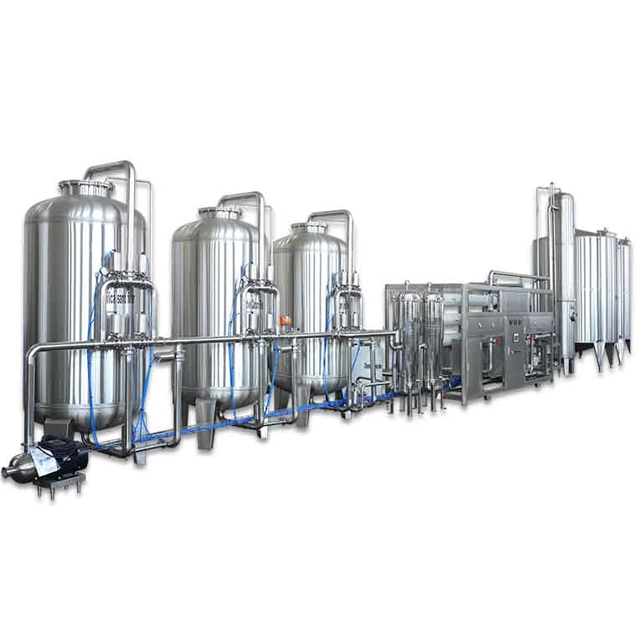

Water treatment system (RO / UF system)

5 Gallon bottle blowing machine
Bottle decapping and external washing machine
Internal bottle washing, filling, and capping system (3-in-1 machine)
Cap washing and sterilizing unit
Bottle conveying system
Automatic labeling and packing system

This fully integrated solution ensures high production efficiency, stable operation, and consistent water quality, making it ideal for commercial bottled water plants.

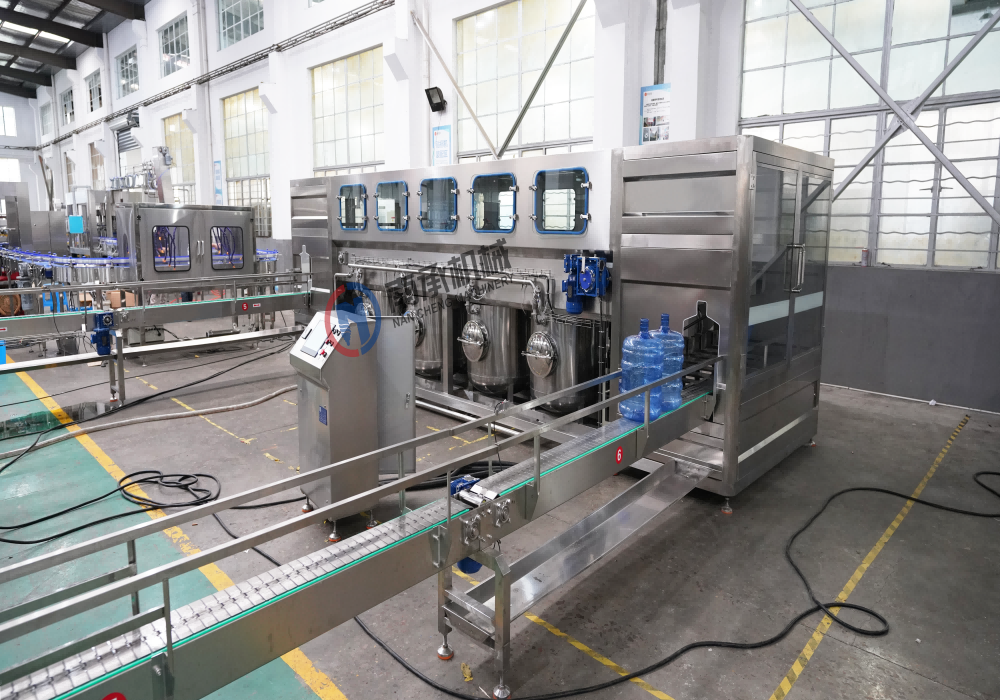

Conveyor System

The conveyor system connects all machines for smooth and continuous production.

Automatic bottle transfer between processes
Stable and low-noise operation
Custom layout design based on factory space

Ensures efficient workflow and reduced manual handling.

Send Us Your Inquiry Today

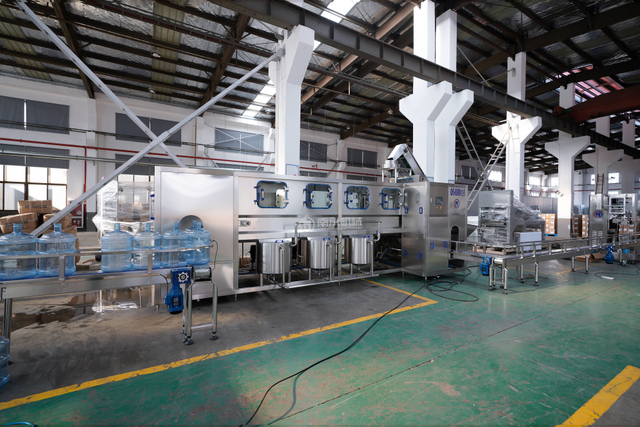

Why Choose Nancheng Machinery as Your 5 Gallon Water Filling Machine Manufacturer

Turnkey Project Solutions

We provide complete turnkey solutions including water treatment, 5 gallon washing filling capping systems, and packaging equipment, helping you build a fully integrated and efficient water production line from start to finish.
High-Quality Components

Our machines use reliable components such as Siemens PLC, Schneider electrical parts, and CNP pumps, ensuring stable performance, long service life, and hygienic operation for drinking water production.
Custom Design for Your Factory

As an experienced manufacturer and supplier, we offer customized layout design, flexible capacity options, and support for different bottle types, ensuring the machine perfectly fits your factory and production needs.
Competitive Factory Price

We supply directly from our factory, offering cost-effective solutions with no middlemen, making it easier for you to get a high-quality 5 gallon water filling machine for sale at the best value.
Strong After-Sales Support

We provide installation, commissioning, remote technical support, and spare parts supply to ensure your production line runs smoothly and efficiently in the long term.

Boost Your Business Now

Product Catalog

Name	Size	Downloads	Download
Nancheng Product Catalog.pdf	22.96MB	262	Download

FAQs About 5 Gallon Water Filling Machines

Q What is a 5 gallon water filling machine?

A

A 5 gallon water filling machine is a specialized piece of equipment designed for cleaning, filling, and capping large-capacity water bottles, typically 18.9L or 20L.

It is widely used in bottled water plants for producing purified water, mineral water, and drinking water in reusable gallon bottles.

This type of system is often integrated into a complete 5 gallon water production line, including bottle washing, filling, capping, and conveying systems.
Q What is the production capacity of a 5 gallon water filling machine?

A

Our production capacity of a 5 gallon water filling machine ranges from 150 bottles per hour (BPH) to 2000 BPH.

Small-scale businesses choose semi-automatic machines with lower output, while large-scale water factories prefer fully automatic systems for higher efficiency.

Selecting the right capacity depends on your market demand, budget, and plant layout.
Q What is the price of a 5 gallon water filling machine?

A

The price of a 5 gallon water filling machine varies depending on automation level, capacity, and configuration.

Semi-automatic machines may cost between USD 5,000 to USD 20,000, while fully automatic 5 gallon water bottling lines can range from USD 30,000 to USD 150,000 or more.

Additional costs such as water treatment systems, blowing machine, installation, and shipping should also be considered in your investment budget.
Q What factors affect the cost of a 5 gallon water production line?

A

Several factors influence the total cost, including machine capacity, level of automation, material quality (SUS304 or SUS316), and brand of electrical components.

Customization requirements, such as bottle size variation or special cap types, can also impact pricing.

Moreover, logistics costs, import duties, and after-sales service support should be included in the total project estimation.
Q How to choose the right 5 gallon water filling machine manufacturer?

A

Choosing a reliable manufacturer is crucial for ensuring long-term performance and stability of your production line.

Look for suppliers with proven experience in water bottling equipment, strong technical support, and successful installation cases worldwide.

It is also important to assess their ability to provide turnkey solutions including installation, training, and after-sales service.
Q What are the maintenance requirements for a 5 gallon filling machine?

A

Regular maintenance is essential to ensure stable operation and extend machine lifespan.

This includes routine cleaning, lubrication of moving parts, inspection of valves and pumps, and replacement of worn components.
Q What are the advantages of investing in a 5 gallon water filling machine?

A

Investing in a 5 gallon water filling machine offers several benefits, including high production efficiency, consistent filling accuracy, and improved hygiene.

It enables businesses to meet growing demand for bulk drinking water while reducing labor costs and operational errors.

With a well-designed gallon water production line, investors can achieve faster ROI and build a competitive advantage in the bottled water market.
Q Do you provide on-site installation and training?

A

Yes. We offer global technical support. Our engineers can visit your site for installation, commissioning, and staff training.
Q What is the lifespan of the 5 gallon filling equipment?

A

With proper maintenance (lubrication and seal replacement), our machines have a service life of 10 to 15 years.

Get a Free Quote for Your 5 Gallon Water Filling Machine Today

Ready to start your 5 gallon water production business? Nancheng Machinery offers reliable 5 gallon filling machines, competitive price, and full factory solutions.
