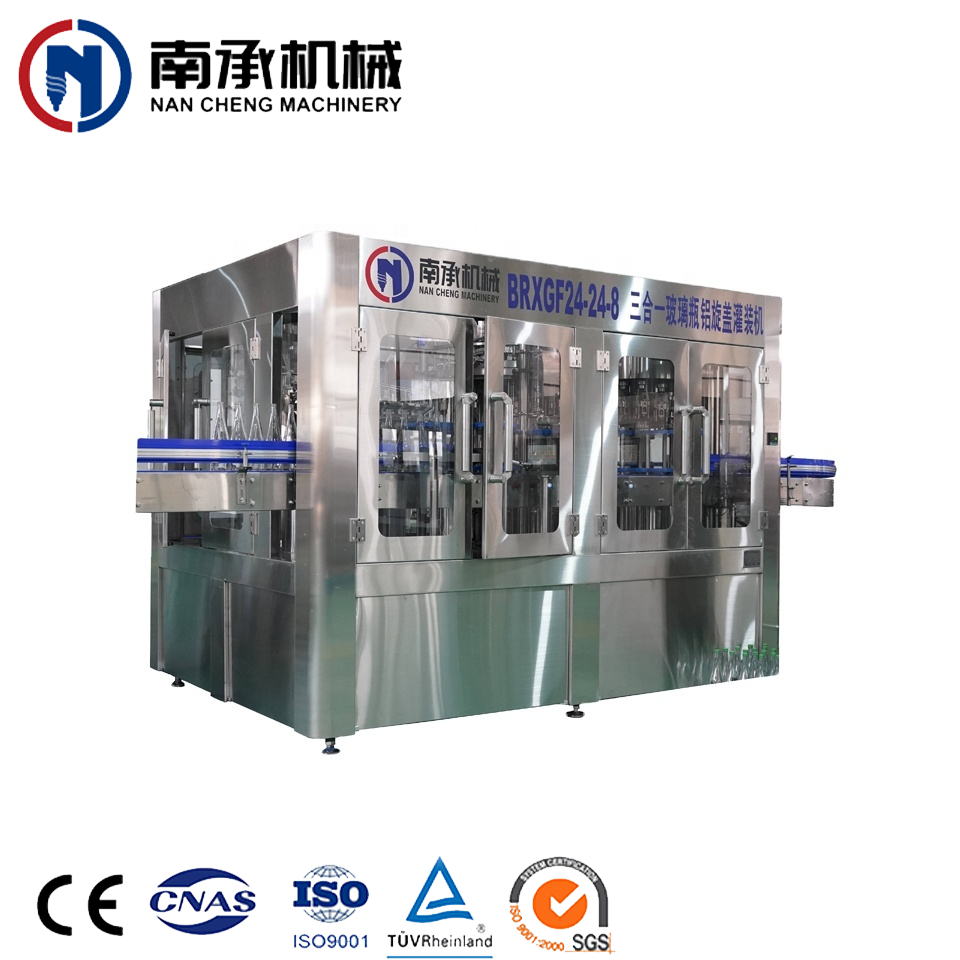

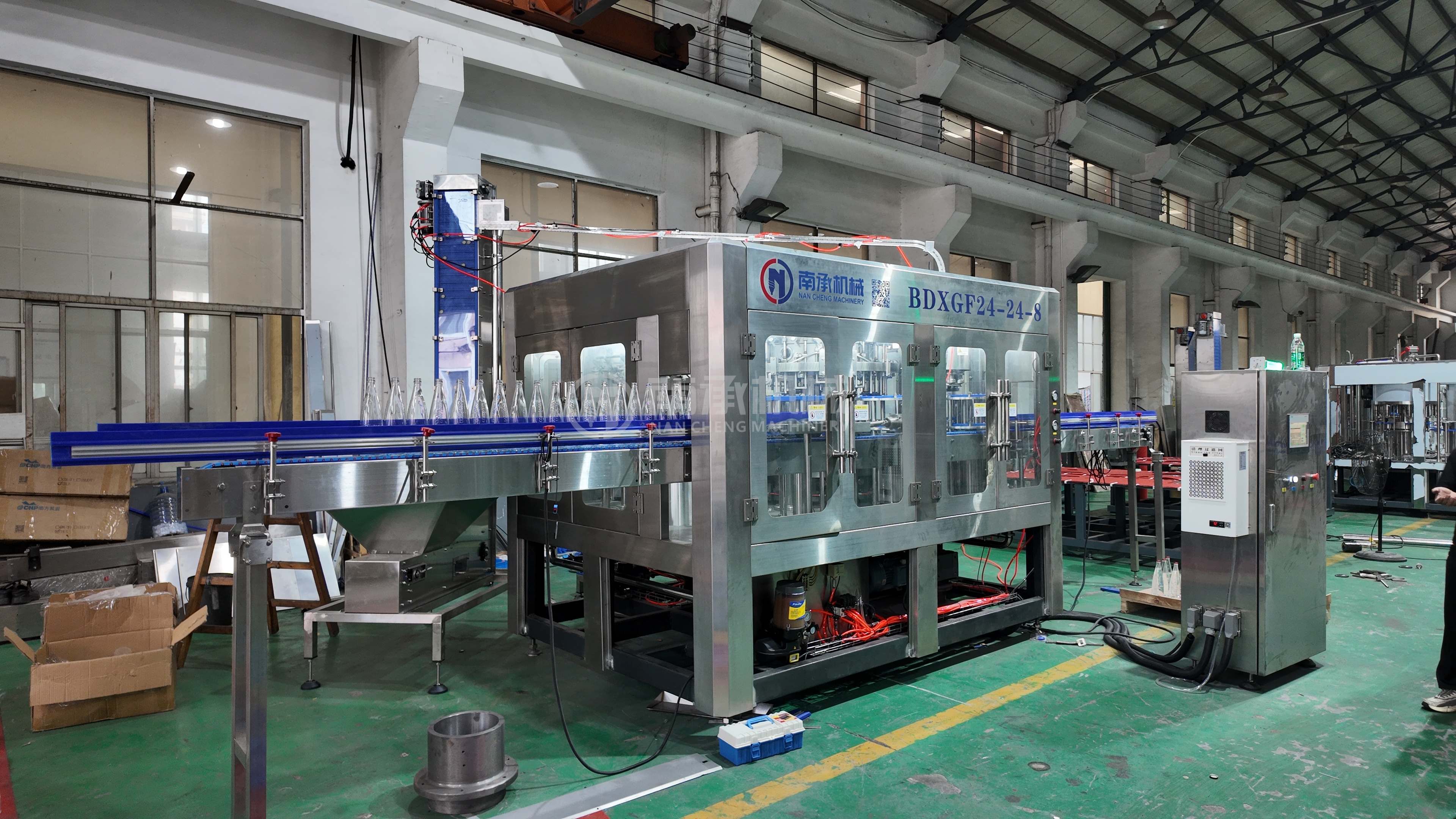

Glass Bottle Carbonated Drink Filling Machine Manufacturer

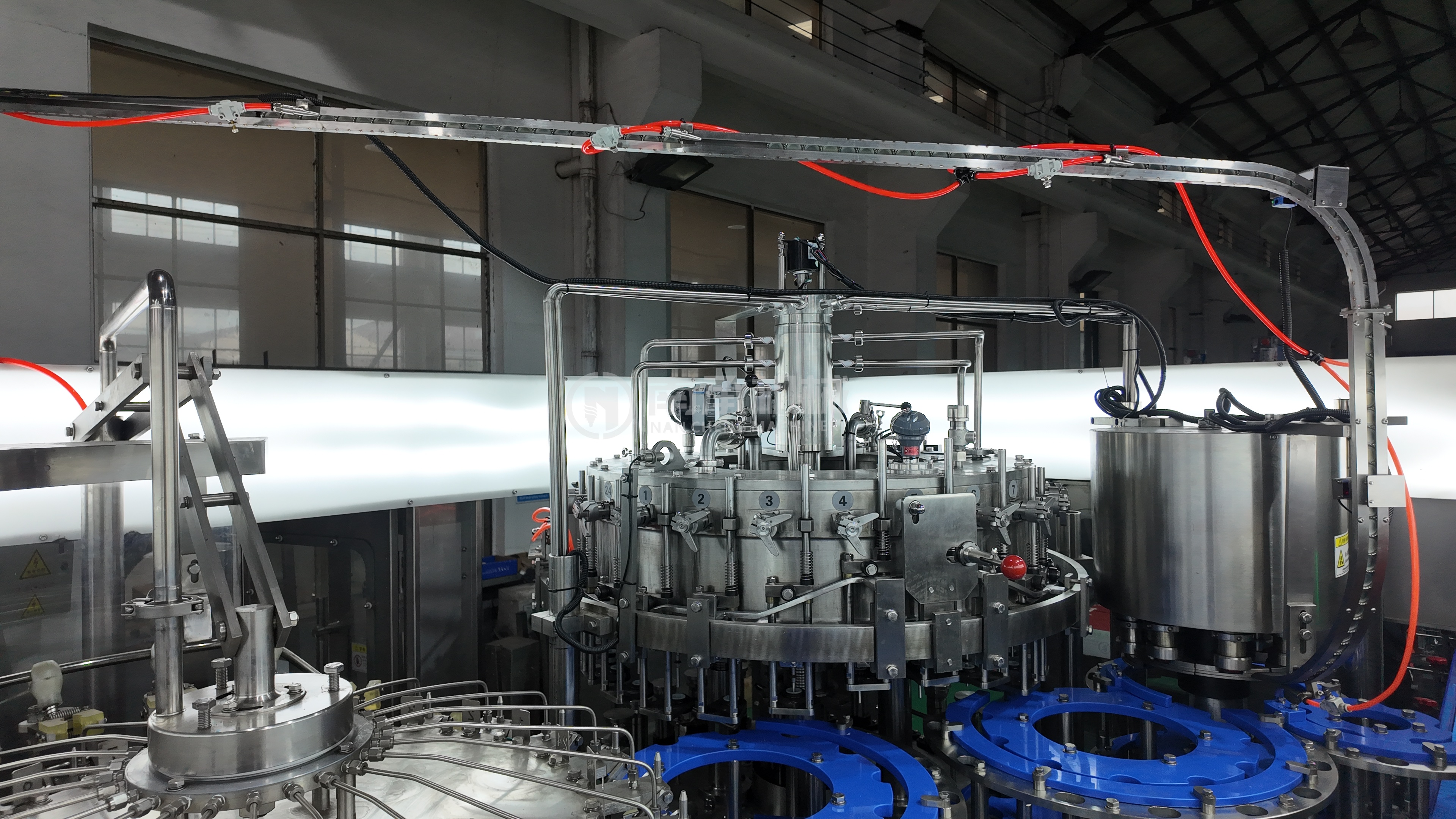

Overview – Glass Bottle Carbonated Drink Filling Machine

Our Glass Bottle Carbonated Drink Filling Machine is designed for carbonated beverages filled into glass bottles, including both returnable glass bottles (RGB) and non-returnable glass bottles.

The machine adopts proven isobaric (constant-pressure) filling technology, ensuring stable CO₂ retention, reduced foaming, and consistent filling levels during production.

Compared with PET bottles, glass bottles are heavier and more fragile. To ensure safe operation, this machine uses a bottom-supported bottle handling structure, reinforced star wheels, and stable mechanical transmission.

This equipment is widely used for carbonated soft drinks, sparkling water, and other carbonated beverages in medium and large-scale bottling plants.

Glass Bottle Carbonated Beverage Filling Machine Applications

This Glass Bottle Carbonated Drink Filling Machine is designed for a wide range of carbonated beverages packaged in glass bottles.

With stable isobaric filling performance and reliable glass bottle handling, it is suitable for both returnable and non-returnable glass bottle CSD production lines.

Suitable Applications for Glass Bottle Carbonated Beverages

Carbonated Soft Drinks (CSD)

Such as cola, lemon soda, orange soda, and other flavored soft drinks commonly produced in glass bottles.

Sparkling Water

Including plain and flavored sparkling water, where stable CO₂ retention and consistent fill levels are essential.

Flavored Carbonated Beverages

Fruit-flavored carbonated drinks, tonic water, and lightly carbonated beverages.

Traditional & Regional Carbonated Drinks

Locally popular carbonated beverages produced in returnable glass bottles, widely used in Africa, the Middle East, and South America.

Glass Bottle Types Supported

Returnable glass bottles (RGB)

Non-returnable glass bottles

Standard round glass bottles

Customized glass bottle shapes (within specified diameter and height range)

Production Scenarios

Medium to large-scale carbonated beverage factories

Beverage plants upgrading from old glass bottling equipment

New projects requiring stable and reliable glass bottle filling solutions

The final application scope depends on beverage formulation, carbonation level, bottle design, and line configuration.

Key Features of the Glass Bottle Carbonated Filling Machine

3-in-1 Monoblock Design

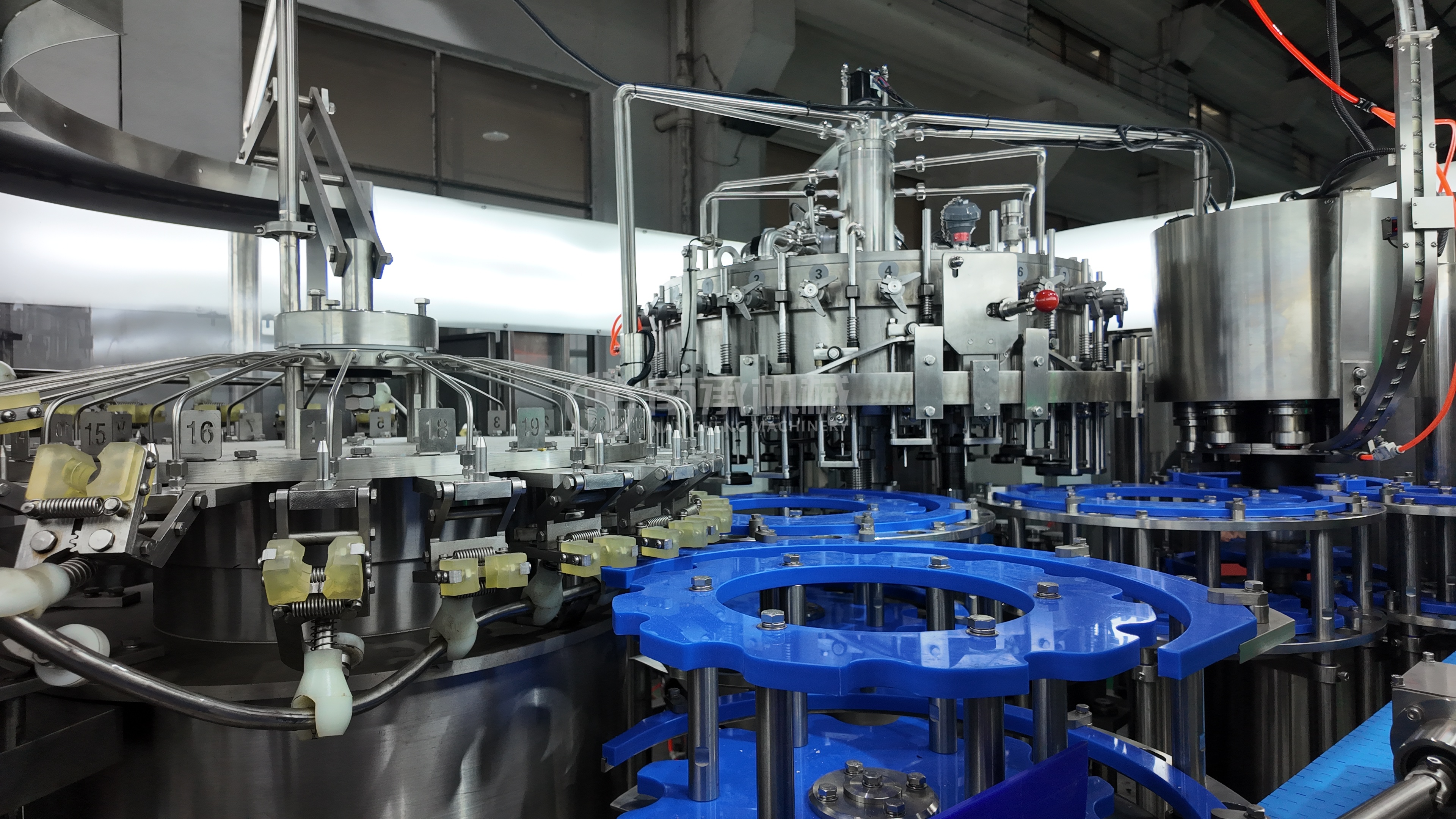

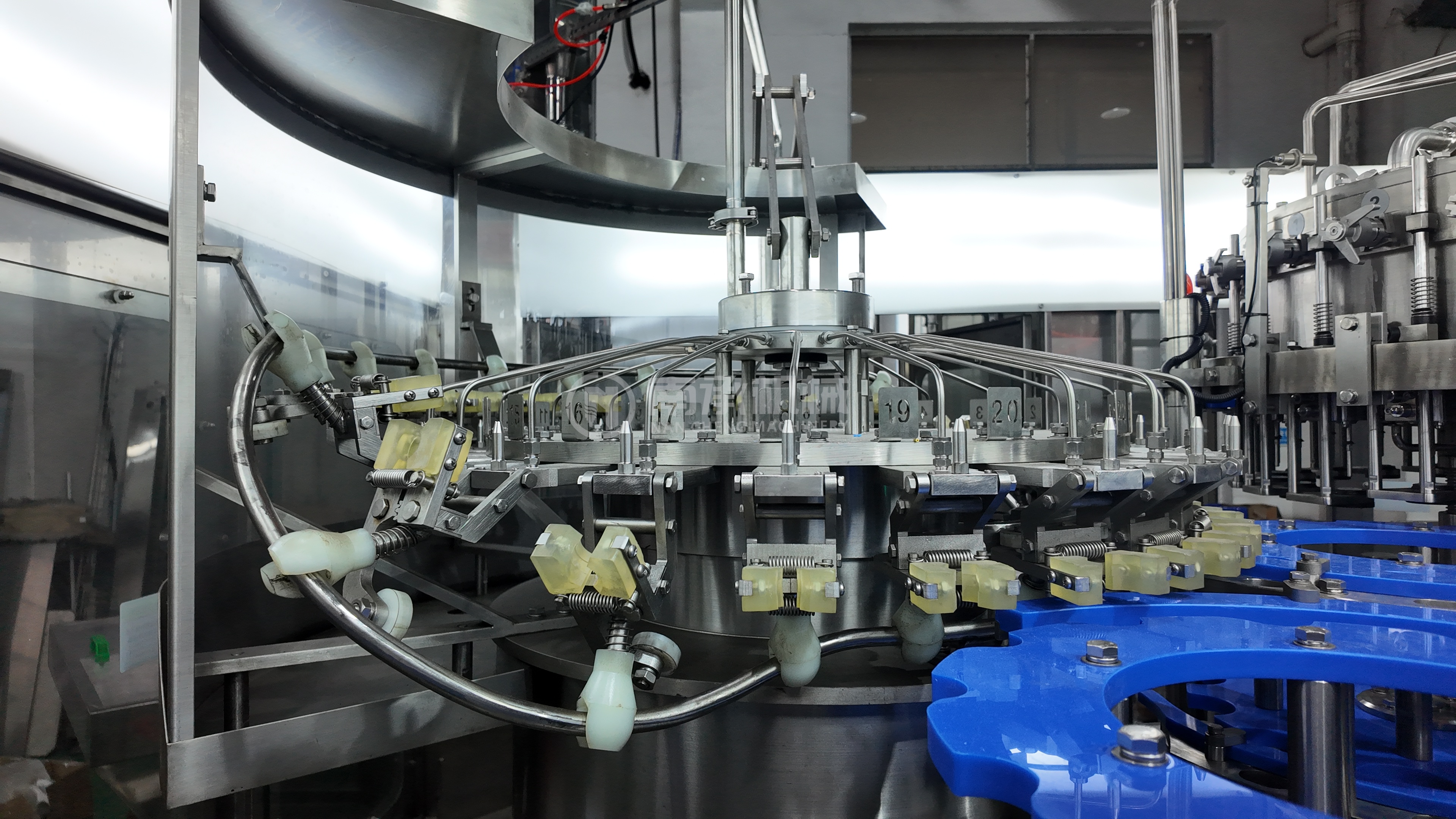

Rinsing, isobaric filling, and capping are integrated into one machine, ensuring a compact layout, stable operation, and reduced contamination risk.

Reliable Isobaric Filling Technology

Counter-pressure filling maintains balanced pressure between the filling tank and the glass bottle, reducing foaming, minimizing CO₂ loss, and ensuring consistent fill levels.

Bottom-Supported Glass Bottle Handling System

Glass bottles are transported and positioned with bottom support, providing higher stability and reducing the risk of bottle breakage during filling and capping.

Heavy-Duty Mechanical Structure for Glass Bottles

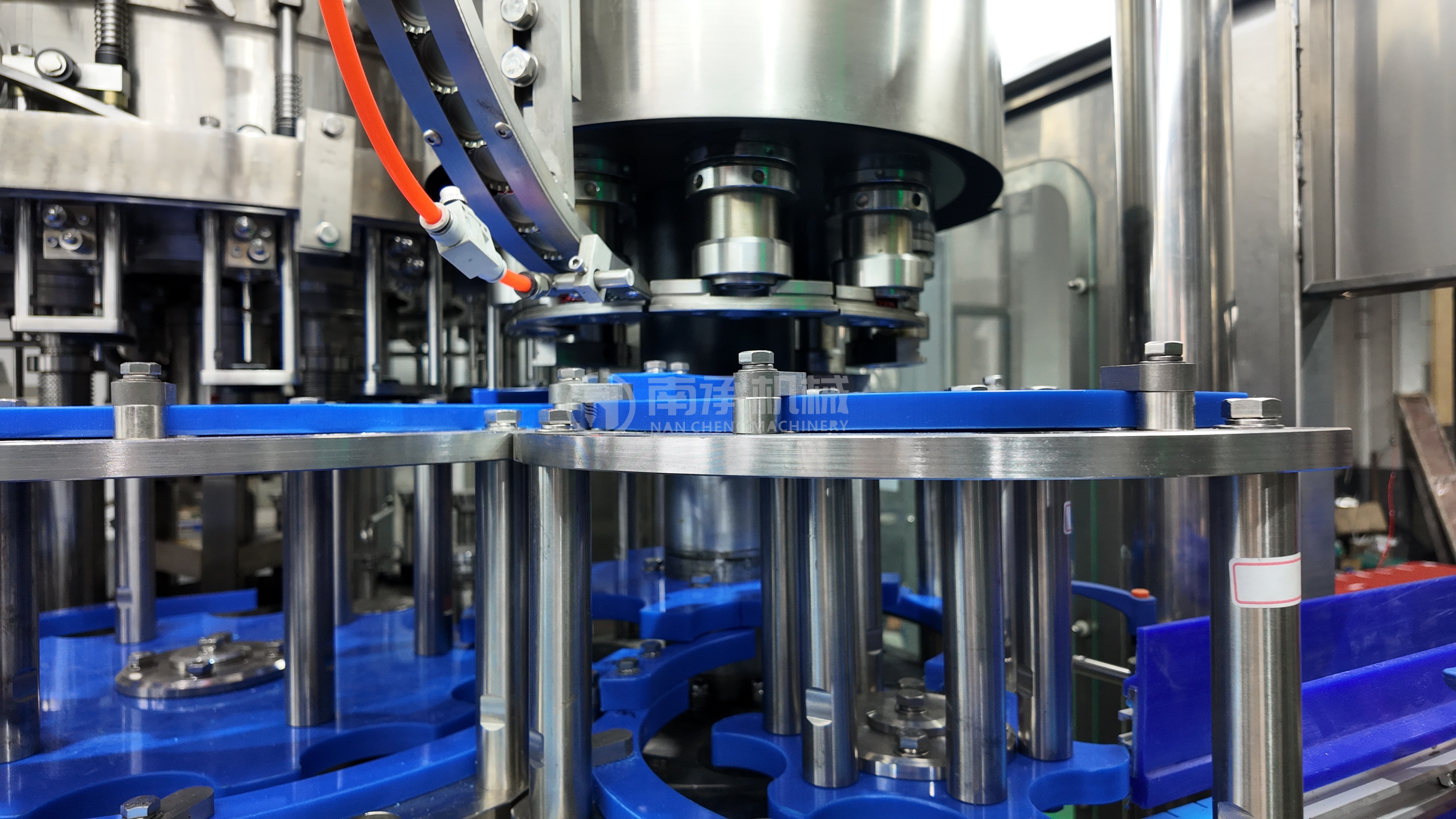

Reinforced star wheels, guides, and transmission components are designed to handle the heavier weight and rigidity of glass bottles in continuous production.

High-Quality Industrial Components

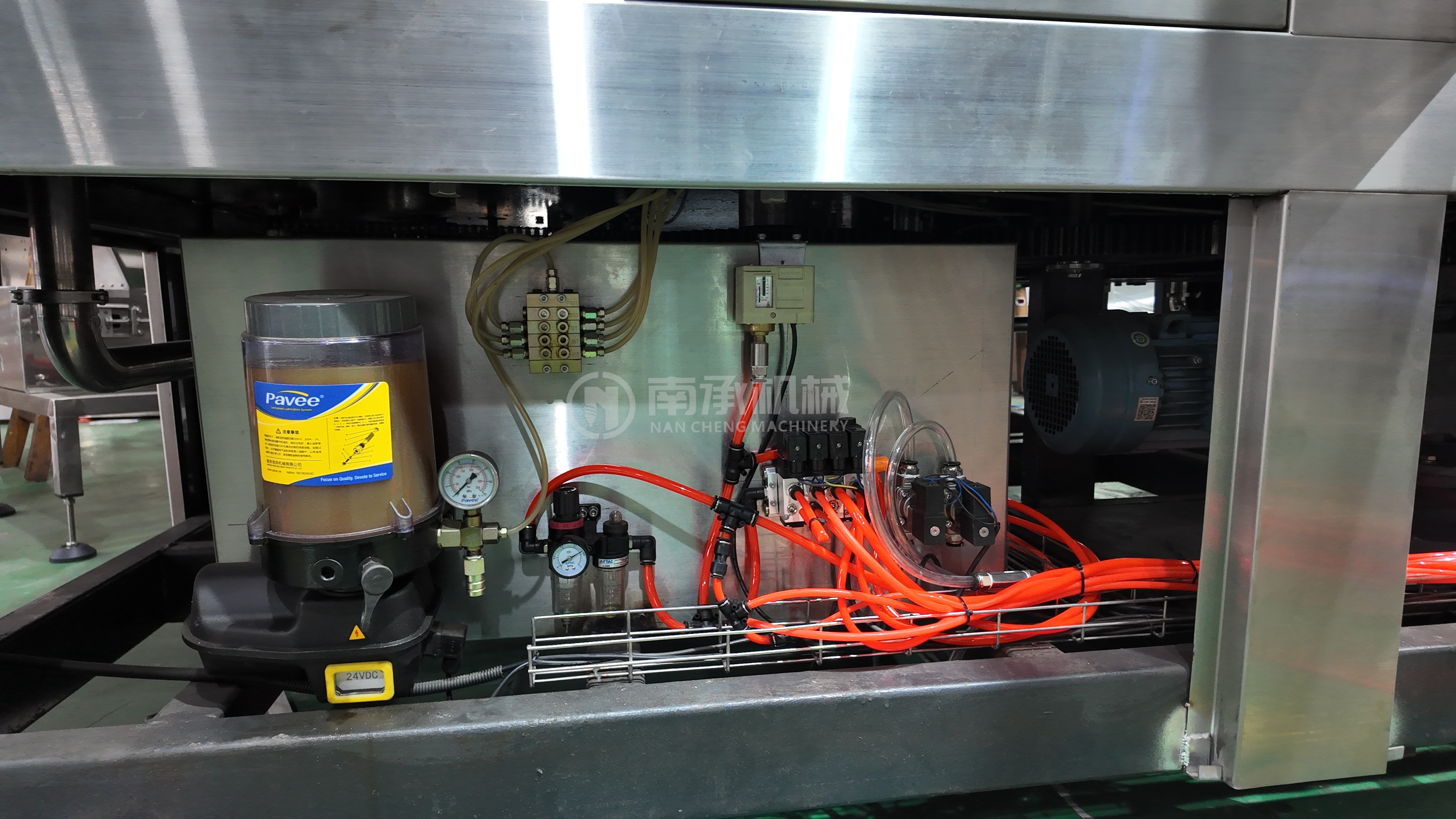

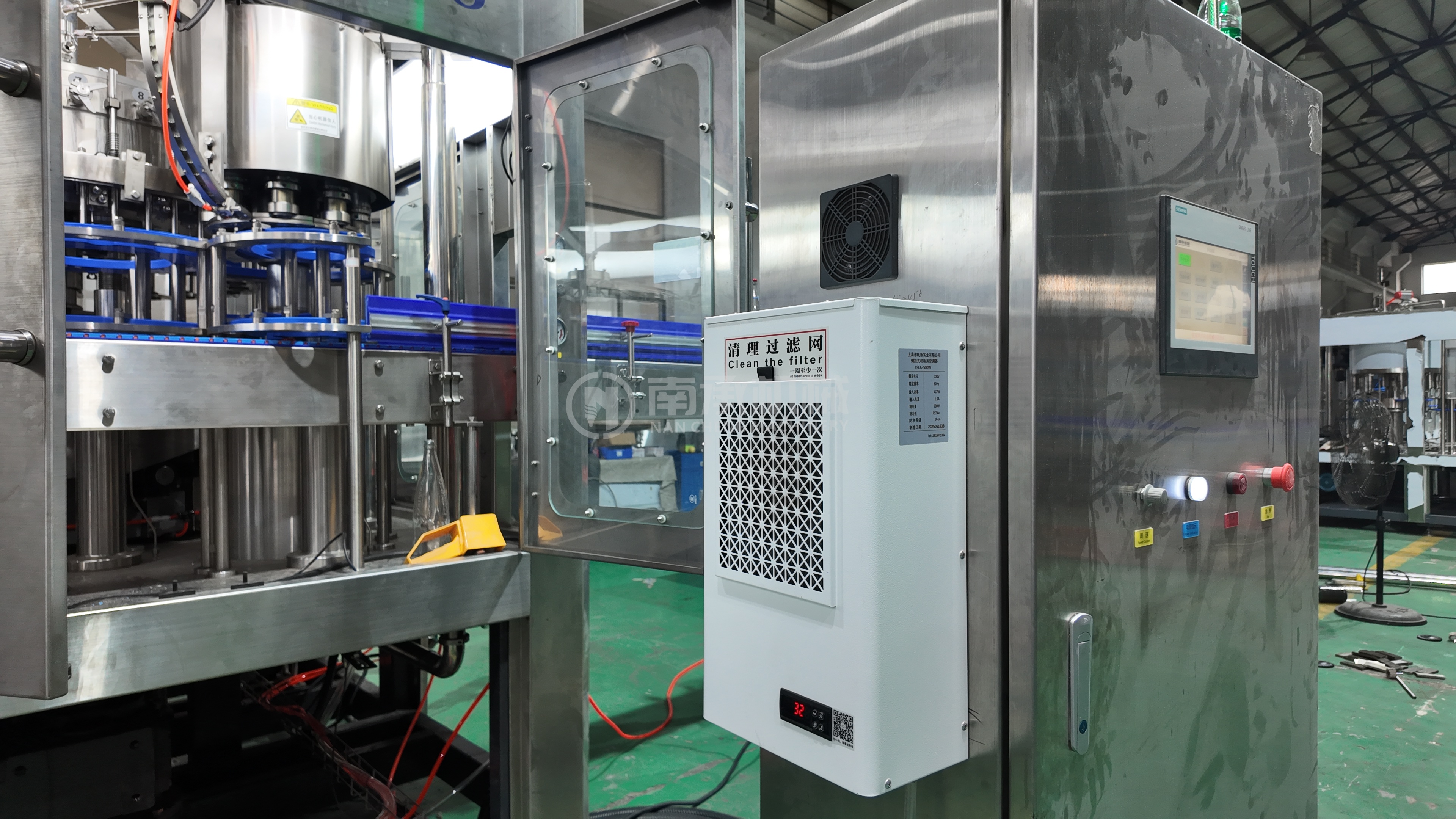

Equipped with Siemens PLC, Mitsubishi inverters, and SMC pneumatic components to ensure stable, reliable 24/7 operation.

Food-Grade Stainless Steel Construction

All liquid-contact parts are made of SUS304 or optional SUS316L stainless steel, fully compliant with international beverage hygiene standards.

Technical Parameters – Glass Bottle Carbonated Drink Filling Machine

Final configuration is customized according to bottle design, cap type, carbonation level, and production requirements.

PET vs Glass vs Can – Carbonated Beverage Filling Comparison

Production Capacity Options & Models for Glass Bottle Cabonated Beverage

The BXGF series offers multiple configurations to match different production requirements.

Actual output depends on bottle size, beverage characteristics, and carbonation level.

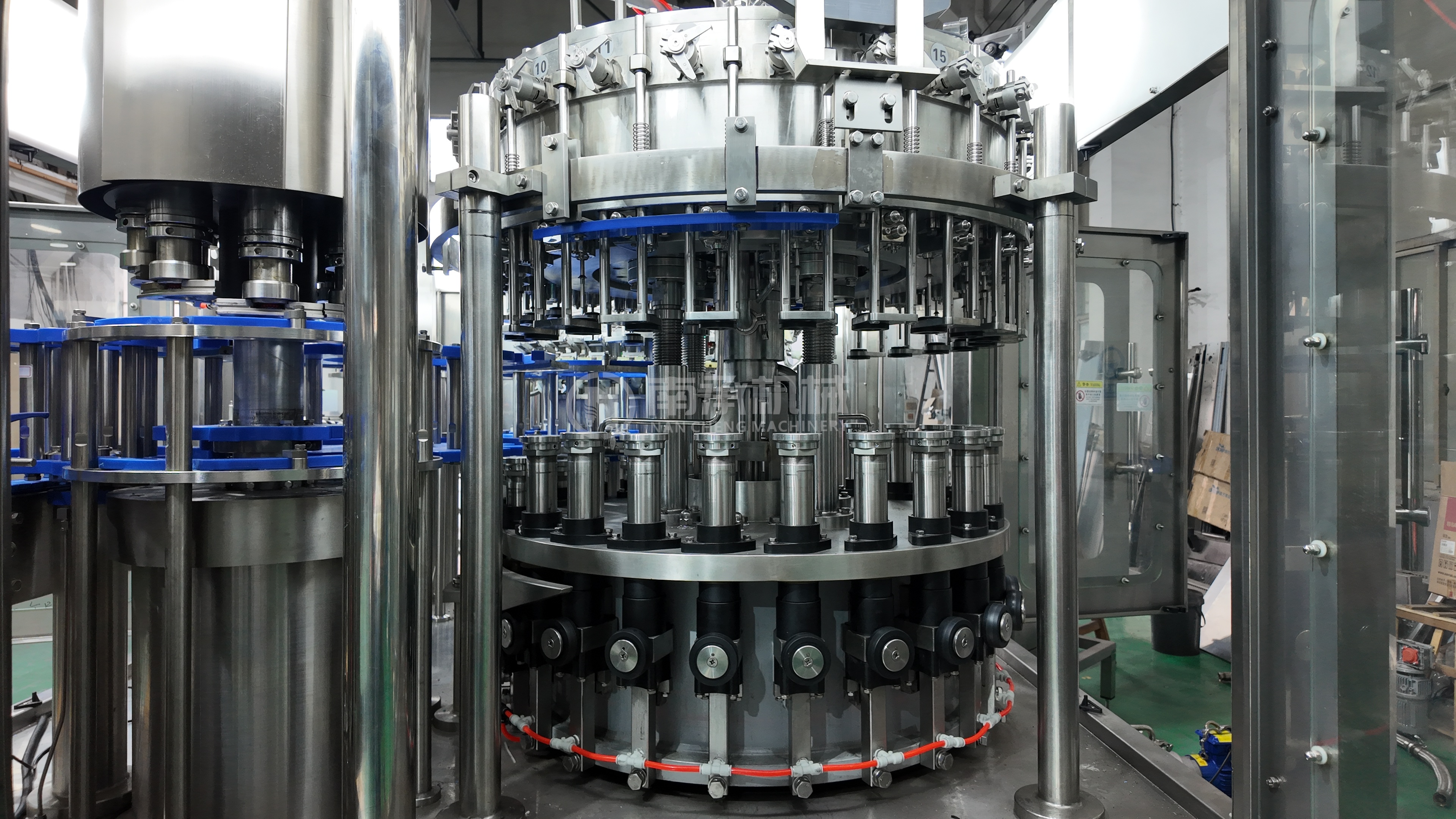

Isobaric Filling Principle for Glass Bottle Carbonated Beverages

The machine adopts isobaric (counter-pressure) filling, which is essential for filling carbonated beverages into glass bottles safely and consistently.

Working Process

1. The glass bottle is positioned and supported at the base, then sealed against the filling valve

2. CO₂ gas is injected to equalize the pressure between the bottle and the filling tank

3. Carbonated liquid flows smoothly into the glass bottle under balanced pressure

4. Filling stops automatically when the preset liquid level is reached

5. Internal pressure is released gradually to prevent foaming or splash-back

6. The bottle is immediately capped to retain carbonation and product quality

This Filling Process Ensures

• Stable CO₂ retention

• Reduced foaming during filling

• Consistent and accurate fill levels

• Safe operation for glass bottle carbonated beverage production

Why Isobaric Filling Is Essential for Glass Bottle Carbonated Beverage Bottling

Glass bottles are heavier and more rigid than PET bottles, but they require stable pressure balance during filling to ensure product quality and safe operation.

An isobaric glass bottle carbonated filling machine ensures:

• Carbonation level is preserved

• Foaming and liquid splashing are minimized

• Consistent fill levels are achieved

• Glass bottle breakage risk is reduced

This makes counter-pressure filling the industry-standard solution for glass bottle carbonated beverage bottling plants, especially for returnable glass bottle (RGB) production lines.

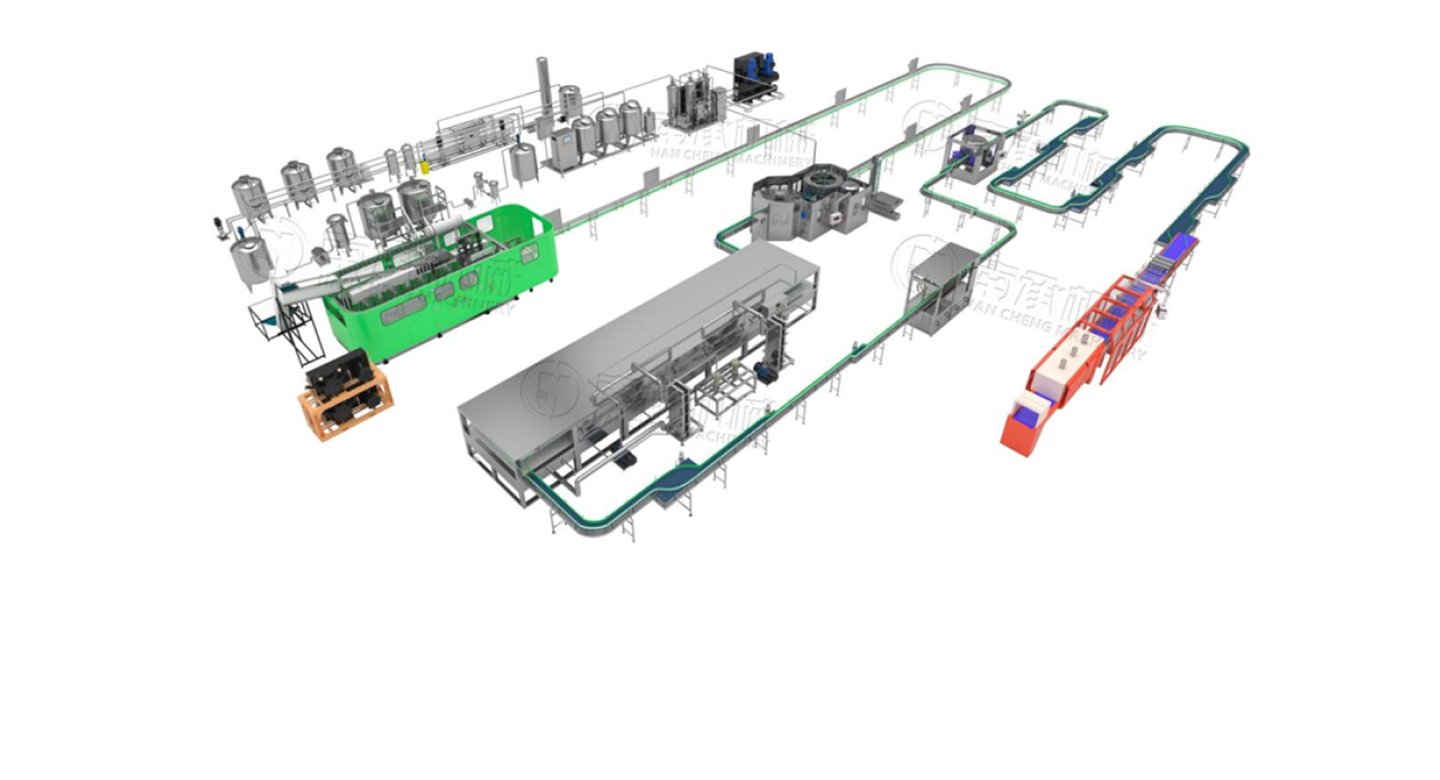

Glass Bottle Carbonated Beverage Production Line

Although this page focuses on the glass bottle carbonated filling machine itself, it serves as the core unit that connects upstream beverage preparation with downstream packaging operations in a complete glass bottle carbonated beverage production line.

A Glass bottle carbonated beverage production line configuration includes:

-- Water treatment system (RO & filtration)

-- CSD mixing and carbonation system

-- Glass bottle depalletizer

-- Bottle washing / rinsing system

-- Isobaric glass bottle carbonated filling machine

-- Capping machine (crown cap / aluminum screw cap)

-- Bottle warmer or dryer

-- Labeling machine (cold glue / self-adhesive)

-- Date coding

-- Shrink wrapping, carton packing, or case packing

-- Palletizer system

The glass bottle carbonated filling machine directly determines carbonation stability, product taste, and overall production efficiency in glass bottle carbonated beverage production.

Operating through an integrated manufacturing facility, Nancheng Machinery covers in-house engineering, precision machining, assembly, testing, and quality control, ensuring full control over product quality and delivery schedules.

Each glass bottle carbonated drink filling machine is fully assembled and tested before delivery to ensure stable performance, hygiene compliance, and long-term reliability, especially under the demanding conditions of glass bottle production.

As a manufacturer-direct supplier, Nancheng Machinery offers flexible customization based on glass bottle type (returnable or non-returnable), production capacity, beverage characteristics, and plant layout requirements.

From standalone glass bottle filling machines to turnkey carbonated beverage production lines, we support customers from project planning and layout design to installation guidance and after-sales service.

Our equipment is supplied to multiple international markets, serving startup beverage brands, regional bottlers, and large-scale industrial plants producing carbonated beverages in glass bottles.
