Can Carbonated Beverage Filling Machine Manufacturer

Can Carbonated Beverage Filling Machine is designed for carbonated beverages packaged in aluminum cans, including standard beverage cans widely used for soda, sparkling water, and other carbonated drinks.The machine adopts proven isobaric (counter-pressure) filling technology, ensuring stable CO₂ retention, low foaming, and consistent fill levels during high-speed can filling operations.

Model:
CGF
Brand:
NANCHENG
Function:
Washing Filling Capping
Material:
SUS304/316
Control:
PLC+ Touch Screen
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Bottles
Driven type:
Electric and pneumatic
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

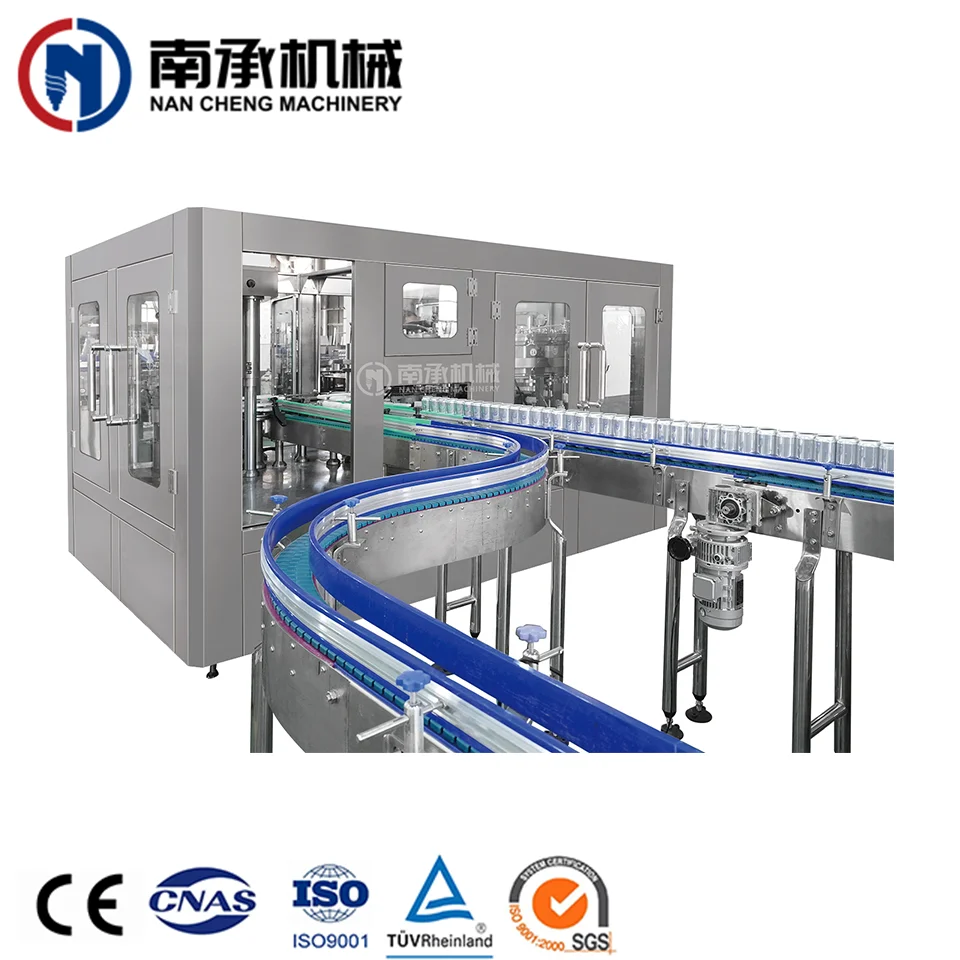

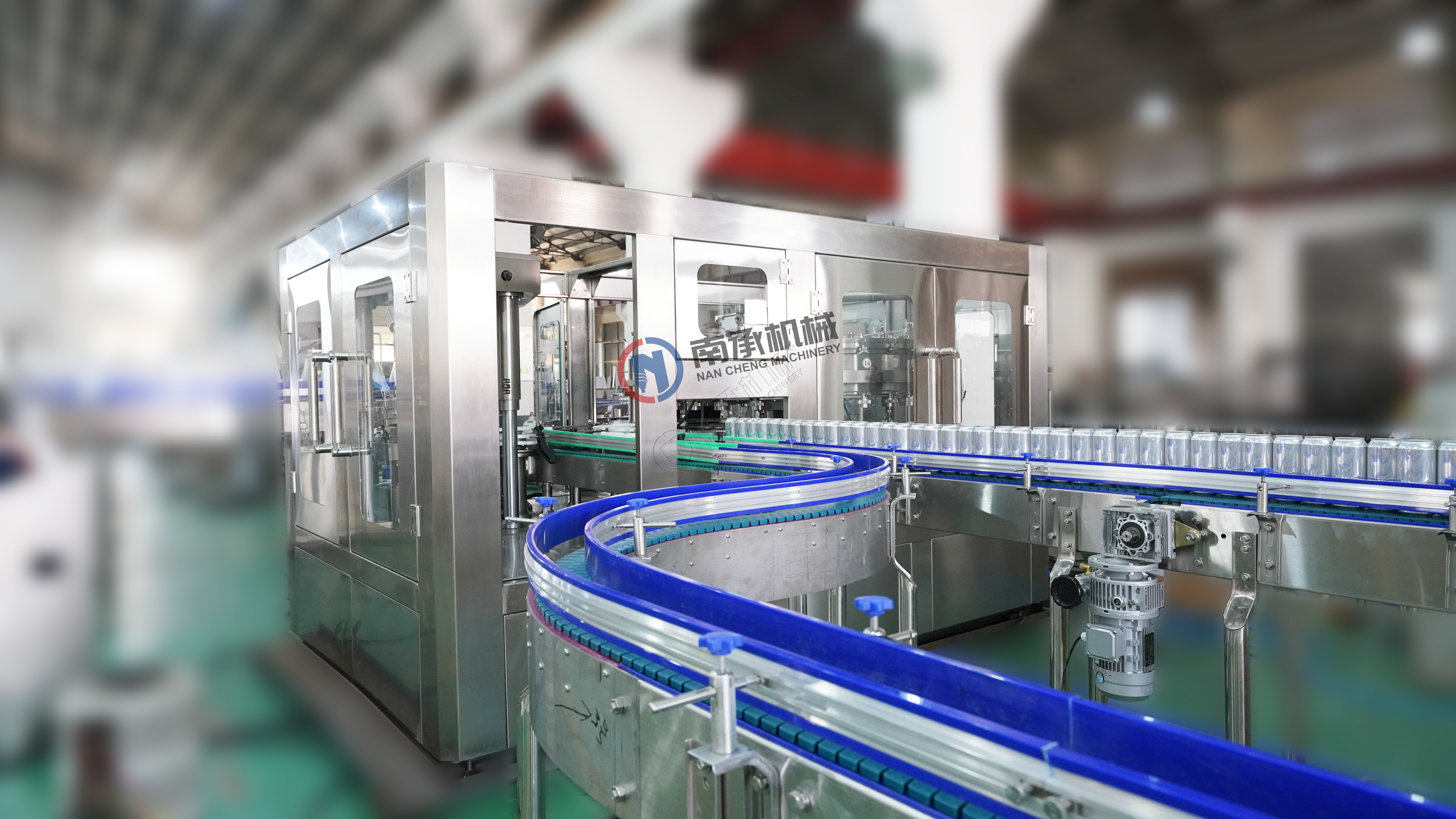

Overview – Can Carbonated Beverage Filling Machine

Our Can Carbonated Beverage Filling Machine is designed for carbonated beverages packaged in aluminum cans, including standard beverage cans widely used for soda, sparkling water, and other carbonated drinks.

The machine adopts proven isobaric (counter-pressure) filling technology, ensuring stable CO₂ retention, low foaming, and consistent fill levels during high-speed can filling operations.

Compared with bottles, aluminum cans are lightweight and thin-walled, requiring precise handling and stable filling control. This machine uses dedicated can handling and transfer systems, combined with reliable mechanical transmission, to ensure smooth, continuous, and efficient production.

This equipment is widely used in beverage factories, breweries, and canning lines requiring high output and stable carbonated beverage filling performance.

Can Carbonated Beverage Filling Machine Applications

This Can Carbonated Beverage Filling Machine is suitable for a wide range of carbonated beverages packaged in aluminum cans.

With stable isobaric filling performance and reliable can handling, it is ideal for medium to high-speed can carbonated beverage production lines.

Suitable Applications for Can Carbonated Beverages

Carbonated Soft Drinks (CSD)

Such as cola, lemon soda, orange soda, and other flavored carbonated soft drinks packed in cans.

Sparkling Water

Plain and flavored sparkling water requiring stable CO₂ retention and consistent fill levels.

Flavored Carbonated Beverages

Fruit-flavored carbonated drinks, tonic water, and lightly carbonated beverages.

Carbonated Alcoholic Beverages

Carbonated beer, flavored beer, and other carbonated alcoholic drinks produced in cans.

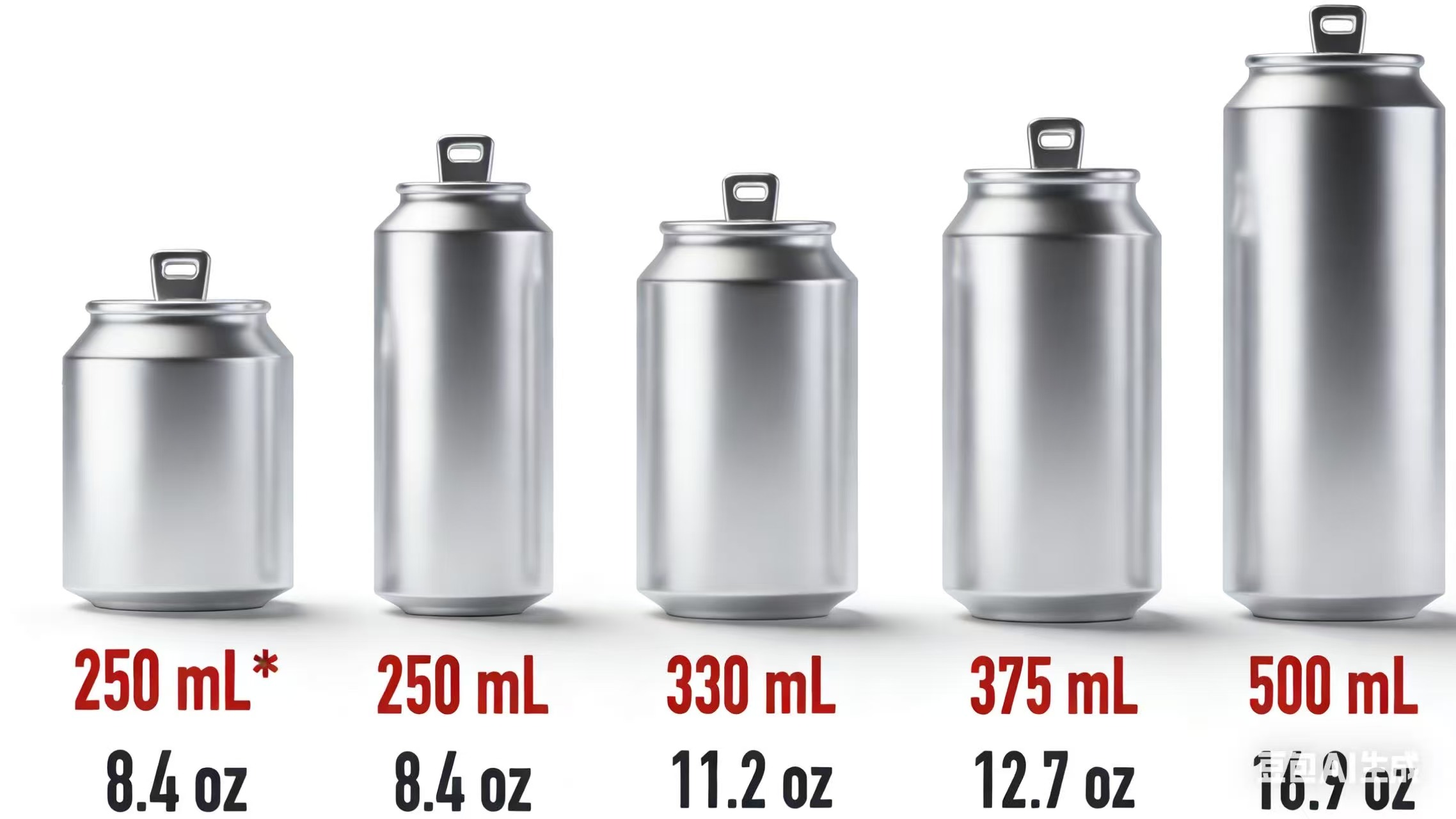

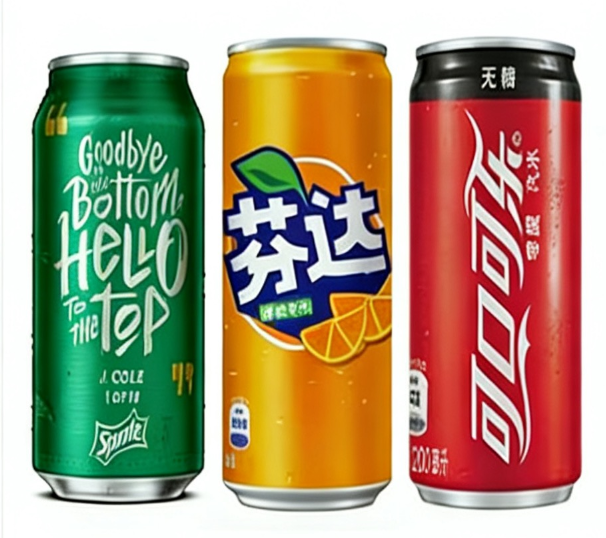

Can Types Supported

Standard aluminum beverage cans
Sleek cans
Slim cans
Customized can formats (within specified diameter and height range)

Production Scenarios

Medium to large-scale beverage canning plants
High-speed soda and sparkling water can production lines
Beverage factories expanding from bottle lines to can packaging
New can carbonated beverage projects requiring efficient and scalable solutions

The final application scope depends on beverage formulation, carbonation level, can design, and line configuration.

Key Features of the Can Carbonated Filling Machine

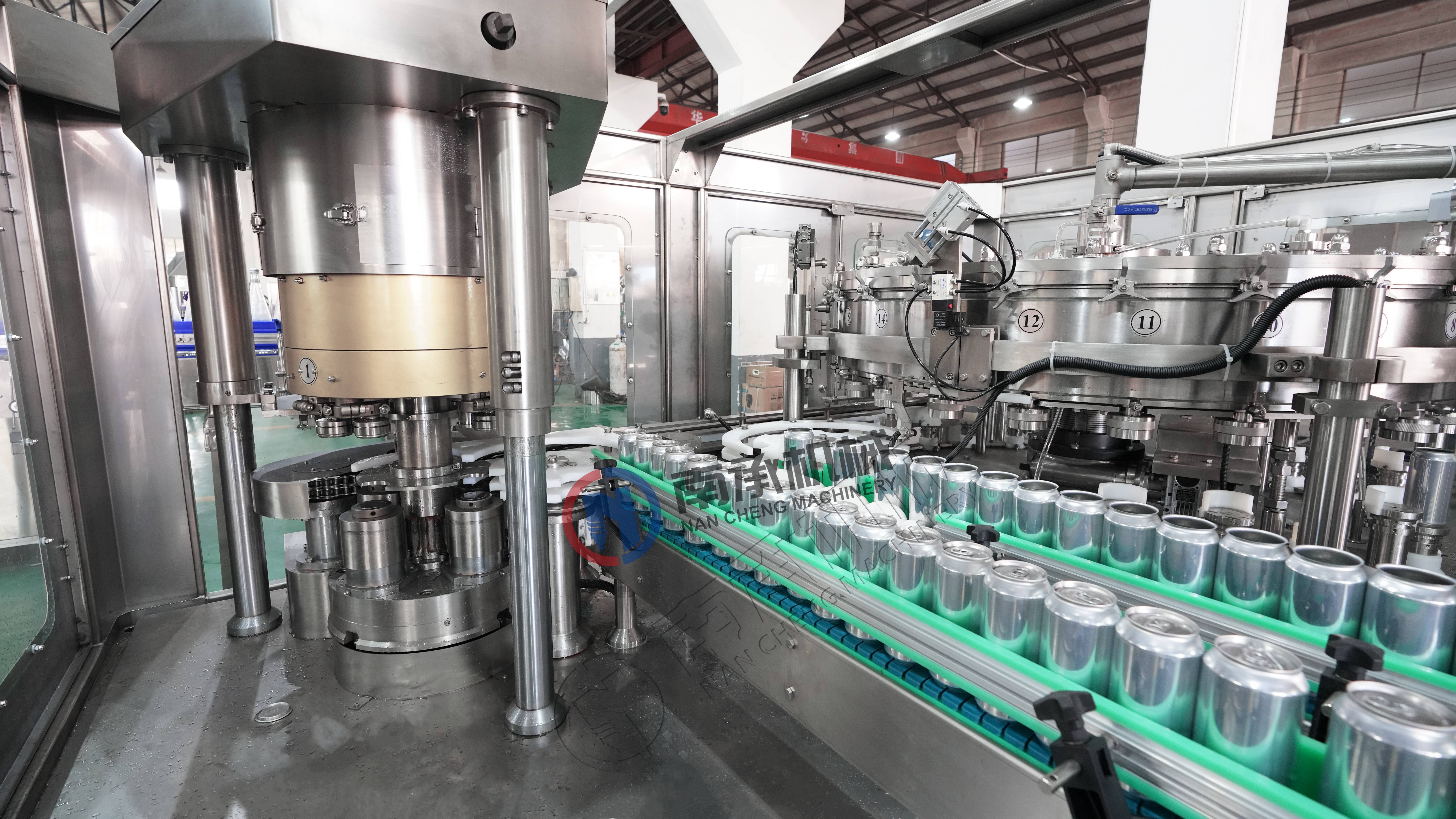

2 in 1 Monoblock Design

Isobaric filling and seaming preparation are integrated into a compact and stable machine structure, reducing footprint and contamination risk.

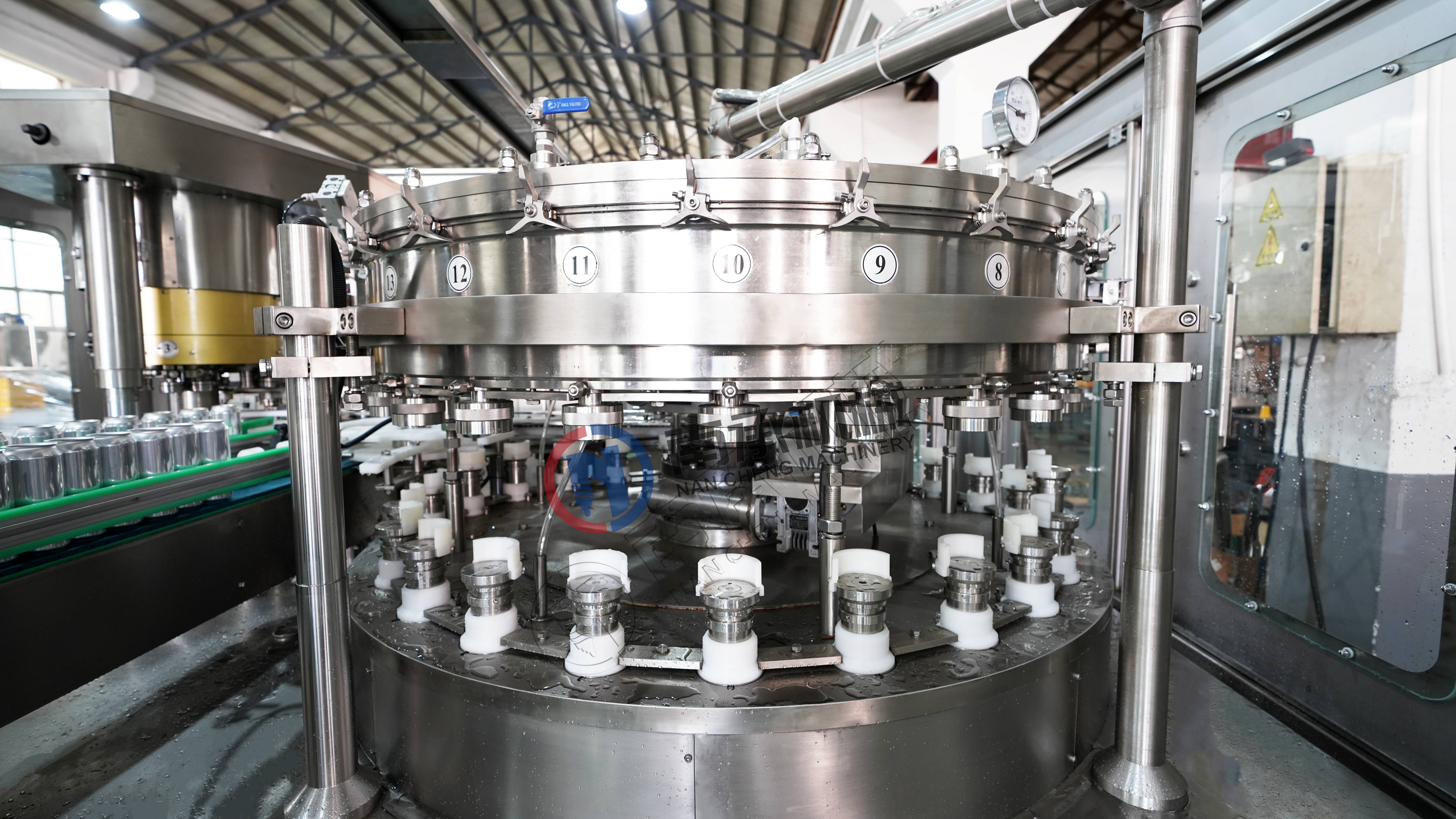

Reliable Isobaric Filling Technology

Counter-pressure filling maintains balanced pressure between the filling tank and the can, reducing foaming, minimizing CO₂ loss, and ensuring uniform fill levels.

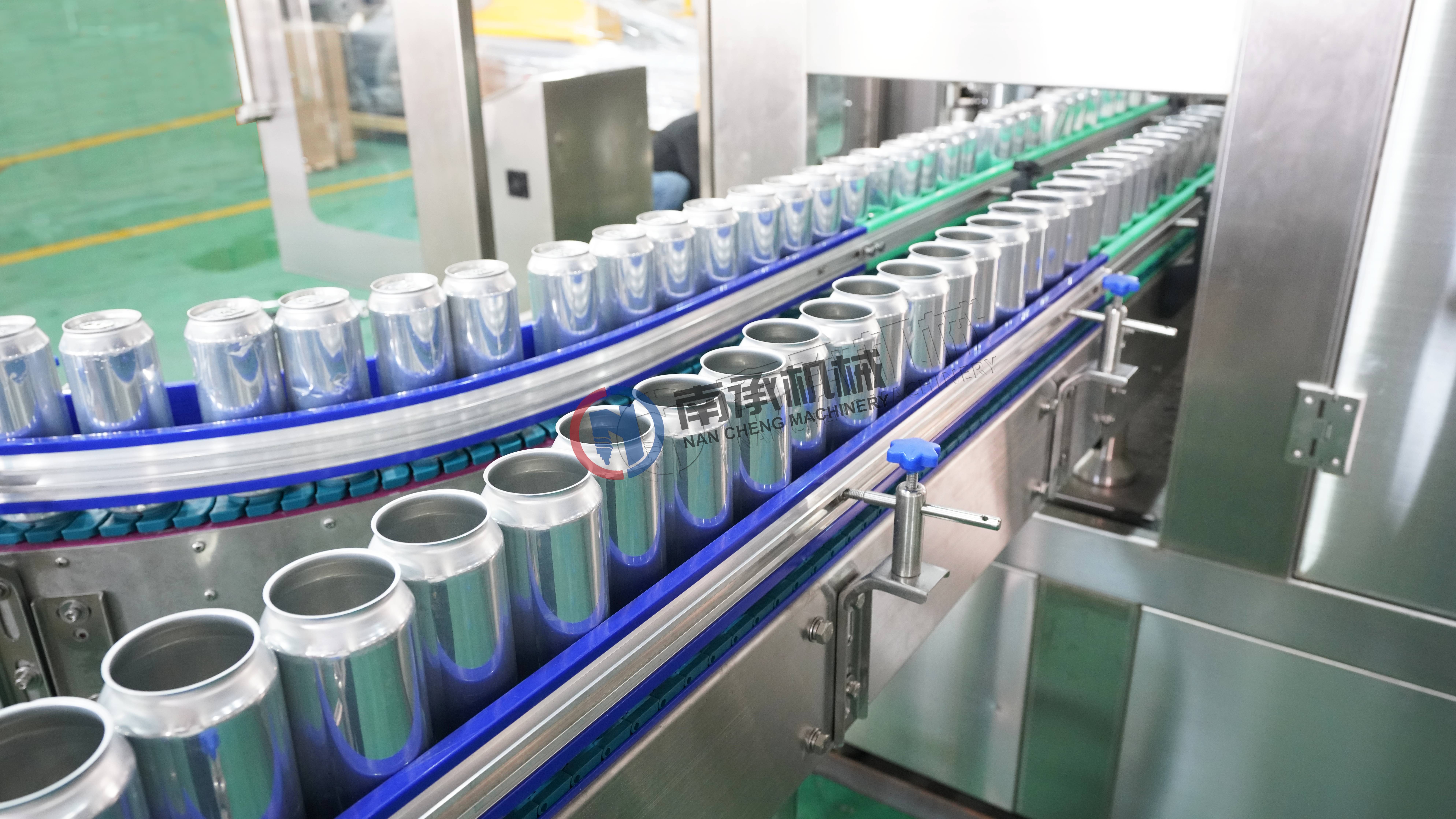

Dedicated Can Handling System

Cans are guided and transferred through precision-engineered guides and conveyors, ensuring smooth movement and preventing deformation of thin-walled cans.

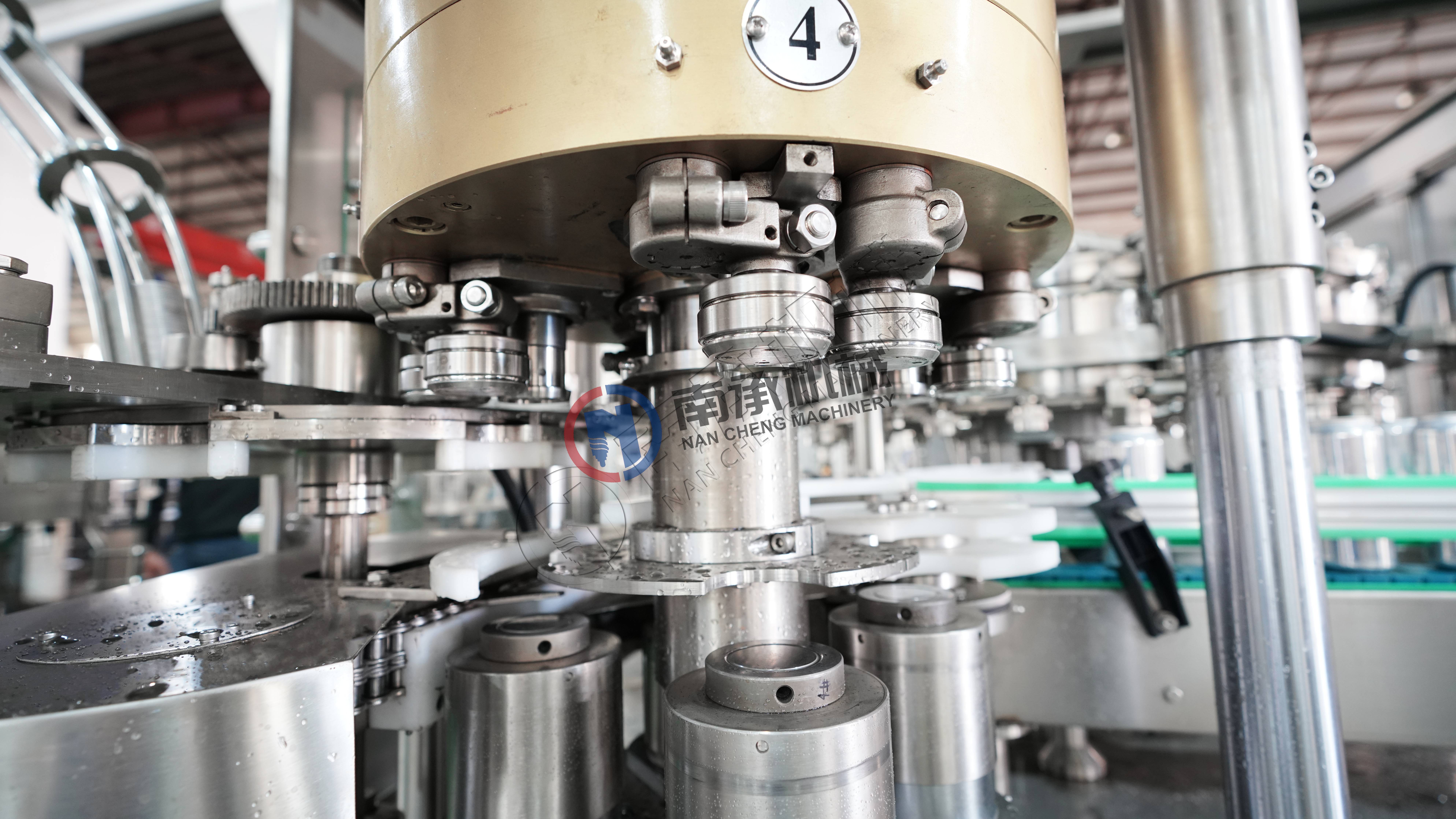

Can Carbonated Beverage Filling Machine-SEAMER

High-Speed Operation Capability

Designed for continuous, high-speed can filling with stable performance suitable for industrial-scale beverage production.

High-Quality Industrial Components

Equipped with Siemens PLC, Mitsubishi inverters, and SMC pneumatic components to ensure reliable 24/7 operation.

Food-Grade Stainless Steel Construction

All liquid-contact parts are made of SUS304 or optional SUS316 stainless steel, fully compliant with international beverage hygiene standards.

Technical Parameters – Can Carbonated Beverage Filling Machine

Item	Specification
Applicable Containers	Aluminum cans
Can Volume	200 ml – 500 ml
Production Capacity	6,000 – 36,000 CPH
Filling Method	Isobaric (counter pressure)
Filling Temperature	0–4°C
Can Handling	Can body handling
Seaming Type	Integrated with can seamer
Control System	PLC + Touchscreen HMI
Machine Material	SUS304 / Optional SUS316
Cleaning System	CIP supported

Final configuration is customized according to can size, beverage characteristics, carbonation level, and production requirements.

PET vs Glass vs Can – Carbonated Beverage Filling Comparison

Item	PET Bottle	Glass Bottle	Can
Container Material	PET plastic	Glass	Aluminum
Container Pictures
Typical Applications	Mass-market CSD	RGB & regional brands	Soda, beer, sparkling drinks
Container Handling	Neck handling	Bottom support	Can body handling
Container Weight	Lightweight	Heavy	Lightweight
Breakage Risk	Very low	Higher	Very low
Typical Speed	High-speed	Medium to high-speed	Very high-speed
Closure Type	Plastic cap	Crown / screw cap	Can seaming
Line Structure	Blower + filler	Washer + filler	Depalletizer + filler + seamer

Production Capacity Options & Models for Can Carbonated Beverage Filling

The DGD Series offers multiple configurations to meet different canning capacity requirements.

Model	Rinsing / Filling Heads	Capacity (330 ml)	Can Diameter	Motor Power	Weight
CGF 12-4	12 / 4	3000CPH	Ø52–66 mm	≈ 4.0 kW	≈ 4,000 kg
CGF 18-6	18 / 6	8000CPH	Ø52–66 mm	≈ 5.5 kW	≈ 5,500 kg
CGF 24-8	24 / 8	12000CPH	Ø52–66 mm	≈ 7.5 kW	≈ 7,200 kg
CGF 36-6	36/6	18000CPH	Ø52–66 mm	≈ 11.0 kW	≈ 10,500 kg

Actual output depends on can size, beverage characteristics, and carbonation level.

Isobaric Filling Principle for Can Carbonated Beverages

The machine adopts isobaric (counter-pressure) filling, which is essential for filling carbonated beverages into aluminum cans safely and efficiently.

Working Process

Empty cans are rinsed and positioned under the filling valves
CO₂ gas is injected to equalize pressure between the can and the filling tank
Carbonated liquid flows smoothly into the can under balanced pressure
Filling stops automatically at the preset level
Pressure is released gradually to prevent foaming
The filled can is transferred to the seamer to seal the lid immediately

This Filling Process Ensures

Stable CO₂ retention
Low foaming during filling
Consistent fill levels
High-speed and reliable can filling operation

Why Isobaric Filling Is Essential for Can Carbonated Beverage Filling

Aluminum cans are lightweight and thin-walled, requiring precise pressure control and gentle filling to prevent deformation and foaming.

An isobaric can carbonated filling machine ensures:

• Stable carbonation retention

• Reduced foaming during high-speed filling

• Consistent fill levels across all cans

• Reliable operation at very high production speeds

This makes counter-pressure filling the standard solution for can carbonated beverage filling lines, including soda, sparkling water, and beer production.

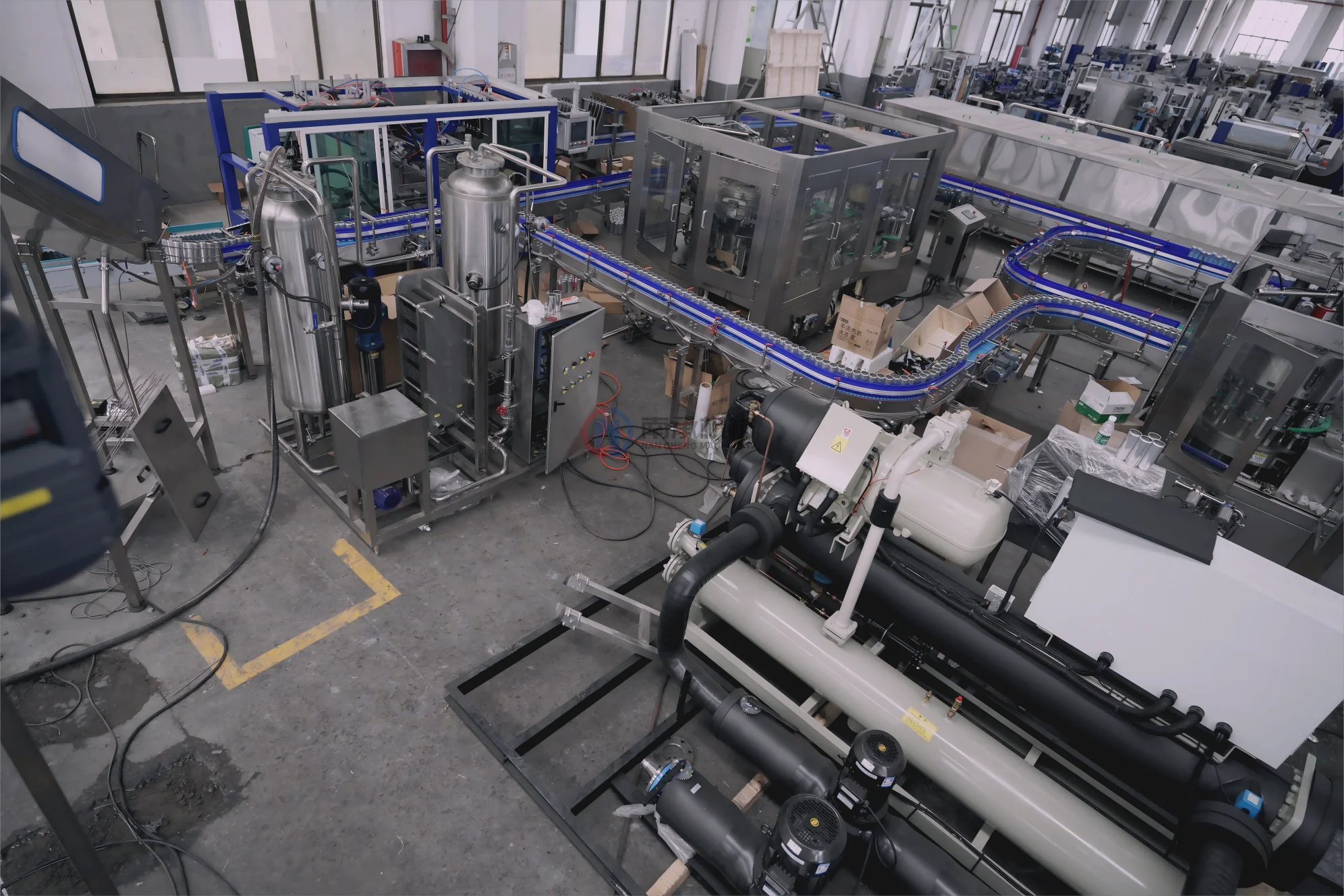

Can Carbonated Beverage Production Line

Although this page focuses on the can carbonated filling machine itself, it serves as the core unit connecting upstream beverage preparation with downstream can sealing and packaging operations.

Can Carbonated Beverage Filling Machine LINE

A Can Carbonated Beverage Production Line Includes

Water treatment system (RO & filtration)
CSD mixing and carbonation system
Can depalletizer
Can rinsing system
Isobaric can carbonated filling machine
Can seamer
Can dryer
Date coding
Shrink wrapping or tray packing
Palletizer system

The can filling machine directly determines carbonation stability, product taste, and overall production efficiency in can carbonated beverage production.

PET Bottle Carbonated Drink Filling Machine-water treatment

Commercial drinking water filter plant / mineral water purification and bottling machine / filling production line

pure water

raw water tank → raw water pump → quartz sand filter → active carbon filter → sodium ion exchanger → precision filter → RO (Reverse Osmosis) → finished water tank

mineral water

raw water tank → raw water pump →quartz sand filter → active carbon filter → sodium ion exchanger → precision filter → hollow ultrifiltration → finished water tank

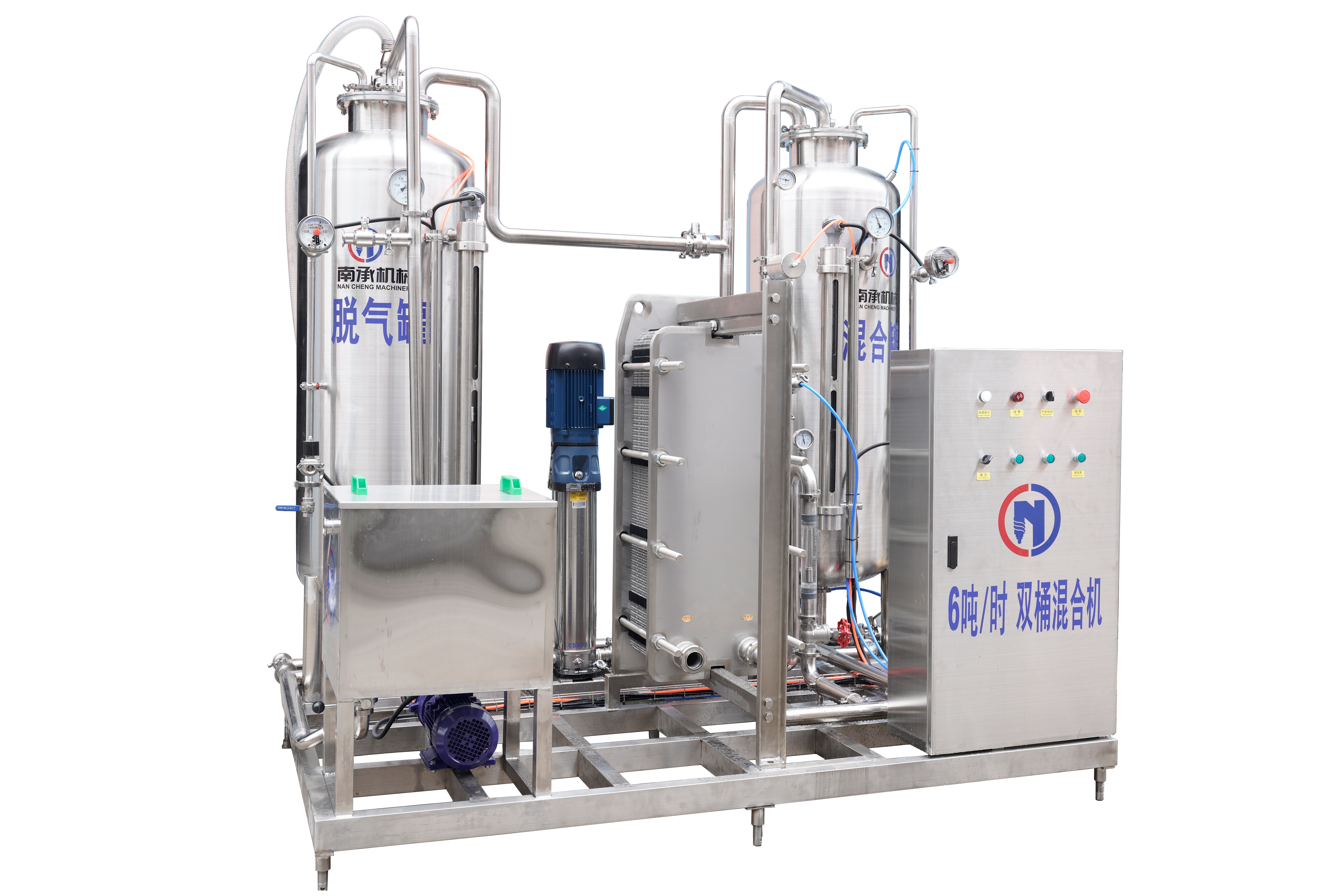

PET Bottle Carbonated Drink Filling Machine-co2 mixer

Automatic CO2 Soda Water Carbonated Beverage Mixer Soft Drink Manufacturing Making Mixing Machine

Carbonated drink mixer is applied for carbonation and proportion mixing of various gas beverage ( water, syrup and CO2 ), such as Cola and Sprite. It is the main equipment among the complete equipment of beverage production line. Carbonated drink mixer, by use of CO2 reflux deoxidation, not only save CO2, but also achieves the objective of deoxidation and makes the deoxidation water have better pre-carbonation effects.

It is convenient to adjust the gas content. Accoding to the requirements of beverage gas content, the adjustment can be done through proper operation.

Automatic round plastic pet bottle opp hot melt glue labeling machine water beverage

Features:The containers are picked up by the infeed star wheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.

The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the cutting unit, the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point.

Two narrow strips of hot melt glue the labels together, which are applied by a heated glue roller to the leading and trailing label edges. The label with the glue strip on its leading edge is transferred to the container. This glue strip ensures an exact label positioning and a positive bond. As the container is rotated during label transfer, labels are applied tightly. Gluing of the trailing edge ensures proper bonding.

PET Bottle Carbonated Drink Filling Machine-laser printer

New Design Co2 Laser Printer

(1) This machine has Stainless steel housing and 10.2" Hd touch screen.

(2) It can achieve high-quality & high-speed printing in food bags, PET bottles, cosmetic box, cartons etc.

(3) It is easy to Install and operate, because it is portable and has one-click backup & recovery.

(4) Ultra-high-speed makes up to 150,000 markings per hour.

PET Bottle Carbonated Drink Filling Machine-case packer

Automatic carton box packing machine

The machine features servo positioning, PLC control, and automatic operation. It uses imported motor drives, multi-degree rotation via chain transmission, and chain wheel speed regulators. With high automation, reliable control, and easy adjustment, it supports intelligent operation. Widely applicable in beverage, beer, chemical, food, and pharmaceutical industries, it handles secondary packaging for various tin and bottle types. It can seamlessly integrate with automatic filling production lines.

Company Profile

Can Carbonated Filling Machine Manufacturer – Nancheng Machinery

ABOUT NANCHENG MACHINERY-CARBONATED BEVERAGE FILLING MACHINE

Nancheng Machinery is a professional can carbonated filling machine manufacturer, specializing in the design and production of isobaric can filling machines and complete can carbonated beverage production solutions.

With integrated in-house engineering, machining, assembly, testing, and quality control, we ensure consistent product quality and reliable delivery.

Each can carbonated filling machine is fully assembled and tested before shipment to ensure stable performance, hygiene compliance, and long-term reliability.

As a manufacturer-direct supplier, we offer flexible customization based on can type, production capacity, beverage characteristics, and factory layout requirements.

From standalone can filling machines to turnkey can carbonated beverage production lines, we support customers from project planning to installation guidance and after-sales service.

Our Core Technologies Include:

Siemens PLC & Servo Motion Control
ABB & SEW Drive Motors
SKF Bearings (Sweden)
Schneider & Omron Electrical Systems
Automatic CO₂ Mixer and CIP Cleaning System

Why Choose Nancheng:

20+ years beverage equipment experience
Global service network with 24/7 after-sales support
Custom design according to bottle type and factory layout
Lifetime technical support and spare parts supply
One-stop solution for carbonated beverage filling production line

Our mission is to help beverage manufacturers achieve stable quality, higher productivity, and competitive cost efficiency with world-class technology.

We Supply Your Factory Design Service

We Supply Your Bottle Design Service

FAQ

Frequently Asked Questions (FAQ)

Can this machine handle different can sizes?

Yes. The machine can be configured to handle different can diameters and heights within the specified range by adjusting dedicated format parts.

Changeover is straightforward and can be completed efficiently by trained operators.

Is the machine suitable for beer can filling?

Yes. The isobaric (counter-pressure) filling system is suitable for carbonated beer as well as other carbonated beverages, helping maintain carbonation stability and reduce foaming during filling.

What is the recommended filling temperature for can carbonated beverages?

A filling temperature of 0–4°C is recommended.

Lower temperatures improve CO₂ solubility, reduce foaming, and help achieve stable and consistent fill levels.

Is CIP cleaning supported?

Yes. The machine supports CIP (Clean-In-Place) cleaning for filling valves and product pipelines.

This allows internal cleaning without dismantling the system, reducing downtime and ensuring hygiene compliance.

Can the filling machine be integrated with a can seamer?

Yes. The filling machine is designed to work seamlessly with can seamers, forming a stable and continuous can filling and sealing line.

What production capacity options are available for can filling lines?

Multiple configurations are available to match different capacity requirements, ranging from medium-speed to high-speed industrial canning lines.

The final capacity depends on can size, beverage characteristics, and line configuration.

How does the machine reduce foaming during can filling?

The isobaric filling process maintains balanced pressure between the filling tank and the can, while controlled pressure release helps minimize foaming and product loss.

What level of daily maintenance is required?

Daily maintenance typically includes basic cleaning, lubrication checks, and visual inspection.

With proper operation and scheduled servicing, the machine is designed for stable long-term industrial use.

Do you provide installation and after-sales support?

Yes. We provide installation guidance, operator training, remote technical support, and spare parts supply to ensure smooth commissioning and reliable long-term operation.
