+86 182 6187 1098
QGF- 600
NANCHENG
Washing Filling Capping
SUS304/316
PLC+ Touch Screen
Mitsubishi/Siemens/Schneider
Engineers Available To Service Machinery Overseas
CE TUV
Bottles
Electric and pneumatic
Automatic
Food, Beverage, Commodity
High-accuracy
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Jiangsu, China
| Quantity: | |
|---|---|
Product Description

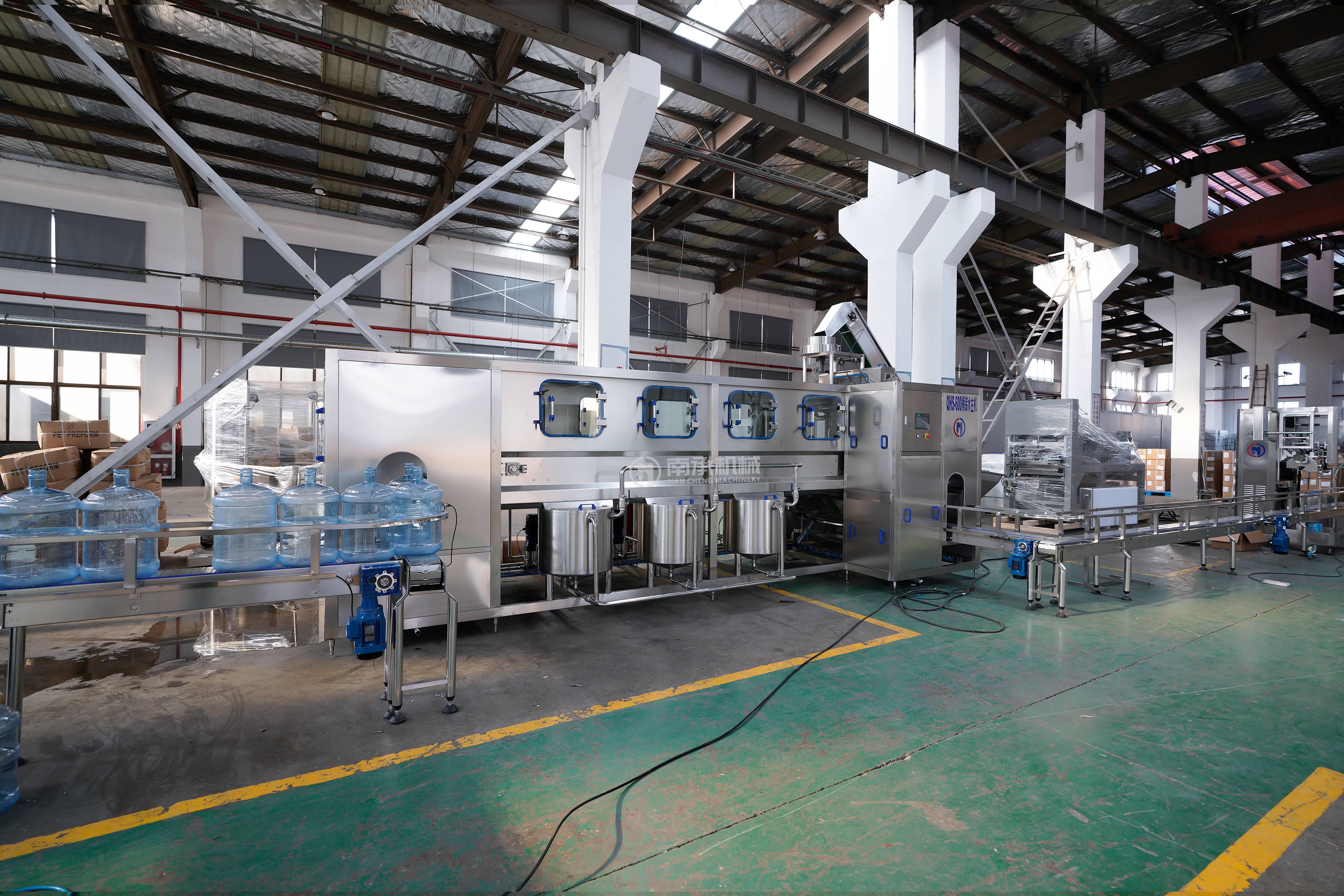

This video demonstrates the complete working performance of the 600BPH 5 Gallon Filling Machine, including automatic bottle feeding, decapping, external brushing, internal multi-stage washing, precise filling, UV cap sterilization, capping, and final bottle discharge.
It provides a clear view of the machine’s high-speed operation, hygienic design, and stable mechanical structure for 3-gallon and 5-gallon barrel production.

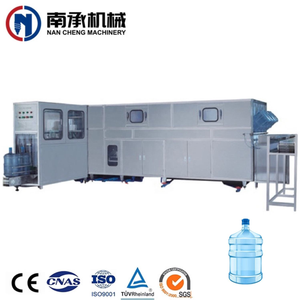

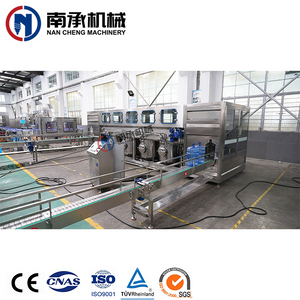

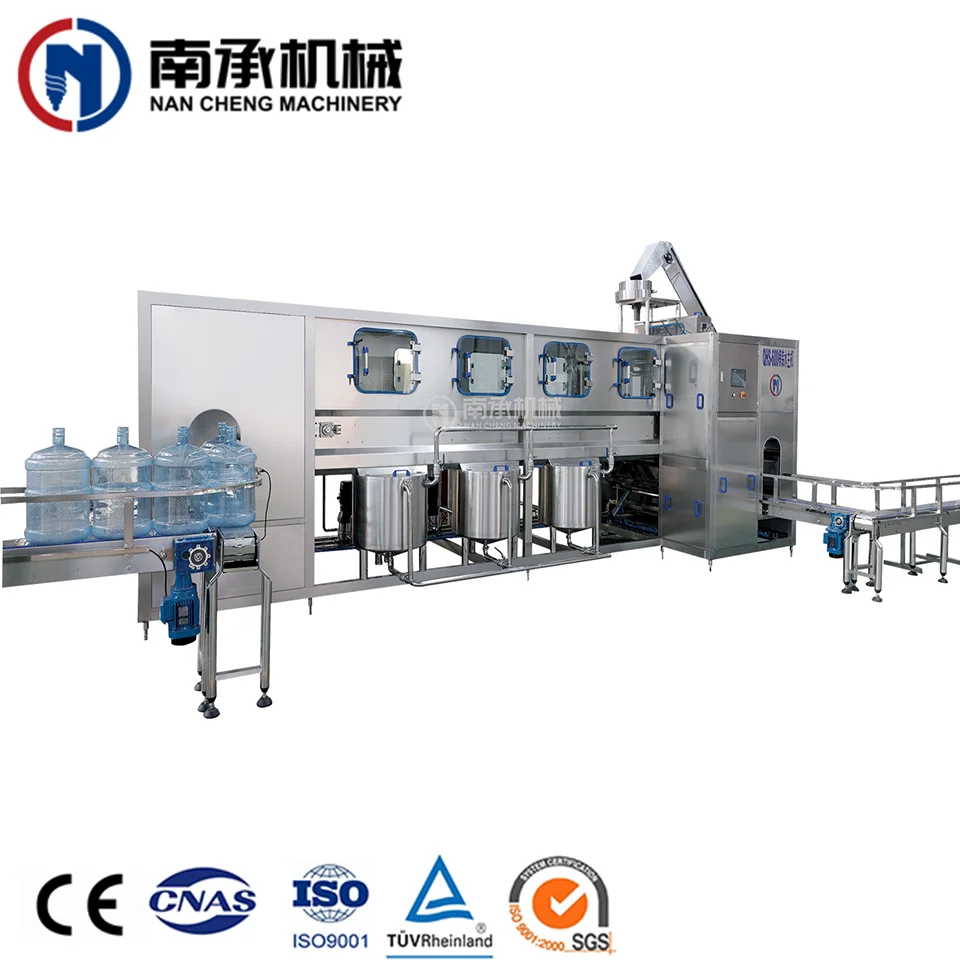

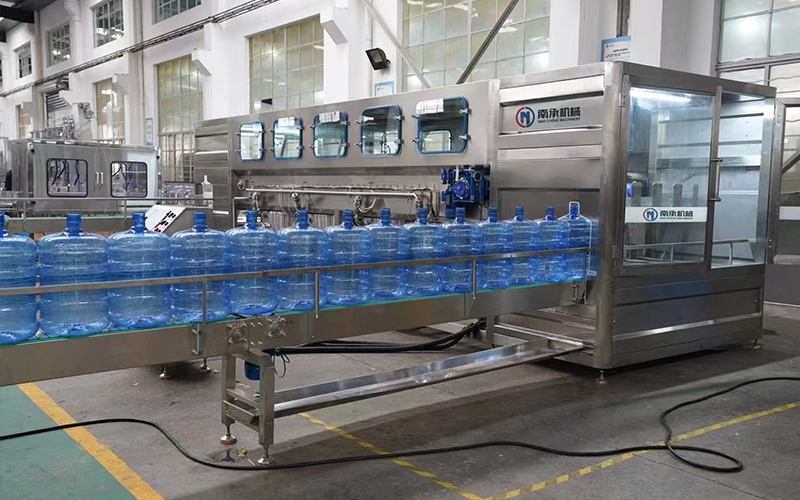

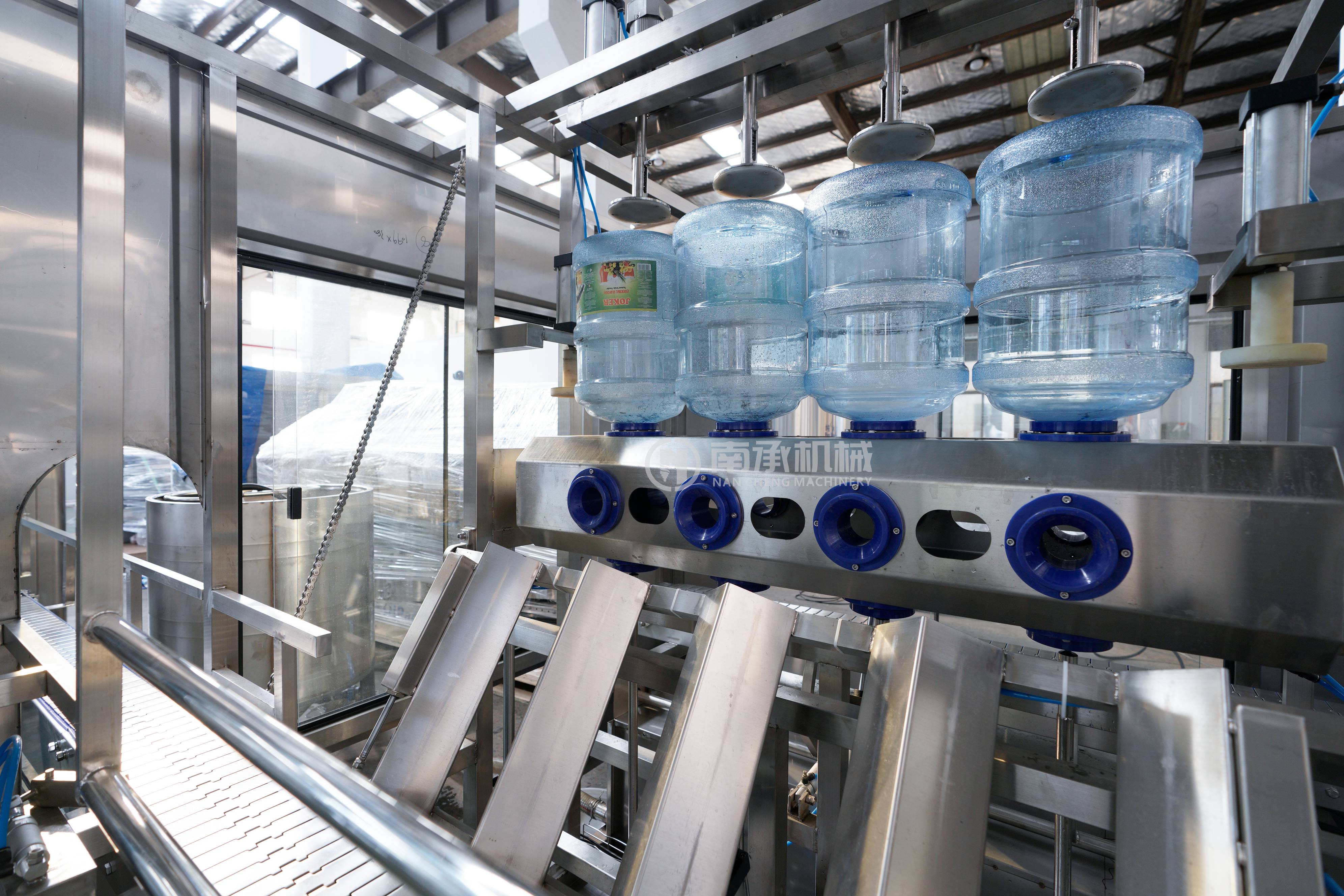

A 5 gallon filling machine—also called a 5 gallon water filling machine, 5 gallon bottle filling machine, or 5 gallon barrel filling line—is a complete system used for cleaning, filling, sterilizing, and sealing 5-gallon polycarbonate (PC) or PET barrels.
The machine integrates:
Automatic barrel decapping
External brushing
Internal high-pressure washing
Pure water filling
Cap loading & sealing
Light inspection
Conveyor system

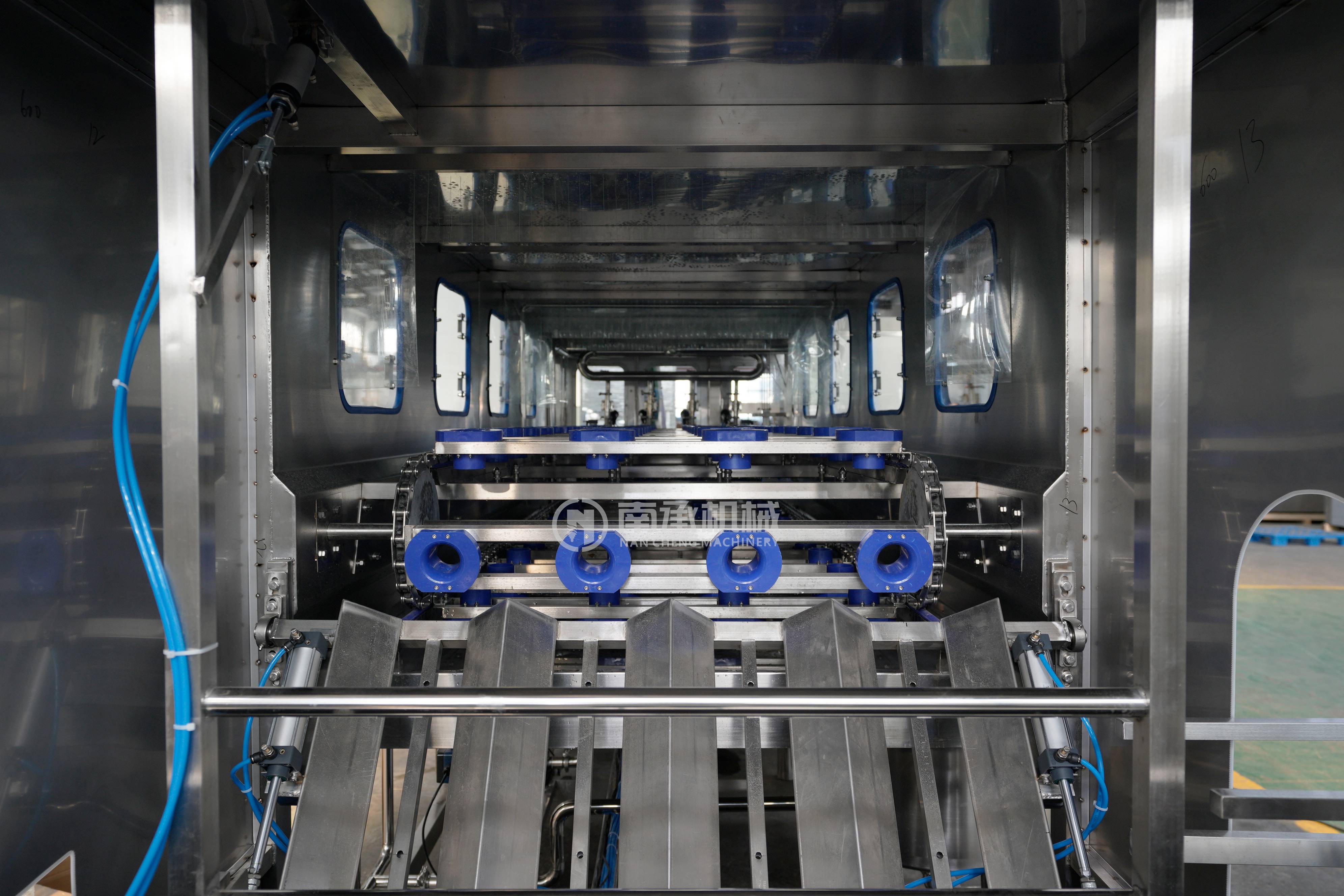

Multi-station internal & external washing
Alkali water → disinfectant → pure water rinse
High-pressure washing improves cleaning effect
Food-grade stainless steel pipes & tanks
SUS304/316 contact parts
2–6 filling heads depending on output
Anti-splash filling valve design
No-barrel, no-filling protection
UV sterilizer for caps
Automatic cap sorter + cap elevator
Reliable press capping without leakage
Thick stainless steel frame
Anti-corrosion design for long lifetime
Imported electrical components (Siemens/Schneider)
Full PLC control
Real-time fault alarm
Easy barrel loading/unloading design

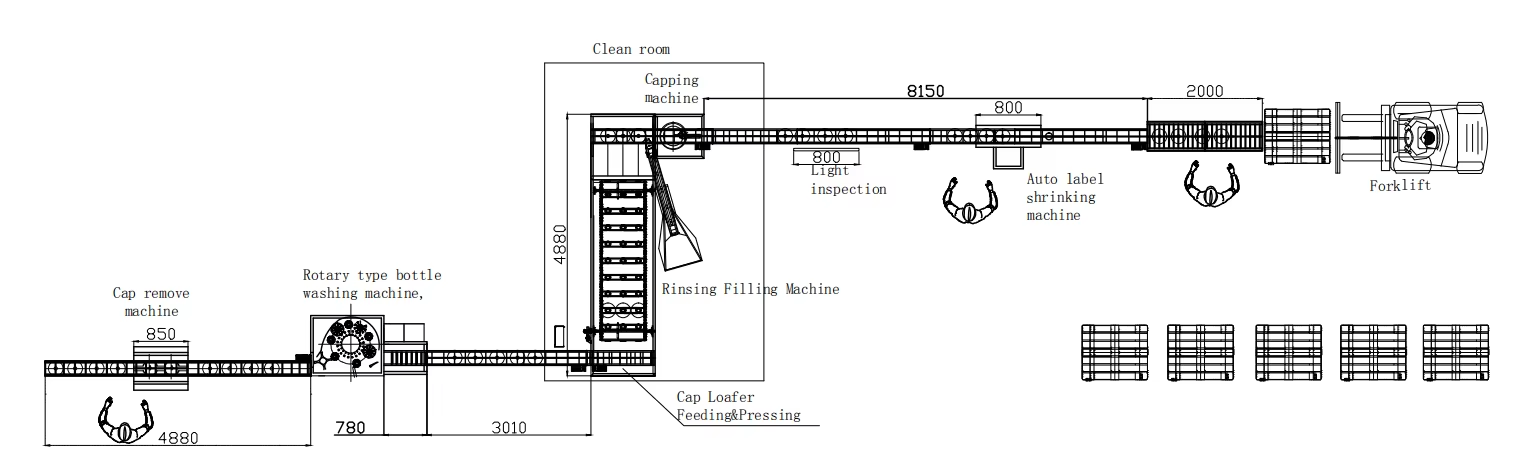

Below is the standard Automatic 5-Gallon Water Production Line Process:
Automatic Decapper
External Brushing Machine
Internal Hot Alkaline Washing
Internal Disinfection Washing
Pure Water Final Rinse
Barrel Dripping Area

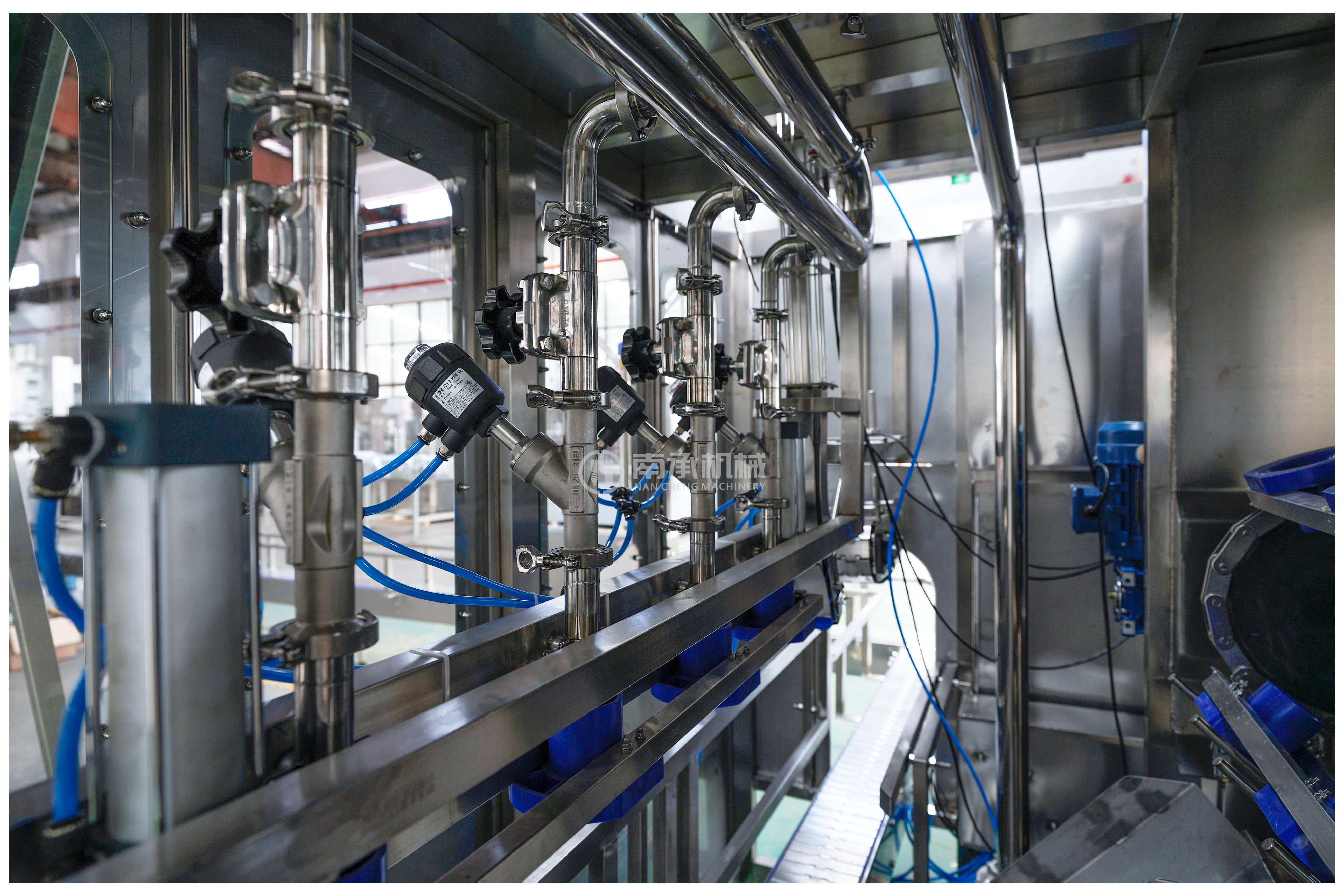

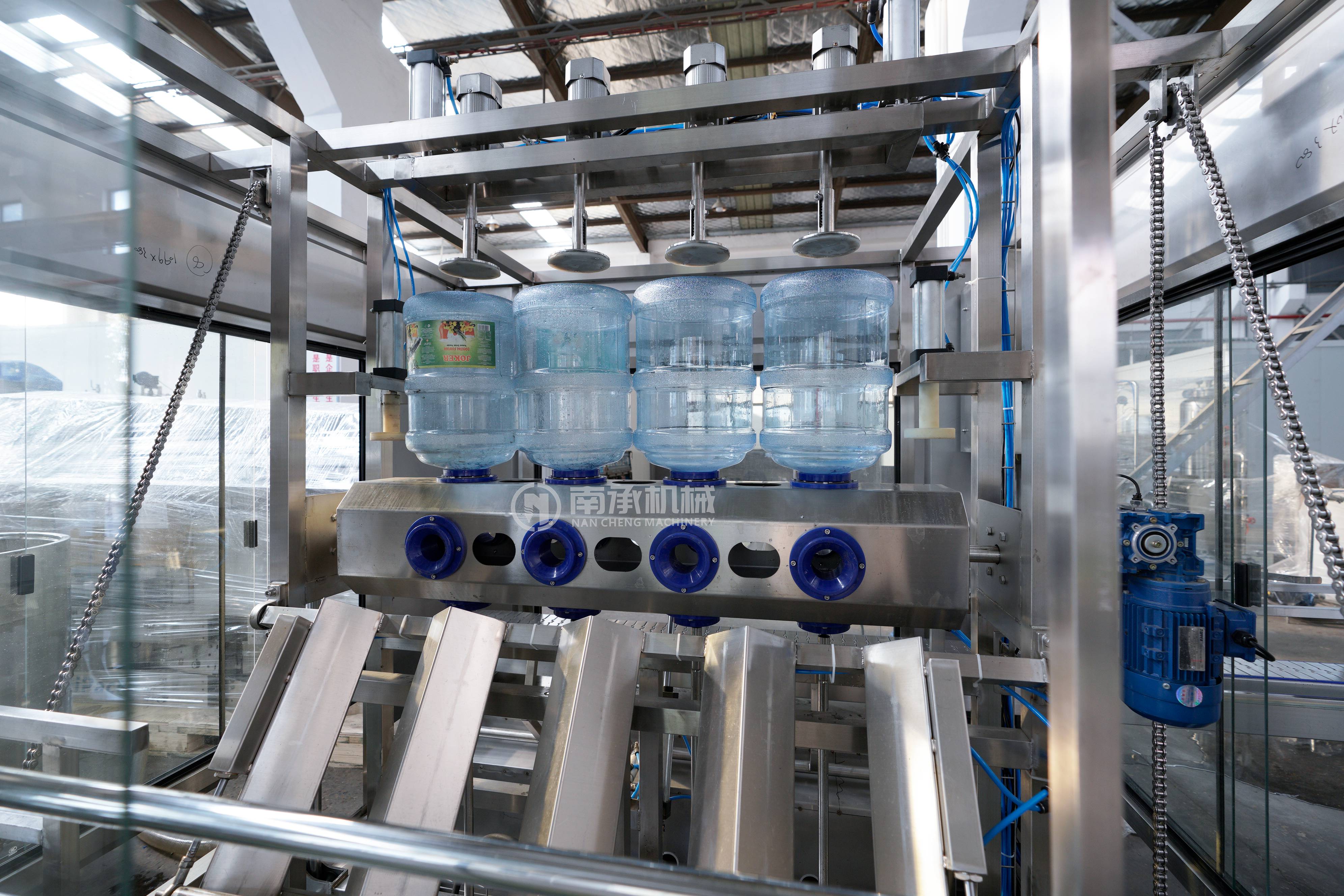

Automatic Water Filling
Cap Elevator & Sorting System
Cap Sterilization (UV)
Automatic Capping
Light Inspection Box
Neck Shrink Labelling (Optional)
Bagging Machine / PE Film Packaging
Conveyor System
Model | Output (BPH) | Washing Stations | Filling Heads | Capping Heads | Power Consumption | Suitable Barrel | Material |
NC-150 | 150 BPH | 9 stages | 1 | 1 | 4.5 kW | PC / PET 5 Gallon | SUS304 |
NC-300 | 300 BPH | 9 stages | 2 | 1 | 7.5 kW | PC / PET 5 Gallon | SUS304 |
NC-450 | 450 BPH | 9 stages | 3 | 1 | 9 kW | PC / PET 5 Gallon | SUS304 |
NC-600 | 600 BPH | 12 stages | 4 | 1 | 12 kW | PC / PET 5 Gallon | SUS304/316 |
NC-900 | 900 BPH | 14 stages | 6 | 1 | 15 kW | PC / PET 5 Gallon | SUS304/316 |
NC-1200 | 1200 BPH | 14 stages | 8 | 1 | 18 kW | PC / PET 5 Gallon | SUS304/316 |

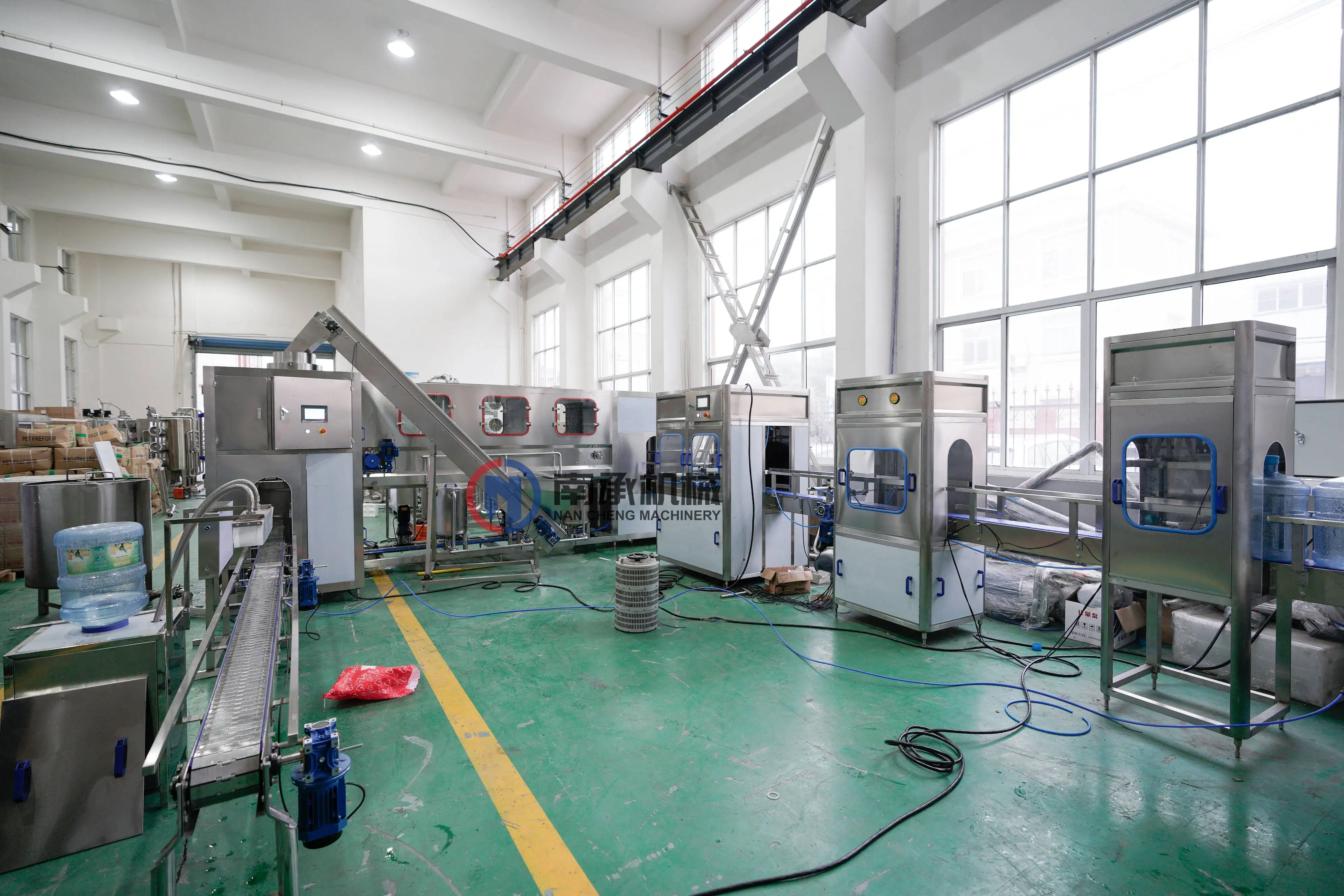

We supply the whole 5-gallon water plant:
Water treatment → Bottle blowing → Filling → Labelling → Packaging → Palletizing.
Engineered for 24/7 continuous production with industrial-grade components.
All contact parts use SUS304/316, conforming to food-grade standards.
Flexible for startups & large factories.
Engineers available for overseas installation & training.

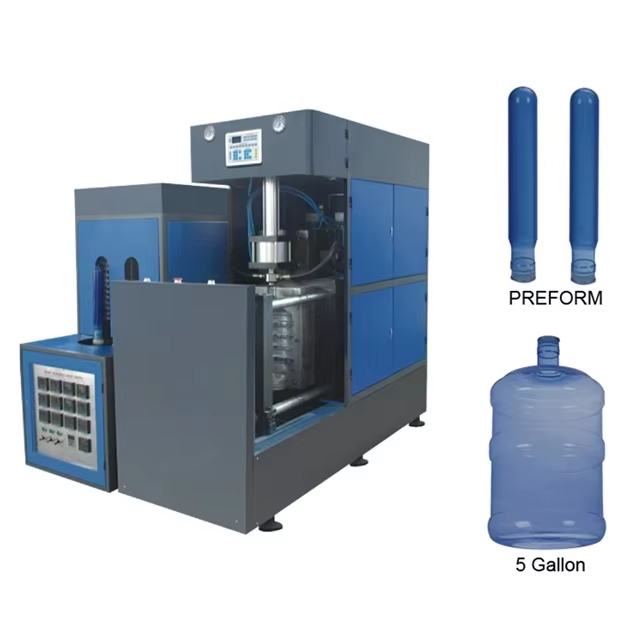

5 Gallon Bottle Blow Molding Machine
RO Water Treatment System
External Brushing Machine
Light Inspection Box
Shrink Tunnel for Neck Label
PE Bagging Machine
Carton Packing Machine
Automatic Palletizer

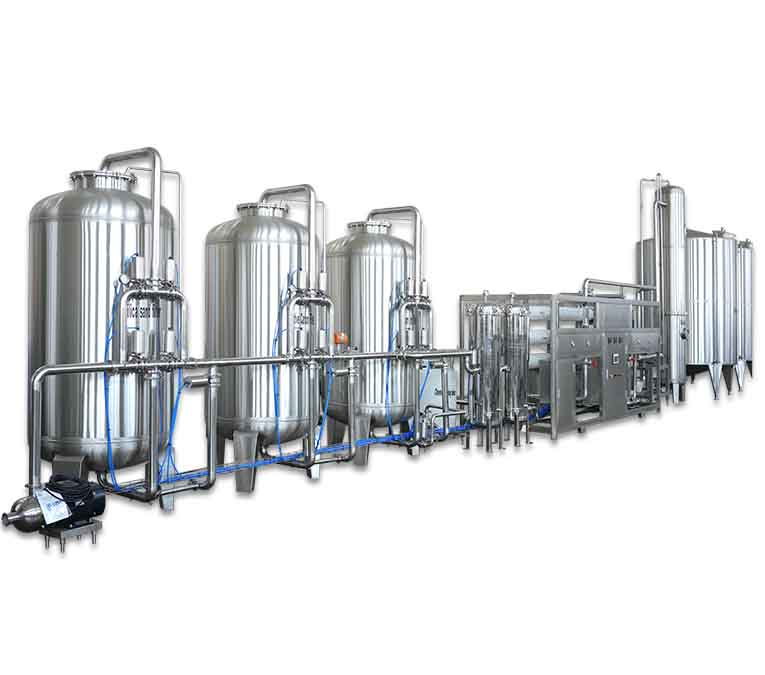

water treatment
5 gallon bottle blowing machine
sleeve labeling machine
5 gallon palletizer

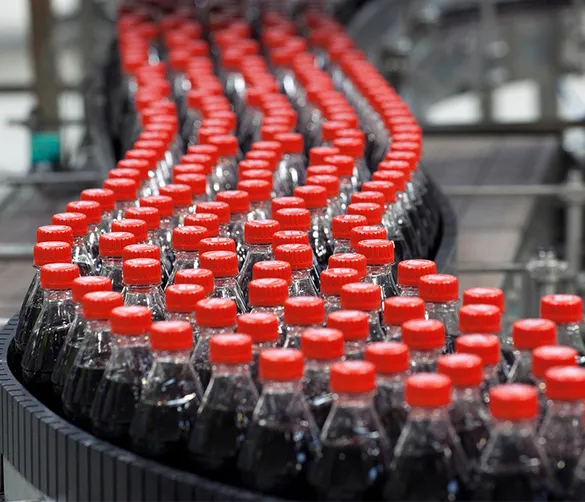

This machine is designed for efficiently filling a variety of carbonated drinks, including sodas, sparkling water, and flavored soft drinks. It combines bottle rinsing, isobaric filling, and capping into a single compact unit. Using isobaric filling technology, it preserves carbonation effectively while ensuring product quality. The equipment is highly automated, easy to operate and maintain, and supports production speeds from 10,000 to 48,000 bottles per hour, making it suitable for high-volume beverage production.
Engineered for fruit juices and juice blends, this machine typically utilizes standard-pressure filling technology. It allows fully automatic bottle feeding, filling, and capping, and can be enhanced with features like liquid level monitoring and automatic process control. These functions ensure accurate and consistent filling while maintaining hygiene standards. The system is user-friendly and adaptable to different bottle sizes and juice types.

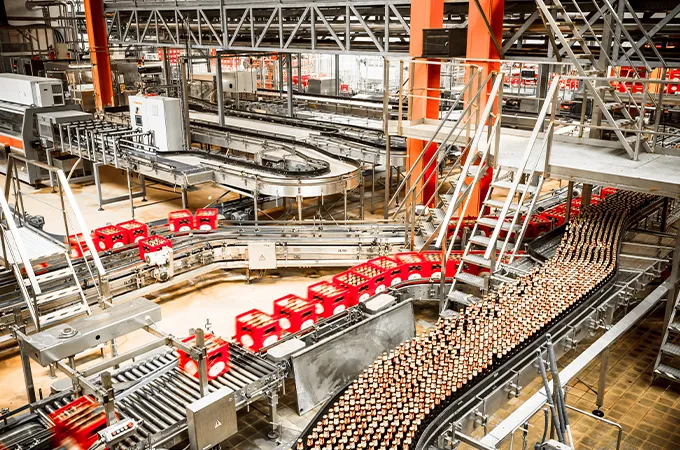

Wine filling solutions are tailored according to wine type and packaging. Bottled wine often uses an integrated washing, sterilizing, filling, and capping system. To prevent oxidation and preserve quality, the machine may employ vacuum or nitrogen-assisted filling methods, minimizing air contact during the process. This ensures the wine retains its aroma and taste throughout bottling.

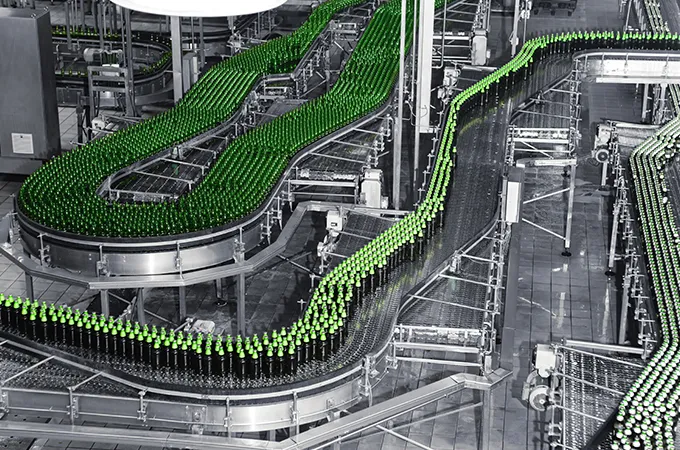

Designed for glass bottle beer production, this equipment handles washing, filling, and sealing efficiently. It uses sensors to regulate speed and applies the isobaric filling principle with spring valves to maintain beverage quality. Neck-holding filling heads and magnetic capping heads ensure reliable filling and sealing, accommodating various cap types. Production capacity ranges from 2,000 to 20,000 bottles per hour, suitable for different scales of breweries.

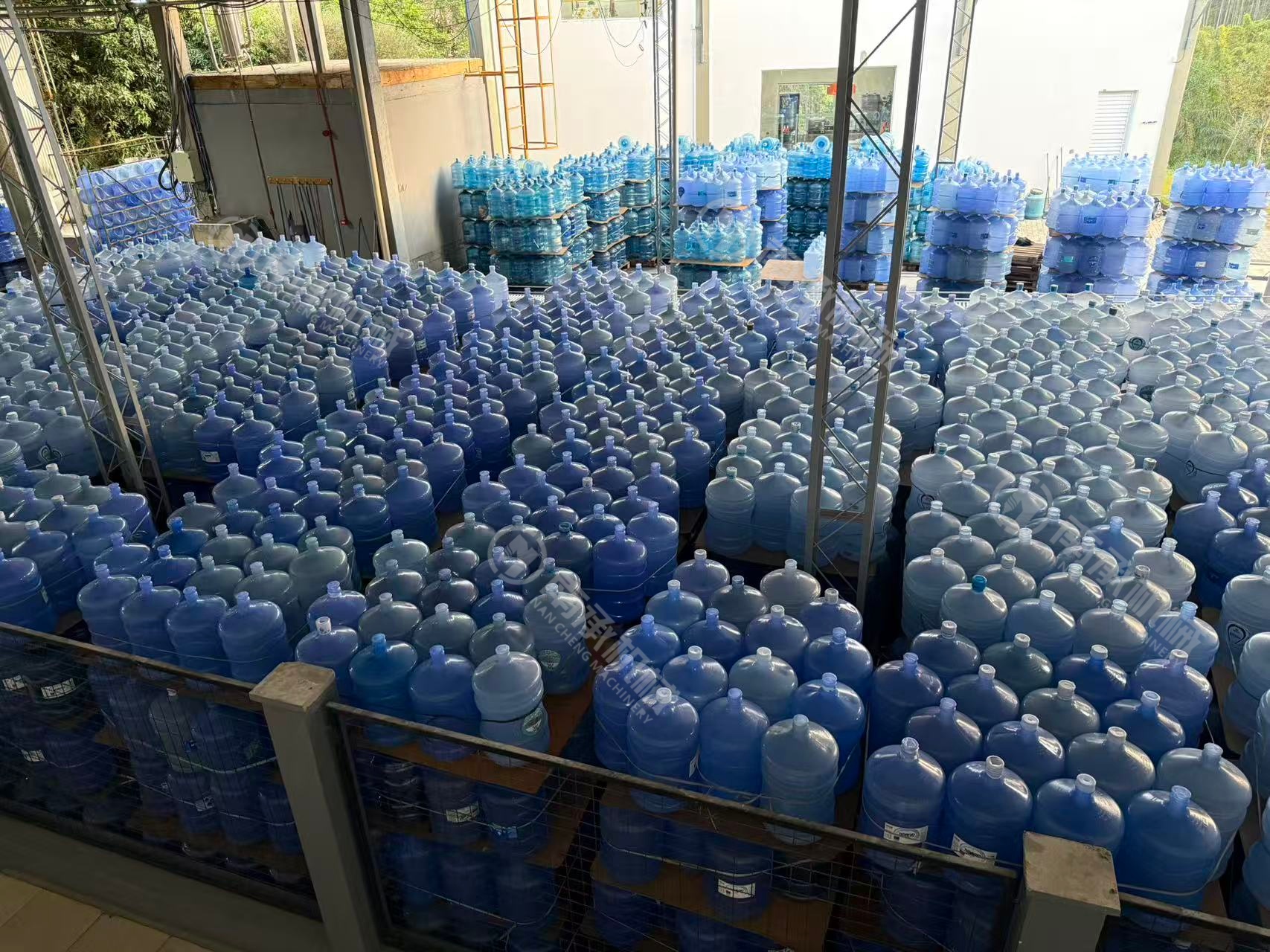

Specialized for 3- to 5-gallon water containers, this line consists of bottle washing, filling, and capping sections. The washer employs multiple spray stages with disinfectants to ensure cleanliness. The filler performs pre-flushing, disinfection, dripping control, circulating water flushing, external rinsing, and clean water flushing automatically. The capping unit seals bottles without manual intervention, supporting capacities from 150 to 2,000 barrels per hour. This makes it ideal for large-capacity water bottling operations.
bottle water filling machine
carbonated drink filling machine
juice filling machine
beer filling machine
wine filling machine
gallon water filling machine
Bottled drinking water factories
Mineral water production
Purified water plants
Barrelled water franchise businesses
Industrial & commercial large-volume water dispensing
Delivered turnkey solution including water treatment, filling, and packaging.
Compact layout design + installation training.
High-speed 5-gallon line for regional brand production.
Company Profile
Nancheng Machinery has over 20 years of experience in the filling and packaging machinery industry, providing professional solutions for bottled water, juice, beverages, alcohol, and other liquid products. The company boasts a strong R&D and engineering team capable of delivering turnkey projects, including technical design, custom equipment, installation, and commissioning.
Its product range is comprehensive, covering water treatment systems, 3-in-1 filling machines, homogenizers, labeling machines, shrink-wrapping machines, and more, offering a complete solution from water processing to bottling and packaging. Key components are made of food-grade stainless steel (304/316), ensuring hygiene, safety, and durability.
Located in the Yangtze River Delta region, Nancheng enjoys convenient logistics and supply chain advantages. With extensive international experience, the company exports to Africa, the Middle East, Southeast Asia, and other regions, delivering reliable and high-quality equipment worldwide.
Nancheng also provides excellent after-sales support, including installation, commissioning, training, and lifelong maintenance services. Its large-scale factory (over 16,000 m²) and high proportion of technical staff ensure innovation, consistent quality, and production capacity. The company’s management emphasizes digitalization, standardization, and customer satisfaction, focusing on integrity, responsibility, and win-win partnerships.
Water Bottling Plant
5 Gallon Water Filling Machine
Carbonated Drink Filling Machine
Juice Filling Machine
Oil Filling Machine
Shampoo Filling Machine
Liquid Soap Filling Machine
Detergent Filling Machine
Paste Filling Machine
Sauce Filling Machine
Honey Filling Machine
Ketchup Filling Machine
Cream Filling Machine
Lotion Filling Machine
Chemical Filling Machine
FAQ
Depends on capacity. Price usually ranges from $10,000–$90,000.
2–4 workers depending on automation level.
PC or PET 18.9L / 20L bottles.
1 year warranty + lifetime technical support.
Yes, on-site installation or online guidance.
