300BPH 5 Gallon Filling Machine

VIDEO OF 5 GALLON FILLING MACHINE

The 5-gallon filling machine video showcases a fully automated system designed for efficient water or liquid bottling. The footage highlights the machine’s key components, including rinsing, filling, and capping units, operating in a synchronized workflow to ensure hygiene and precision. The video demonstrates the high-speed production capability, minimal human intervention, and smooth handling of 5-gallon barrels, making it ideal for large-scale water bottling plants. Viewers can see the machine’s reliability, user-friendly interface, and consistent filling accuracy, providing a clear understanding of how this equipment enhances productivity and reduces operational costs in industrial liquid packaging.

INTRODUCTION OF 5 GALLON FILLING MACHINE

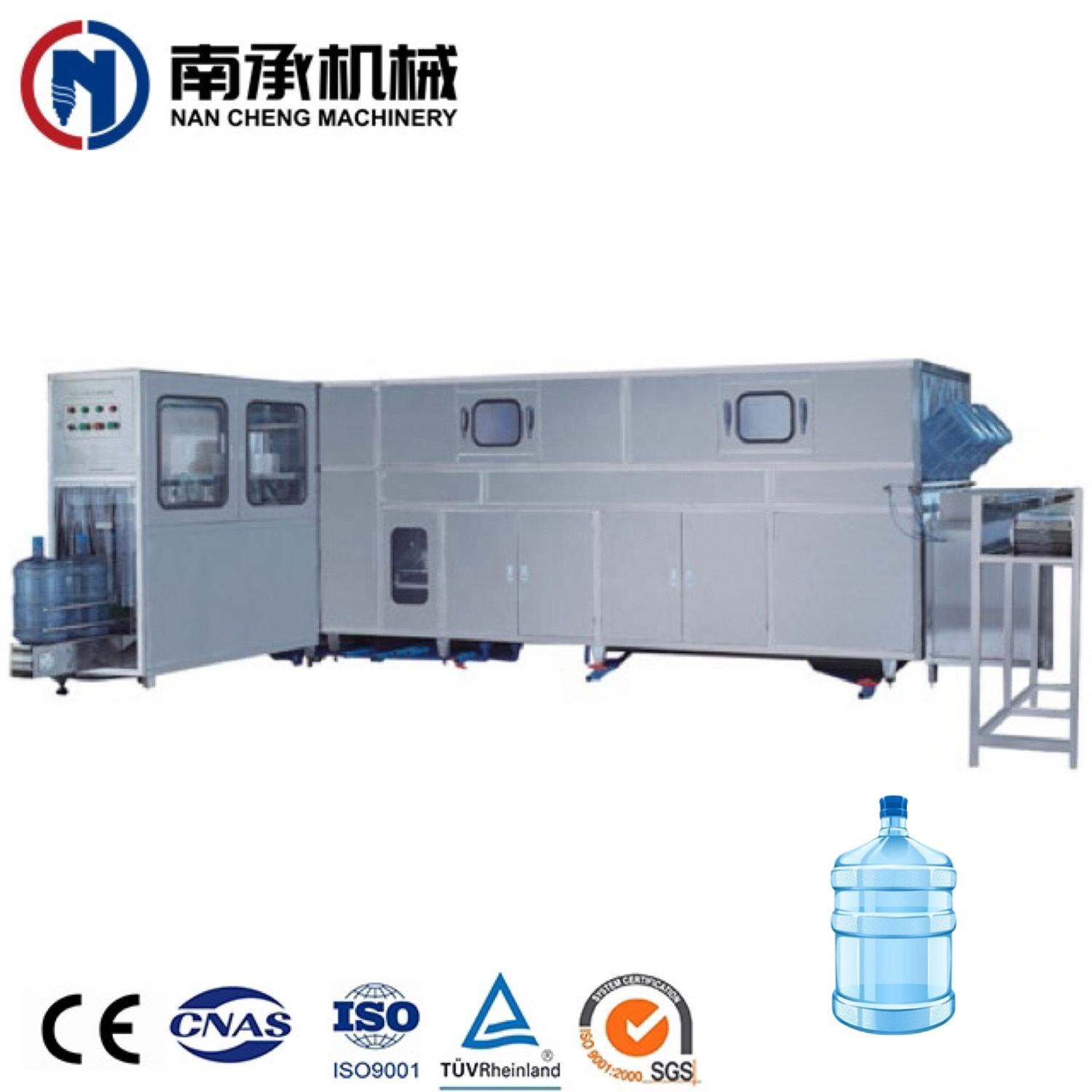

5 gallon filling machine is the core equipment used for producing large-volume drinking water in 5-gallon (18.9L) barrels. Designed for high hygiene standards and stable long-term operation, the system integrates barrel loading, rinsing, sterilizing, filling, capping, leak detection, and light inspection into one fully automatic production line. It is widely used in bottled water factories, mineral water plants, and industrial large-barrel production workshops.

Nancheng’s 5 gallon bottle filling machine is engineered with heavy-duty stainless-steel frames, advanced PLC control, and reliable component brands to ensure sanitation, durability, and consistent production output. Whether you need a medium-capacity or high-capacity 5 gallon water filling machine, we provide a turnkey solution that guarantees efficiency and product quality.

FEATURES OF 5 GALLON FILLING MACHINE

The 5-gallon filling machine is a fully automated system that combines rinsing, filling, and capping in a single line, significantly reducing labor costs. It delivers high-speed and precise filling, capable of handling hundreds to thousands of 5-gallon barrels per hour while ensuring consistent liquid levels and minimal wastage. Constructed from food-grade stainless steel, the machine maintains strict hygiene standards and prevents contamination. Its user-friendly PLC or touchscreen interface allows easy monitoring and operation, and the robust design ensures long-term durability with minimal maintenance. The system is suitable for water, juice, and other non-carbonated liquids, features safety protections like emergency stops and overload prevention, and offers energy-efficient performance with customizable options to meet various barrel sizes, line speeds, and production requirements.

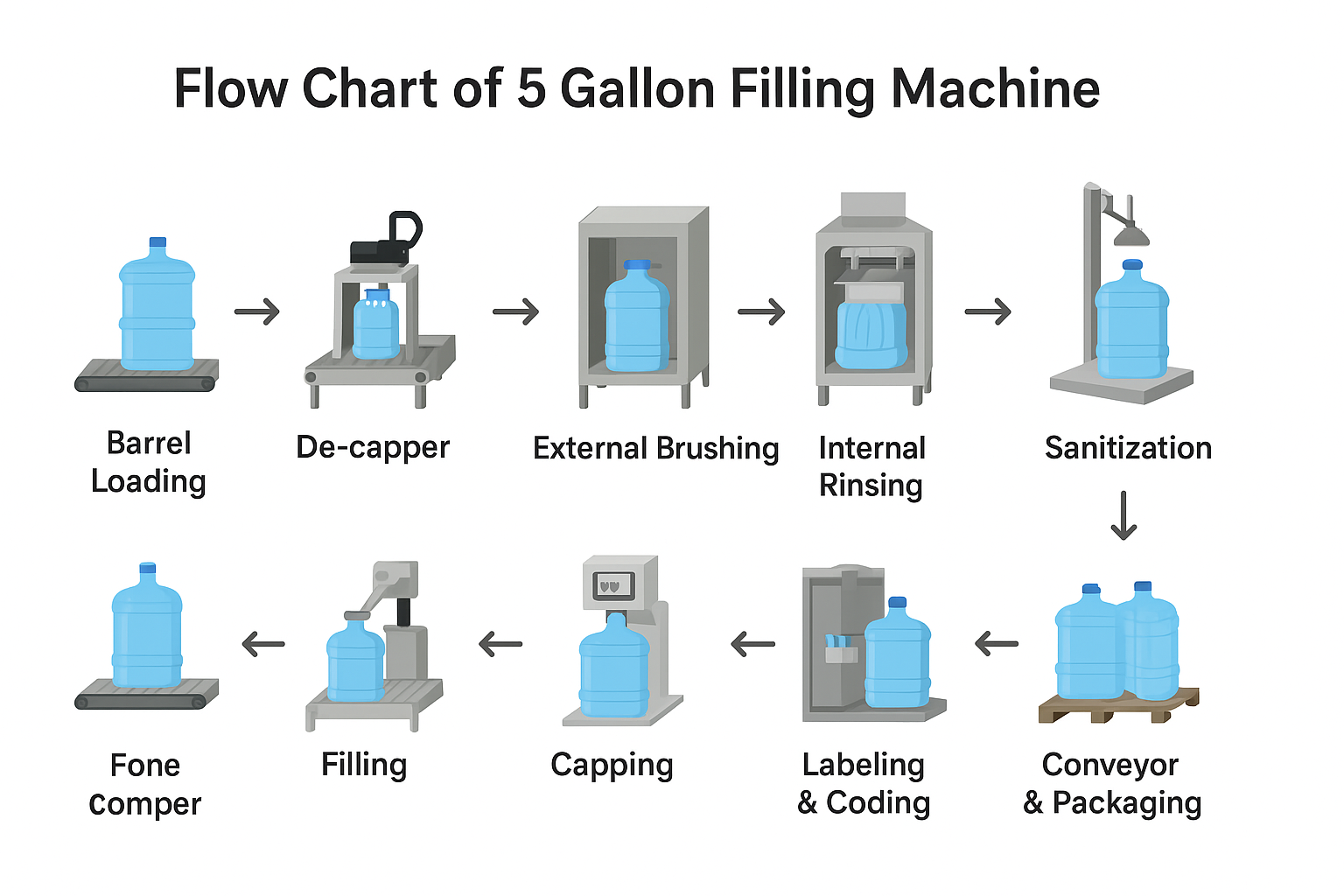

WORKING PROCESS OF 5 GALLON WATER FILLING MACHINE

Here’s a structured description for your 5-gallon water filling line components and advantages:

External Brush Washing Machine: This unit cleans the outside surfaces of 5-gallon barrels using rotating brushes and water spray. It removes dust, dirt, and other contaminants, preparing the bottles for safe filling.

Internal Brush Washing Machine: Designed to clean the inside of barrels, this machine uses high-pressure rotating brushes and water jets to ensure thorough internal sanitation, preventing contamination of the liquid.

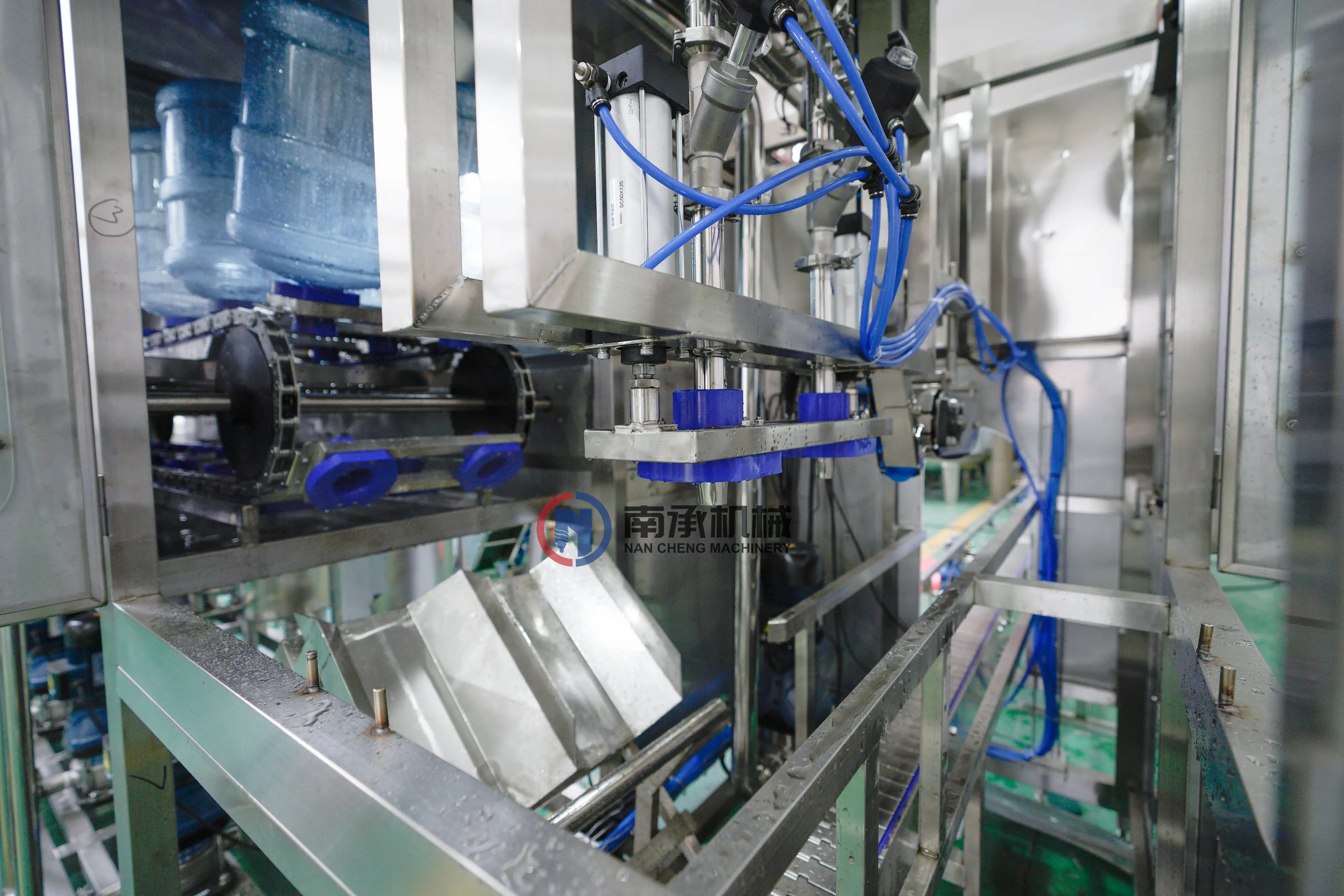

Filling Parts: The filling section precisely dispenses water into each barrel. Advanced metering technology and adjustable nozzles ensure accurate filling volumes, reduce waste, and maintain high production efficiency.

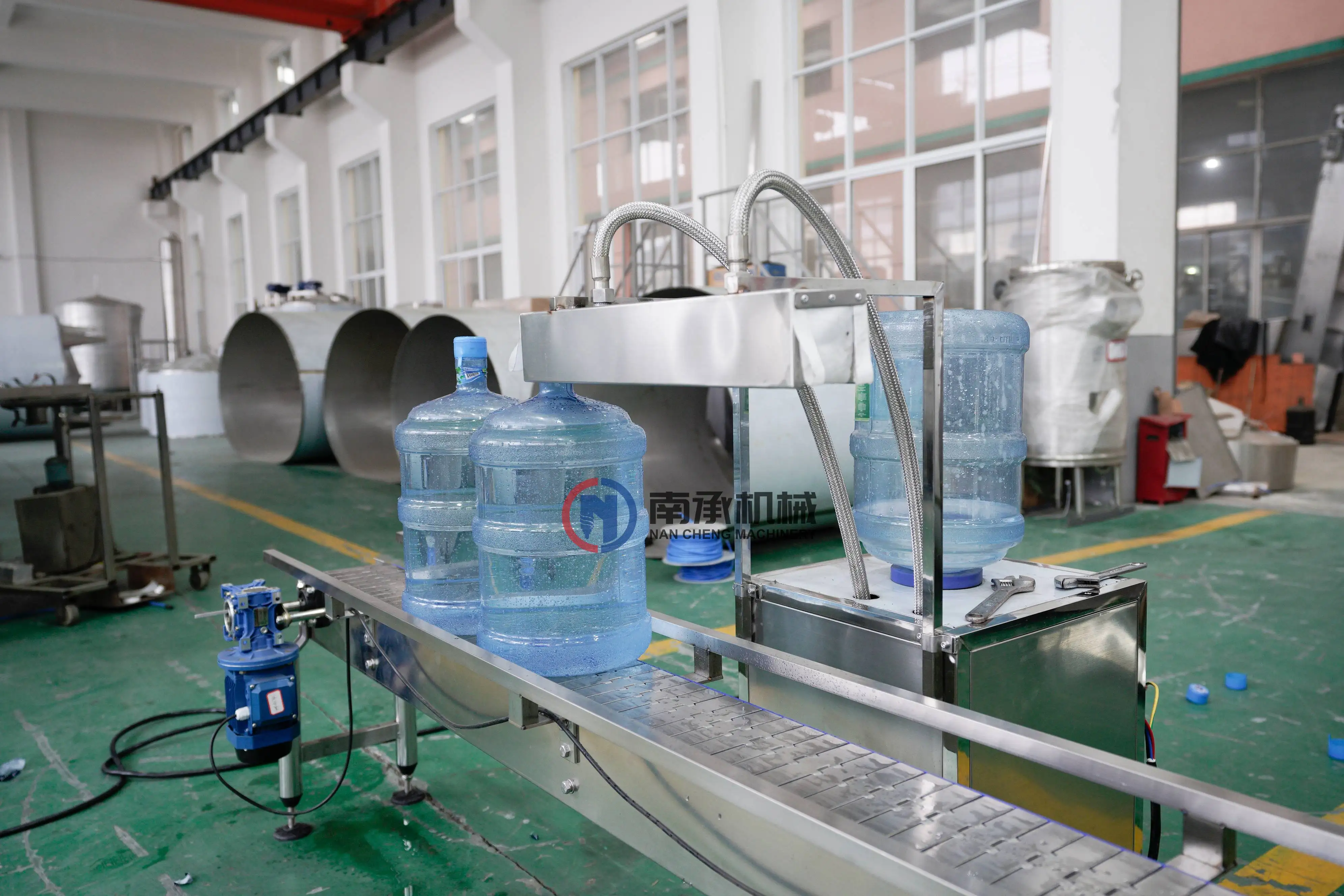

Capping Parts: The capping unit securely seals the barrels with lids, preventing leakage and maintaining product hygiene. It operates automatically in sync with the filling section for smooth workflow.

Advantages: The complete system is fully automated, reducing labor costs and improving production speed. Constructed from food-grade stainless steel, it ensures hygiene and durability. Its PLC control system allows easy operation, precise filling, and consistent quality. The design is energy-efficient, reliable, and adaptable for different production capacities and barrel sizes.

TECHNICAL PARAMETERS

RELATED EQUIPMENTS FOR 5 GALLON FILLING MACHINE

water treatment

5 gallon bottle blowing machine

sleeve labeling machine

5 gallon palletizer

Carbonated Beverage Filling Machine

This machine is designed for efficiently filling a variety of carbonated drinks, including sodas, sparkling water, and flavored soft drinks. It combines bottle rinsing, isobaric filling, and capping into a single compact unit. Using isobaric filling technology, it preserves carbonation effectively while ensuring product quality. The equipment is highly automated, easy to operate and maintain, and supports production speeds from 10,000 to 48,000 bottles per hour, making it suitable for high-volume beverage production.

Juice Beverage Filling Machine

Engineered for fruit juices and juice blends, this machine typically utilizes standard-pressure filling technology. It allows fully automatic bottle feeding, filling, and capping, and can be enhanced with features like liquid level monitoring and automatic process control. These functions ensure accurate and consistent filling while maintaining hygiene standards. The system is user-friendly and adaptable to different bottle sizes and juice types.

Wine Filling Machine

Wine filling solutions are tailored according to wine type and packaging. Bottled wine often uses an integrated washing, sterilizing, filling, and capping system. To prevent oxidation and preserve quality, the machine may employ vacuum or nitrogen-assisted filling methods, minimizing air contact during the process. This ensures the wine retains its aroma and taste throughout bottling.

Beer Filling Machine

Designed for glass bottle beer production, this equipment handles washing, filling, and sealing efficiently. It uses sensors to regulate speed and applies the isobaric filling principle with spring valves to maintain beverage quality. Neck-holding filling heads and magnetic capping heads ensure reliable filling and sealing, accommodating various cap types. Production capacity ranges from 2,000 to 20,000 bottles per hour, suitable for different scales of breweries.

Gallon Filling Machine

Specialized for 3- to 5-gallon water containers, this line consists of bottle washing, filling, and capping sections. The washer employs multiple spray stages with disinfectants to ensure cleanliness. The filler performs pre-flushing, disinfection, dripping control, circulating water flushing, external rinsing, and clean water flushing automatically. The capping unit seals bottles without manual intervention, supporting capacities from 150 to 2,000 barrels per hour. This makes it ideal for large-capacity water bottling operations.
