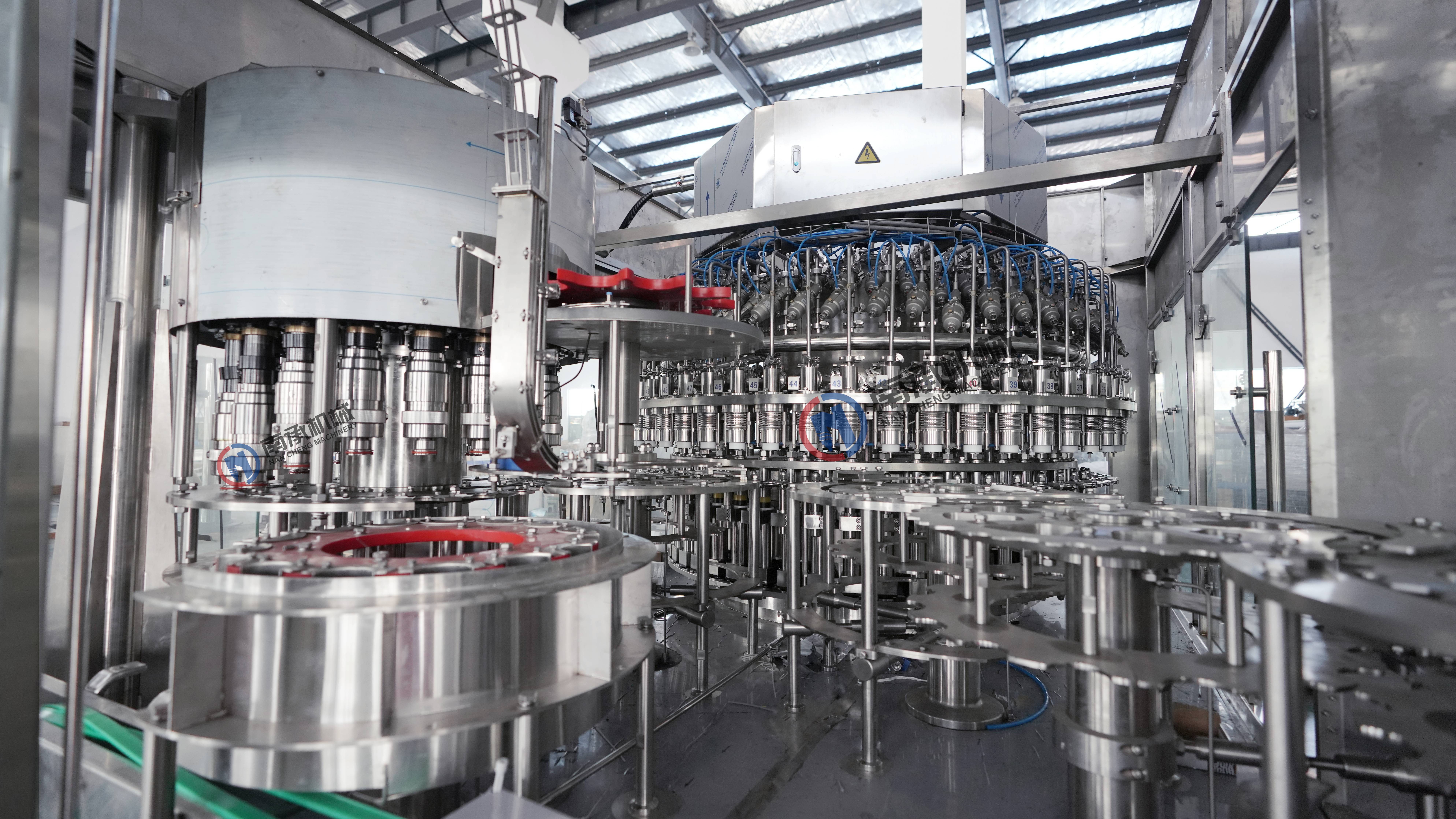

High-Speed Combiblock Water Filling Line

Introduction of High-Speed Automatic Combiblock Water Filling Line

The High-Speed Combiblock Water Filling Line is an advanced integrated system that combines PET bottle blowing, water filling, and capping into one compact and hygienic solution. Also known as a blow fill cap machine or blowing filling capping combiblock, this technology is widely used in large-scale bottled water plants with high output and strict hygiene requirements.

By eliminating intermediate bottle conveyors and air exposure, the combiblock system significantly reduces contamination risk, energy consumption, and floor space, while maximizing production efficiency. It is the ideal solution for 12000–48000 BPH bottled water production lines.

As an experienced combiblock water filling line manufacturer, we provide turnkey solutions covering machine design, layout planning, installation, commissioning, and after-sales support.

What Is a Combiblock Water Filling Line?

A combiblock filling line is an integrated system that connects three core processes into one continuous operation:

• PET bottle blowing

• Bottle filling

• Bottle capping

Unlike traditional water filling lines that rely on air conveyors and multiple independent machines, a combiblock uses direct neck handling and enclosed transfer, ensuring higher hygiene, lower operating cost, and more stable high-speed performance.

Blow Fill Cap Machine Working Principle

The combiblock water filling line operates as follows:

   Preform Feeding & Heating

PET preforms are automatically fed and heated in the blow molding section.

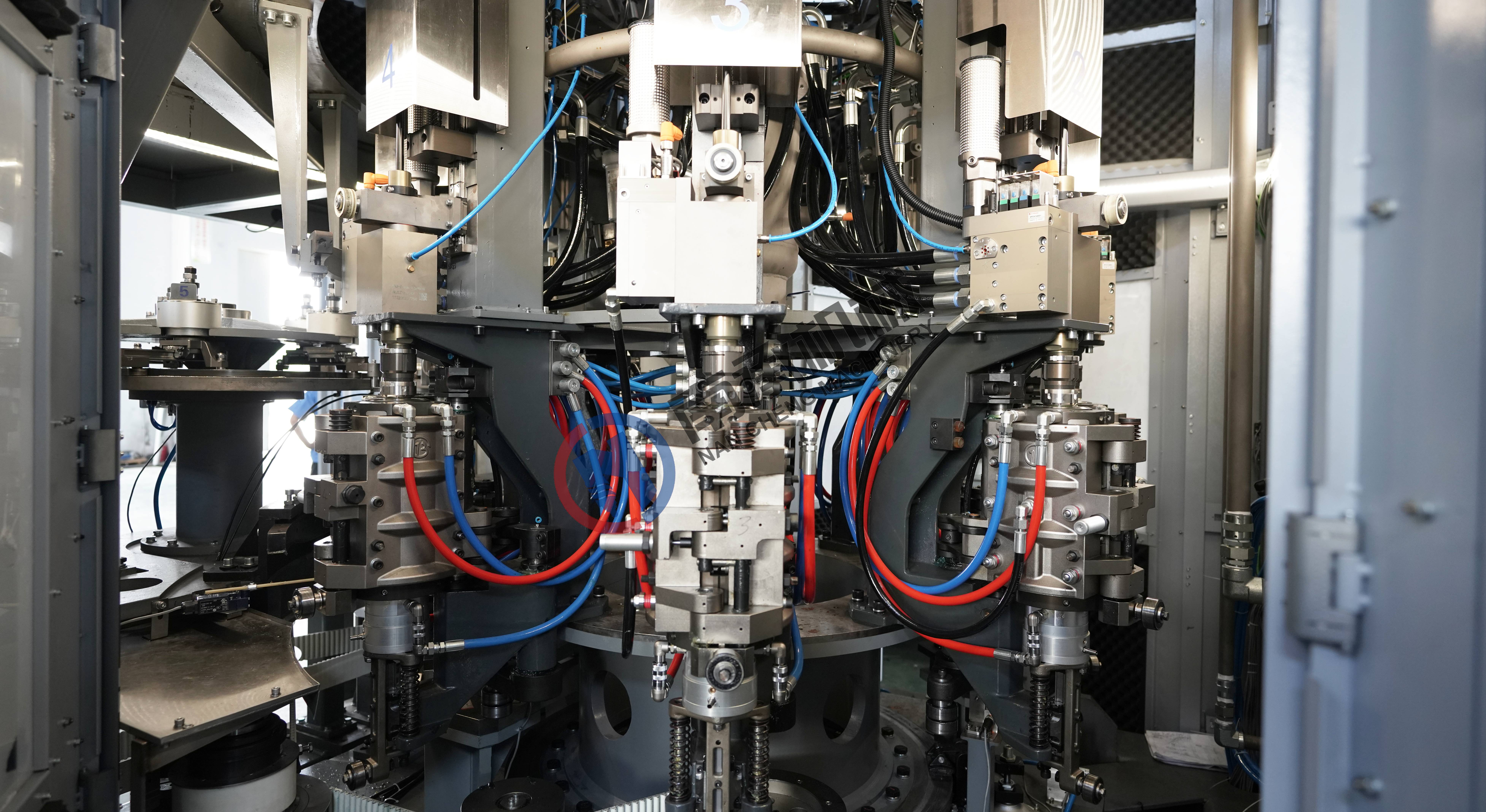

   Bottle Blowing

Heated preforms are stretch-blown into bottles directly inside the combiblock.

   Direct Transfer (No Air Conveyor)

Bottles are transferred to the filling section through the neck, without air exposure.

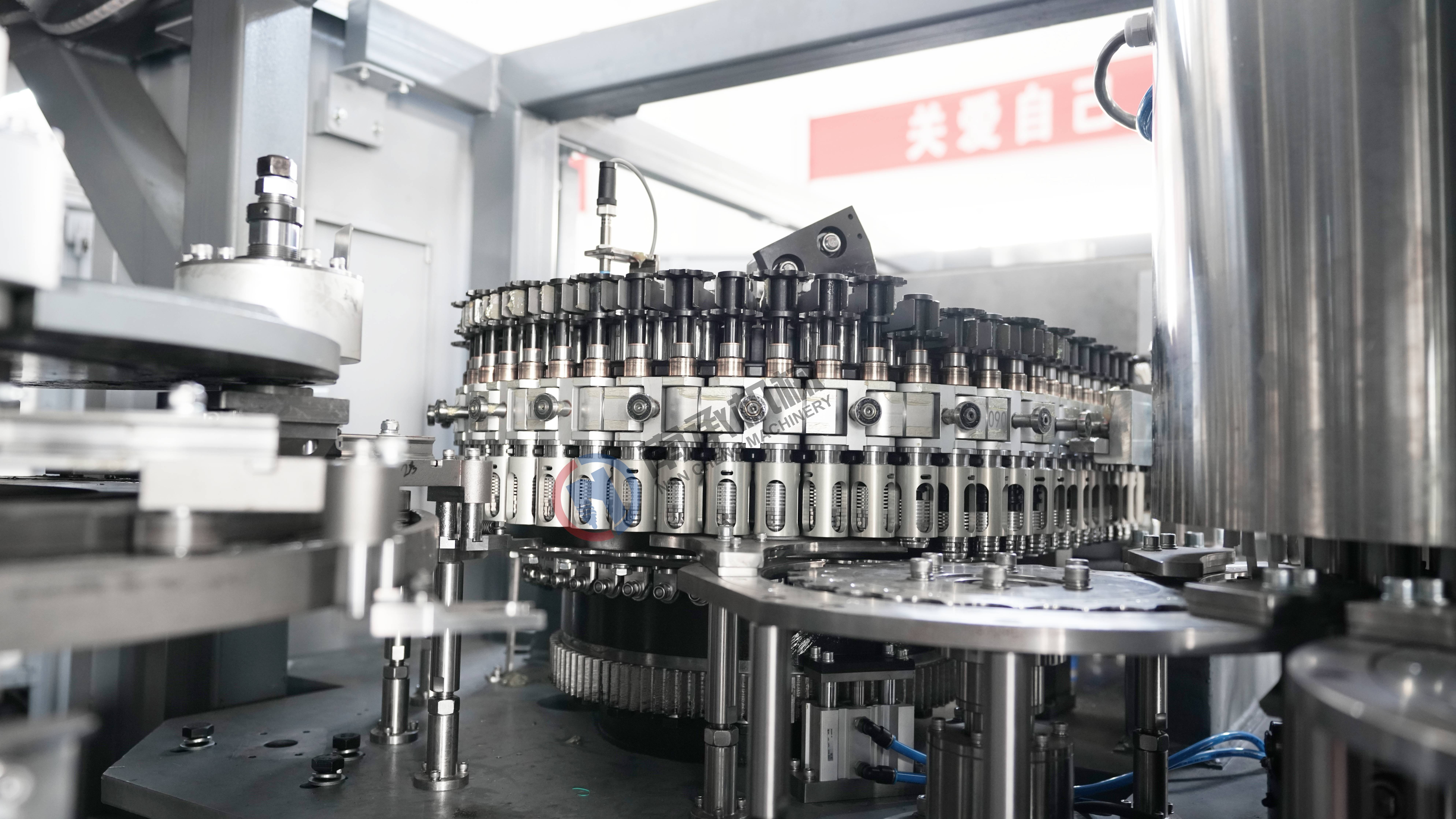

   High-Speed Water Filling

Precise filling valves ensure stable level control and minimal water loss.

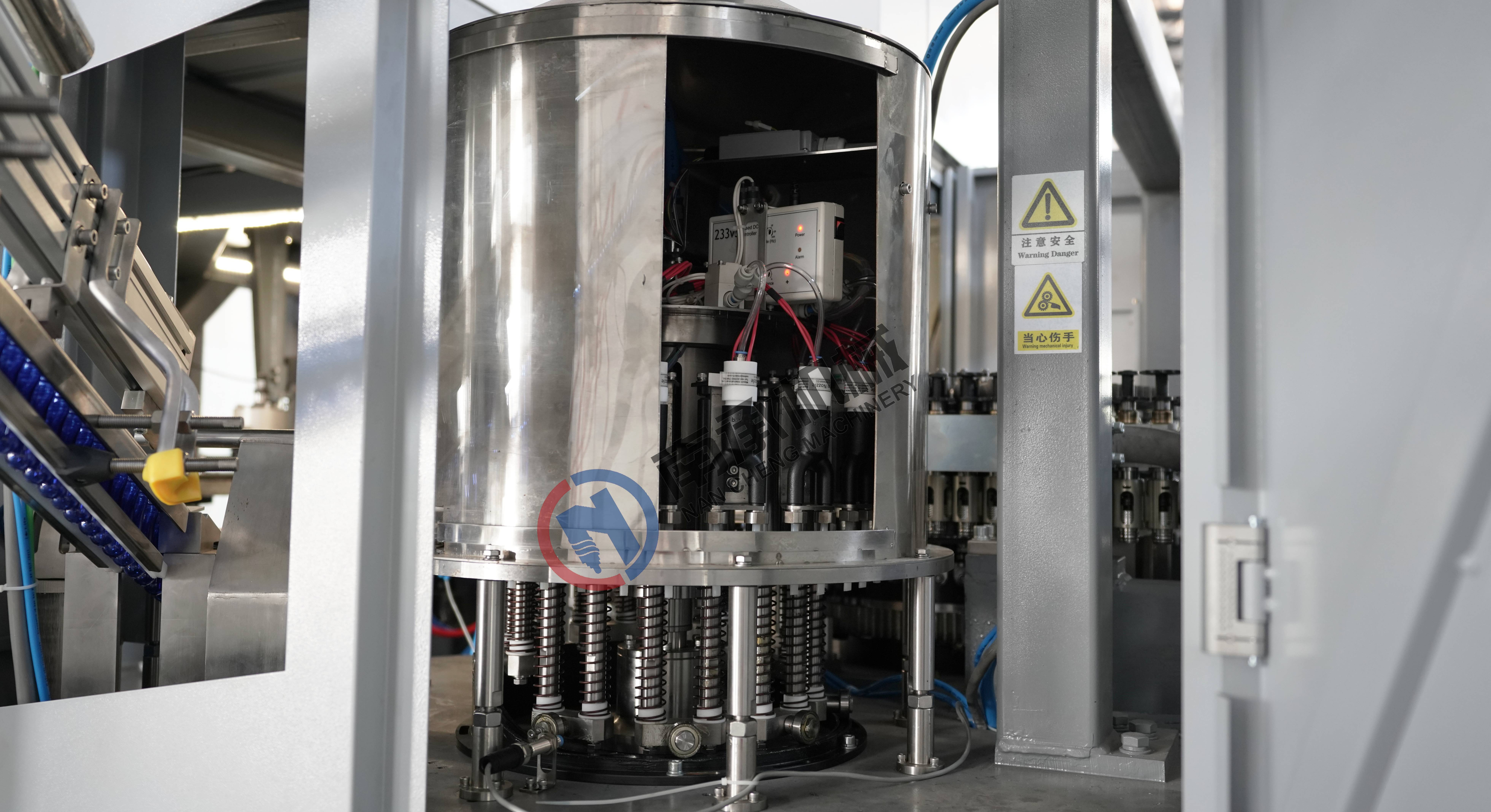

   Automatic Capping

Caps are sorted, sterilized, and applied with high torque accuracy.

   Bottle Discharge

Finished bottles exit smoothly to downstream labeling and packaging systems.

Technical Specifications of Combiblock Filling Line

Advantages of Blow Filling Capping Combiblock

1. Maximum Hygiene Level

• Fully enclosed system

• No bottle air conveying

• Reduced contamination risk

2. High-Speed & Stable Output

• Designed for continuous high-speed operation

• Ideal for large bottled water factories

3. Compact Footprint

• Saves up to 30–40% factory space

• Simplified layout design

4. Lower Energy & Operating Cost

• Reduced compressed air usage

• Fewer motors and conveyors

5. Intelligent Control System

• Centralized PLC control

• Real-time monitoring and fault diagnosis

6. Long-Term Reliability

• Heavy-duty frame

• International brand components

Capacity Options: 12000–48000 BPH

Our combiblock systems are available in multiple configurations:

• 12000 BPH – Medium-scale water plants

• 18000–24000 BPH – High-demand regional bottlers

• 36000–48000 BPH – Industrial-scale bottled water factories

Each configuration is customized based on bottle size, factory layout, and production requirements.

Applications for Bottled Water Plants

This combiblock water filling machine is suitable for:

• Pure drinking water

• Mineral water

• Spring water

• Low-viscosity non-carbonated beverages

It can be seamlessly integrated into a complete bottled water production line, including labeling machines, shrink wrapping machines, and palletizing systems.

Combiblock vs Traditional Water Filling Line

Complete Turnkey Combiblock Solution

We provide a one-stop combiblock solution, including:

• Plant layout design

• Equipment manufacturing

• Installation & commissioning

• Operator training

• Spare parts & technical support

Our combiblock filling lines are compatible with:

• Bottle Blow Molding Machines

• Water Filling Machines

• OPP / Sleeve Labeling Machines

• Shrink Wrapping Machines

• Complete Water Bottling Plants
