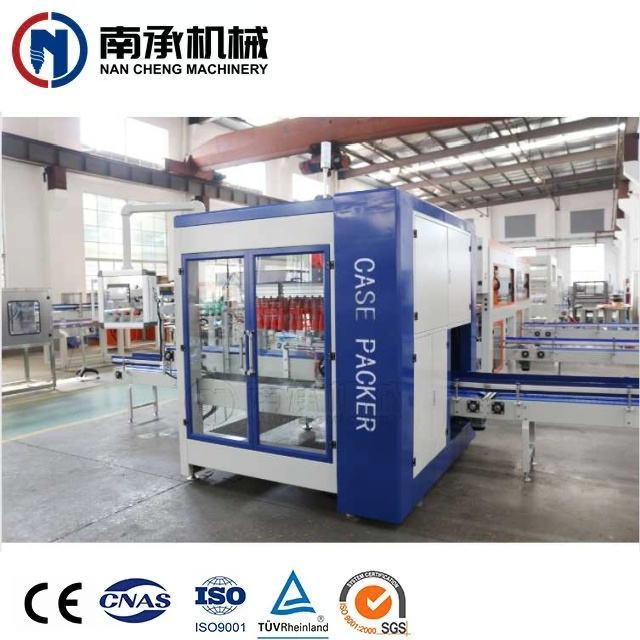

Automatic Case Packer

Automatic Case Packer for Bottles, Cans & Jars

A Pick Up Type Carton Packing Machine, also known as an Automatic Case Packer, is designed to automatically pick, group, and place bottles or cans into cartons with high precision.

This solution is widely used in water, beverage, juice, carbonated drinks, beer, and food packaging lines.

Engineered for stable operation, flexible bottle formats, and reduced labor cost, this automatic case packer is ideal for both new factories and high-capacity production plants.

What Is a Pick Up Type Carton Packing Machine?

A pick up type carton packing machine uses a mechanical or servo-driven pick-up system to lift products from the conveyor and accurately load them into pre-formed cartons.

Compared with side-push or wrap-around systems, the pick-up type case packer offers:

• Better bottle protection

• Higher packing accuracy

• Compatibility with multiple bottle shapes

Automatic Case Packer Applications

Our automatic case packer is suitable for:

• PET bottles (round / square / lightweight)

• Glass bottles

• Aluminum cans

• Jars & containers

Industries served:

• Bottled water production lines

• Juice & CSD filling lines

• Beer & alcoholic beverage plants

• Food & condiment packaging




Key Features of Pick Up Type Automatic Case Packer

High Precision Pick & Place System

• Servo-controlled pick-up heads

• Accurate grouping and placement

• Minimal bottle collision or scratching

Flexible Carton Packing Layouts

• Supports 2×3, 3×4, 4×6 and customized packing formats

• Easy changeover for different bottle sizes

Stable & High-Speed Operation

• Continuous automatic operation

• Designed for long-term industrial use

• Suitable for medium to high-speed packaging lines

Labor Cost Reduction

• Fully automatic carton loading

• Replaces manual packing

• Consistent output quality

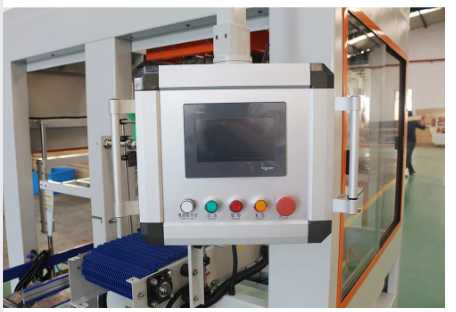

Intelligent Control System

• PLC + touchscreen HMI

• Fault alarm & production data display

• Easy operation and maintenance

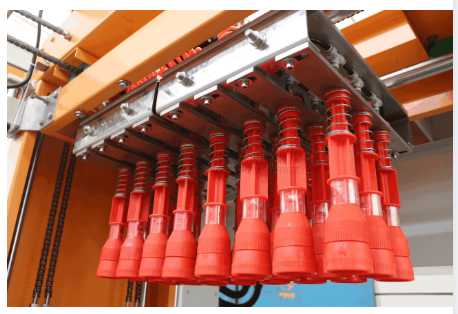

bottle grasper

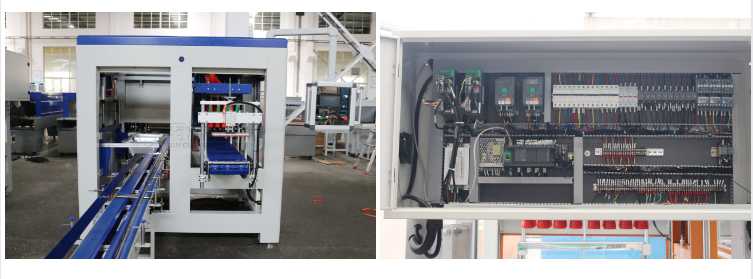

plc control system

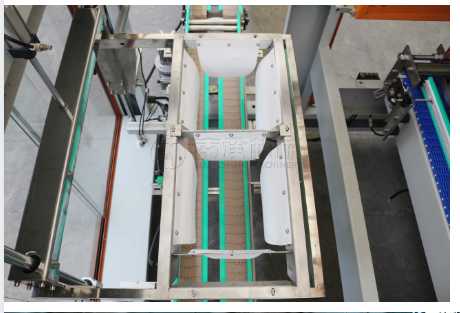

conveyor

Technical Specifications

Working Principle of Pick Up Type Case Packer

1. Bottles or cans are conveyed and grouped automatically

2. Pick-up unit lifts the products simultaneously

3. Products are accurately placed into cartons

4. Filled cartons are discharged to the sealing system

This design ensures high efficiency, gentle handling, and precise packing.

Why Choose Our Automatic Carton Packing Machine?

• Proven performance in Africa, Middle East, Southeast Asia & Latin America

• Designed for unstable power and hot environments

• Easy integration with filling, labeling, and palletizing systems

• Global installation guidance and technical support

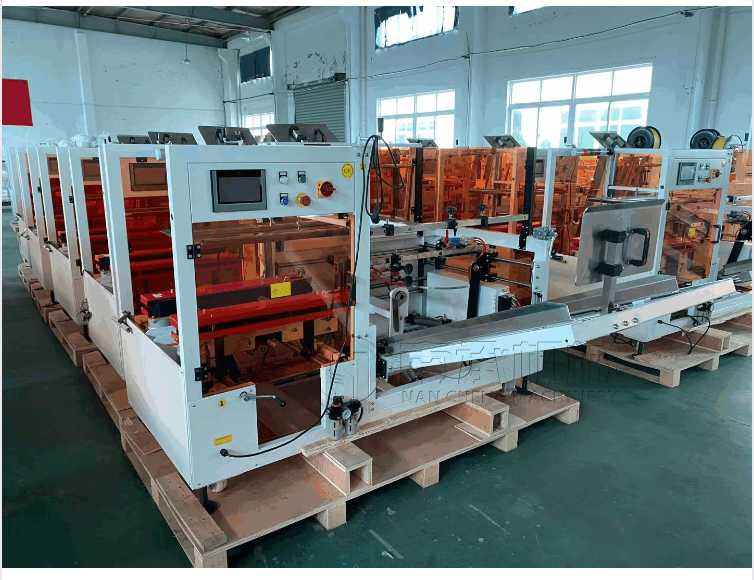

case erector machine

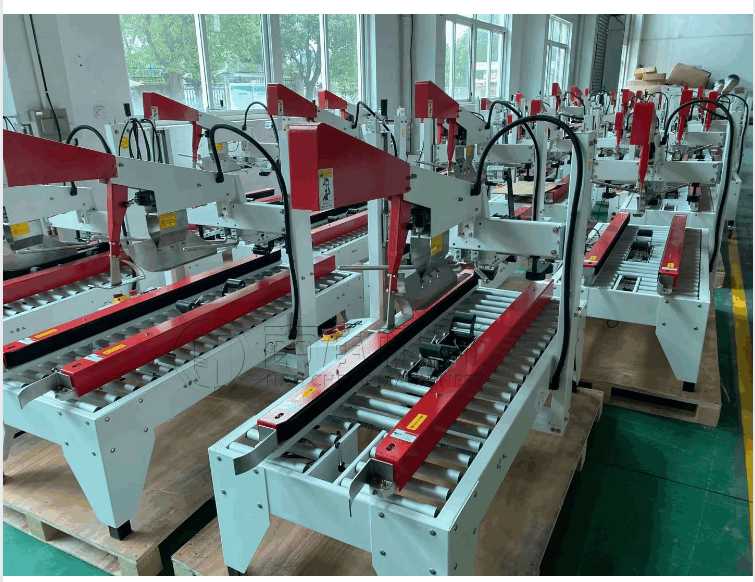

case tapper machine

Advantages for Global Markets

Our pick up type carton packing machine is optimized for:

• Developing markets with labor cost pressure

• Export-oriented beverage factories

• Start-up plants upgrading from manual packing

Typical target regions:

• Africa (Nigeria, Kenya, Ghana, Ethiopia)

• Middle East (UAE, Saudi Arabia, Oman)

• Southeast Asia (Indonesia, Vietnam, Philippines)

• Latin America (Peru, Colombia, Mexico)

Frequently Asked Questions (FAQ)

1. What is the difference between pick up type and side push case packer?

Pick up type case packers lift products vertically, offering better bottle protection and higher packing accuracy than side push systems.

2. Can the automatic case packer handle different bottle sizes?

Yes. The machine supports quick changeover for different bottle diameters, heights, and packing layouts.

3. Is this carton packing machine suitable for water bottling lines?

Absolutely. It is widely used in bottled water, mineral water, and purified water production lines.

4. Can it be integrated with carton sealers and palletizers?

Yes. The automatic case packer can be seamlessly connected to carton sealing machines and robotic palletizers.

Request Price & Technical Solution

Looking for a reliable pick up type carton packing machine or automatic case packer for your production line?

Contact us now to get:

• Machine price & layout drawing

• Production capacity calculation

• Turnkey packaging line solution
