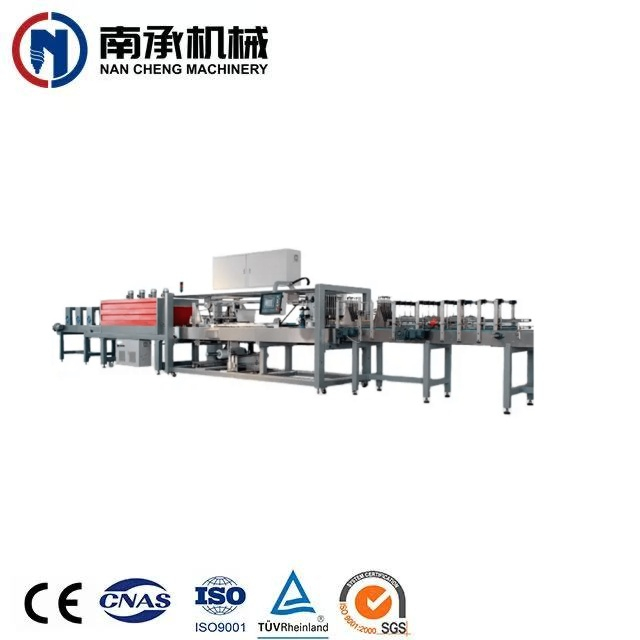

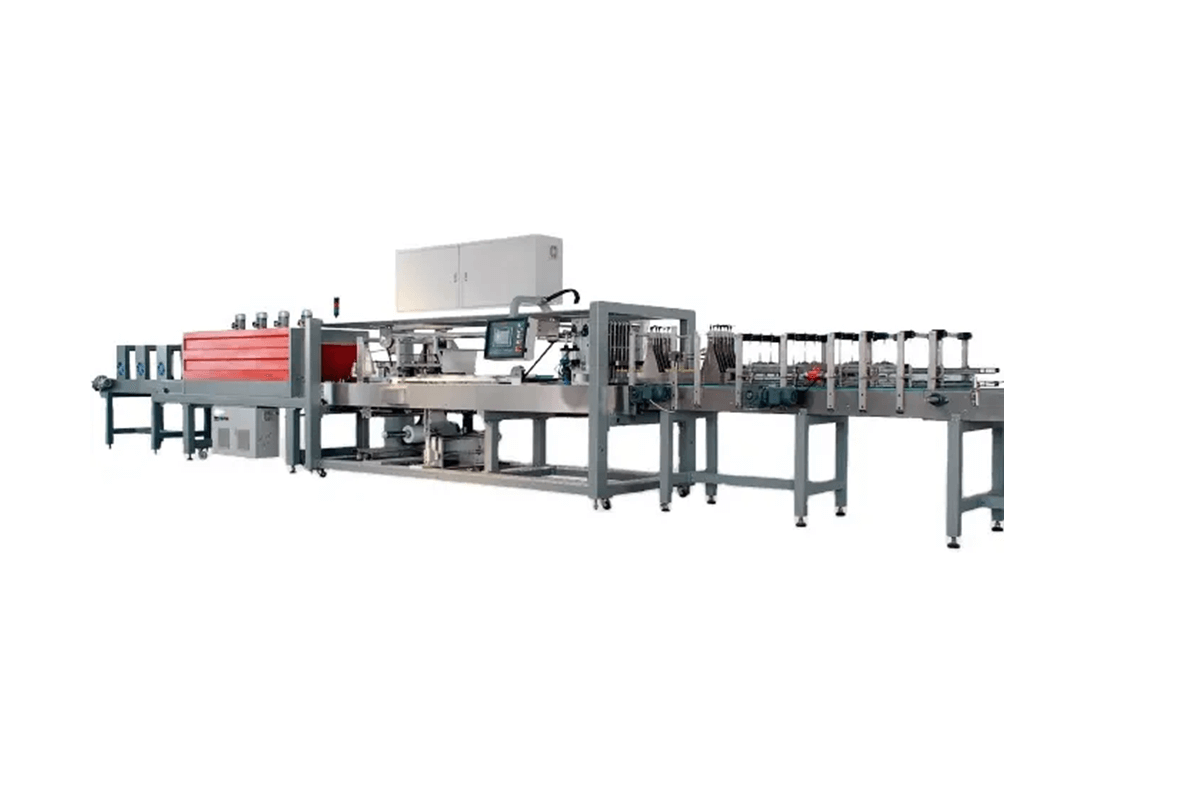

One-piece Film Packing Machine

Our advanced film shrink wrapping machine is designed to meet the latest demands of modern beverage and food packaging plants. Built with flexible design concepts and precision manufacturing technology, it fits a wide range of applications—including beer, beverages, juice, bottled water, dairy products, condiments, and both bottom-supported and unsupported cluster packaging.

Model:
NC-SW-25
Brand:
NANCHENG
Function:
Bottle packing
Material:
SUS304/316
Control:
Electric Auto Control
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Wooden carton
Driven type:
Electric
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

Description

Meet more advanced needs, using flexible design and manufacturing technology

Suitable for beer, beverage, juice, bottled water, dairy products, condiments and other bottomed or unbottomed cluster packaging.

Self-developed film unwinding device and film constant tension conveying, film instantaneous cutting, automatic lap wrap film, higher strength after shrink packaging.

Servo motor control system, lever into the bottle, feed film, cut film, wrap film accurate synchronization, stable and reliable.

Touch LCD color screen, friendly operation interface, quick parameter setting, easy man-machine communication and control.

The shrink chamber adopts self-developed hot air circulation structure, the net belt transmission is smooth, the wear resistance is high, and the service life is long.

Product Specifications

‌

‌Parameter‌	‌Specification‌
Packaging Speed	20 packs/minute
Overall Dimensions (L×W×H)	13840mm × 1100mm × 2100mm
Conveyor Belt Width	541mm
Shrink Tunnel Dimensions	2400mm × 650mm × 450mm
Air Consumption	350 NL/min
Maximum Package Size	600mm × 400mm × 350mm
Operating Pressure	0.6-0.8 MPa
Power Supply/Power	3Phase 5Line, 380V, 38kW
Sealing Time/Temperature	0.5-1.5s, 170℃-200℃

Applications

Mineral water 6/12/24 bottle packs
Carbonated soft drinks
Energy drinks
Juice & dairy bottles
Cooking oil bottles
Beer cans or glass bottles

Automatic Heat Shrink Wrapping Machine-cans

Tins & cans

Suitable : Daily chemical products

Bottle Type : Round / Square / Unique

Shrink film : PE, PP, PVC, POF etc..

Glass bottles

Suitable : Beer, wine, brandy, vodeka

Bottle Type : Round / Square / Unique

Shrink film : PE, PP, PVC, POF etc..

Plastic bottles

Suitable: Water, juice, soft drink etc Bottle Type : Round / Square / Unique

Shrink film : PE, PP, PVC, POF etc..

How to Choose the Right Model

You should evaluate:

Daily production capacity
Bottle sizes and combinations
Film thickness preference
Layout space in factory
Need for semi-auto or fully automatic system

Automatic Heat Shrink Wrapping Machine

Product Parameters

Capacity：15~18 bags/min
Shrinkage Machine：4200×1100×1700mm
Wrappage Max Size：L2400×W650×H450mm
Shrink Membrane Material：PE、PVC、POF
Hot Shrink Highest Temperature 160 - 260°， (adjust by oneself).
Facility Overall Size: Main Equipment：L12000×W1100×H2100mm
Shrinkage Film Thickenss：0.03-0.15mm
Power：30kw
Pressure Requirement：380V/50-60HZ
Weight：2.5T

Parameter‌‌ Specification‌

Packaging Speed: 30 packs/minute
Overall Dimensions (L×W×H): 16390mm × 1800mm × 2500mm
Conveyor Belt Width: 686mm
Shrink Tunnel Dimensions: 2500mm × 700mm × 450mm
Air Consumption: 350 NL/min
Maximum Package Size: 460mm × 280mm × 345mm
Operating Pressure: 0.6-0.8 MPa
Power Supply/Power: 3Phase 5Line, 380V, 68kW
Total Weight: 6200 kg

Product Parameters

Capacity：10~12 bags/min
Size：L5050×W3300×H2100mm
Shrink Membrane Material：PE、PVC、POF
Hot Shrink Highest Temperature 160 - 260°， (adjust by oneself).
Power：20kw
Voltage：380/220V
Weight：1.2T
