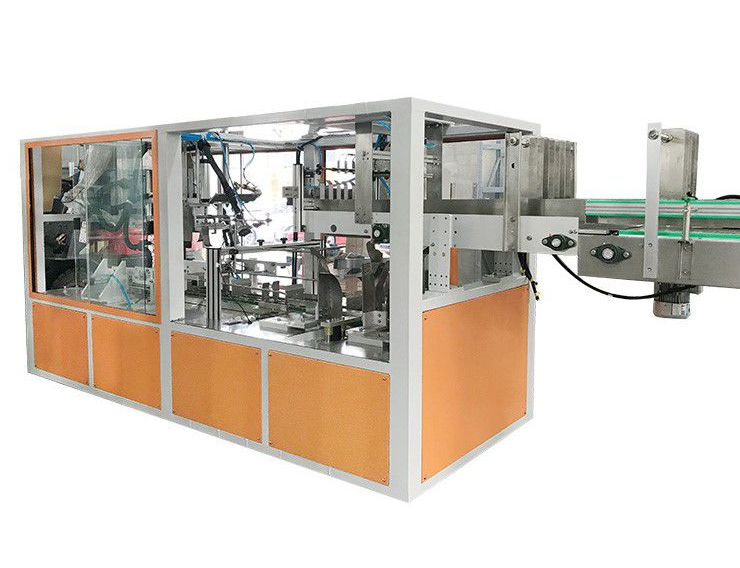

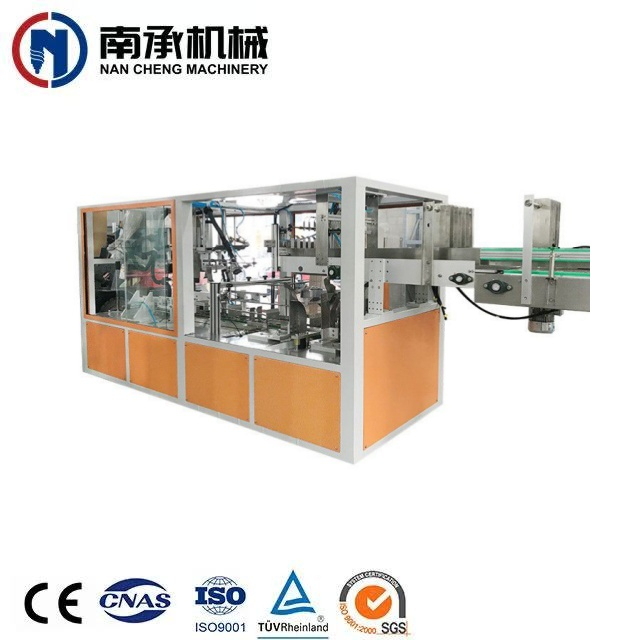

One Piece Carton Filler

The machine features servo positioning, PLC control, and automatic operation. It uses imported motor drives, multi-degree rotation via chain transmission, and chain wheel speed regulators. With high automation, reliable control, and easy adjustment, it supports intelligent operation. Widely applicable in beverage, beer, chemical, food, and pharmaceutical industries, it handles secondary packaging for various tin and bottle types. It can seamlessly integrate with automatic filling production lines.

Model:
NC-CT-25
Brand:
NANCHENG
Function:
Bottle packing
Material:
SUS304/316
Control:
Electric Auto Control
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Wooden carton
Driven type:
Electric
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

Description

This model is suitable for PET, PP bottles, glass bottles and Tetra Pak bags, easy to change bottle type, and suitable for a variety of combination packaging methods.

The bottle is designed with plastic steel mesh conveyor, arranged neatly, and can be divided into six rows, five rows or four rows according to needs.

Using the principle of the robot arm, the paper and the product reach the anchor point, and make the product fall on the paper lightly, so that the structure of the machine is more reasonable, more light and stable.

Compared with traditional models, the design is reasonable and space saving.

The use of imported hot melt adhesive equipment makes the operation more convenient and simple, and the equipment is durable. The equipment packed by it has beautiful appearance and convenient storage and transportation.

Main Parameters

Parameter	Specification
Product Capacity	25 cartons per minute
Rating Power	10KW
Used Power Supply	Three phase, 380V, 50Hz
Controlling Power Supply	24V DC
Compressed Air	1500L/min, 0.6-0.8Mpa
Hot Melt Glue Solidify Time	1.5-2 seconds
Machine Weight	3500kg
Overall Size	L6285W2582H2115mm
Bottle Entry Conveyor Size	L3000W620H1200mm
Package Product Size	Length 350-450mm, Width 230-330mm, Height 85-320mm
Package Bottle Diameter	D55-108mm
Cardboard Requirement	Complies with GB/T6544-2008 standard

Applied bottle type: round bottle, square bottle, alien bottle.

Capacity Range	Packaging Arrangement	Capacity Range	Applicable Bottle Types
200-400ML	46,45,34 or 35,2*3	8-30 cartons/min	PET/Tin/Glass bottles
300-500ML	46,45,34 or 35,2*3	8-30 cartons/min	PET/Tin/Glass bottles
300-600ML	46,45,34 or 35,2*3	8-30 cartons/min	PET/Tin/Glass bottles
500-1250ML	34,23	8-30 cartons/min	PET/Tin/Glass bottles
1250-2500ML	23,22	8-30 cartons/min	PET/Tin/Glass bottles
