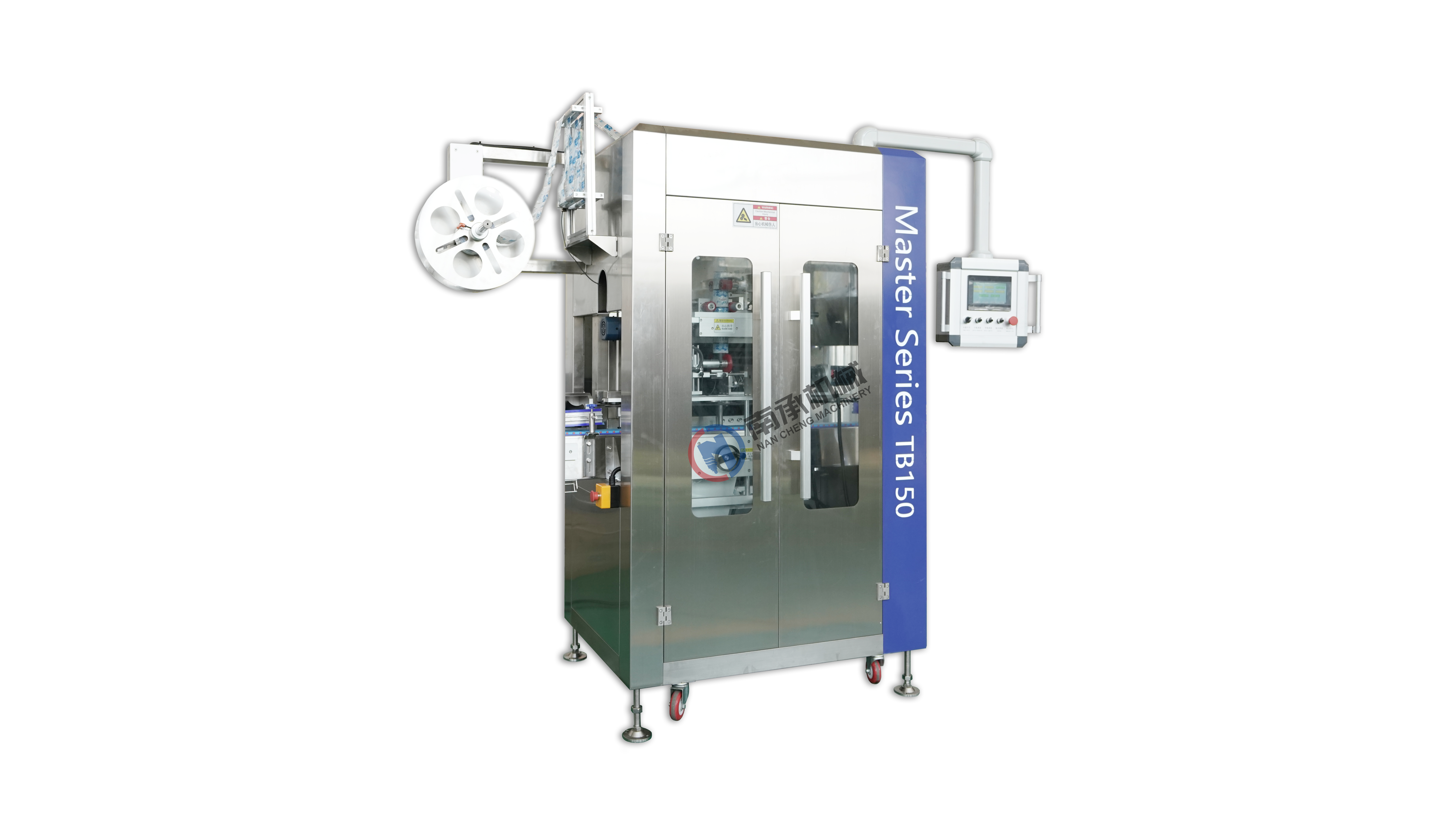

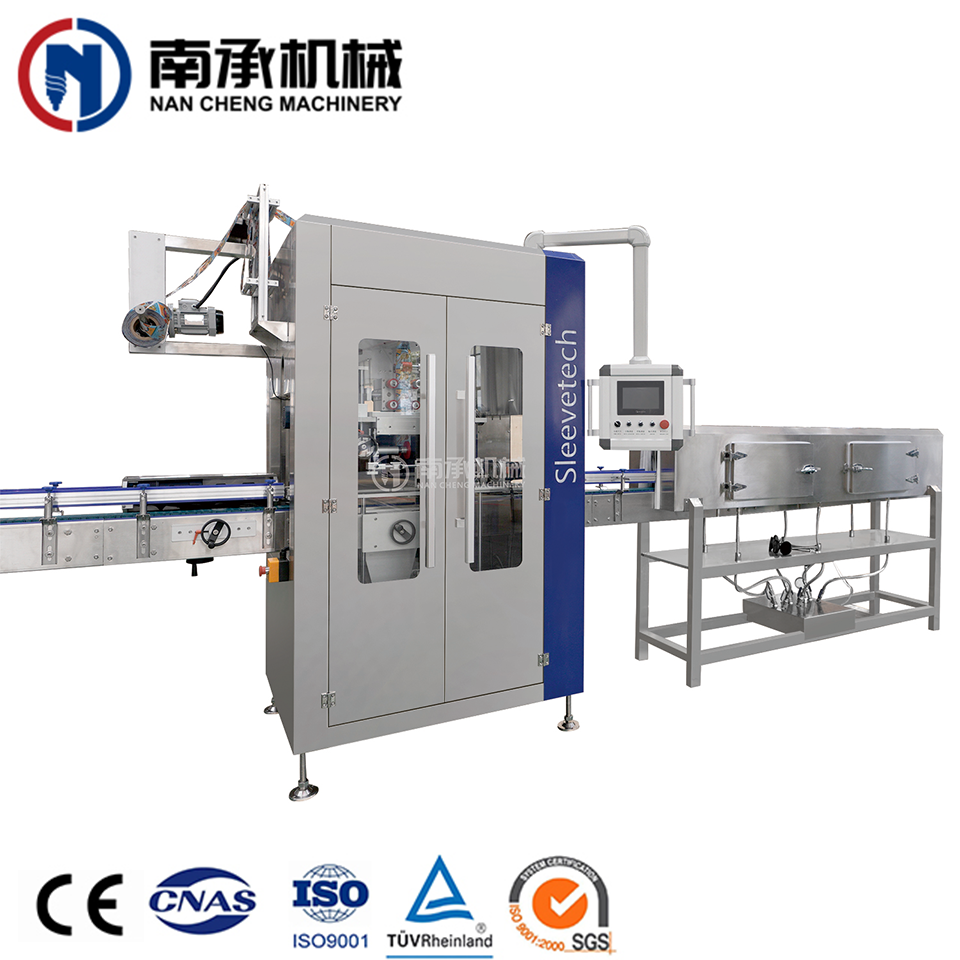

150-400BPM Full Automatic Sleeve Labeling Machine

What Is a Shrink Sleeving Labeling Machine?

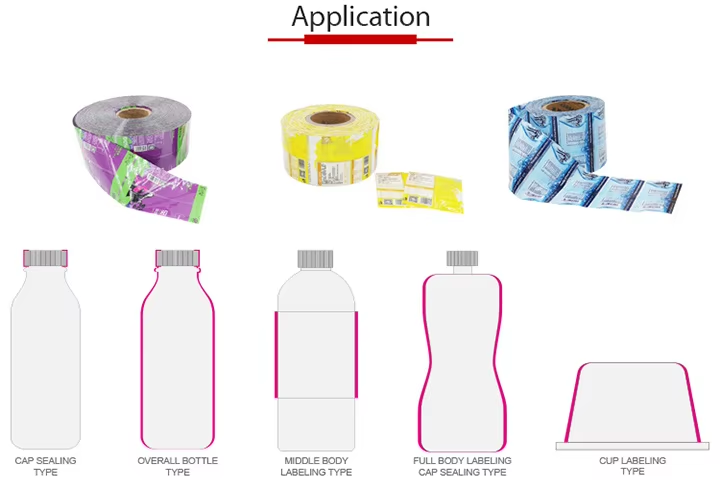

Full automatic sleeve labeling machine is a high tech back-end packaging equipment, mainly for the dry product’s set of standard contract, after the label can be directly into the stage of using the set of standard machine set of standard film can have abundant product information, set the contraction after can stick with the product shape, can further improve the quality of product packaging common dry product label case are: cotton swabs cookie jar caddy yarn ball pen toys stationery bottles of milk powder cans tape, etc.

A sleeving machine shoots heat shrinkable plastic sleeves over bottles as they pass by on a conveyor. The sleeves are supplied as lay flats on reels, printed with label information. The fascinating part of a sleeving machine is how it opens the lay flat into a cylinder and then cuts the labels to the correct length at high speed.

Shrink labeling is a two-step process. First, a heat-shrinkable plastic sleeve is dropped over a bottle as it moves by on a conveyor. Second, the sleeved bottle is conveyed through a heat tunnel that shrinks the label to a snug wrinkle-free fit. A shrink tunnel must subject the bottle to the correct amount of heat for the right length of time. Shrink labeling systems can achieve speeds in the range of 150-400 bottles per minute depending on the sleeving machine model purchased.

How Shrink Sleeving Labeling Machines Work

Film Feeding

A roll of shrinkable film—PVC, PETG, or OPS—is loaded onto the film holder.

Compatible with films produced by any shrink sleeve label printing machine.

Film Cutting

A servo-controlled cutter trims each label to the exact length.

This ensures every sleeve fits consistently on every bottle.

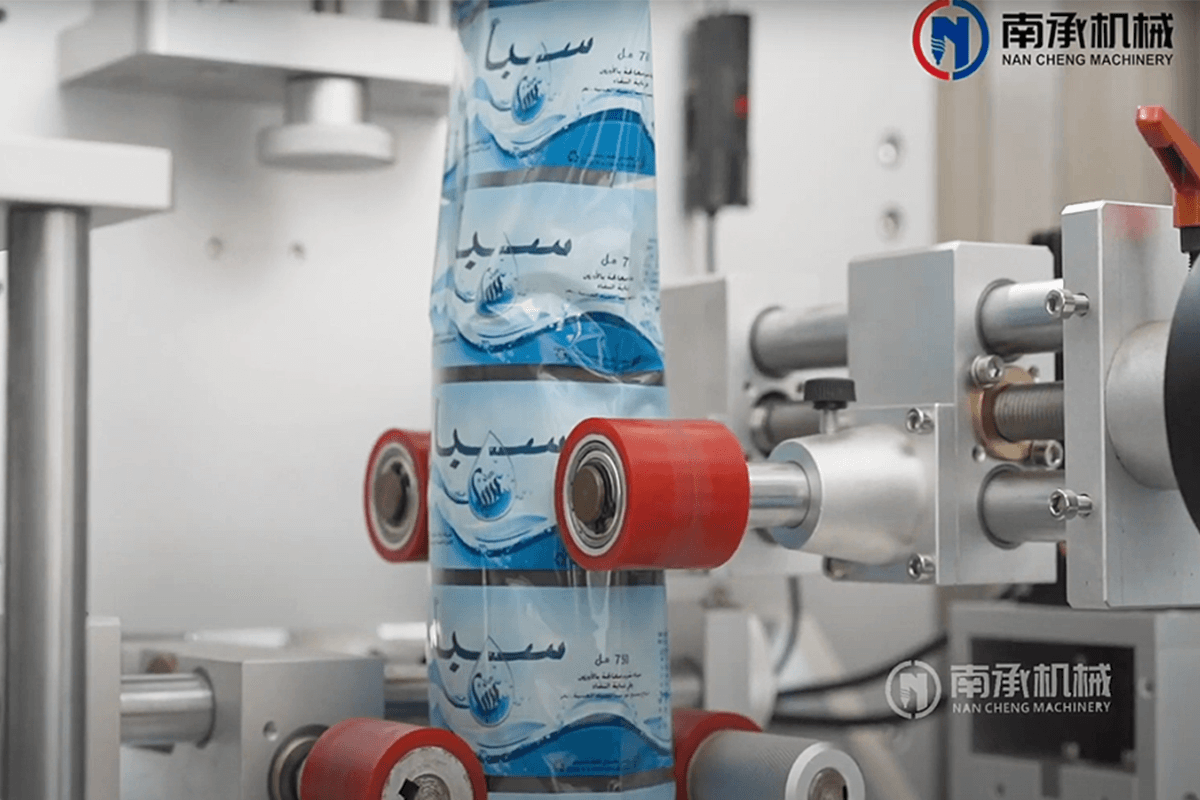

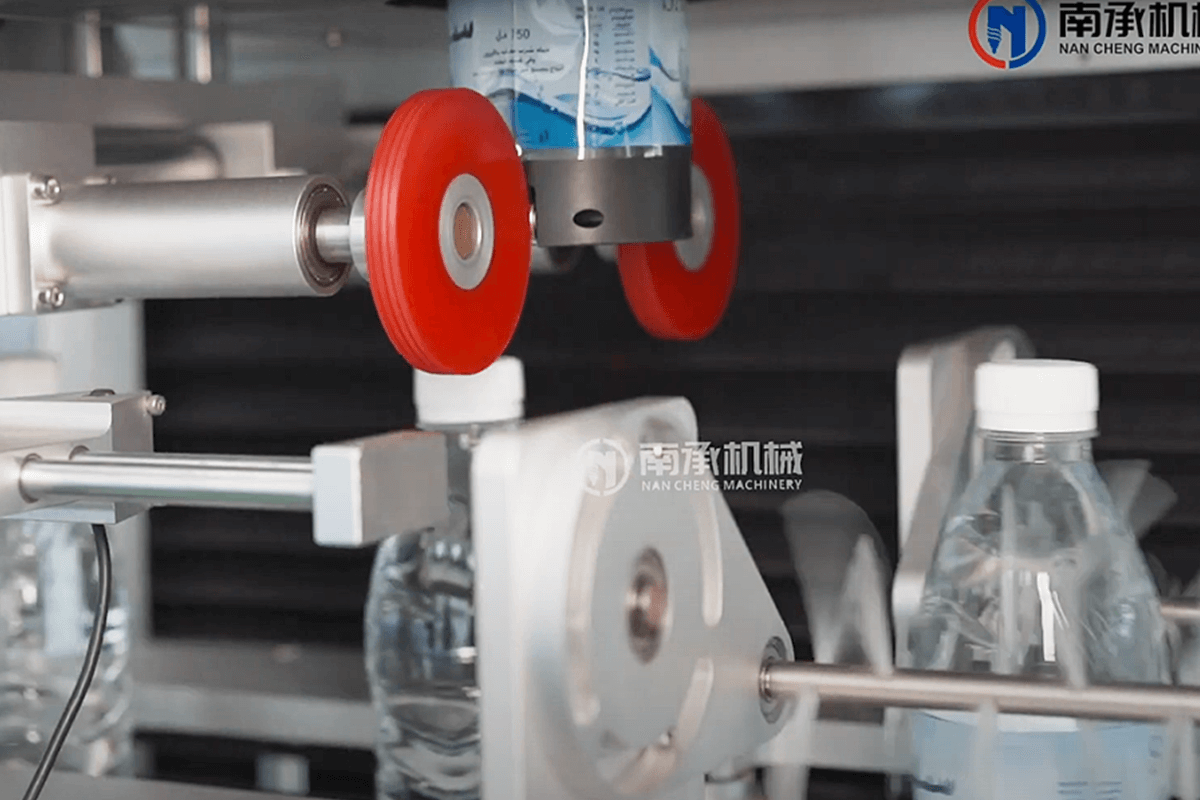

Sleeve Application

The trimmed sleeve is placed over the bottle or container by the shrink sleeve label machine.

Heat Shrinking

The container passes through a shrink tunnel:

• Hot air tunnels for hot sealing PVC shrink sleeve label machine use

• Steam tunnels for more complex bottle shapes

Finished Output

The sleeve smoothly shrinks around the bottle, providing a 360° branding surface.

This process is simple, stable, and suitable for beginners to learn quickly.

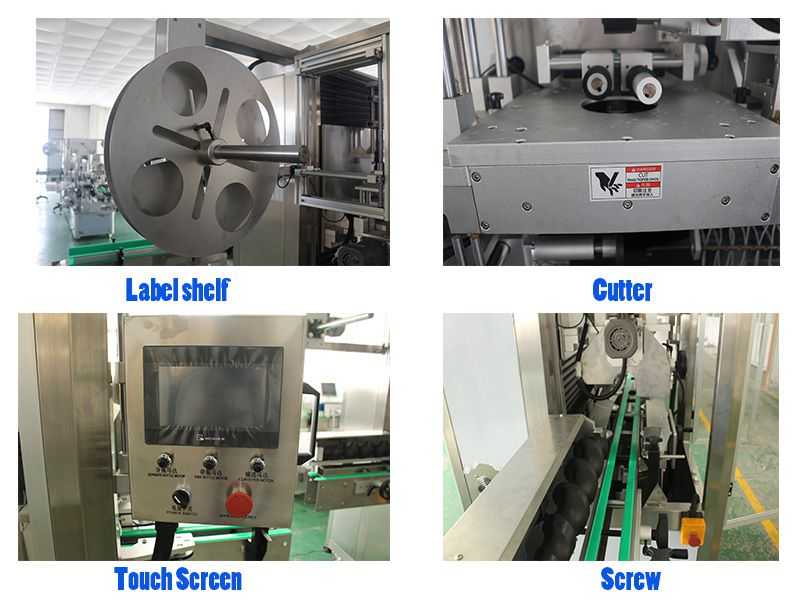

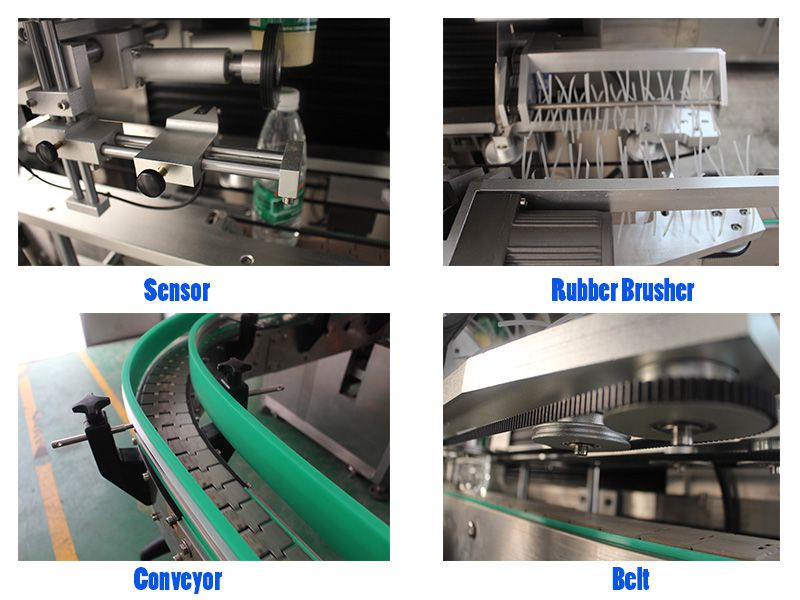

Key Features of the Shrink Sleeving Labeling Machine

• High Stability & Accuracy

Advanced servo motors control film cutting and sleeve positioning, reducing errors.

• Wide Material Compatibility

Works with PVC, PETG, OPS, and PLA shrink films, making it a flexible PVC shrink sleeve labeling machine.

• Easy Operation

Touch screen interface with clear icons and simple parameter settings—ideal for new operators.

• Modular Design

Easy to maintain, easy to replace parts, and supports expansion with steam or electric shrink tunnels.

• Full Integration

Connects smoothly with conveyors, filling lines, sleeve printers, or packing machines.

• Durable Construction

Stainless steel frame ensures long service life even in humid beverage factories.

Technical Specifications (Beginner-Friendly Format)

NC-150  Technical Specifications：

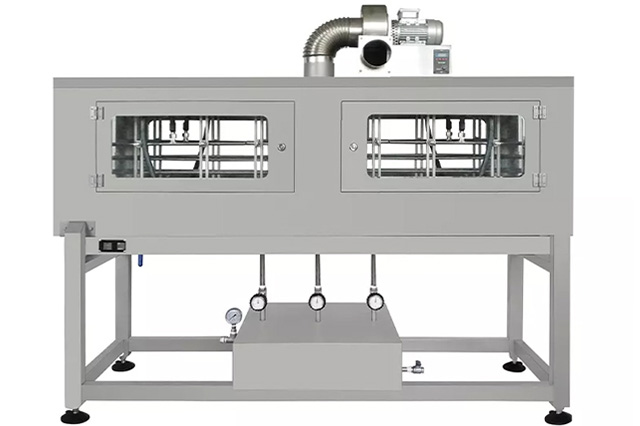

Heat Shrink Tunnel

1 Brief Introduction

This machine is an unique design for all kinds of bottles and cups. The label will be smooth without deformation after shrinking.

1. These series of models use hot air circulation shrink systems, mainly for shrink label bottle-shaped, jars, cups etc. But also can shrink the bottle neck or mouth.

2. It is widely used in the bottle or cup body of beverages, pharmaceuticals, cosmetics, pesticides and other industries glass bottles, plastic bottles, cups and other containers.




2 Technical Parameter

Benefits of Using a Shrink Sleeve Labeling Machine (Why Beginners Choose It)

• Full Bottle Coverage

Provides 360° branding area for more attractive packaging.

• Compatible With All Shapes

Round, square, curved, or asymmetrical bottles can all be labeled effectively.

• Strong Visual Impact

Works perfectly with high-resolution artwork from shrink sleeve label printing machines.

• Improved Product Appearance

Wrinkle-free and scratch-resistant shrink sleeves make products look premium.

• Easy Line Integration

Ideal for beverage factories, water plants, cosmetics producers, and more.

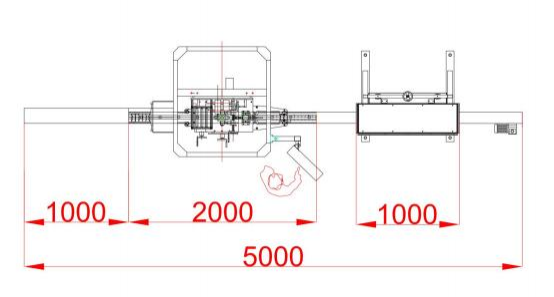

Machine Layout (Easy to Understand Flow)

1. Bottle Loading

2. Sleeve Labeling Machine

3. Shrink Tunnel (steam or hot air)

4. Bottle Drying Section

5. Quality Checking

6. Packing Area

Technical Specifications

Frequently Asked Questions (FAQs for Beginners)

1. Can this machine work with PVC sleeves?

Yes, it is fully compatible and often used as a PVC shrink sleeve labeling machine.

2. Do I need a steam or electric shrink tunnel?

• Electric hot air → recommended for PVC sleeves

• Steam → better for irregular bottles or thicker films

3. Is the machine difficult to operate?

No. The interface is beginner-friendly with simple settings.

4. What type of printing machine do I need for the labels?

Any shrink sleeve label printing machine (gravure or flexo) can be used.

5. Can it connect to my existing filling line?

Yes. The machine can be added before packing or after bottle drying.

Conclusion

Our Full Automatic Sleeve Labeling Machine provides a stable, efficient, and easy-to-operate solution for companies new to shrink labeling. With strong compatibility, simple operation, and professional packaging results, it is the ideal system for growing beverage plants, cosmetic factories, and food producers.

Whether you need a shrink sleeve label machine, shrink sleeve label printing machine, hot sealing PVC shrink sleeve label machine, or complete shrink tunnel system, we offer full integration and customization to support your business.
