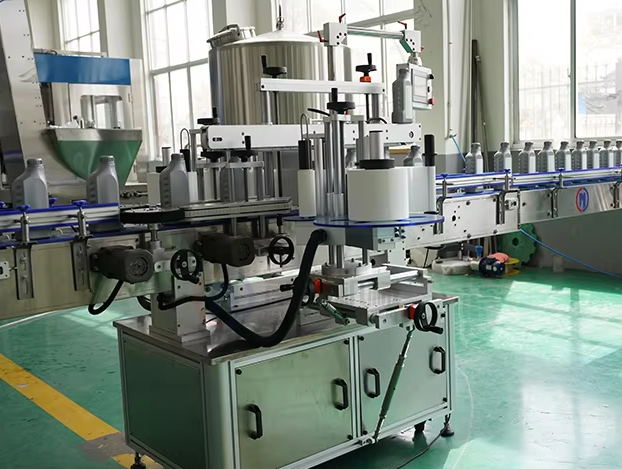

One Side / Double / Three Sides Sticker Labelling Machine

Our Automatic Sticker Labelling Machine is designed to provide fast, precise, and flexible labeling for a wide range of bottle types. Whether you need a sticker labeling machine for bottles, an auto flat surface sticker labelling machine, or a round bottle sticker labelling machine, this system delivers outstanding performance with high stability and easy operation. It is widely used in beverage, cosmetics, chemicals, daily care, and pharmaceutical industries.

Model:
NC-150
Brand:
NANCHENG
Function:
Bottle labeling
Material:
SUS304/316
Control:
Electric Auto Control
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Wooden carton
Driven type:
Electric
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

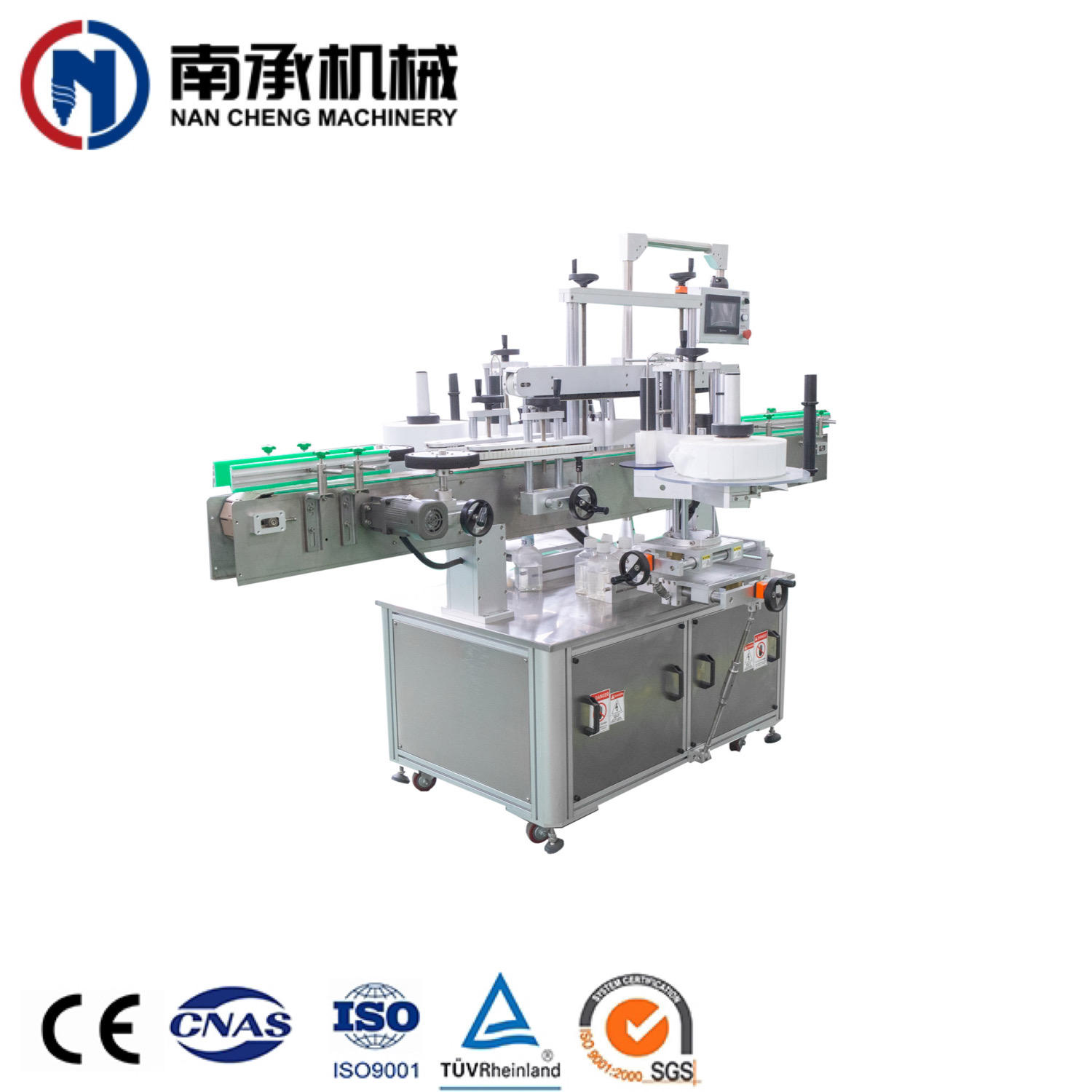

Automatic Sticker Labeling Machine – Professional Bottle & Flat Surface Labeling Solution

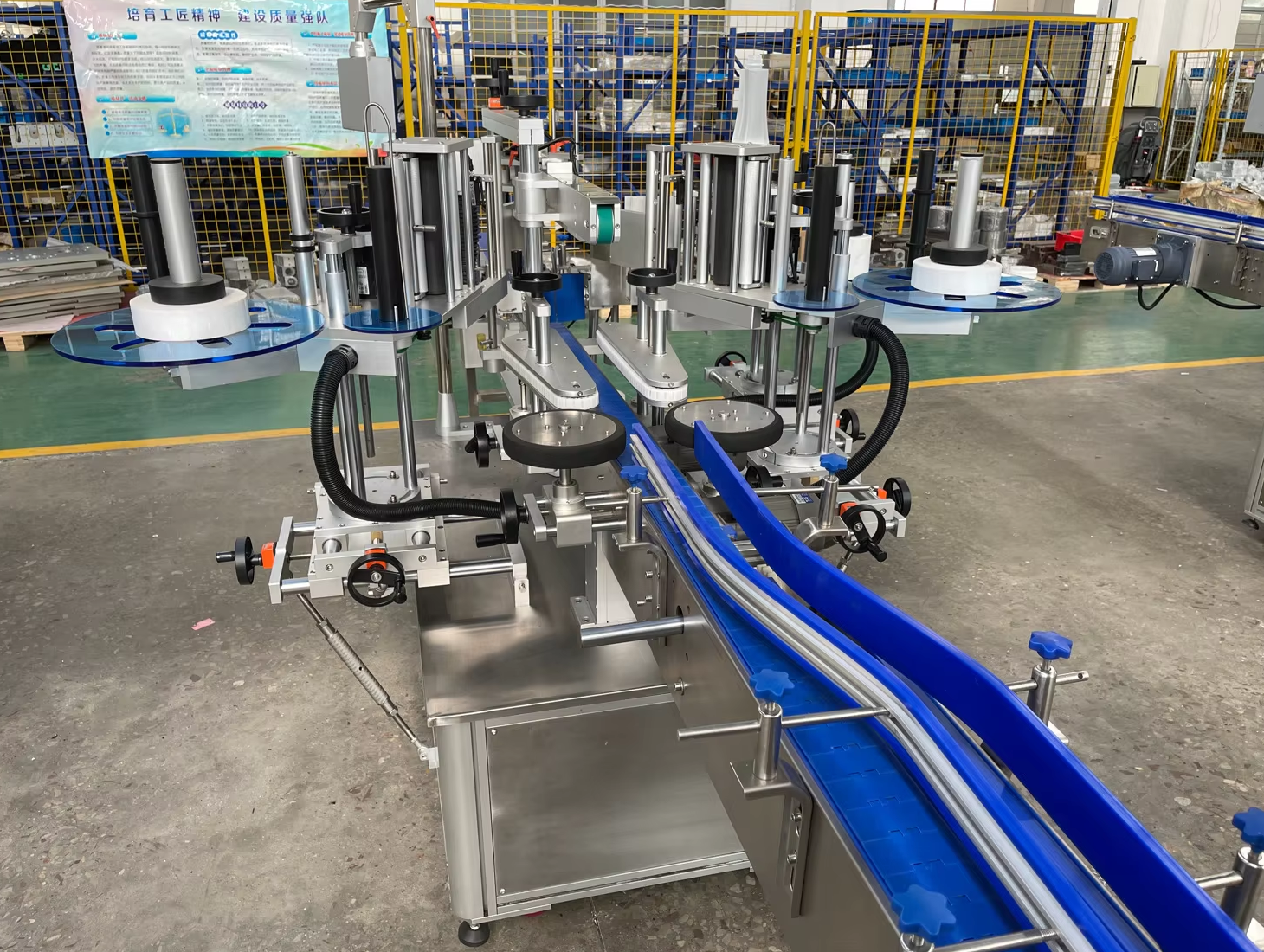

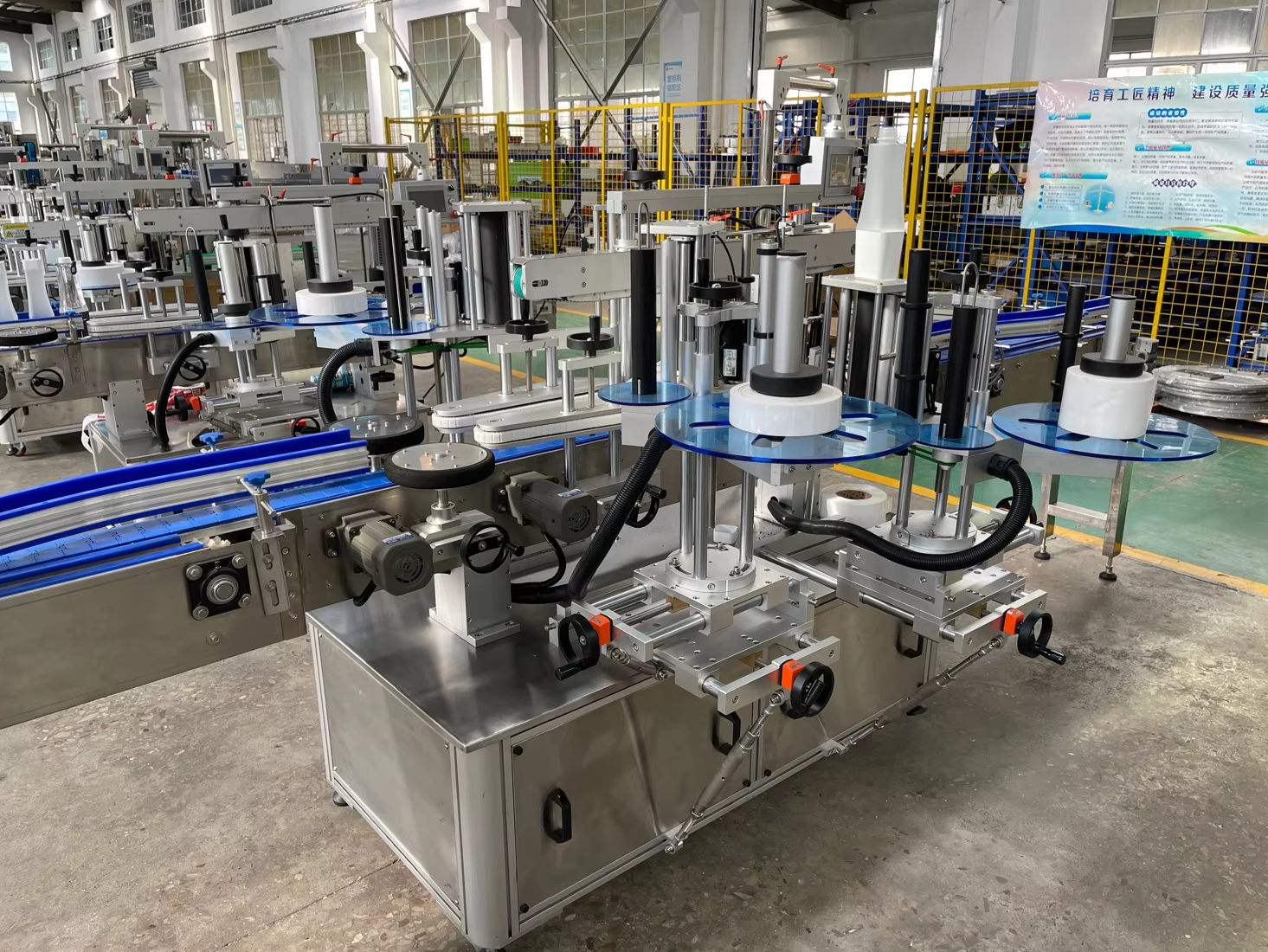

Automatic Sticker Labeling Machine

Our automatic sticker labelling machine is engineered for precise, fast, and flexible labeling across multiple packaging formats, making it the ideal choice for water, beverage, cosmetic, chemical, and daily-use product manufacturers. Designed to handle both round bottles and flat surfaces, this system ensures consistent label application with high accuracy and minimal operator involvement.

This advanced sticker labeling machine for bottle uses servo-controlled labeling heads, an intelligent PLC touch-screen control system, and an automatic bottle-feeding mechanism to guarantee stable performance at high speeds. Whether you need a round bottle sticker labelling machine, an auto flat surface sticker labelling machine, or a fully automatic system for irregular containers, it delivers reliable, high-quality results.

Built with stainless steel and premium electronic components, it performs exceptionally well in continuous operation environments. Companies seeking a labelling machine for small business or scalable factories looking for a high speed high quality adhesive sticker labelling machine will find this model perfectly suited for their needs. The system can also work with a small sticker label printing machine for inline coding and batch printing.

Supporting front-and-back labeling, wrap-around labeling, and top surface labeling, this sticker labeling machine for round bottles adapts to diverse production needs while ensuring efficiency, precision, and long-term stability.

Features of Automatic Sticker Labeling Machine

Label Accuracy

The machine delivers high labeling accuracy of ±1mm, supported by servo-driven label feeding and photoelectric detection. Even at high speeds, labels are applied smoothly without wrinkles, misalignment, or bubbling. The system automatically adjusts speed to maintain precision on different bottle shapes.

Compatibility

The machine is designed for multi-format labeling and supports a wide range of bottle types:

Round bottles
Square bottles
Flat bottles
Oval bottles

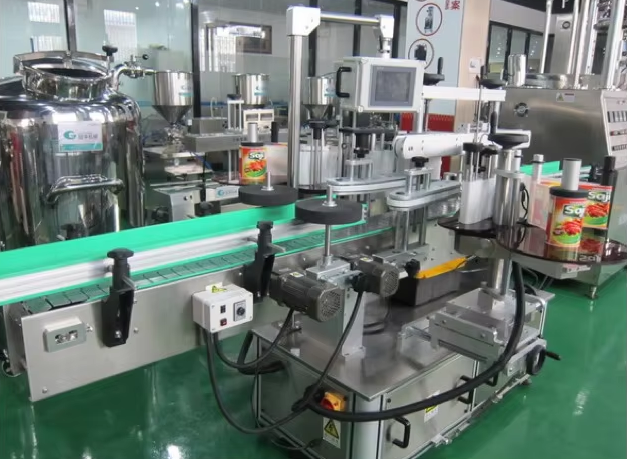

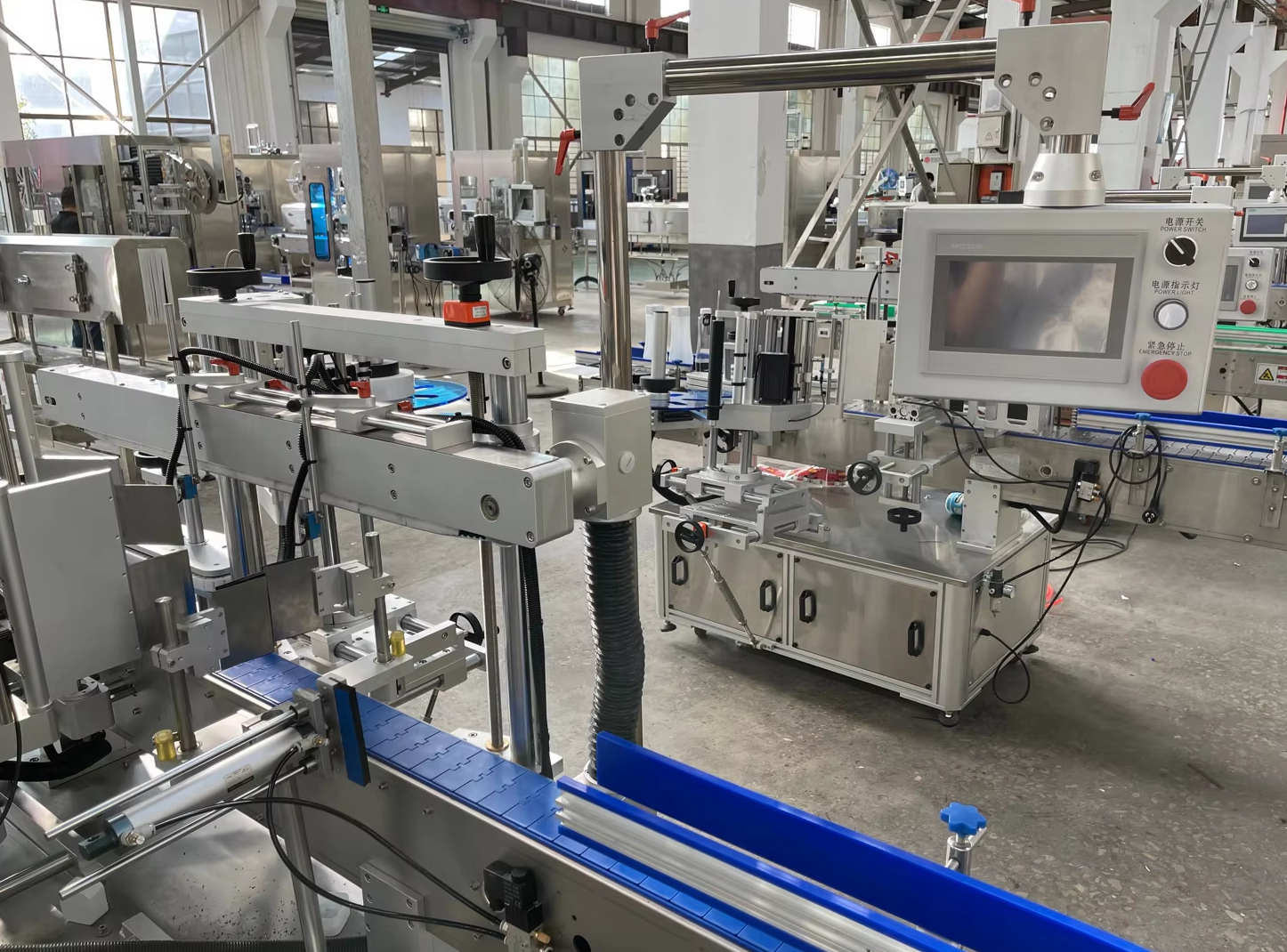

Details Images of Automatic Sticker Labeling Machine

PLC Control System

The machine is equipped with a high-stability PLC programmable control system and touch-screen HMI. Operators can adjust label length, speed, bottle spacing, and detection parameters easily. The system includes fault alarms, missing-label detection, and automatic shutdown protection.

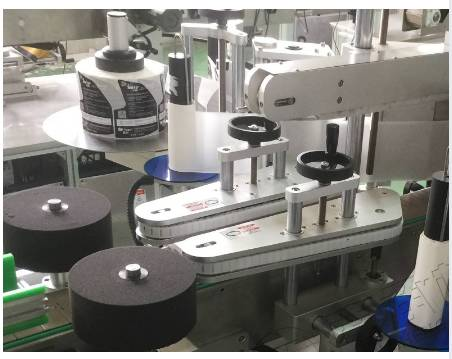

Synchronous Guide Chain

A synchronized bottle-aligning guide chain ensures consistent positioning of various bottle shapes.

Benefits:

Prevents bottle shaking at high speeds

Ensures consistent label placement

Automatically adjusts for different widths

Stable for thin-wall or lightweight PET bottles

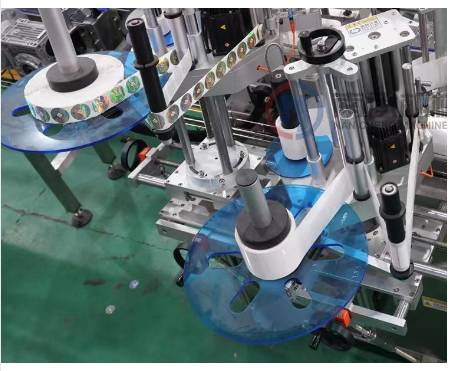

Labeling Mechanisms

Equipped with a double labeling mechanism to ensure labeling accuracy for the first time, and double-squeeze labeling to effectively eliminate air bubbles and ensure that the label head and tail are tightly attached

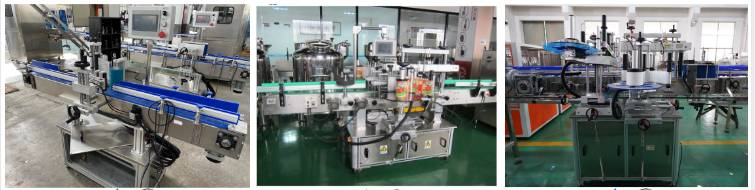

Single Side Adhesive Labeling Machine

Label Type :Single side Label

Labeller station :1pcs

Bottle Shape :Round Bottle & Square bottle & Flat bottle &oval bottle (Customized)

Capacity: 3000-5000 bottles/hour

Total power :0.75kw

Double Side adhesive labeling machine

Label Type :Front Label & Back Label

Label stations: 2pcs

Bottle Shape :Round Bottle & Square bottle & Flat bottle & oval bottle (customized)

Capacity: 3000-6000 bottles/hourTotal power :1.1kw

Three Side Adhesive Labeling Machine

Label Type :Front Label & Back Label &Top Label

Labeller stations :3pcs

Bottle Shape :Round Bottle & Square bottle & Flat bottle &oval bottle (customized)

Capacity: 3000-6000 bottles/hour

Total power:1.5kw

Technical Parameters – Economy Round Bottle Labeling Machine

Name	Economy Round Bottle Labeling Machine
Labeling Speed	20–200 pcs/min (depending on label length & bottle thickness)
Height of Object	30–280 mm
Thickness of Object	30–120 mm
Height of Label	15–140 mm
Length of Label	25–300 mm
Label Roller Inside Diameter	76 mm
Label Roller Outside Diameter	380 mm
Labeling Accuracy	±1 mm
Power Supply	220V, 50/60Hz, 1.5 kW
Gas Consumption (Printer)	5 Kg/cm²
Machine Dimensions	2200 (L) × 1100 (W) × 1300 (H) mm
Machine Weight	150 kg

Control System Components

No.	Name	Brand	Origin
1	Controller	Schneider	France
2	Controller	Schneider	France
3	PLC	Schneider	France
4	Transducer	SICK	Germany
5	Encoder	SICK	Germany
6	Low-voltage Apparatus	Schneider	France
7	Conveyor Motor	TAIQI	Taiwan

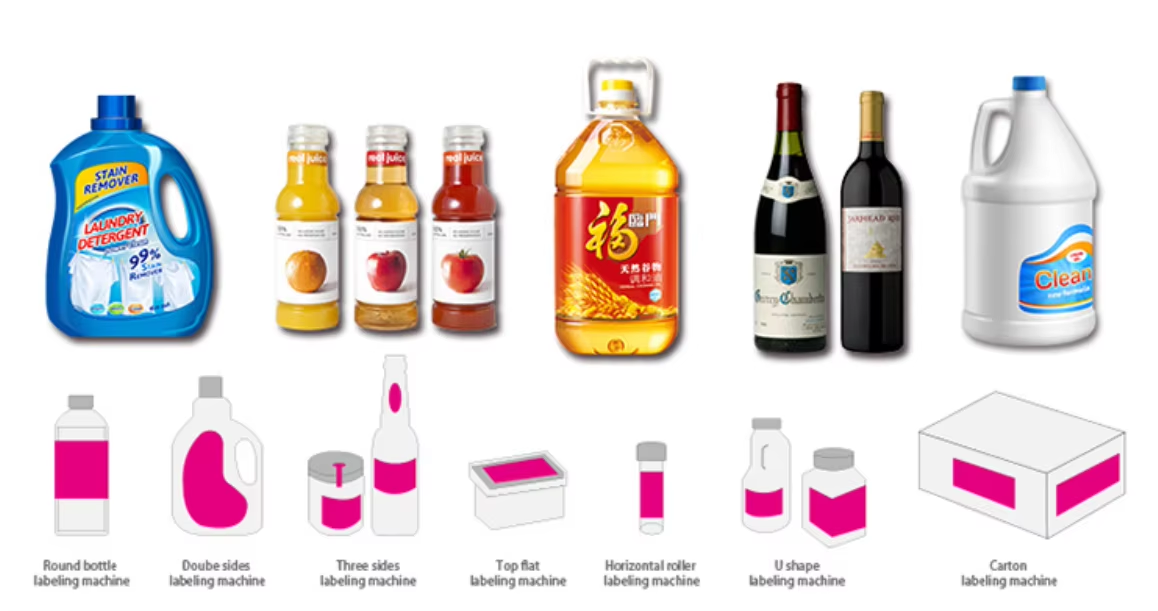

Applications of Automatic Sticker Labeling Machine

This automatic sticker labeling solution is widely used in:

Bottled water, juice, soft drinks
Edible oil, sauces, condiments
Cosmetic bottles (shampoo, lotion, essential oil)
Pharmaceutical containers (syrup, tablets, tinctures)
Household chemicals (detergent, sanitizer, cleaners)
Daily-use & personal care products

Company Profile

WHY NANCHENG MACHINEY AS YOUR LABELING MACHINE MANUFACTURER

WHY NANCHENG MACHINEY AS YOUR SMALL WATER BOTTLING MACHINE MANUFACTURER

ZHANGJIAGANG CITY NAN CHENG MACHINERY CO., LTD is a professional manufacturer engaged in the research, development, production, sale and service. We are specialized in water bottling machine production line, juice filling production line, carbonated drinks production line, 5 gallon bottle filling production line and all other auxiliary equipments.We are located in ZHANGJIAGANG CITY near SHANGHAI with beautiful scenery and convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We have obtained CE, SGS, TUV certificates etc. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Eastern Europe, Southeast Asia, Africa, Eastern Asia, South Asia etc. We hope to have development with people from all over the world and establish a long-term and steady business relation.Every year we will attend the exhibition, like Russia, Malaysia, Dubai, Mexico, Venezuela, Saudi Arabia and Algeria and etc, that time we always visit some local old customers and we are sure that we can offer more and better services than other supplier.We trust good service, good quality and good price and we will make unremitting efforts to provide customers with satisfied products and service. If you have any need of beverage machinery, welcome to contact with us. Hope to have opportunities to cooperate with you.

We Supply Your Factory Design Service

We Supply Your Bottle Design Service

FAQ

FAQ of Automatic Sticker Labeling Machine

Q1: What types of products can the automatic sticker labeling machine handle?

A1: The machine is compatible with a wide range of containers, including round, square, oval, and flat bottles. Whether you need a sticker labeling machine for bottle, an auto flat surface sticker labelling machine, or a round bottle sticker labelling machine, our models can be customized to your packaging needs.

Q2: What is the labeling accuracy of your machine?

A2: Our high-speed, high-quality adhesive sticker labeling machines achieve a labeling accuracy of ±1 mm, supported by a PLC control system, synchronous guide chains, and servo-driven labeling mechanisms.

Q3: Is this labeling machine suitable for small businesses or startups?

A3: Yes. We offer compact models designed for small production environments. They function as a labelling machine for small business with cost-effective operation and simple adjustment.

Q4: Can the machine handle both single-side and double-side labeling?

A4: Absolutely. We provide single-side, double-side, and even three-side labeling systems. For example:

Single side labeling → for one-face applications.
Double side adhesive labeling machine → for front and back labels.
Three-side labeling machine → for front, back & top labels.

Q5: What is the production capacity of the labeling machine?

A5: Depending on the model, capacity ranges from 3000 to 6000 bottles per hour for multi-side labeling, and up to 200 pcs/min for the economy round bottle labeling system.

Q6: Are your machines suitable for PET, plastic bottles, and other materials?

A6: Yes. The machine is suitable for PET bottles, HDPE bottles, glass bottles, jars, and flat containers. It works perfectly as a sticker labeling machine for round bottles and for various container shapes.

Q7: Can the machine print batch codes or expiration dates?

A7: Yes. The system can be equipped with an inkjet or thermal printer to print dates, batch codes, QR codes, etc., synchronized with the labeling process.

Q8: What maintenance does the automatic sticker labeling machine require?

A8: Routine maintenance includes checking belts, cleaning sensors, lubricating the conveyor, and ensuring label rolls are correctly installed. The design is user-friendly for minimal downtime.

Q9: How difficult is it to operate the machine?

A9: Operation is simple with the integrated PLC touchscreen control system. Operators can adjust speed, label position, and bottle spacing easily without technical experience.

Q10: Do you offer different models for different industries?

A10: Yes. We provide labeling solutions for beverages, cosmetics, chemicals, personal care, pharmaceuticals, and small businesses—ranging from small sticker label printing machines to high-speed automatic systems.
