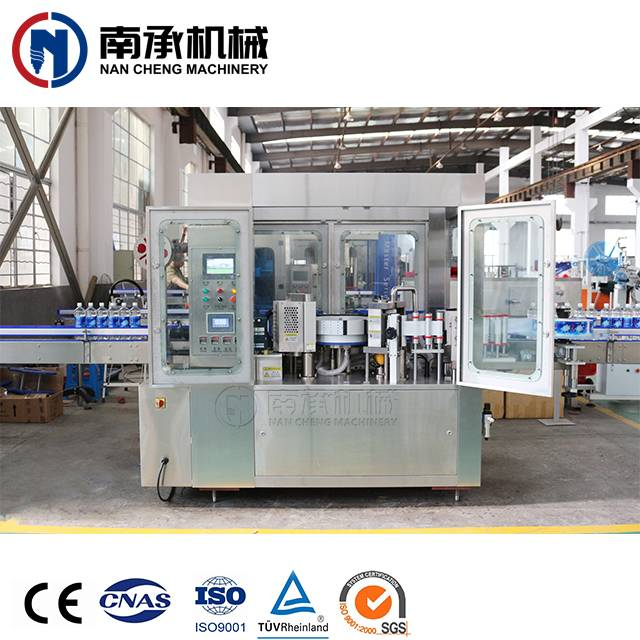

9000BPH Liner Type Hot Melt OPP Labeling Machine

The Nancheng liner type hot melt OPP labeling machine is designed for high-speed wrap-around labeling of PET, PP and HDPE bottles using OPP film and hot melt glue. It is widely used in bottled water, beverage, edible oil, milk, detergent and chemical industries.

Equipped with a precise servo-driven film feeding system, energy-efficient glue stations, and automatic bottle orientation, this OPP hot melt glue labeling machine ensures fast speed, low glue consumption, and highly accurate label application.

With a compact linear structure and simple maintenance, it is the ideal solution for companies requiring stable performance and cost-effective labeling equipment.

Working Principle

The liner-type OPP labeling machine completes labeling through the following steps:

1. Bottle Feeding – Bottles are delivered into the labeling station through a conveyor.

2. OPP Film Unwinding – The film roll is tension-controlled and fed into the cutting system.

3. Label Cutting – Rotary blades cut each label precisely according to the set length.

4. Hot Melt Glue Coating – Glue wheel applies hot melt glue to the head and tail of labels.

5. Wrap-Around Labeling – Servo rollers apply the label onto the bottle in a 360° wrap-around motion.

6. Pressing Belt Fixation – Pressing belt ensures smooth label adhesion.

7. Finished Bottle Outfeed – Labeled bottles exit for inspection or packing.

Key Features of Hot Melt OPP Labeling Machine

• Servo film feeding system ensures consistent label length accuracy.

• High-speed hot melt glue station reduces glue consumption and operating cost.

• Non-stop film roll change function (optional).

• Full stainless steel structure for hygiene and durability.

• Intelligent PLC control with touchscreen interface.

• Automatic bottle positioning ensures perfect wrap-around application.

• Energy-saving glue heater with temperature safety protection.

• Suitable for thin OPP labels (30–50μm).

• Glue applied only at the beginning and end of label—clean and economical.

• Compact linear design, smaller footprint than rotary systems.

Technical Specifications

Applications

This OPP hot melt labeling machine is suitable for:

• Bottled water

• Carbonated beverages

• Juice & tea drinks

• Edible oil

• Dairy products

• Liquid detergents & daily chemicals

• Condiments (soy sauce, vinegar)

• Household chemicals

Machine Advantages

• ✔ 40–60% lower label cost compared to shrink-sleeve labels

• ✔ 50% less glue consumption than traditional hot melt systems

• ✔ High-speed operation up to 12,000 BPH

• ✔ Ultra-thin OPP film label = lower packaging cost

• ✔ Compact linear structure, easy installation

• ✔ Stable for long working hours

• ✔ Low maintenance and fast label replacement

• ✔ Ideal for water factories upgrading from sticker labeling

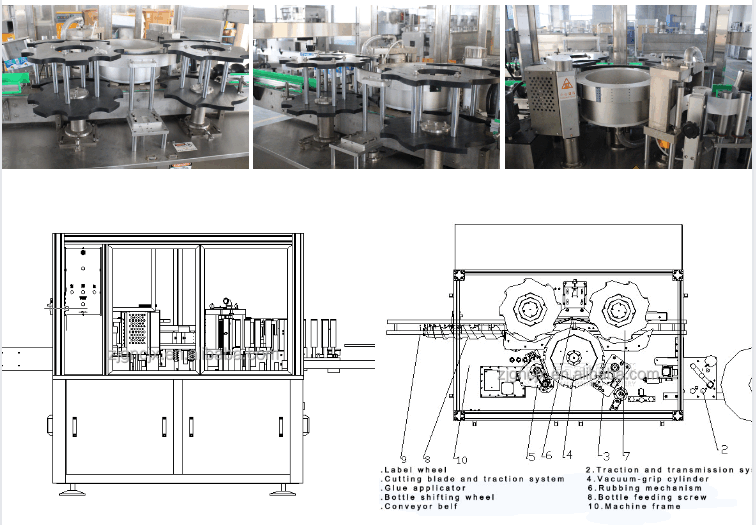

Flow Chart of OPP Labeling Machine

Bottle infeed → Label film feeding → Film cutting → Glue coating → Wrap-around labeling → Pressing belt → Output conveyor

Related Machines

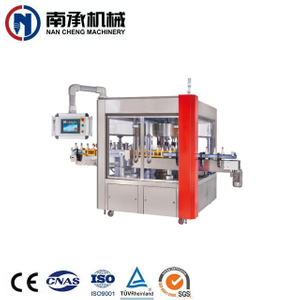

• Rotary OPP Hot Melt Labeling Machine

• Shrink Sleeve Labeling Machine

• Sticker Labeling Machine

• Bottle Unscrambler

• Water Filling Machine

• Complete Water Production Line

FAQ

1. What is an OPP hot melt labeling machine?

It is a labeling system that uses hot melt glue to apply OPP film labels in a wrap-around style.

2. What is the difference between OPP labeling and shrink sleeve labeling?

OPP labels are cheaper and require less energy since no steam shrink tunnel is needed.

3. How fast can a liner type OPP labeler run?

6,000–12,000BPH depending on bottle size and label length.

4. What types of bottles are compatible?

PET, HDPE, PP round or slight oval bottles.

5. How much glue is used per bottle?

Only 0.1–0.3 grams, highly economical.

6. Can it be used for bottled water production lines?

Yes, it is widely used in 3–5 gallon and small bottled water factories.

7. What is the typical label thickness?

30–50 μm OPP film.

8. How long does installation take?

Usually 2–5 days depending on factory layout.

9. Does it support automatic roll change?

Optional configuration.

10. What is the price of an OPP labeling machine?

Depends on speed and configuration—contact us to get the best quotation.

Conclusion

For newcomers to the packaging industry, understanding the labeling machine landscape is essential to optimize production and product presentation. Investing in the right labeling machine can improve speed, accuracy, and flexibility, making your packaging line more competitive and efficient.

By focusing on the key aspects of machine type, automation, adaptability, and market trends, new manufacturers can confidently navigate the labeling machine industry and make strategic decisions that support business growth.
