The Ultimate Guide to the 4-in-1 Juice Pulp Granule Filling Machine

Imagine opening a bottle of orange juice and seeing the pulp evenly suspended from the first sip to the last. That result looks simple to the consumer, but it requires much more than an ordinary liquid filler. Fruit particles can settle, bridge inside a hopper, block a valve, or be damaged by excessive shear. The juice itself may also be acidic, viscous, temperature-sensitive, or difficult to fill without foaming.

A 4-in-1 juice pulp granule filling machine is designed for this type of beverage. It combines bottle rinsing, pulp or granule dosing, liquid juice filling, and capping in one synchronized monoblock. The integrated layout reduces bottle transfers, saves floor space, and helps keep the filling ratio consistent.

This guide explains how the equipment works, which products it can handle, and what should be confirmed before requesting a quotation.

Quick Answer: What Is a 4-in-1 Juice Pulp Granule Filling Machine?

It is a monoblock beverage packaging machine that performs four connected operations:

1. Rinsing the empty bottle.

2. Filling fruit pulp, granules, jelly, or other approved inclusions.

3. Filling the liquid juice or beverage base.

4. Capping the bottle immediately after filling.

The sequence is important. The solid inclusions are dosed first, the juice is added afterward, and the container is sealed without unnecessary intermediate handling. This arrangement is particularly useful for orange juice with pulp, coconut jelly drinks, aloe vera beverages, mango drinks, tea with particles, and selected functional beverages.

The machine does not replace every process in a juice factory. Product preparation, pasteurization or sterilization, bottle supply, labeling, and secondary packaging still need to be designed as part of the complete line.

Why Pulp and Granule Beverages Need a Specialized Filler

Standard liquid fillers are optimized for products that flow predictably through a small passage. A pulp beverage is different because fruit fibers, jelly cubes, seeds, or other inclusions do not behave like water.

There are four common production problems:

• Particle blockage: Solid pieces can bridge at the outlet or remain trapped in a narrow valve.

• Product damage: High-speed pumping or aggressive agitation can break delicate pulp into an unwanted puree.

• Uneven distribution: Particles settle in the tank, so the first and last bottles may contain different ratios.

• Inconsistent filling: Changes in viscosity, temperature, or particle concentration can affect the final level.

A purpose-built juice pulp filling machine addresses these issues through controlled dosing, suitable product passages, synchronized filling, and monitoring devices. The right result still depends on the recipe. No filling machine can compensate for particles that are too large, a product that is too thick, or a mixture that separates rapidly without proper upstream preparation.

What Does “4-in-1” Mean in the Machine?

The name describes four functional sections mounted in one coordinated system.

1. Bottle Rinsing Section

Before the product enters the container, bottles are rinsed with the medium specified for the project, such as treated water or filtered air. The bottle handling system inverts or positions each container so the inside can be cleaned before filling.

Why the rinsing step matters

Rinsing helps remove dust and loose particles introduced during bottle storage or conveying. The exact rinsing method, water quality, air filtration, contact time, and drainage arrangement should be selected according to the product’s hygiene plan. Rinsing is not the same as sterilization, so a hot-fill, aseptic, or other validated process may require additional treatment.

2. Pulp or Granule Dosing Section

This is the defining section of the equipment. A controlled dosing mechanism introduces the solid component into each bottle before the liquid juice is added. For the KL32-24-32-10 application, a piston-type positive-displacement principle is used as the starting point for handling granules and pulp.

The dosing system should be evaluated against the actual particle size, shape, softness, concentration, and viscosity. A sample test is especially valuable for products containing coconut jelly, aloe vera pieces, boba-style inclusions, or fibrous mango and citrus pulp.

How to Protect Particle Structure

A Practical Point About “Gentle” Filling

Gentle does not mean slow or uncontrolled. It means the product is moved with a predictable displacement rather than being forced through an unsuitable high-shear path. The goal is to protect particle appearance while maintaining repeatable dosage.

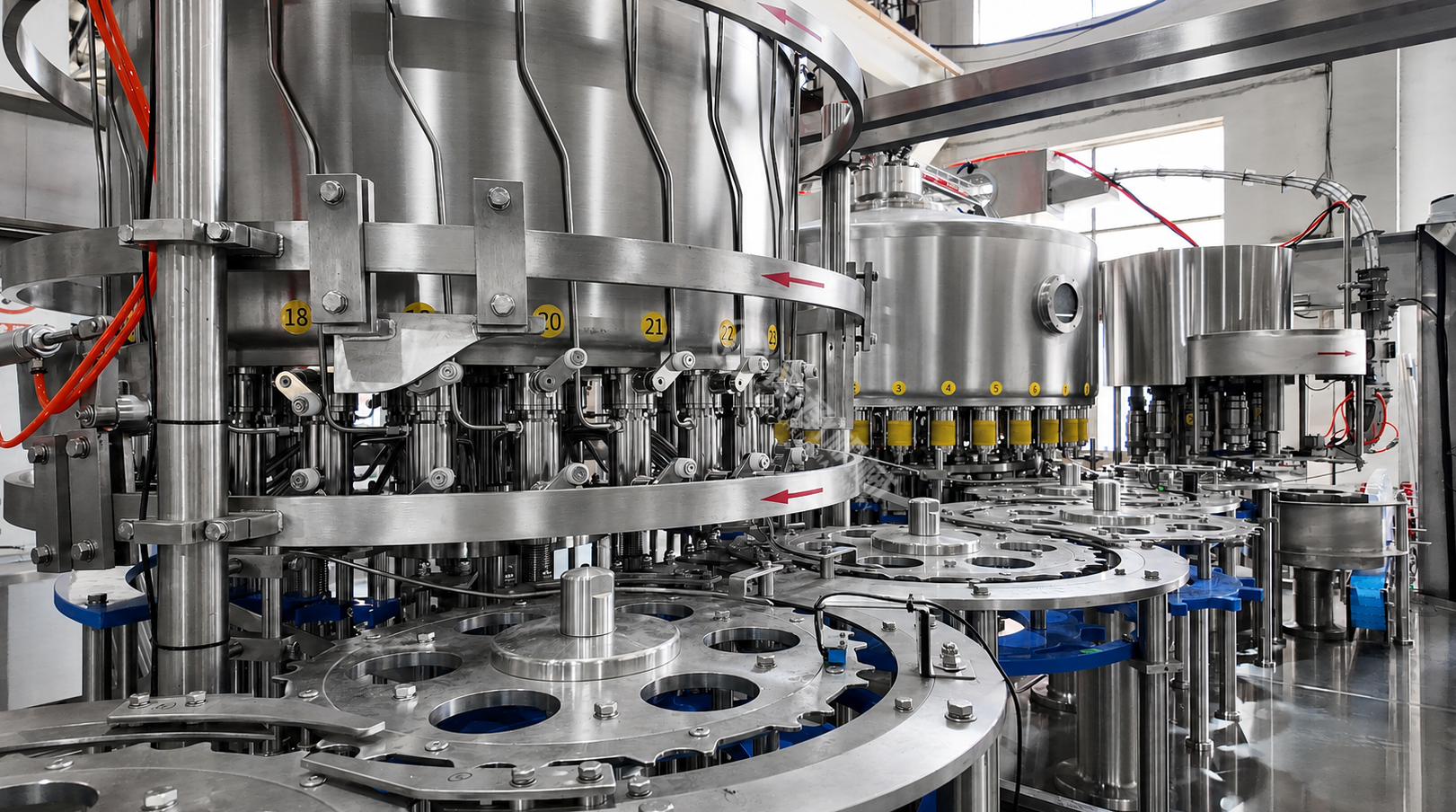

3. Juice Filling Section

After the pulp or granules are dosed, the liquid portion is filled into the same bottle. The liquid helps carry the inclusions into their final position and completes the target volume. Product level depends on bottle geometry, temperature, viscosity, filling speed, and the relationship between liquid and solid content.

The filling parameters should therefore be established during commissioning rather than copied from a different juice recipe. The same machine may require different settings for a thin orange drink and a thicker mango beverage.

4. Capping Section

Once the bottle reaches the specified level, it moves to the capper. Immediate closure reduces the time the open product is exposed to the surrounding environment and keeps the line compact. Cap type, neck finish, cap supply, torque, and seal requirements must match the selected bottle.

How the 4-in-1 Juice Pulp Granule Filling Process Works

The complete sequence is designed to minimize unnecessary transfers and keep the product-to-bottle relationship stable.

Step 1: Bottle Infeed and Positioning

Empty bottles enter through the conveyor and are positioned for the infeed starwheel. Stable bottle spacing helps prevent no-fill and capping errors.

Step 2: Bottle Rinsing

The bottle is rinsed using the confirmed method, with controlled drainage to prevent dilution or hygiene problems.

Step 3: Granule or Pulp Filling

The dosing section dispenses the measured amount of solid inclusion. The product tank and feeding path should be designed to reduce bridging and protect the particle structure. If the beverage contains settling particles, a suitable agitator or recirculation concept may be required before the filler.

Step 4: Liquid Juice Filling

The juice base is added after the solid component. The filling valve, product passage, and operating speed are selected according to viscosity and particle behavior. The purpose is to reach the required net content without excessive foam, splashing, or particle damage.

Step 5: Level and Ratio Control

Sensors, balance devices, timing, and calibrated dosing parameters help maintain the target fill. The ratio remains a controlled production target that should be verified through routine net-volume and pulp-content checks.

Step 6: Capping and Discharge

The filled bottle is capped, discharged to the downstream conveyor, and sent to inspection, coding, labeling, or packaging. Capping torque and seal performance should be checked during trial production.

Step 7: Cleaning and Changeover

After production, operators clean the product-contact areas according to the approved sanitation procedure. If CIP is required, confirm circuit design, spray coverage, chemical compatibility, drainability, and seal materials before finalizing the machine.

Key Technology Features for Reliable Particle Filling

The value of a 4-in-1 juice pulp granule filling machine is not only that it combines four stations. Its real value comes from how those stations coordinate with a difficult product.

Positive-Displacement Piston Dosing

Piston-type dosing provides a defined displacement for the pulp or granule portion and can suit viscous or irregular inclusions. Final performance depends on the piston, product passage, valve design, and recipe.

No-Bottle-No-Fill Logic

The control system can be configured so the filler does not release product when a bottle is missing or incorrectly positioned. This reduces product loss and helps prevent juice from entering the machine frame or conveyor.

Low-Level and Pressure Monitoring

Material-level alarms, air-pressure monitoring, and automatic protection help operators identify a supply or utility problem before it becomes a major stoppage. These functions improve response time, but they do not eliminate the need for routine inspection.

Balance and Synchronization

The rinsing, granule dosing, liquid filling, and capping sections must run at the same mechanical rhythm. A balance device and coordinated controls help maintain stable movement when bottle dimensions or product conditions vary within the approved range.

Operator-Friendly HMI

An HMI displays machine status, alarms, speed settings, and operating steps. Simple recipes and clear alarm messages are valuable when operators change.

Which Products Can This Machine Fill?

The equipment can be considered for beverages with suspended or dosed inclusions, including:

• Orange juice with pulp

• Mango or mixed-fruit drinks

• Coconut juice with jelly or soft pieces

• Aloe vera beverages

• Tea or plant-based drinks with approved particles

• Functional drinks containing controlled granules

Suitability is not decided by the product name alone. The manufacturer should test the actual formula and record:

If the inclusions are very large, highly fibrous, sticky, or fragile, a laboratory or factory acceptance test should be completed before production equipment is ordered.

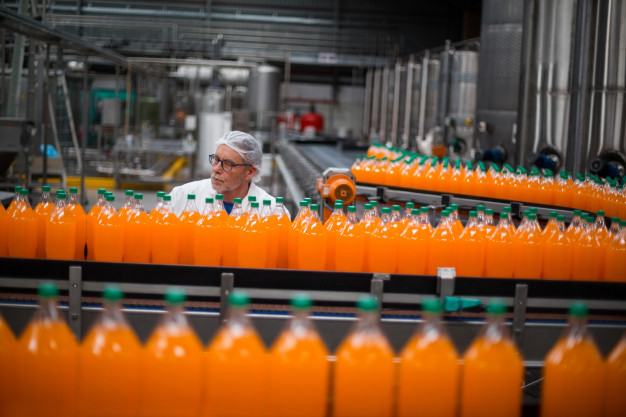

How It Fits into a Complete Fruit Juice Production Line

A monoblock filler is one part of the packaging area. A typical fruit juice production line may include:

1. Water treatment and purified-water storage.

2. Fruit preparation, pulping, blending, or juice extraction.

3. Sugar dissolving and ingredient dosing.

4. Homogenization or deaeration when required by the recipe.

5. Pasteurization, UHT, hot filling, cold filling, or aseptic treatment based on the product validation plan.

6. A buffer tank with controlled agitation for particle suspension.

7. Bottle rinsing, pulp dosing, juice filling, and capping.

8. Coding, labeling, inspection, and secondary packaging.

The filling machine should be matched to the upstream process. A hot-filled product needs a defined temperature window, suitable seals, bottle thermal resistance, cap handling, and downstream cooling. Cold-filled and aseptic products have different hygiene requirements. The filler should not be described as a pasteurizer or sterilizer unless those functions are separately included and validated.

For related equipment, see the juice filling machine pages.

Materials, Hygiene, and Machine Protection

Food-contact parts are commonly specified in stainless steel, with SUS304 or SUS316 selected according to the product, cleaning chemicals, and corrosion risk. The final technical agreement should distinguish between product-contact material, machine frame, protective cover, and external panels.

A stainless-steel protective enclosure improves cleanability and visual monitoring, but it should not automatically be interpreted as a pressure vessel or proof that the same machine is suitable for carbonated beverages. Carbonated filling requires a pressure-rated product path, suitable valves, CO2 management, and an approved container design. Those requirements must be confirmed separately.

For pulp products, hygiene also depends on details that are easy to overlook: smooth welds, drainable lines, accessible seals, minimized dead legs, cleanable hoppers, and a practical changeover procedure. A polished exterior cannot compensate for a difficult-to-clean product path.

Voltage Stability and Utility Requirements

Automation depends on stable electrical power. Voltage fluctuation can cause PLC resets, HMI faults, inverter alarms, or premature damage to sensitive components. For factories with an unstable grid, an appropriately sized external voltage stabilizer or regulator is a sensible part of the project plan.

The stabilizer should be selected after checking the local three-phase voltage, frequency, total connected load, starting current, and generator or transformer arrangement. It is also important to provide correct grounding, cable sizing, overload protection, and phase protection. A voltage stabilizer cannot correct an incorrectly designed electrical installation.

Before shipment, confirm the following utilities:

• Local voltage, phase, and frequency

• Compressed-air pressure and quality

• Rinsing-water quality and drainage

• Product inlet temperature and pressure

• CIP or manual-cleaning method

• Room temperature, floor loading, and line layout

Capacity, Price, and Project Information

Searching for “4-in-1 juice pulp granule filling machine price” can produce very different numbers because quotations may cover a tabletop filler, a rotary monoblock, or a complete turnkey line. A useful quotation needs more than a target bottle-per-hour figure.

For the KL32-24-32-10 configuration, the final capacity should be confirmed after reviewing the bottle, liquid, solid inclusion, filling temperature, and operating requirements. A manufacturer should not promise a fixed output without knowing the product conditions.

Send these details for a more accurate proposal:

• Bottle material, volume, neck finish, diameter, and height

• Target capacity in bottles per hour

• Juice formula and viscosity

• Particle type, size, concentration, and softness

• Filling temperature and shelf-life process

• Cap type and closure torque

• Factory voltage and frequency

• Required automation level and downstream equipment

The total investment may include the monoblock, tanks, product preparation, pasteurization, conveyors, cap handling, inspection, labeling, coding, packaging, installation, spare parts, and operator training. Comparing only the machine body price can hide the real cost of making the line run reliably.

Why Work with Nancheng Machinery?

Zhangjiagang Nancheng Machinery focuses on beverage filling and complete production-line equipment. For a pulp or granule project, the most useful supplier is not simply the one offering the lowest catalog price. It is the partner that can review the formula, test the product, match the bottle, confirm the utilities, and document the final configuration clearly.

Nancheng Machinery can support application assessment, layout planning, electrical configuration, commissioning, and after-sales service. The quotation should state the confirmed model, materials, capacity conditions, included scope, and recommended spare parts.

Frequently Asked Questions

What are the four functions of the machine?

The four functions are bottle rinsing, pulp or granule dosing, liquid juice filling, and capping. They are integrated into one synchronized monoblock to reduce transfers and floor space.

Can it fill orange juice with pulp?

Yes, it is intended for beverages such as orange juice with controlled pulp. The particle size, concentration, viscosity, temperature, and required output must be tested to confirm the final dosing configuration.

Will the machine crush fruit pulp?

The piston-type positive-displacement dosing principle is selected to move the solid component in a more controlled way. Crushing risk still depends on the particle’s texture, the product passage, pressure, speed, and recipe, so sample testing is recommended.

Can it fill coconut jelly, aloe vera, or boba-style particles?

It may be suitable when the particles fall within the machine’s approved size and flow range. These products vary widely in softness and dimensions, so the actual inclusion should be supplied for a filling test before final confirmation.

Do I need a voltage stabilizer?

If the factory power supply fluctuates, an external stabilizer or regulator is strongly recommended. The correct rating must be calculated from the complete line load and local electrical conditions.

What information is needed for a quotation?

Provide the bottle drawing or sample, target capacity, product formula, particle size, filling temperature, cap type, factory voltage, and desired downstream equipment. These details allow the supplier to recommend a realistic configuration and price.

Conclusion: A Better Way to Package Juice with Inclusions

A 4-in-1 juice pulp granule filling machine brings four critical packaging operations into one coordinated system. Its main advantages are compact layout, fewer bottle transfers, controlled particle dosing, and faster sealing after filling. However, successful production depends on the complete application: recipe behavior, particle characteristics, sanitation, utilities, bottle design, and downstream line balance.

If you are planning a new pulp juice project or upgrading an existing line, send Nancheng Machinery your bottle information, product sample, target output, and factory voltage. The right configuration should be based on a tested product—not a generic specification sheet.
