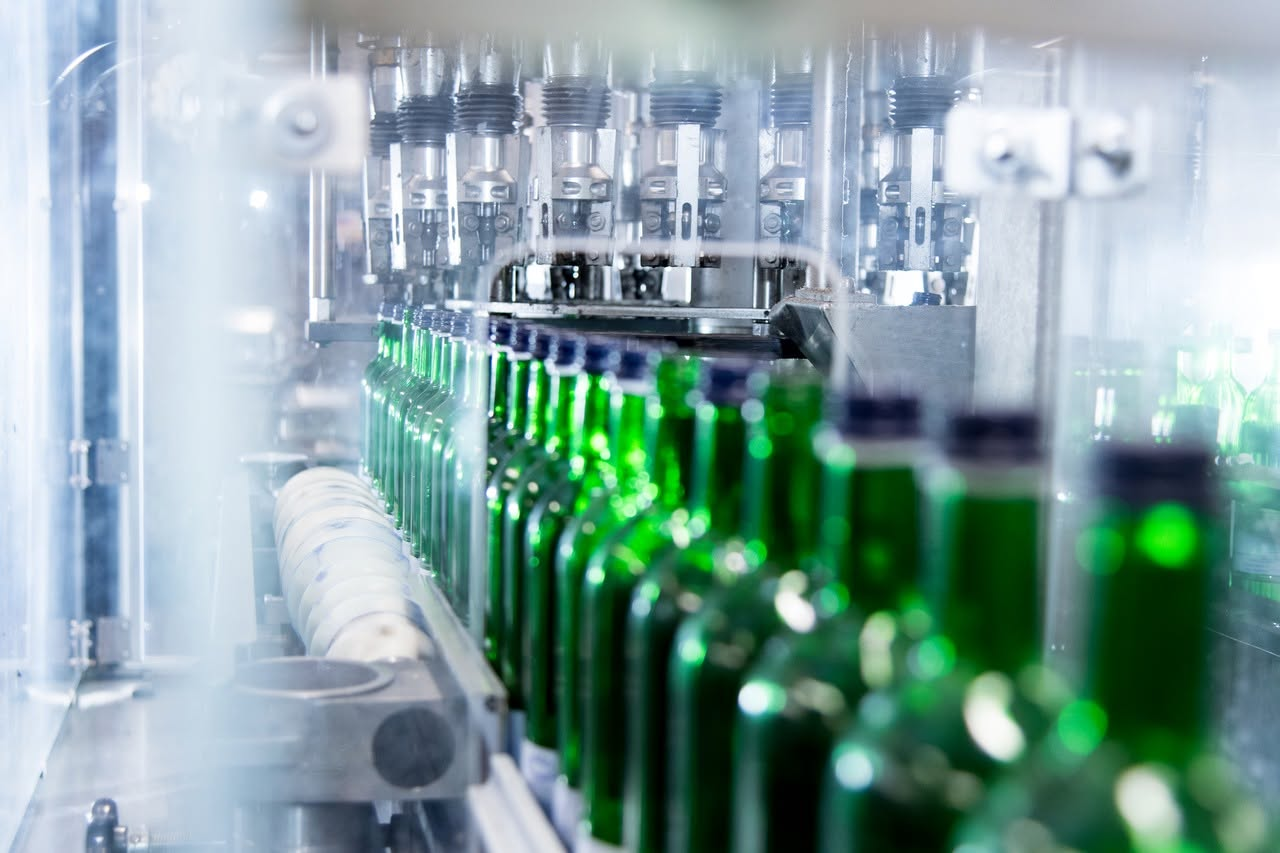

How to Reduce Foam in Carbonated Beverage Filling

Foam is one of the most common problems in carbonated beverage filling. It affects fill level accuracy, CO₂ retention, product loss, filler cleanliness and overall line efficiency.

The problem usually does not come from one component.

Stable CSD filling depends on several conditions working together: product temperature, carbonation level, filler pressure, bottle pressurization, filling-valve design, liquid flow, pressure release and upstream product preparation.

When one parameter moves outside its operating range, dissolved CO₂ starts escaping from the beverage. The result can be excessive foam, inconsistent fill levels and product overflowing from the bottle before capping.

For production teams, the most effective solution is not simply reducing filler speed. The line should first identify where CO₂ equilibrium becomes unstable.

A practical foam-control strategy focuses on six areas:

These areas should be evaluated as one process rather than as independent machine settings.

1. Why Foam Forms During Carbonated Beverage Filling

Carbonated soft drinks contain CO₂ dissolved under controlled temperature and pressure.

Inside the beverage preparation system and filler bowl, the product remains under pressure. This pressure helps keep CO₂ dissolved in the liquid.

Foaming starts when that equilibrium changes too quickly.

Four conditions are especially important.

Product Temperature Rises

CO₂ becomes less soluble as beverage temperature increases. A warm carbonated beverage therefore releases gas more easily during filling.

Even when the carbonation system is operating correctly, excessive temperature at the filler inlet can make the product unstable.

Pressure Drops Too Quickly

Carbonated beverage filling requires controlled pressure changes.

If the bottle pressure is much lower than the filler bowl pressure when the liquid valve opens, the product experiences a rapid pressure change. CO₂ then begins leaving the liquid.

The same problem can occur after filling when bottle pressure is released too quickly.

Liquid Becomes Too Turbulent

High liquid velocity, splashing, sudden valve opening and poor flow direction create turbulence.

Turbulence increases the number of locations where CO₂ bubbles can develop. A stable liquid can quickly turn into a mixture of beverage and foam.

Mechanical Conditions Become Unstable

Worn centering components, damaged seals, dirty valves, bottle-height errors and incorrect valve adjustment can disturb pressure balance or liquid flow.

This is why foam should not automatically be treated as a carbonation problem.

In many plants, the carbonation level is correct while the real problem occurs inside the filler.

2. Keep the Beverage Cold and Temperature Stable

Temperature control is one of the first checks during CSD filling troubleshooting.

For many highly carbonated soft drinks, the product commonly enters the filling system at approximately 2–4°C. The exact operating range depends on beverage formulation, CO₂ volume, equipment design and production requirements.

The important parameter is not only the temperature leaving the chiller.

The temperature should remain stable when the product reaches the filler.

Measure Temperature at the Filler Inlet

A cooling system may show 3°C at the heat-exchanger outlet while the actual beverage reaches the filler at a higher temperature.

Heat gain can occur through:

• Long product piping

• Uninsulated pipes

• Warm production rooms

• Low product flow during line stops

• Incorrect heat-exchanger control

• Insufficient glycol cooling capacity

The control system should therefore monitor the temperature close to the filling machine.

A difference of only a few degrees can change filling behavior significantly when the beverage contains a high CO₂ level.

Maintain Stable Cooling Under Full Production Load

Cooling equipment should be sized for actual line conditions rather than nominal product flow alone.

The engineering calculation should include beverage flow, incoming product temperature, required filler temperature, heat-exchanger efficiency and ambient operating conditions.

A chiller that performs correctly during a short test may struggle during an eight-hour production shift.

That difference becomes visible at the filler first.

As product temperature rises, operators often compensate by increasing filler pressure or reducing speed. These adjustments may temporarily reduce foam, but they do not solve insufficient cooling capacity.

Temperature stability should be corrected before other filling parameters are optimized.

3. Stabilize Counter-Pressure Before the Filling Valve Opens

A carbonated beverage should not enter an empty bottle at atmospheric pressure at normal filling speed.

Modern CSD filling systems use isobaric filling, also called counter-pressure filling.

The basic operating sequence includes bottle sealing, pre-pressurization, pressure equalization, product filling and controlled pressure release.

Pre-Pressurization Protects CO₂ Stability

After the bottle enters the filling station, the filling valve seals against the bottle neck.

CO₂ or process gas then pressurizes the bottle.

The system brings the internal bottle pressure close to the pressure inside the filler bowl before liquid filling begins.

This pressure balance reduces the sudden pressure differential acting on the beverage.

When equalization works correctly, product enters the bottle smoothly instead of flashing into foam.

Filler Pressure Must Match the Beverage

A fixed pressure setting should not be used for every carbonated product.

The required operating pressure depends on:

Some conventional CSD applications may operate around 0.4–0.6 MPa as a practical commissioning range. This should not be treated as a universal setting.

The correct pressure should be established from actual product temperature, carbonation specification and filler design.

Check Pressure Stability, Not Only the Setpoint

A pressure gauge may show the correct average value while the system still fluctuates during production.

Production teams should monitor:

• Filler bowl pressure stability

• CO₂ supply pressure

• Product tank level

• Pressure during acceleration and deceleration

• Pressure changes after line stops

• Pre-pressurization timing

Stable pressure is usually more important than simply increasing pressure.

4. Control the Filling Curve and Liquid Flow

After pressure equalization, the next critical step is how the liquid enters the container.

A high initial flow rate can create splashing before a stable liquid layer forms.

The objective is controlled acceleration.

Use a Controlled Filling Profile

Where filling-valve technology supports adjustable flow stages, a slow-fast-slow filling curve can reduce turbulence.

During the first stage, product enters at a controlled rate. This establishes liquid inside the bottle without excessive splashing.

The valve then moves to a higher filling rate through the main part of the cycle.

Near the target fill level, flow reduces again before the valve closes.

The exact percentages and timing should be commissioned for the actual bottle and beverage rather than copied from another production line.

Mechanical filling valves may achieve similar control through valve geometry, flow passages and machine settings instead of an electronically programmed curve.

Avoid Uncontrolled Product Impact

Liquid should enter the bottle with as little disturbance as practical.

Depending on filler design, carbonated beverage filling machine may use controlled wall-flow, long filling tubes, short-tube isobaric valves, or other low-turbulence filling structures to maintain stable product flow and reduce CO₂ breakout.

The engineering objective remains the same:

maintain pressure and reduce unnecessary product agitation.

A filling valve designed only for still water does not provide the same pressure-control functions required for carbonated drinks.

This is one reason equipment selection matters before production begins.

A properly designed carbonated beverage filling machine should coordinate bottle sealing, pressure equalization, product flow and decompression as part of one filling cycle.

5. Inspect Filling Valves Before Changing the Recipe

Operators often change PLC parameters as soon as foam appears.

Mechanical inspection should come first when only some filling valves are affected.

If one group of bottles shows more foam than the others, the problem may be local rather than process-wide.

Common Filling-Valve Problems

Worn seals can allow pressure leakage before or during filling.

Damaged centering components can prevent the bottle from sealing correctly.

Product residue can restrict gas or liquid passages.

Incorrect valve height can change bottle contact pressure.

Worn flow components can change the direction of liquid entering the bottle.

These problems create different filling conditions around the same rotary filler.

The production team may then see alternating good and bad bottles even though temperature, tank pressure and carbonation remain stable.

Use Valve-to-Valve Comparison During Troubleshooting

Rotary fillers provide a useful diagnostic advantage.

Each bottle can be linked to a filling valve position.

If recurring foam or fill-level errors appear at the same carousel position, maintenance staff can inspect that specific valve.

This approach is faster than changing the global filler recipe.

The inspection should cover seals, vent tubes, filling tubes, centering bells, springs, gas passages and valve movement.

CIP performance should also be checked. Sticky syrup residue inside gas-return or snifting passages can gradually change valve behavior.

6. Control Snifting and Final Pressure Release

Filling does not end when the liquid valve closes.

The filled container is still under pressure.

Before the bottle leaves the filling valve, this pressure must return toward atmospheric conditions.

This stage is commonly called snifting or controlled decompression.

If pressure releases too quickly, dissolved CO₂ becomes unstable near the beverage surface.

Foam can rise rapidly through the bottle neck and push liquid out before capping.

Increase Decompression Time Before Reducing Line Speed

Snifting time should provide enough pressure-release control for the product and container.

For some applications, approximately 1–2 seconds may provide a useful commissioning reference. High carbonation products, larger bottles and different filler structures may require different settings.

The objective is not simply making the snifting stage longer.

Pressure should decline in a controlled and repeatable way.

Excessively long snifting can reduce filler output without improving product stability. Very short snifting can increase foam even when the previous filling stages are correct.

Check the Transfer From Filler to Capper

The period between filling and closure also matters.

Excessive bottle vibration, poor star-wheel transfer or long uncapped transfer distances can disturb the beverage surface.

The capper should operate in coordination with the filler.

Bottle handling should remain stable from the filling valve to final closure.

A well-designed filler cannot compensate for unstable downstream bottle transfer.

7. Stabilize Carbonation and Product Preparation Upstream

Foam problems may begin before the beverage reaches the filling machine.

A CSD line requires stable water treatment, syrup preparation, mixing, cooling and carbonation.

The filler receives the result of every upstream process.

Keep CO₂ Content Consistent

Carbonation should remain within a defined production range.

Large variations force the filler to handle different product conditions from one batch or production period to another.

Stable carbonation depends on product temperature, CO₂ pressure, mixing efficiency, contact time and carbonator control.

The carbonation system should therefore deliver repeatable product conditions instead of relying on the filler to correct upstream variation.

Reduce Entrained Air

Air introduced during mixing, pumping or transfer can make gas control more difficult.

Water deaeration is especially useful before carbonation because it lowers dissolved air and supports more controlled CO₂ absorption.

For demanding beverage applications, high-efficiency vacuum deaeration can reduce dissolved oxygen to very low levels. The final specification should be determined according to product formulation and quality requirements.

Pump selection also matters.

Cavitation, excessive suction velocity and poor tank-level control can introduce unstable flow and entrained gas.

These conditions may later appear as a filling-machine problem even though the root cause is upstream.

Keep Brix and Mixing Conditions Stable

Carbonated soft drinks are not simply carbonated water.

Sugar concentration, sweeteners, acids and other ingredients affect physical properties and filling behavior.

Large Brix or formulation changes can require different filler recipes.

For multi-product factories, the PLC should store validated recipes for different beverages, bottle sizes and carbonation levels.

This reduces operator adjustment and improves repeatability between production runs.

8. Use a Structured Foam Troubleshooting Method

Changing several parameters at the same time makes root-cause analysis difficult.

A better approach is to check the process in a fixed sequence.

Start with product condition, then pressure, mechanical condition, filling behavior and decompression.

This method prevents random adjustment.

If product temperature is already stable, changing the chiller setpoint again adds little value.

If only one valve causes the problem, changing the complete machine recipe can make the other valves perform worse.

Troubleshooting should isolate the variable before changing it.

9. Practical 12,000 BPH CSD Filling Case

A practical plant case shows how mechanical condition and PLC settings can create foam even when the main process parameters appear correct.

The line used a 12,000 BPH isobaric filler for carbonated cola.

Operators reported severe foaming, irregular liquid levels and frequent cleaning stops.

The beverage entered the filler at approximately 3°C, so product temperature was within the required operating condition.

Filler bowl pressure remained stable at approximately 0.45 MPa.

These checks eliminated two common causes.

Mechanical inspection then found wear on the filling-valve centering components. The wear changed how product entered the bottle and increased local turbulence.

The PLC inspection identified another issue.

The pressure-release stage had been set to approximately 0.3 seconds.

This decompression period was too short for the actual product and filling conditions.

The maintenance team replaced the worn valve components and adjusted snifting to approximately 1.8 seconds.

After the correction, the line operated for an extended production period without the previous snifting-valve blockage. Product loss fell to below 1%, while reported OEE improved by approximately 12%.

The important part of this example is the diagnostic sequence.

The team did not immediately replace the filling machine.

They checked temperature, pressure, mechanical condition and PLC settings separately.

That process identified two specific causes and avoided unnecessary equipment investment.

10. Filling Machine Design Features That Help Prevent Foam

A carbonated drink filler should provide enough control to maintain stable product conditions at different speeds and beverage recipes.

Foam control should therefore be considered during equipment selection, not only after commissioning.

Isobaric Filling System

The machine should support reliable bottle sealing, pre-pressurization, pressure equalization, filling and controlled decompression.

These stages form the basic process for stable carbonated beverage filling.

Stable Product Tank and Pressure Control

The filler bowl or product tank should maintain a stable liquid level and operating pressure.

Pressure sensors, level control and CO₂ regulation should respond without creating excessive fluctuations.

Suitable Filling-Valve Technology

Filling valves should match the required carbonation level, bottle format and production speed.

Valve design should minimize turbulence while allowing effective cleaning and maintenance.

Adjustable Production Recipes

PLC recipe control helps operators store validated settings for different products and bottle sizes.

Useful recipe parameters can include filler speed, pre-pressurization time, filling stages, bowl pressure and snifting timing.

Reliable CIP Design

Carbonated beverages often contain sugar and flavor ingredients.

Product-contact areas should allow effective cleaning without leaving residue inside filling valves or gas passages.

SUS304 or SUS316L product-contact components, suitable sanitary piping and accessible maintenance points support long-term hygiene and repeatable filling performance.

Integrated Line Control

Foam cannot always be solved inside the filler.

A complete carbonated beverage production line should coordinate the beverage mixer, carbonator, cooling system, filler, capper, conveyors and downstream packaging equipment.

The control system should prevent upstream and downstream disturbances from repeatedly forcing the filler to start and stop.

Stable line operation generally produces more consistent filling conditions than frequent acceleration, deceleration and production interruption.

11. Important Technical Terms for CSD Filling Projects

Industrial filling terminology can make equipment comparison unnecessarily difficult.

The following terms cover the concepts most buyers need during technical discussions.

These terms also help buyers compare different filling-machine quotations.

Two machines may have similar rated capacity but provide very different control over equalization, filling and decompression.

12. Engineering Data to Provide Before Selecting a CSD Filling Machine

A supplier cannot configure a reliable carbonated filling system from production speed alone.

The equipment specification should begin with actual product and package data.

This information allows the filler manufacturer to define valve technology, number of filling heads, pressure-control method, machine speed and upstream system requirements.

It also reduces the risk of selecting equipment based only on nominal BPH.

FAQ

Q1: What is the ideal beverage temperature for carbonated filling?

For many highly carbonated soft drinks, the product commonly enters the filling system at approximately 2–4°C​ and reaches the filler bowl at roughly the same temperature. The exact range depends on formulation, CO₂ volume, filler design and production requirements, rather than on a fixed universal value. What matters most is temperature stability at the filler inlet: heat gain through long or uninsulated piping, warm production rooms, low flow during line stops and insufficient glycol capacity can raise the actual temperature by several degrees. CO₂ solubility decreases as temperature rises, so even a small increase can produce unstable filling behavior. Measure at the filler inlet, not at the chiller or heat-exchanger outlet.

Q2: What is snifting in a CSD filling machine?

Snifting, also called controlled decompression, is the stage after the liquid valve closes and before the bottle leaves the filling station. During this stage, pressure inside the filled container is returned toward atmospheric conditions in a gradual and repeatable way. If pressure releases too quickly, dissolved CO₂ becomes unstable near the beverage surface and foam can rise through the bottle neck, pushing liquid out before capping. For some applications, approximately 1–2 seconds​ can be used as an initial commissioning reference, but the correct setting depends on carbonation level, bottle size and filler structure. Excessively long snifting reduces output without improving stability; very short snifting can cause foam even when the earlier filling stages are correct.

Q3: Why does foam still occur when bowl pressure is stable?

A stable pressure gauge reading does not prove that every filling station is working correctly. Worn centering components, damaged seals, product residue in gas-return or snifting passages, incorrect valve height and worn flow components can disturb local pressure balance or liquid flow. This is why a rotary filler should be checked valve by valve: if recurring foam or fill-level errors appear at the same carousel position, the affected valve can be inspected directly. Mechanical inspection should come before changing PLC parameters. The same applies after CIP — incorrect valve or seal assembly, or chemical compatibility issues, can create foam even when temperature and bowl pressure are correct.

Q4: Can reducing filler speed solve foam problems?

Speed reduction can reduce foam temporarily, but it does not identify the root cause. On a rotary filler, filling behavior is determined by a fixed sequence: pre-pressurization time, pressure equalization, filling dwell time, valve flow profile and snifting time. When speed changes, each of these timings changes with it. If foam increases at higher speed, the more useful check is whether the available cycle time is still sufficient for equalization and snifting, then recommission the filling cycle. Blanket speed reduction lowers line output without solving unstable temperature, pressure imbalance, valve wear or excessive decompression.

Q5: Does deaeration really affect filling foam?

Yes. Air introduced during mixing, pumping or transfer competes with CO₂ absorption and makes gas control more difficult. For demanding CSD applications, water deaeration before carbonation lowers dissolved air and supports more controlled CO₂ absorption. High-efficiency vacuum deaeration can reduce dissolved oxygen to very low levels, but the final specification should be determined from product formulation and quality requirements rather than copied from another line. Pump selection also matters: cavitation, excessive suction velocity and poor tank-level control can introduce entrained air and unstable flow, which may later appear as a filler problem even though the root cause is upstream.

Q6: What information does a supplier need to configure a CSD filling line?

Production speed alone is not enough. A reliable specification starts with beverage type, target CO₂ level and range, Brix, filling temperature range, container material and volume, closure type, required output in BPH or CPH, bottle drawing with neck finish and geometry, utility conditions including power, compressed air, water and CO₂ supply, number of recipes and changeover requirements, and whether the project is a standalone filler or a complete production line. With this data, the manufacturer can define valve technology, number of filling heads, pressure-control method, machine speed and upstream system requirements instead of selecting equipment from nominal BPH only.

Conclusion

Reducing foam during carbonated beverage filling requires control of the complete filling environment.

Start with product temperature and carbonation stability.

Confirm that the bottle reaches proper counter-pressure before liquid enters.

Control liquid velocity and avoid unnecessary turbulence.

Inspect filling valves when problems appear only at specific stations.

Release pressure gradually through correctly adjusted snifting.

Finally, verify that upstream mixing, cooling, carbonation and downstream bottle handling remain stable.

Foam is usually a process signal rather than an isolated defect.

A systematic check of temperature, pressure, valve condition and timing can often identify the root cause faster than reducing production speed or repeatedly changing machine settings.

Nancheng Machinery designs standalone CSD fillers and complete carbonated beverage bottling systems for PET bottles, glass bottles and cans. Project engineering can cover beverage preparation, carbonation, cooling, isobaric filling, capping, labeling, packing and line integration.

For an engineering evaluation, provide the beverage type, CO₂ level, Brix, filling temperature, container specification, closure type and required production capacity. These parameters allow the filling system to be configured around real production conditions rather than a generic machine specification.
