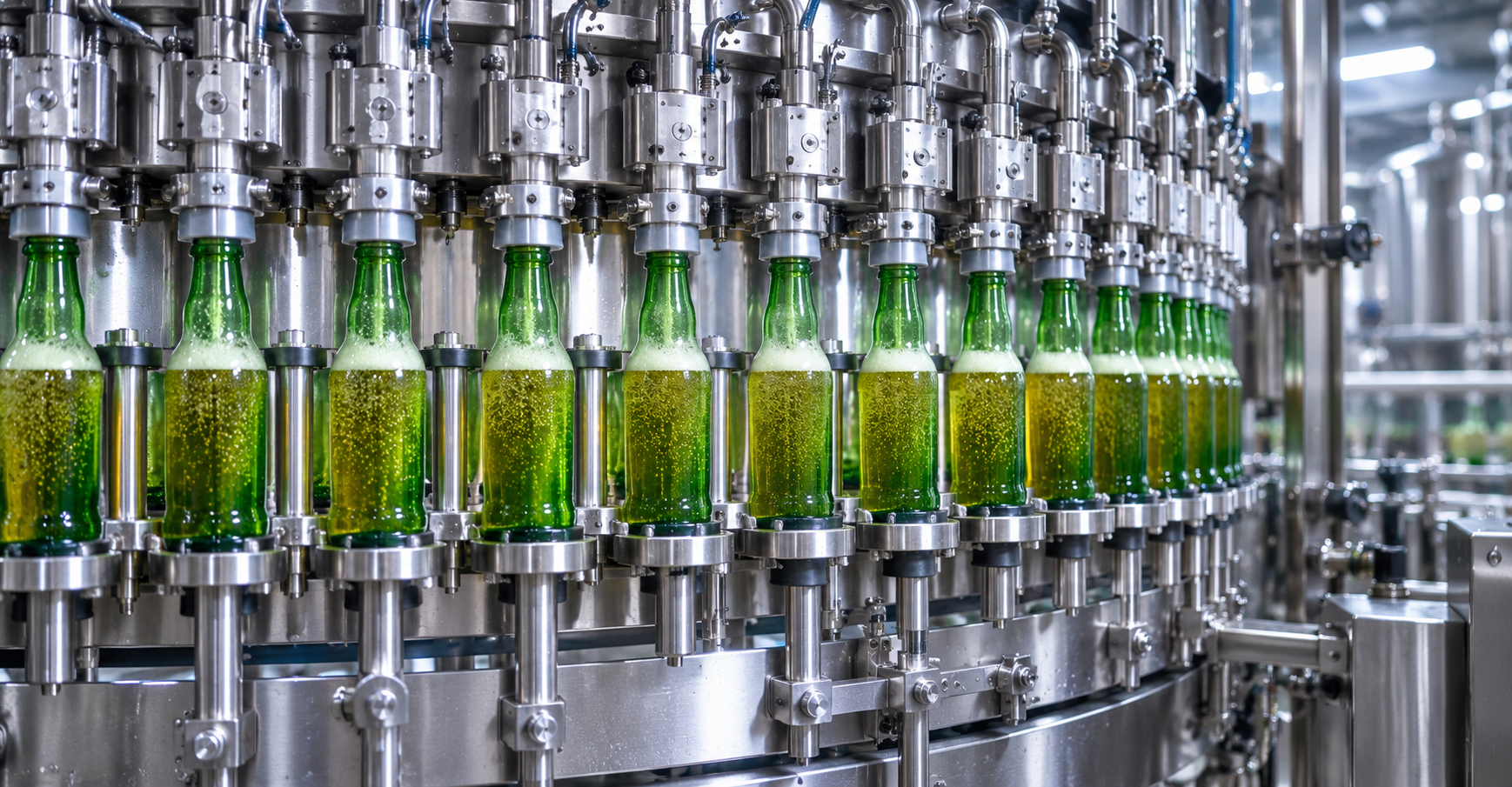

Counter Pressure Vs Gravity Filling for Beer: Which Filling Method Is Better?

When a brewery selects a filling machine, capacity and equipment price usually receive the most attention. However, for beer packaging, the filling principle often has a greater impact on final product quality.

The difference between counter pressure vs gravity filling for beer directly affects carbonation retention, foam formation, oxygen pickup, filling accuracy, beer loss, and production stability.

Gravity filling is simple. Beer flows into the bottle mainly under gravity or a small pressure difference. This method works well for still beverages, but carbonated beer creates a more difficult filling environment.

Counter pressure filling works differently. Before beer enters the container, the machine introduces CO₂ and raises the pressure inside the bottle or can. The container pressure then approaches the pressure inside the beer tank. This allows beer to enter under relatively stable conditions and helps reduce rapid CO₂ breakout.

For this reason, most commercial breweries use counter pressure, also called isobaric filling, for carbonated beer.

Gravity filling still has a place in small breweries, pilot production, and still beverage applications. The correct choice depends on carbonation level, filling temperature, production capacity, oxygen requirements, bottle or can format, and investment level.

Counter Pressure vs Gravity Filling for Beer: Quick Comparison

The main difference between these two filling technologies is pressure control.

During gravity filling, the bottle normally remains close to atmospheric pressure. When pressurized beer enters the bottle, the sudden reduction in pressure encourages dissolved CO₂ to escape from the liquid.

Counter pressure filling first creates a pressurized environment inside the container. Beer enters only after container pressure and product tank pressure are close to each other.

This difference changes the complete filling behavior.

For standard lager, IPA, pale ale, wheat beer, stout, and most packaged craft beer, counter pressure filling normally provides a more stable production process.

How Gravity Filling Works

Gravity filling is one of the simplest liquid filling technologies.

A product tank is positioned above the filling valve. When the valve opens, liquid flows downward into the bottle. Air leaves the container as the liquid level rises. Once the required filling level is reached, the machine stops the liquid flow.

The system does not need a complicated CO₂ circuit or multi-stage pressure control. Filling valves are relatively simple, making cleaning and maintenance easier.

For still wine, still cider, spirits, water, and non-carbonated beverages, gravity filling can provide reliable performance.

Carbonated beer is different.

Beer usually leaves the bright beer tank under pressure. If it suddenly enters a bottle at atmospheric pressure, dissolved CO₂ begins to leave the liquid.

This creates foam.

Uncontrolled foam can cause inconsistent filling levels, product loss, wet bottles, unstable capping, slower production, and lower carbonation in the packaged beer.

Temperature makes the problem more serious.

Warm beer releases CO₂ more easily than cold beer. A gravity filler that runs acceptably with very cold beer may become unstable when product temperature rises.

Operators can reduce filling speed or cool the beer further, but these adjustments cannot remove the fundamental pressure difference.

That limitation becomes increasingly important as brewery output increases.

How Counter Pressure Beer Filling Works

Counter pressure filling is designed to reduce the pressure difference between the product tank and the container.

The bottle first enters the filling station and seals against the filling valve.

CO₂ is introduced into the empty bottle to displace part of the air inside. The machine then continues introducing gas until bottle pressure approaches the pressure inside the beer tank.

Only after pressure equalization does the beer valve open.

Because there is no sudden pressure drop, dissolved carbon dioxide remains more stable in the beer. Foam formation becomes easier to control, and the filling process becomes more repeatable.

Once the target filling level has been reached, the liquid valve closes.

The machine then releases bottle pressure gradually. This process is known as snifting.

Snifting is an important part of isobaric beer filling. If the machine releases pressure too quickly, beer can foam immediately after filling. If the pressure releases too slowly, machine output decreases.

The correct setting must balance filling stability and production speed.

A commercial beer filling machine therefore needs to control much more than liquid flow. It must coordinate CO₂ purging, pressure equalization, beer filling, gas return, snifting, and container transfer.

Typical Counter Pressure Filling Sequence

This sequence explains why counter pressure filling uses more complex valves than gravity filling.

Carbonation Retention

Carbonation retention is usually the most important reason breweries choose counter pressure filling.

Beer contains dissolved CO₂ because it is stored under pressure. During packaging, the filler should keep the product as close as possible to the condition inside the bright beer tank.

Gravity filling creates a large pressure change.

Counter pressure filling minimizes that change.

When the bottle pressure and product tank pressure are close to each other, beer can enter the container without a rapid release of dissolved gas.

This is especially important for highly carbonated beer and products where consistent mouthfeel matters.

A commercial brewery does not only need a bottle that reaches the correct filling height. The packaged beer should also maintain its intended carbonation after capping, storage, transportation, and distribution.

This makes pressure control a product-quality issue rather than only a machine-setting issue.

Oxygen Control and TPO

Oxygen is another major concern during beer packaging.

Excessive oxygen pickup can accelerate oxidation and reduce flavor stability. Hop-forward beers such as IPA and pale ale are especially sensitive.

Gravity filling provides limited control over the atmosphere inside the bottle because the container normally contains air when the liquid enters.

Counter pressure filling allows the machine to introduce CO₂ before the beer enters the container.

This does not remove every trace of oxygen, but it gives the brewery much better control over the filling environment.

However, a counter pressure filler does not automatically guarantee low oxygen.

Beer can still pick up oxygen through poor product transfer, unstable CO₂ purging, worn filling valve seals, excessive turbulence, slow transfer between filler and capper, or poor closure quality.

This is why commercial breweries increasingly pay attention to Total Package Oxygen, or TPO.

TPO considers oxygen dissolved in the beer together with oxygen remaining in the headspace after filling.

Good oxygen control therefore requires the complete packaging process to work correctly.

The filler, capper or seamer, conveyor system, beer temperature, gas supply, and closure process all influence the final result.

Beer Temperature and Filling Pressure

Beer temperature and filling pressure must be considered together.

Cold beer keeps dissolved CO₂ more stable. As beer temperature increases, carbonation becomes more likely to escape from solution.

This means that warm beer normally produces more foam during filling.

Counter pressure filling provides a larger operating window than gravity filling, but it cannot completely compensate for poor temperature control.

The brewery should maintain a stable product temperature from the bright beer tank to the filler.

If the beer enters the machine too warm, operators may need to increase filling pressure, reduce machine speed, or adjust snifting settings.

These changes can reduce production efficiency.

For this reason, a filling machine supplier should ask about beer temperature and carbonation before recommending a machine model.

A capacity figure such as 2,000, 6,000, or 12,000 bottles per hour only makes sense when product conditions are also defined.

Foam Control During Beer Filling

Foam is often treated as a filling machine problem, but it usually results from several connected process conditions.

Beer temperature, carbonation level, filling pressure, turbulence, valve opening, and pressure release all affect foam formation.

In gravity filling, operators mainly control foam by keeping the beer cold and reducing filling speed.

This can work in small-scale production, but the process becomes more sensitive as output increases.

Counter pressure filling gives the machine more control points.

The PLC can manage CO₂ pre-purge time, bottle pressure, tank pressure, filling sequence, beer flow, gas return, and snifting.

Once the correct filling recipe has been established, operators can repeat the same settings during future production.

This repeatability is very important for commercial breweries.

A small brewery may rely on an experienced operator to make manual adjustments. An automatic production line needs stable results across different shifts and batches.

This is one reason counter pressure filling becomes increasingly valuable as capacity increases.

Gravity Filling Advantages and Limitations

Gravity filling remains attractive because its structure is simple.

The machine generally costs less and requires fewer pressure-control components. Filling valves are easier to understand, clean, and maintain.

For still beverages, this simplicity is often an advantage.

A factory producing still cider, wine, spirits, or other non-carbonated beverages does not always need the additional cost of an isobaric filling system.

Gravity filling can also make sense for pilot production or very low output.

The main limitation appears when carbonated beer becomes the core product.

As carbonation, line speed, and shelf-life requirements increase, gravity filling becomes increasingly difficult to control.

At that point, lower equipment cost may no longer compensate for product loss, carbonation variation, and slower production.

Counter Pressure Filling Advantages and Limitations

Counter pressure filling requires a larger investment, but its advantages are directly related to packaged beer quality.

Pressure equalization helps retain carbonation. CO₂ pre-purge improves oxygen management. Controlled pressure release reduces excessive foaming after filling.

Automatic control also improves production repeatability.

For breweries operating several beer recipes, the PLC and HMI can store different filling parameters and simplify changeovers.

The main disadvantages are higher equipment cost and greater technical complexity.

The machine requires CO₂ supply, pressure control, pneumatic components, more complex filling valves, and more precise operating settings.

Maintenance technicians therefore need a better understanding of pressure systems and valve operation.

For commercial carbonated beer production, these disadvantages are normally acceptable because the process control benefits are much greater.

Mechanical, Semi-Electronic, and Electronic Filling Technology

Not every counter pressure filler uses the same valve design.

A mechanical isobaric filling valve uses mechanical valve functions and pressure differences to control pressurization and filling. This technology is mature, reliable, and suitable for many standard brewery projects.

A semi-electronic filling valve combines mechanical filling functions with electronically controlled pneumatic valves. The PLC can manage CO₂ purging, pressurization, filling, and snifting more precisely.

This provides greater flexibility when the brewery handles several product recipes or package sizes.

An electronic flow meter filling system measures the liquid entering each container and stops filling when the programmed volume has been reached.

This provides a high level of fill-volume control and recipe flexibility, but equipment cost and control-system complexity are also higher.

The correct valve technology depends on output, container format, filling accuracy, automation level, budget, and maintenance capability.

Glass Bottle Beer Filling

Glass bottles remain an important packaging format for both commercial breweries and craft beer producers.

A complete bottle filling process normally combines rinsing, filling, and capping.

The bottle first enters the rinsing section, where the internal surface is cleaned. It then transfers directly to the filling section.

During counter pressure filling, the bottle seals against the filling valve before CO₂ purging and pressure equalization begin.

After filling and snifting, the bottle transfers immediately to the capper.

This transfer should remain short and stable.

A good filling result can still be damaged if the bottle shakes excessively before the cap is applied.

Capping quality is also critical because poor crown-cap sealing can cause carbonation loss or oxygen ingress during storage.

This is why rinsing, filling, capping, and conveying should be treated as one coordinated system.

Beer Can Filling

Beer cans use the same fundamental isobaric filling principle, but container handling is different.

The can must be accurately positioned underneath the filling valve during pressurization and filling.

After filling, it transfers directly to the seaming section.

Because the can remains open before the lid is seamed, the transfer between filler and seamer requires careful control.

A complete canning line combines can preparation, counter pressure filling, lid handling, seaming, conveying, inspection, coding, and packaging into one continuous process rather than operating these machines independently.

The seamer is particularly important.

Even an excellent filling process cannot compensate for an unstable double seam.

For this reason, breweries evaluating a can carbonated beverage filling machine should consider filler and seamer performance together.

Production Capacity and Automation

Production capacity affects both machine configuration and automation level.

A small brewery producing a few hundred bottles per hour may use a semi-automatic system. Manual bottle loading and unloading remain manageable at this scale.

At around 2,000 bottles per hour, labor and process stability become more important.

For carbonated beer, a compact automatic counter pressure system usually provides a better balance between equipment investment and production efficiency.

As capacity increases, rotary filling becomes more suitable.

Commercial breweries need stable synchronization between rinsing, filling, capping, conveying, labeling, and packing.

The rated speed of the filler should therefore never be considered in isolation.

A machine rated at 8,000 bottles per hour will not produce an 8,000 BPH line if downstream equipment can only handle 6,000 bottles per hour.

Actual production depends on the complete line.

Counter Pressure vs Gravity Filling Cost

Gravity filling usually requires a lower initial investment because its filling valves and control systems are simpler.

Counter pressure filling requires additional CO₂ circuits, pressure controls, gas-return channels, pneumatic valves, pressure-rated tanks, and more sophisticated filling valves.

This increases equipment price.

However, the purchase price is only part of the calculation.

For carbonated beer, excessive foam can waste product and reduce filling efficiency.

Poor carbonation retention may also affect product consistency.

If oxygen pickup shortens beer shelf life, the cost of quality problems can become much higher than the difference in machine purchase price.

A brewery should therefore compare investment based on total operating performance rather than only the initial quotation.

How to Choose the Right Beer Filling Method

The selection process should begin with the beer rather than the machine catalog.

The brewery should define carbonation level, filling temperature, bottle or can format, container volume, required output, closure type, shelf-life target, and future production plans.

Gravity filling is more suitable when the beverage is still, output is low, and simple equipment is the main priority.

Counter pressure filling is normally better when the product contains significant carbonation and the brewery needs stable filling, low foam, consistent carbonation, oxygen control, and automatic production.

Future expansion should also be considered.

A brewery producing 2,000 bottles per hour today may need 5,000 or 8,000 bottles per hour after market expansion.

Selecting a machine only for current production can create another investment problem later.

Complete Beer Filling Line Design

The filling machine is only one part of the packaging process.

A stable beer packaging line needs correct coordination between product preparation, filling, sealing, conveying, labeling, and packing.

Beer should arrive at the filler with stable temperature, carbonation, and pressure.

The filling machine should control CO₂ purging, pressure equalization, liquid flow, gas return, and snifting.

The capper or seamer should close the package quickly and consistently.

Downstream conveyors should transport filled bottles or cans smoothly without excessive shaking.

Labeling and packing equipment also need to match the real filling speed.

For larger projects, buyers should therefore evaluate the complete carbonated beverage production line, not only the filler.

Machine capacity, bottle or can range, valve technology, CIP design, stainless steel material, electrical load, compressed air, CO₂ consumption, control component brands, FAT, installation, operator training, and spare parts should all be discussed before final machine selection.

Why Choose Nancheng Machinery

Nancheng Machinery delivers integrated turn‑key beer packaging solutions built on years of practical experience in carbonated beverage production line design and manufacturing. Rather than merely supplying standalone filling units, our engineering team conducts full‑project assessment covering beer properties, container specifications, actual output demand, factory utility conditions and future expansion plans to achieve well‑matched performance among every station across the whole line.

Our isobaric filling system precisely manages CO₂ purging, pressure equalization and gas return cycles to retain consistent carbonation and beer flavour, with full‑CIP compatible hygienic structure eliminating dead corners for reliable sanitary performanceNancheng. Product‑contact parts adopt SUS304 or optional SUS316L stainless steel, while core control components adopt internationally well‑known brands to secure long‑term stable operation.

Every production line goes through strict Factory Acceptance Test (FAT) before shipment. We provide overseas on‑site installation, commissioning and systematic operator training, alongside responsive spare‑parts supply and lifelong technical support to minimize production downtimezjgncjx. Whether you plan a brand‑new brewery or upgrade existing facilities, Nancheng Machinery balances reliable performance, reasonable investment cost and comprehensive after‑sales service for your complete beer filling project.

Frequently Asked Questions

Is Counter Pressure Filling the Same as Isobaric Filling?

Yes. In commercial beer filling machinery, the two terms normally describe the same basic filling principle. The bottle or can is pressurized before beer enters so the pressure difference between the container and product tank remains small.

Can Gravity Filling Be Used for Carbonated Beer?

It can be used for very low-carbonation products or small-scale production, but foam and carbonation loss become more difficult to control as carbonation and filling speed increase.

Why Does Beer Foam During Filling?

Beer foams when dissolved CO₂ leaves the liquid. High product temperature, rapid pressure reduction, turbulence, incorrect tank pressure, or fast snifting can all increase foam formation.

What Is Snifting in Beer Filling?

Snifting is the controlled release of bottle pressure after filling. Gradual pressure reduction helps prevent sudden CO₂ breakout and excessive foaming.

Does Counter Pressure Filling Reduce Oxygen?

It helps because the machine can purge the empty container with CO₂ before filling. Final oxygen levels also depend on product transfer, filler settings, headspace management, and sealing quality.

Which Filling Method Is Better for a 2,000 BPH Brewery?

For carbonated beer, a compact automatic counter pressure filler is usually more suitable. Gravity filling remains a lower-cost option for still products.

Can Counter Pressure Filling Be Used for Both Bottles and Cans?

Yes. The filling principle is suitable for both formats, but bottle and can machines use different container-handling and closing systems.

Which Filling Method Is Better for Commercial Beer Production?

For most commercial carbonated beer, counter pressure filling is the better choice because it provides better carbonation retention, foam control, oxygen management, automation, and production consistency.

Conclusion

The difference between counter pressure vs gravity filling for beer mainly comes down to pressure control.

Gravity filling offers simple construction, lower investment, and easy maintenance. It remains practical for still beverages and low-output applications.

Counter pressure filling uses CO₂ purging, pressure equalization, controlled beer filling, and snifting to create a more stable environment for carbonated beer.

For commercial breweries, this usually means better carbonation retention, lower foam loss, improved oxygen management, and more consistent production.

The final decision should not be based only on machine price.

Beer carbonation, filling temperature, production capacity, package format, shelf-life requirements, automation level, and future expansion should all be considered.

For most breweries producing packaged carbonated beer, a properly designed counter pressure filling system provides the more reliable long-term solution.
