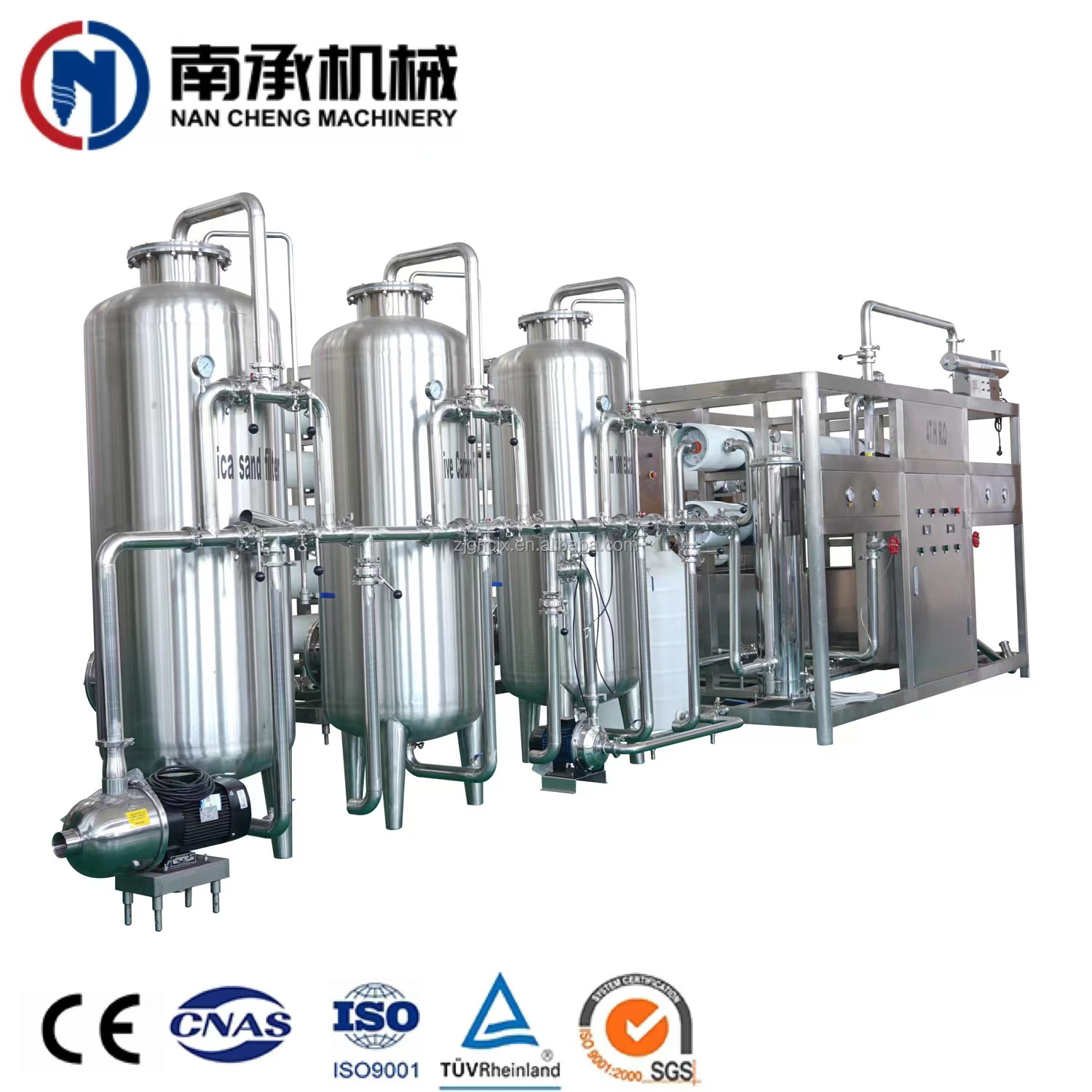

10T/H Water Filtration System

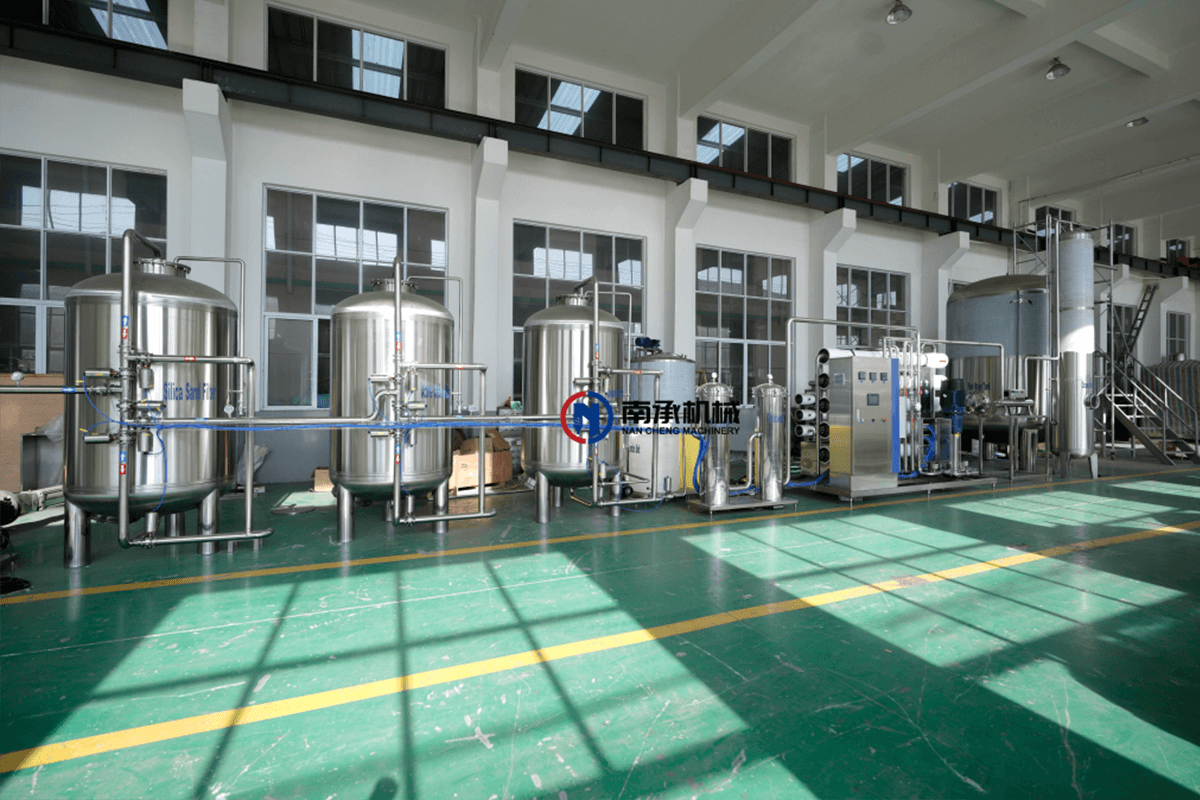

Overview of the Water Treatment System

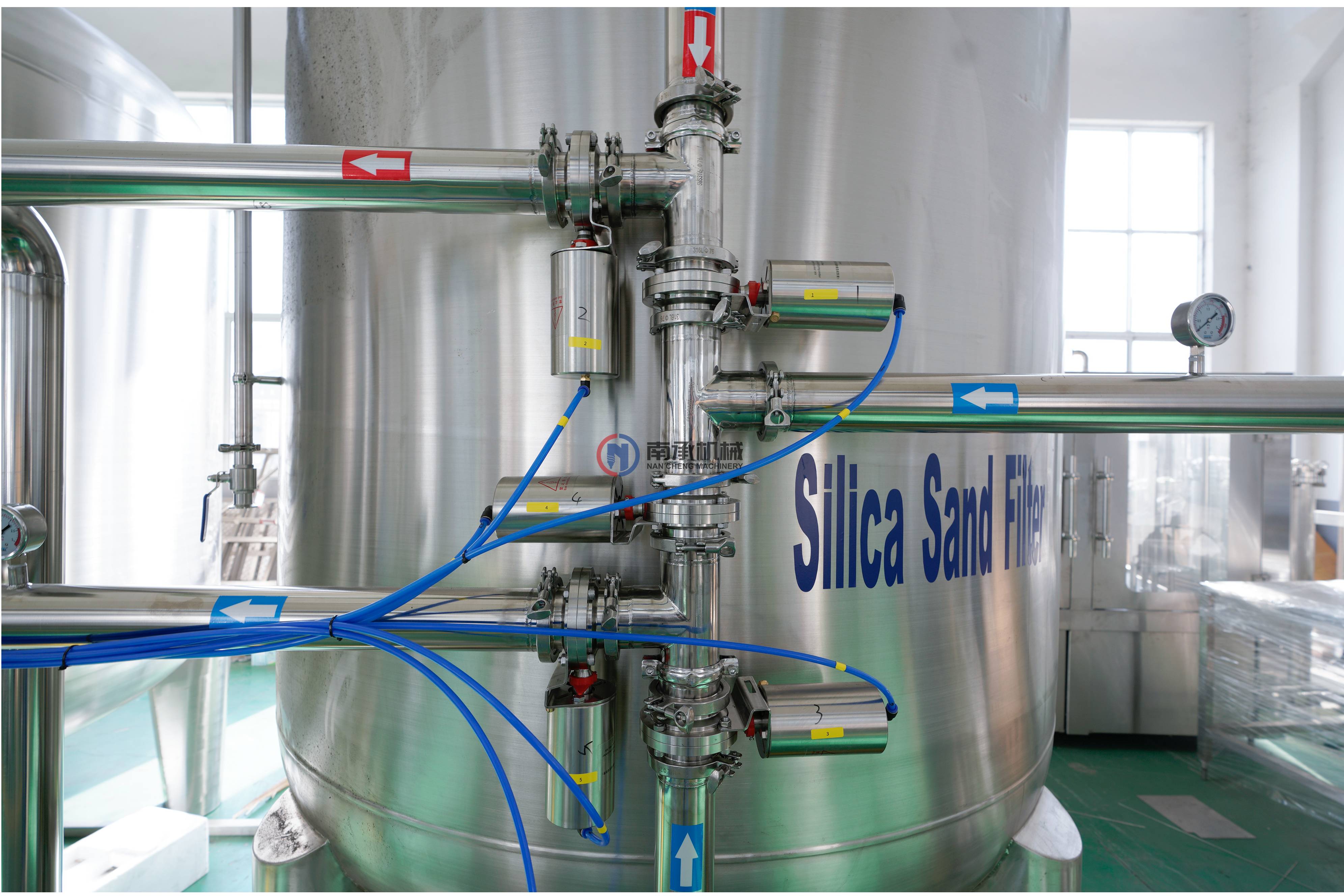

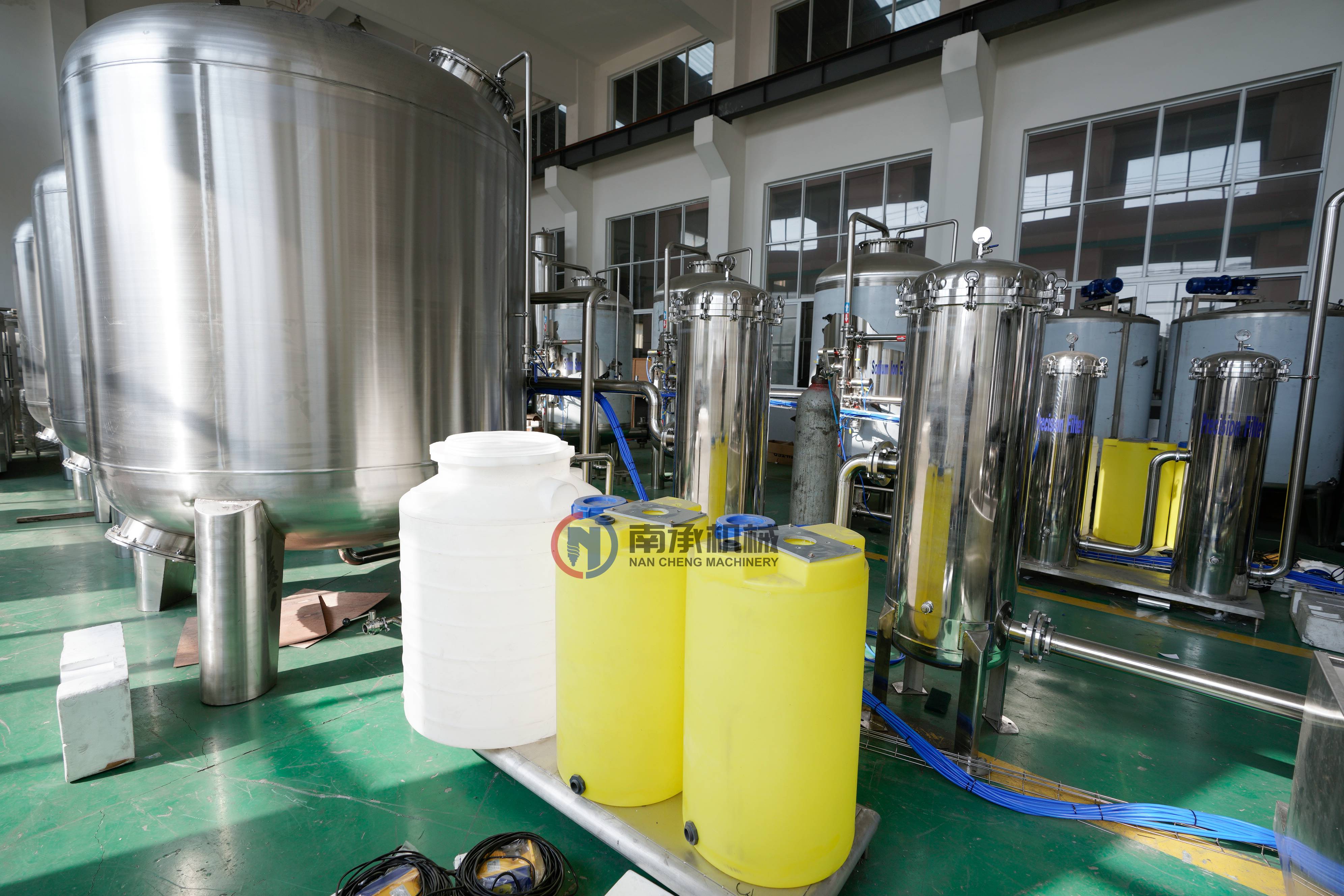

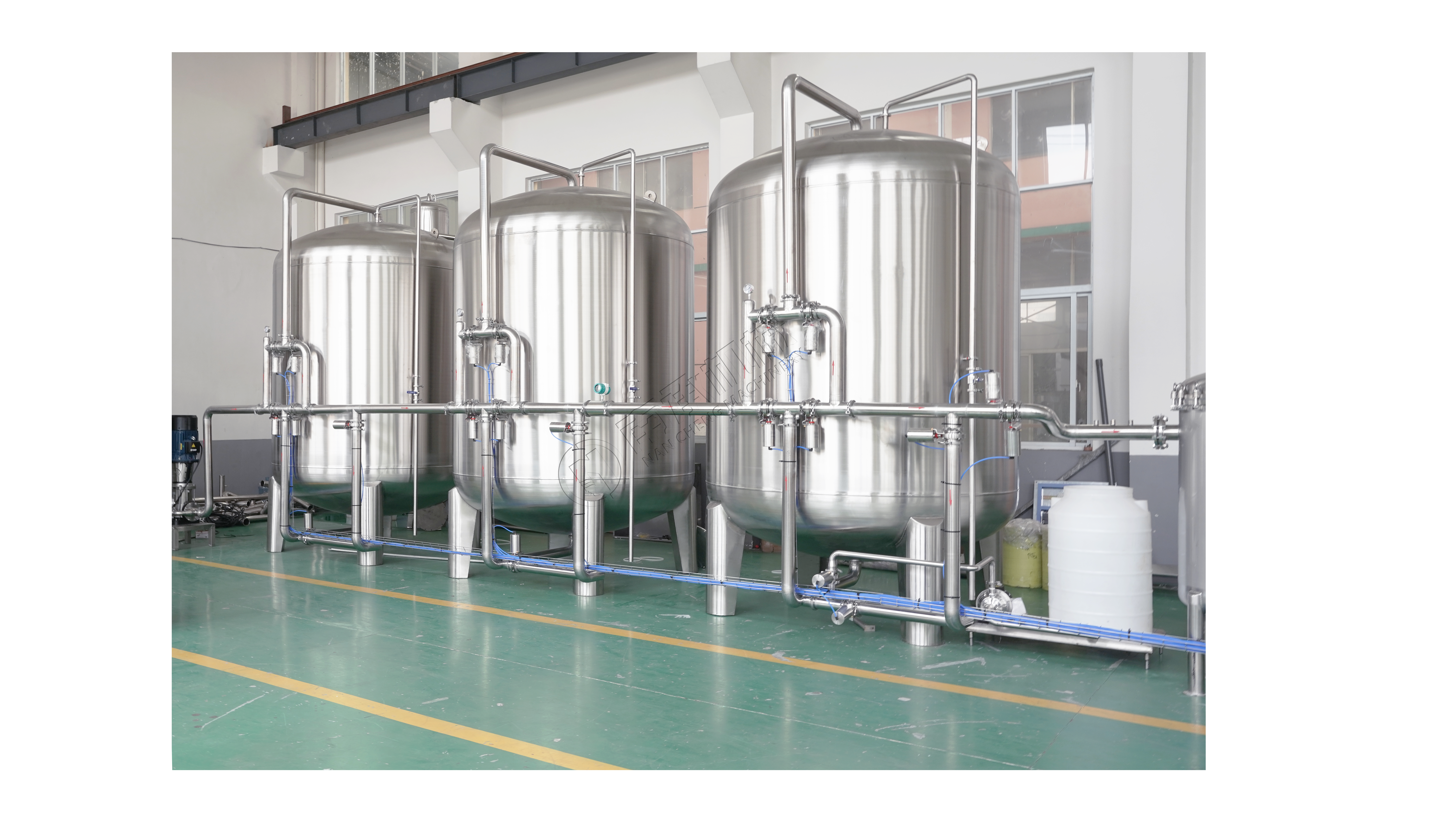

First stage pretreatment (Sand filter)

The use of multi-medium quartz sand filters, main purpose is to remove the water containss ediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.

Second stage pretreatment (Carbon filter)

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.

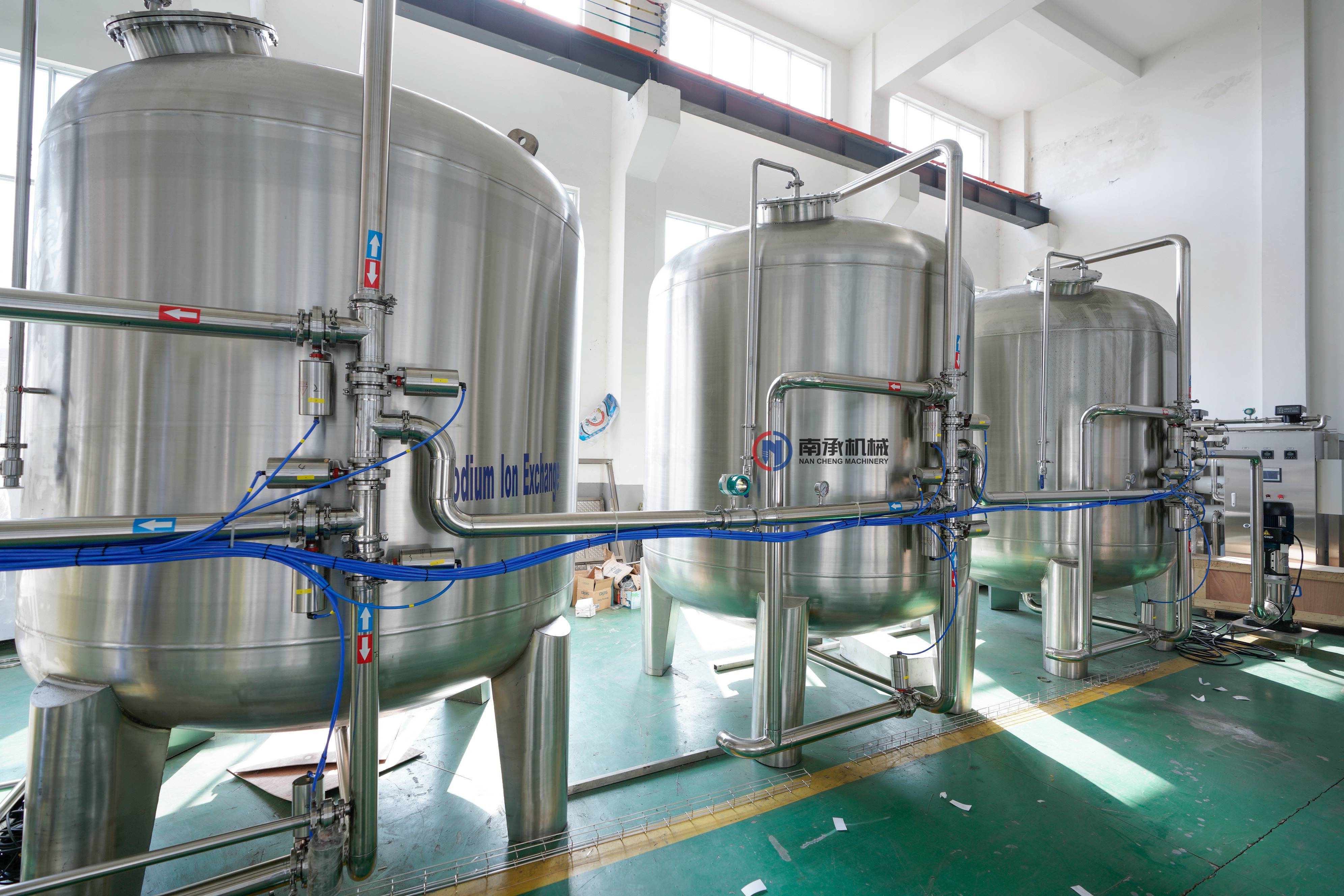

Third stage pretreatment (Sodium ion exchanger)

It can remove calcium and magnesium ions in the water, so as to soften the water.Water filter tank-Use natural rubber inside, it will protect the stainless steel from silica sand and carbon material, make the filters work much much longer than normal.

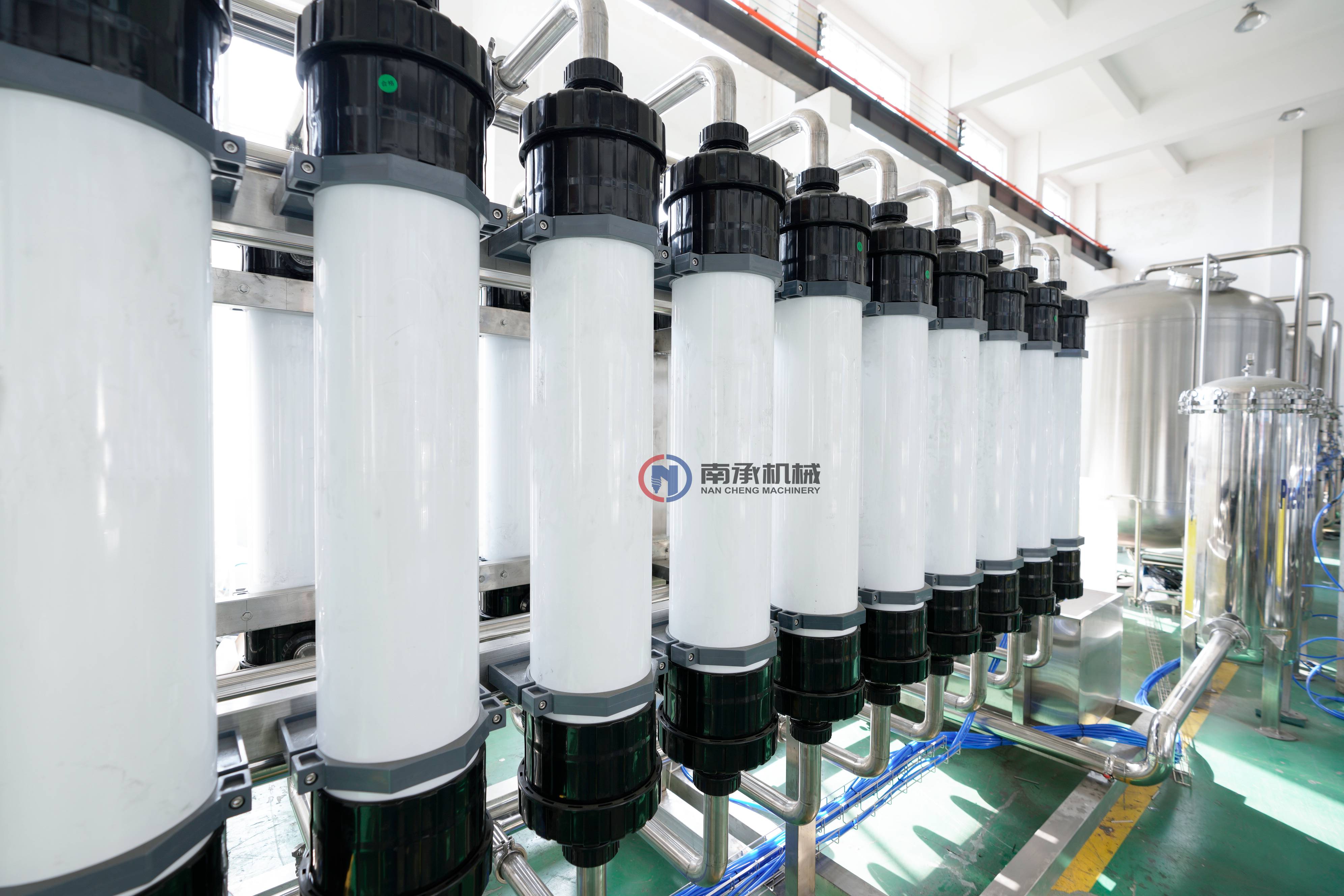

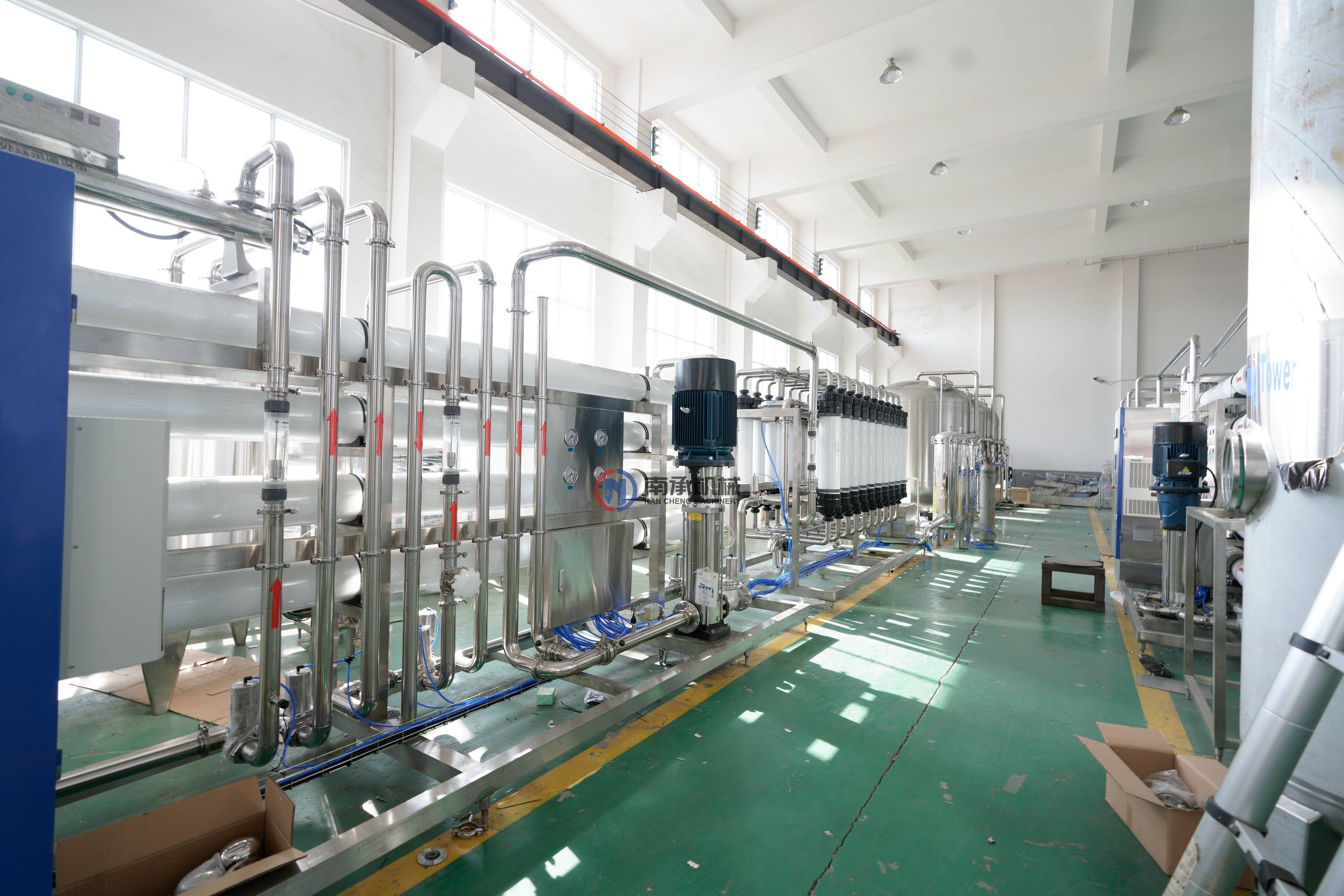

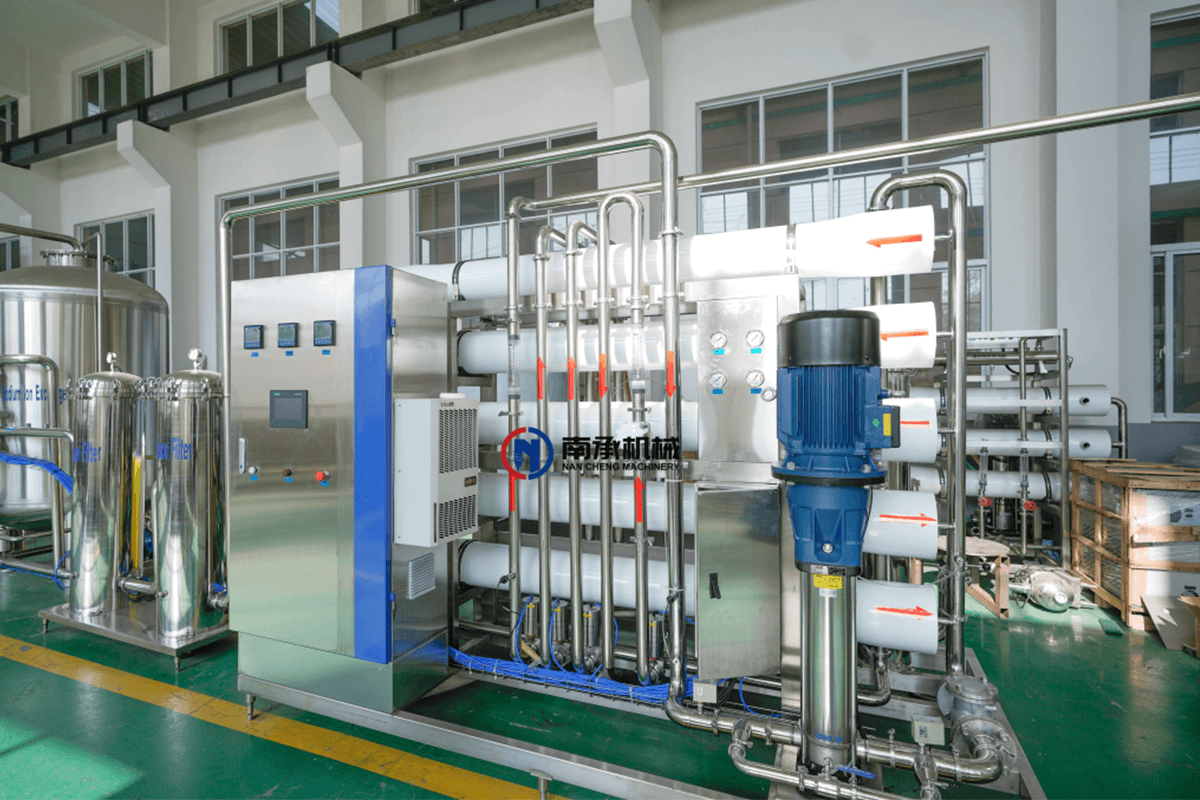

Reverse Osmosis

The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.

The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water).The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance. RO with reverse washing tank-RO is the heart of water treatment system,so we prepared the washing tank with clean the inside of RO to make the RO membranes work longer.

UV sterilize

It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.

Disinfect tube adopt high -quality stainless steel , the material with high efficiency which can get rusty reflection have to ultraviolet ray, will not produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container.

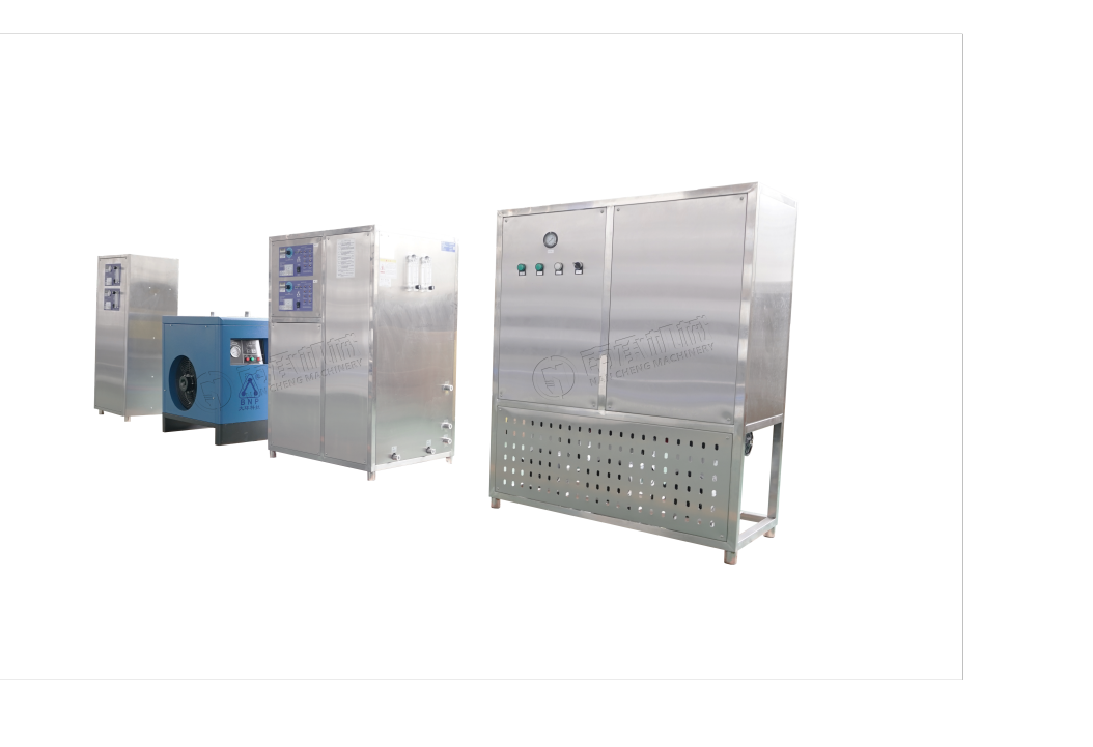

Ozone sterilizer

Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.We use stainless steel 316 for ozonetower,as it can resist Ozone very well than SS304,the working life will be much longer.

Durable material

The material of water treatment plant is SUS 304.The material of ozone mixing tower tank is SUS 316, which is durable.

Features

1.Technology discharge quartz ozone cell.

2.Adjustable Ozone output.

3.Cooling way: advanced water-cooling.

4. Inner air compressor and refrigerant dryer.

5. Inner PSA oxygen generator unit.

Flow Chart of Water Treatment Plant

Technical Parameter of Water Treatment Plant

Key Features of the Water Treatment System

1. Full-Scale Multi-Barrier Purification

This system combines mechanical filtration, chemical absorption, ion exchange, precision filtration, reverse osmosis, and double-stage sterilization (UV + Ozone). Each step is engineered to ensure the final water meets international drinking water standards.

2. Industrial-Grade Reverse Osmosis Performance

Equipped with high-rejection SPA8040 membranes, the RO unit effectively eliminates dissolved solids, heavy metals, microorganisms, organics, and harmful contaminants—delivering consistently high-quality purified water suitable for bottled drinking water production.

3. Durable Stainless Steel Construction

Core components are manufactured from SUS304, while ozone-contact parts use SUS316 for superior oxidation resistance. This ensures long-term reliability in demanding environments such as mineral water plants and continuous industrial filtration lines.

4. Optimized Hydraulic Design

High-pressure pumps, recovery control, and stable flow distribution allow the reverse osmosis water treatment system to operate with reduced energy consumption while maintaining high output efficiency.

5. Advanced Sanitization Technology

A UV sterilizer neutralizes remaining microorganisms after RO processing, and a stainless-steel ozone tower provides an additional disinfection barrier—guaranteeing ultra-clean, safe drinking water.

6. Easy Operation and On-Site Maintenance

The system features a clear pipe layout, accessible filter housings, and optional automatic flushing functions. Operators can quickly replace PP cartridges, adjust pressure settings, or initiate RO membrane cleaning.

7. Scalable Capacity Options

Available in 1T–10T/hour standard models, with full customization for larger water bottling lines. Suitable for small, medium, or large-scale drinking water purification systems.
