Beer TPO Monitoring: A Practical Guide to PPB-Level Oxygen Control

Why can two beers made from the same recipe taste different after only a few weeks on the shelf?

Brewers may first blame ingredients, fermentation, storage temperature, or transportation. Those factors matter, but one invisible variable often determines whether beer stays fresh or develops muted hop aroma, darker color, papery notes, and a shorter shelf life: oxygen.

This is especially important for oxygen-sensitive styles such as IPAs, hazy beers, wheat beers, and unpasteurized craft beers. Oxygen introduced during transfer or packaging may only become obvious after distribution.

That is why TPO Monitoring has become an important part of Beer Freshness Control. By combining Total Package Oxygen testing with Dissolved Oxygen measurement, Headspace Oxygen analysis, optical sensing, controlled CO₂ purging, counter-pressure filling, foam triggering, and immediate closure, breweries can find oxygen pickup before it becomes a shelf-life problem.

What Is TPO Monitoring?

TPO Monitoring measures and controls the total oxygen contained in a sealed bottle or can after filling and closing.

In simplified form:

TPO = Dissolved Oxygen Contribution + Headspace Oxygen Contribution

This relationship does not mean that two raw ppb readings can be added directly. Dissolved Oxygen and Headspace Oxygen exist in different phases and volumes. Liquid volume, headspace volume, package size, temperature, pressure, and gas-liquid equilibrium all affect the final calculation.

A practical TPO analyzer converts gaseous oxygen in the headspace and oxygen dissolved in the beer into one common total-oxygen value for the package. This gives the brewery a more meaningful indication of how much oxygen may eventually interact with the beer during storage.

Dissolved Oxygen (DO)

Dissolved Oxygen is oxygen already mixed into the beer. It can enter during filtration, tank transfer, carbonation, pumping, pipeline connection, bright beer storage, filler startup, valve operation, or temporary line interruption.

Even at trace concentrations, DO can reduce aroma, alter color, flatten flavor, and shorten shelf life.

Monitoring DO before the filler is essential because the machine cannot remove oxygen that entered upstream. If DO is already high at the bright beer tank outlet, investigate tank purging, filtration, pumps, seals, hoses, and transfer procedures before blaming the filling valve.

Headspace Oxygen (HSO)

Headspace Oxygen is the gaseous oxygen trapped between the beer surface and the bottle cap or can end after closure.

HSO can gradually dissolve into the beer, so an excellent initial DO result does not guarantee long-term freshness.

Common causes include insufficient CO₂ purging, incorrect filling height, unstable foam formation, delayed closure, poor lid or cap handling, pressure fluctuations, excessive conveyor distance, defective seams, and foam collapse before closing.

Why TPO Matters More Than DO Alone

Think of DO as oxygen already inside the beer and HSO as oxygen waiting above it. Both contribute to oxidation risk.

A brewery that measures only DO sees only part of the problem. TPO Monitoring answers a more useful question:

How much oxygen is contained in the complete sealed package and may eventually interact with the beer?

This makes Total Package Oxygen an important indicator for packaging quality, flavor stability, and shelf-life performance.

Why Dissolved Oxygen Alone Is Not Enough

Portable DO meters remain valuable for checking tanks, filters, pipelines, filler bowls, and filler inlets. However, DO alone cannot describe the full oxygen load of a sealed bottle or can.

Imagine two cans filled from the same bright beer tank. Both show 10 ppb DO immediately after filling. Six weeks later, one still has a fresh hop aroma while the other tastes duller.

The difference may be Headspace Oxygen. If one can was not purged effectively, had weak foam control, or remained open too long before seaming, more oxygen may have been trapped above the beer. That oxygen gradually dissolves during storage.

This combined view helps production and quality teams trace the source instead of guessing.

How PPB-Level Oxygen Monitoring Works

At this sensitivity, air entering through a loose fitting, poorly purged hose, worn seal, or unsuitable tubing can change the result. Reliable PPB-level measurement therefore depends on a sensitive analyzer, a correctly designed sampling point, and a repeatable procedure.

Optical Fluorescence Sensing

Modern trace-level analyzers often use optical fluorescence technology.

An optical sensor contains an oxygen-sensitive fluorescent material. A light source excites the material, and the instrument measures how oxygen changes the emitted light intensity, phase, or decay time. The analyzer converts this response into an oxygen reading.

The sensor consumes no oxygen, normally requires no electrolyte or polarization, and supports low-maintenance online monitoring.

Fast response helps operators detect oxygen spikes during startup, switching, interruptions, and cleaning recovery.

Why Sampling Design Matters

An advanced analyzer cannot compensate for poor sampling. Long hoses, oxygen-permeable tubing, leaking fittings, dead spaces, air bubbles, unstable pressure, and turbulent flow can distort PPB-level readings.

Breweries should use short oxygen-resistant lines, sanitary fittings, minimal dead volume, stable pressure and flow, fully purged sampling paths, and standardized procedures.

Temperature and Pressure Consistency

When comparing an online sensor with a portable meter, sample temperature, pressure, flow rate, and test duration should remain consistent. Otherwise, the difference may come from the sampling method rather than the beer.

A Simple Rule

At PPB level, the sampling system must be treated as part of the measuring instrument.

Optical vs Electrochemical Oxygen Sensors

Both optical and electrochemical sensors can measure DO, but their principles and operating requirements differ.

Electrochemical sensors use electrodes, a membrane, and an electrolyte. Because oxygen is consumed at the sensing surface, a minimum continuous sample-flow rate is normally required. If flow becomes too low, an oxygen-depleted boundary layer may form around the sensor and produce an artificially low result.

Optical sensors do not consume oxygen, making them less dependent on flow and well suited to continuous PPB-level monitoring.

Where Should Oxygen Be Monitored?

TPO control should not begin at the filling valve. By the time high TPO is found in a finished package, the original source may be difficult to identify.

Wort and Fermentation

Controlled wort oxygenation supports yeast growth, but after fermentation, leaking seals, poorly purged hoses, and unsuitable transfers can damage finished beer.

Bright Beer Tank Outlet

The bright beer tank outlet establishes the oxygen condition before packaging. If DO is already high here, the filler cannot fully correct the problem.

Comparing the tank-outlet result with the filler-inlet result also helps reveal oxygen ingress in pumps, filters, pipelines, or buffer tanks.

Filler Inlet

Continuous monitoring before the filler is valuable during startup, switching, interruptions, and cleaning recovery.

If oxygen rises unexpectedly, the control system can trigger an alarm, divert the product, or pause filling until conditions return to specification.

Finished Package

Finished-package testing evaluates purging, filling valves, foam formation, capping, and can seaming.

Check DO, HSO, TPO, fill level, closure integrity, and several filler positions so one defective valve is not hidden by an acceptable average.

How a Beer Filling Machine Reduces Oxygen Pickup

Low DO at the filler inlet does not guarantee low TPO in the final package. The filler must also limit oxygen during container preparation, beer entry, foam formation, and closure.

CO₂ Purging

Empty bottles and cans contain air. CO₂ purging displaces this air before filling.

Performance depends on gas volume, pressure, nozzle position, package geometry, purging time, and valve condition.

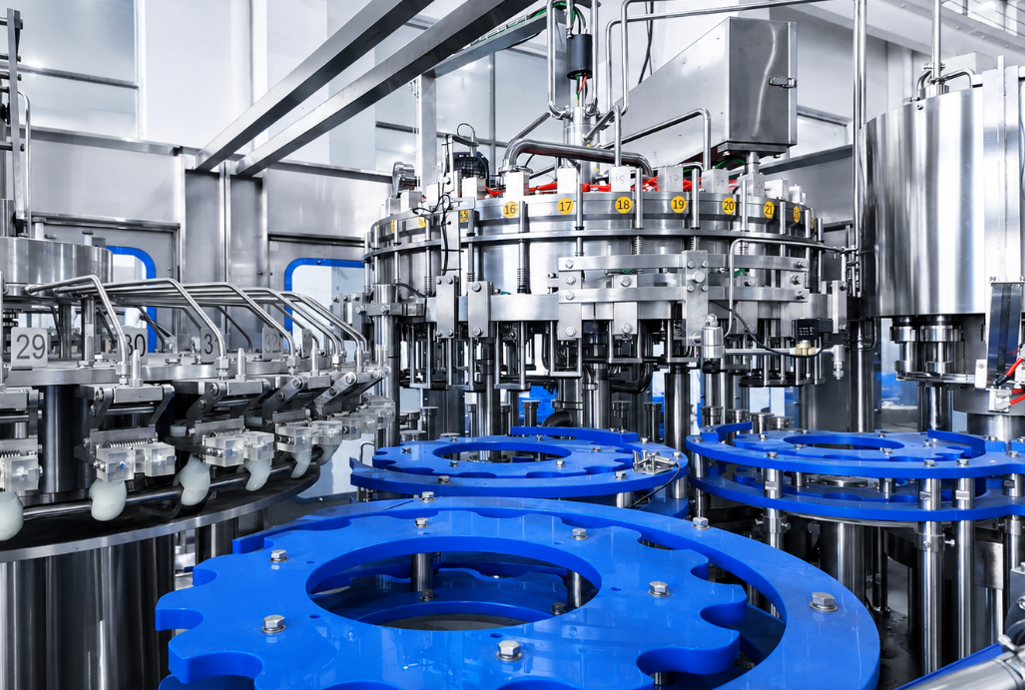

Evacuation and Counter-Pressure Filling

For suitable bottle systems, one or more vacuum stages can remove air before the bottle is pressurized with CO₂.

Multiple evacuation and gas-replacement cycles may reduce residual air, depending on the bottle, beer, capacity, and valve design.

During filling, counter-pressure valves equalize package pressure with the filling tank before beer flow begins. Smooth product entry helps protect carbonation, reduce turbulence, and control foam.

Foam Triggering and Immediate Closure

Immediately before capping or seaming, a fine foam layer can displace residual air from the bottle neck or can headspace.

This process is often called foam triggering or jetting. A small jet of sterile deaerated water or another validated method may initiate it.

The goal is not maximum foam. It should be fine, dense, and stable enough to push air out. The package should be closed immediately when the foam reaches or slightly overflows the opening.

If the foam collapses before closure, surrounding air may be drawn back into the headspace. This can increase HSO and reduce the benefit of CO₂ purging.

Effective foam triggering depends on temperature, carbonation, filling height, jetting settings, conveyor speed, and closure timing.

On a modern beer filling machine, filling, foam triggering, and closure should operate as one synchronized process.

Stable Temperature and Pressure

Beer temperature affects CO₂ solubility, foam behavior, filling speed, and oxygen pickup. Pressure instability can cause turbulence, excessive foam, and inconsistent filling levels.

Reliable low-oxygen filling depends on stable temperature, tank pressure, carbonation, valve timing, CO₂ supply, filling height, and closure timing.

How to Build a Complete TPO Monitoring System

A reliable system combines online measurement, portable verification, finished-package testing, and trend analysis.

Continuous Online Monitoring

Online sensors at the bright beer tank outlet and filler inlet reveal short changes that occasional samples may miss. They are especially useful during startup, switching, line interruptions, and cleaning recovery.

Portable and Bypass Verification

Portable meters allow operators to test tanks, filters, pipes, and filler bowls without installing a fixed sensor everywhere.

Bypass testing can verify online data when sampling conditions are standardized.

Finished-Package Testing and Traceability

Finished packages should be prepared according to the analyzer procedure for consistent TPO results.

Record the product, batch, filling time, filler position, DO, HSO, TPO, beer temperature, filling pressure, and closure condition.

Trend Analysis

One reading provides limited information. Trends reveal whether oxygen rises after stops, during long runs, after tank switching, or at one filling position.

Best Practices for Beer Freshness Control

A target below 50 ppb is often discussed for oxygen-sensitive beer, but the correct limit depends on style, package, shelf-life goal, and distribution.

To improve Beer Freshness Control:

• Control oxygen before packaging

• Fully purge pipelines and filler bowls

• Purge bottles and cans effectively

• Maintain stable beer temperature

• Check individual filling positions

• Synchronize filling and closure

• Validate foam-triggering settings

• Inspect caps and seams

• Standardize sampling procedures

• Review trends rather than isolated results

Common TPO Monitoring Mistakes

Measuring Only DO

Low DO does not guarantee low TPO because HSO may still be excessive.

Testing Only at the Filler Inlet

This does not evaluate container purging, valve performance, foam control, capping, or seaming.

Ignoring Startup Packages

The first packages after startup or interruption may contain more oxygen because the product path and containers are not fully purged.

Using Poor Sampling Procedures

Air entering through tubing, fittings, or handling can create false readings.

Using One Setting for Every Beer

A lager, hazy IPA, wheat beer, and low-carbonation specialty beer may require different pressure, temperature, purging, and foam-control settings.

Blaming Only the Filling Valve

High TPO may originate in tanks, pumps, filters, pipework, closure handling, or seam defects. Investigate the complete process.

Key Takeaways

• TPO Monitoring combines dissolved and headspace oxygen on a total-package basis.

• Raw DO and HSO ppb readings should not be directly added without conversion.

• DO alone cannot fully predict packaged beer freshness.

• Optical sensors are suitable for continuous PPB-level measurement.

• Electrochemical sensors require sufficient sample flow.

• Oxygen should be monitored before, during, and after filling.

• CO₂ purging, pressure equalization, foam triggering, and immediate closure affect TPO.

• Finished packages should be sampled from several filling positions.

• Trend analysis is more useful than one isolated reading.

• Low TPO results from the complete process, not one component.

Frequently Asked Questions

What Is TPO Monitoring in Beer Packaging?

TPO Monitoring measures the converted total oxygen content of a sealed beer package, including oxygen dissolved in the beer and oxygen remaining in the headspace.

What Is a Good TPO Level for Beer?

There is no single limit for every beer. Many breweries producing oxygen-sensitive products aim for very low TPO, sometimes below 50 ppb. The correct target depends on beer style, package, shelf-life goal, and distribution.

What Is the Difference Between DO and TPO?

DO measures oxygen dissolved in beer. TPO represents the converted total oxygen content of both the liquid and headspace in the sealed package.

Can DO and HSO Be Added Directly?

Not as raw ppb values. A TPO analyzer converts oxygen in both phases using liquid volume, headspace volume, package size, temperature, and pressure.

Why Can Beer Have Low DO but High TPO?

Excessive gaseous oxygen may remain above the beer and dissolve during storage.

Are Optical Sensors Better Than Electrochemical Sensors?

Optical sensors generally require less maintenance and do not consume oxygen. Electrochemical sensors can still provide reliable results when properly maintained and operated with sufficient flow.

Can a Filling Machine Guarantee TPO Below 50 ppb?

No machine can guarantee a specific TPO value independently of incoming beer quality, CO₂ purity, package design, closure performance, operating procedures, and measurement methods.

How Often Should TPO Be Tested?

Test during startup, after adjustments, following interruptions, at regular production intervals, and whenever online DO data becomes abnormal.

Protect Beer Freshness with Integrated TPO Control

Excellent beer can lose its intended character when oxygen enters during transfer, filling, or closure.

Container purging, pressure stability, valve design, foam control, closure timing, and repeatability all influence Beer Freshness Control.

Zhangjiagang Nancheng Machinery Co., Ltd. designs bottle and can beer filling solutions according to carbonation level, package format, production capacity, and oxygen-control requirements.

By combining stable counter-pressure filling with practical TPO Monitoring, breweries can reduce oxygen pickup, protect flavor stability, extend shelf life, and deliver more consistent beer from the production line to the consumer.
