The Complete Guide To Juice Filling Equipment: How To Choose The Right Line for Your Production Needs

Choosing the right juice filling equipment is not simply a matter of comparing machine prices or selecting the highest production speed.

A successful juice bottling plant works as one connected system. Water treatment, ingredient preparation, homogenization, pasteurization, filling, capping, cooling, labeling, packing, and cleaning must operate together under the same process requirements.

A filling machine may look impressive on its own, but it cannot compensate for an incorrectly designed preparation system, unstable product temperature, unsuitable bottles, insufficient cooling capacity, or poor hygienic control.

So, how should you select the right juice filling line?

Should you use hot filling, aseptic filling, or refrigerated cold filling? Do you need PET bottles, glass bottles, or aluminum cans? Can a standard 3-in-1 monoblock handle your beverage, or do you need a separate pulp-dosing system? Should you begin with a compact 2,000-bottle-per-hour line or install a fully automated high-speed system?

This guide explains the technical and commercial factors you should evaluate before investing in a juice filling machine production line.

Quick Answer: How Do You Choose Juice Filling Equipment?

The correct juice filling equipment should be selected according to the following factors:

1. Beverage formula and acidity

2. Required shelf life

3. Filling and sterilization method

4. Viscosity, pulp concentration, and particle size

5. Bottle or can material

6. Production capacity

7. Factory utilities and available space

8. Cleaning and hygiene requirements

9. Automation level

10. Investment and operating budget

For many high-acid, shelf-stable juice drinks, hot filling provides a practical balance between food safety, equipment cost, and operational simplicity.

Aseptic filling is more appropriate for certain low-acid, dairy-containing, preservative-free, or highly heat-sensitive beverages. Refrigerated fresh juice may use an ultra-clean or cold-filling process combined with a reliable cold-chain system.

The best solution should always be based on the actual product formula rather than the machine price alone.

What Is Juice Filling Equipment?

Juice filling equipment refers to the industrial machinery used to prepare, transfer, fill, seal, and package fruit juice and juice-based beverages.

It may be used for:

• Clear fruit juices

• Juice drinks

• Fruit nectars

• Ready-to-drink tea

• Sports drinks

• Functional beverages

• Plant-based beverages

• Aloe vera drinks

• Coconut beverages

• Juice containing pulp

• Beverages containing fruit pieces

• Dairy-blended fruit drinks

In an industrial plant, the term “juice filling equipment” normally refers to more than the rinsing, filling, and capping monoblock.

A complete juice production line may include:

• Raw water treatment equipment

• Sugar dissolving tanks

• Syrup filtration equipment

• Blending and mixing tanks

• Homogenizers

• Vacuum deaerators

• Plate or tubular pasteurizers

• UHT sterilizers for suitable applications

• Bottle blowing machines

• Bottle unscramblers

• Juice filling and capping machines

• Bottle inversion sterilizers

• Cooling or warming tunnels

• Labeling machines

• Shrink wrapping machines

• Carton packing machines

• Conveyor systems

• Palletizing systems

• CIP cleaning equipment

Because every section affects the next, many beverage producers prefer purchasing a complete turnkey line from one engineering supplier. This reduces compatibility problems and gives one party responsibility for line performance.

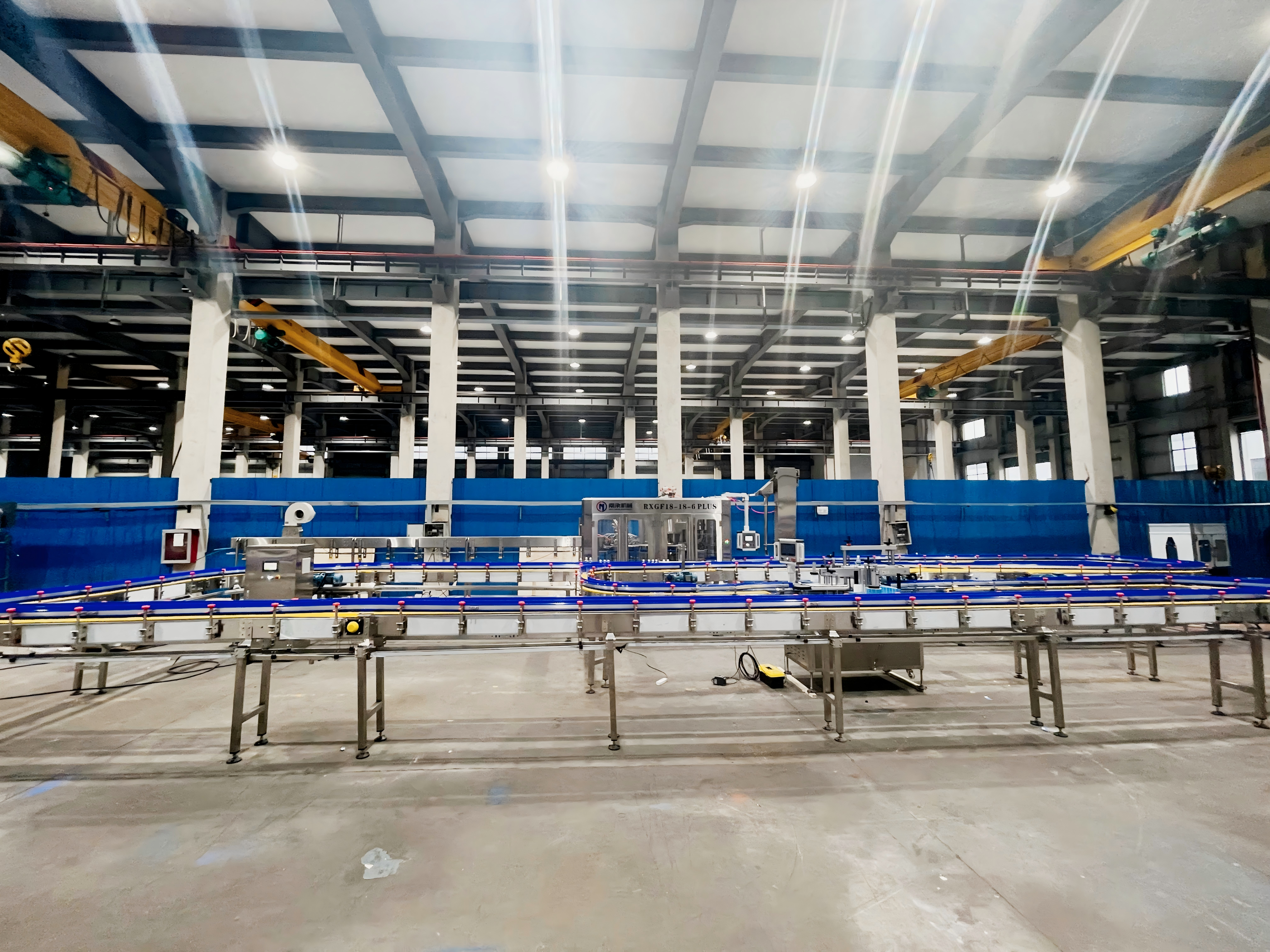

How Does a Complete Juice Filling Line Work?

The exact production process depends on the recipe, but a typical juice filling line includes the following stages.

1. Water Treatment

Most juice drinks contain a significant percentage of water. The raw water must therefore meet the required physical, chemical, and microbiological standards.

Depending on the raw water report, the treatment system may include:

• Quartz sand or multimedia filtration

• Activated carbon filtration

• Water softening

• Precision cartridge filtration

• Ultrafiltration

• Reverse osmosis

• Ultraviolet sterilization

• Ozone treatment

Not every factory requires the same treatment process. The system should be selected only after testing the local water source.

2. Sugar Dissolving and Beverage Preparation

Sugar is dissolved and filtered before being transferred into a blending tank. Fruit concentrate, treated water, stabilizers, flavors, vitamins, colors, and other ingredients are then added according to the recipe.

The preparation system may include:

• Sugar melting tanks

• High-shear mixers

• Blending tanks

• Buffer tanks

• Duplex filters

• Transfer pumps

• Automatic ingredient dosing systems

The size and number of tanks should match the filling speed, batch duration, cleaning cycle, and number of products.

3. Homogenization

Some juice drinks contain suspended ingredients that may separate during storage.

A homogenizer reduces particle or droplet size and improves product stability, texture, and appearance. However, not every beverage requires high-pressure homogenization.

Products containing intentionally visible fruit pieces should not pass through a homogenizer that would destroy those particles.

4. Vacuum Deaeration

Oxygen can accelerate browning, vitamin loss, flavor deterioration, and product oxidation.

A vacuum deaerator removes dissolved and entrained air before thermal treatment and filling. Nitrogen flushing or dosing may also be used to reduce oxygen in the bottle headspace.

The required oxygen-control method depends on the beverage, package, shelf-life target, and investment level.

5. Pasteurization or Sterilization

The beverage is heated according to its acidity, formula, microbial risk, packaging, and required shelf life.

Plate heat exchangers are commonly used for clear, low-viscosity juice drinks. Tubular systems are generally more suitable for thicker beverages or products containing pulp and small particles.

Hot-fill juice is normally pasteurized before filling. The validated process may use temperatures from approximately 82°C to 95°C, depending on the product.

UHT processing is a different thermal process that usually uses a much higher temperature for a very short time. It is mainly associated with aseptically packaged low-acid or sensitive products and should not be used as a general term for every hot-fill juice process.

6. Bottle Filling and Capping

Clean containers enter the filling machine, where they are rinsed or sanitized, filled, and immediately capped.

The appropriate filling method depends on:

• Product temperature

• Product viscosity

• Foaming tendency

• Pulp concentration

• Particle size

• Required filling accuracy

• Container material

• Bottle neck and closure design

A standard juice filling monoblock usually combines bottle rinsing, liquid filling, and capping in one frame.

7. Post-Filling Treatment

Hot-filled bottles may pass through a bottle inversion sterilizer. This allows the hot beverage to contact the internal surface of the cap and bottle neck for a controlled period.

The bottles then enter a staged cooling tunnel. Cooling water is applied in several temperature zones to avoid sudden thermal shock.

The final bottle temperature may commonly be reduced to approximately 35°C to 45°C, but the actual target depends on the bottle material, label type, packing method, and product requirements.

8. Labeling and Packing

After cooling and drying, bottles may pass through:

• Visual or automatic inspection

• Inkjet or laser coding

• Sleeve labeling

• Self-adhesive labeling

• Hot-melt OPP labeling

• Shrink wrapping

• Carton packing

• Palletizing

The speed of the downstream packaging machines must match the output of the filler. A high-speed filler cannot achieve its planned efficiency if the labeler or packing machine stops frequently.

Why Juice Filling Is More Complex Than Water Filling

Water and juice filling lines may appear similar, but their process requirements are significantly different.

Water is not sterile and can still become contaminated. However, compared with juice, it normally has lower sugar content, lower viscosity, and fewer ingredients that support microbial growth or create product deposits.

Juice may contain:

• Sugar

• Fruit concentrate

• Natural acids

• Vitamins

• Stabilizers

• Flavor oils

• Pulp

• Plant fibers

• Dairy ingredients

• Suspended particles

These ingredients create several engineering challenges.

Microbial Control

Sugar-rich beverages can support yeast, mold, and bacterial growth. Product-contact surfaces must therefore be hygienically designed, easy to clean, and fully drainable.

Temperature Control

Hot-filled products must remain above the validated minimum filling temperature.

If the temperature falls below the process set point, the filling system should stop normal production and return the product to the heating or recirculation loop.

There is no universal safe filling temperature for every juice. The correct temperature must be determined through product testing and process validation.

Oxidation Prevention

Exposure to oxygen can damage color, flavor, vitamins, and shelf life.

Smooth transfer, closed tanks, vacuum deaeration, reduced product agitation, and optional nitrogen protection can help control oxidation.

PET Bottle Deformation

When hot-filled juice cools, the pressure inside the bottle changes. An unsuitable PET bottle may shrink, distort, or develop collapsed sidewalls.

A cooling tunnel alone cannot make a standard PET bottle suitable for hot filling. The project normally requires a heat-resistant PET bottle with an appropriate preform, bottle design, heat-setting process, and vacuum-management structure.

Pulp and Particle Handling

A standard liquid filling valve may clog when processing fruit sacs, aloe vera cubes, nata de coco, coconut pieces, or large pulp particles.

The supplier must know:

• Particle length and diameter

• Particle concentration

• Product viscosity

• Particle density

• Filling temperature

• Required dosing accuracy

• Sensitivity to mechanical damage

These details determine whether the project requires a large-bore valve, piston filling, separate particle dosing, or a specialized 4-in-1 monoblock.

Main Types of Juice Filling Technology

1. Hot Juice Filling Machine

Hot filling is widely used for high-acid and acidified beverages, including many juice drinks, nectars, tea beverages, and functional drinks.

High-acid foods are commonly associated with an equilibrium pH of 4.6 or below. However, pH alone does not determine the full thermal process. Brix, preservatives, ingredients, package size, microorganisms, filling temperature, and holding time must also be evaluated.

Advantages of Hot Filling

• Mature and widely used technology

• Reliable for many high-acid beverages

• Lower investment than full aseptic filling

• Easier to operate than aseptic systems

• Suitable for small, medium, and large factories

• Can provide ambient shelf life after validation

Limitations of Hot Filling

• Heat may affect flavor and color

• Some vitamins may be reduced

• Requires heat-resistant bottles

• PET bottles may require more material

• Cooling consumes water and energy

• Long exposure to heat may reduce product quality

Hot filling is often the most practical choice for producers that need ambient distribution without the cost and complexity of a complete aseptic line.

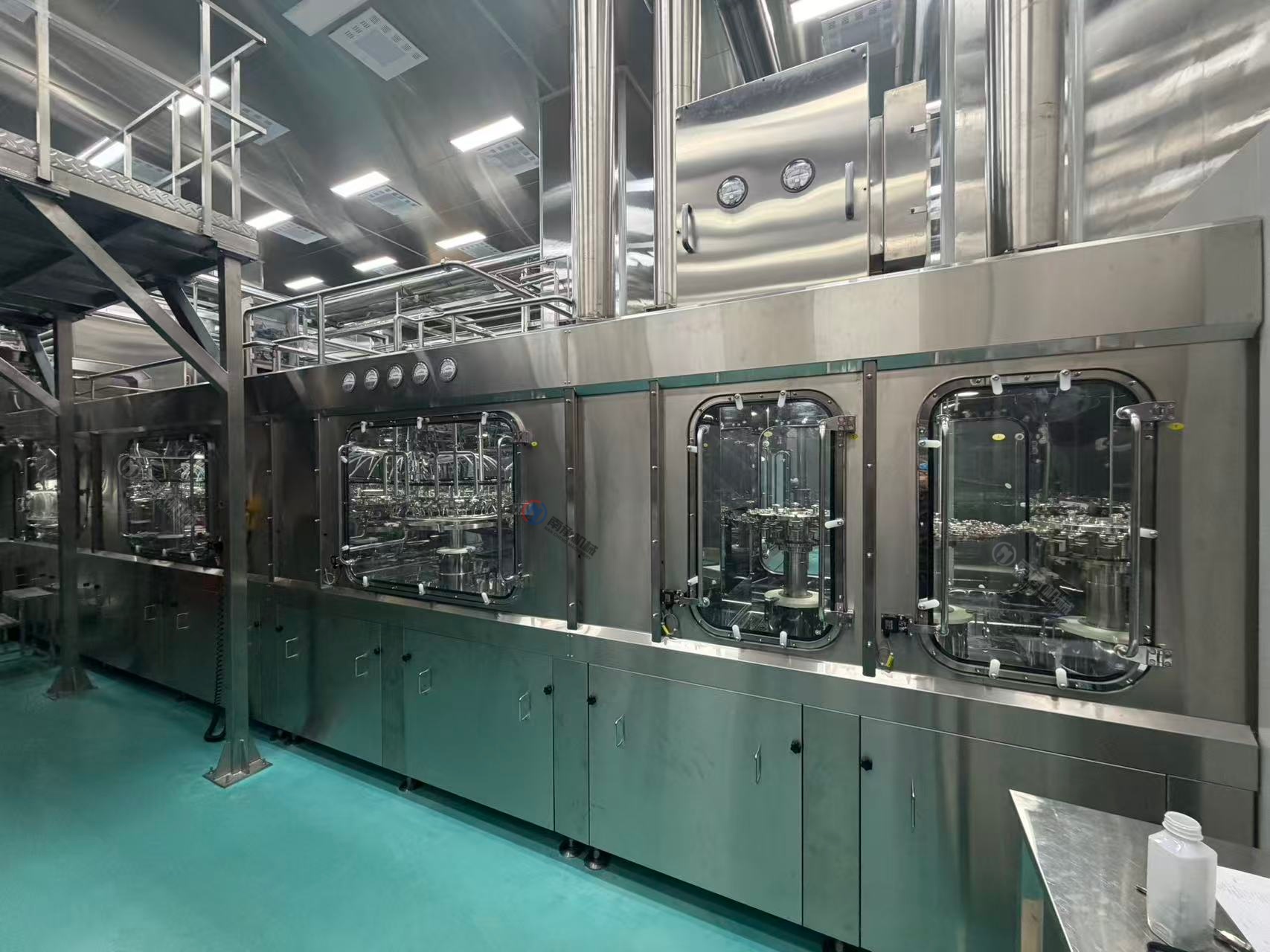

2. Aseptic Juice Filling Machine

In an aseptic system, the product, packaging, closures, filling environment, and product-contact equipment are sterilized through validated processes.

The sterilized beverage is cooled and filled inside a controlled sterile environment.

Bottle and cap sterilization may use hydrogen peroxide, peracetic acid, or another validated method, depending on the machine design.

Advantages of Aseptic Filling

• Better flavor and color retention

• Suitable for heat-sensitive products

• Can support preservative-free production

• Suitable for certain low-acid beverages

• Lightweight PET bottles may be possible

• Long ambient shelf life can be achieved

Limitations of Aseptic Filling

• High initial investment

• Complex sterilization controls

• Strict operational procedures

• Requires experienced operators

• Higher maintenance requirements

• Requires microbiological validation

• Production interruptions may require lengthy sterilization procedures

Aseptic filling should not be selected only because it sounds more advanced. It is most suitable when product value, packaging savings, shelf-life requirements, and production volume justify the additional investment.

3. Ultra-Clean and Refrigerated Cold Filling

Ultra-clean filling uses enhanced hygienic controls but does not always provide the same sterility assurance as full aseptic filling.

It may include:

• Sanitized containers

• Filtered or controlled air

• Hygienic machine enclosures

• Low-temperature product handling

• Short product exposure time

• Strict environmental cleaning

This method is often used for refrigerated fresh juice and other beverages distributed through a continuous cold chain.

Cold filling alone does not guarantee a long shelf life. The product formula, pasteurization method, sanitation level, packaging, and refrigeration temperature must all be controlled.

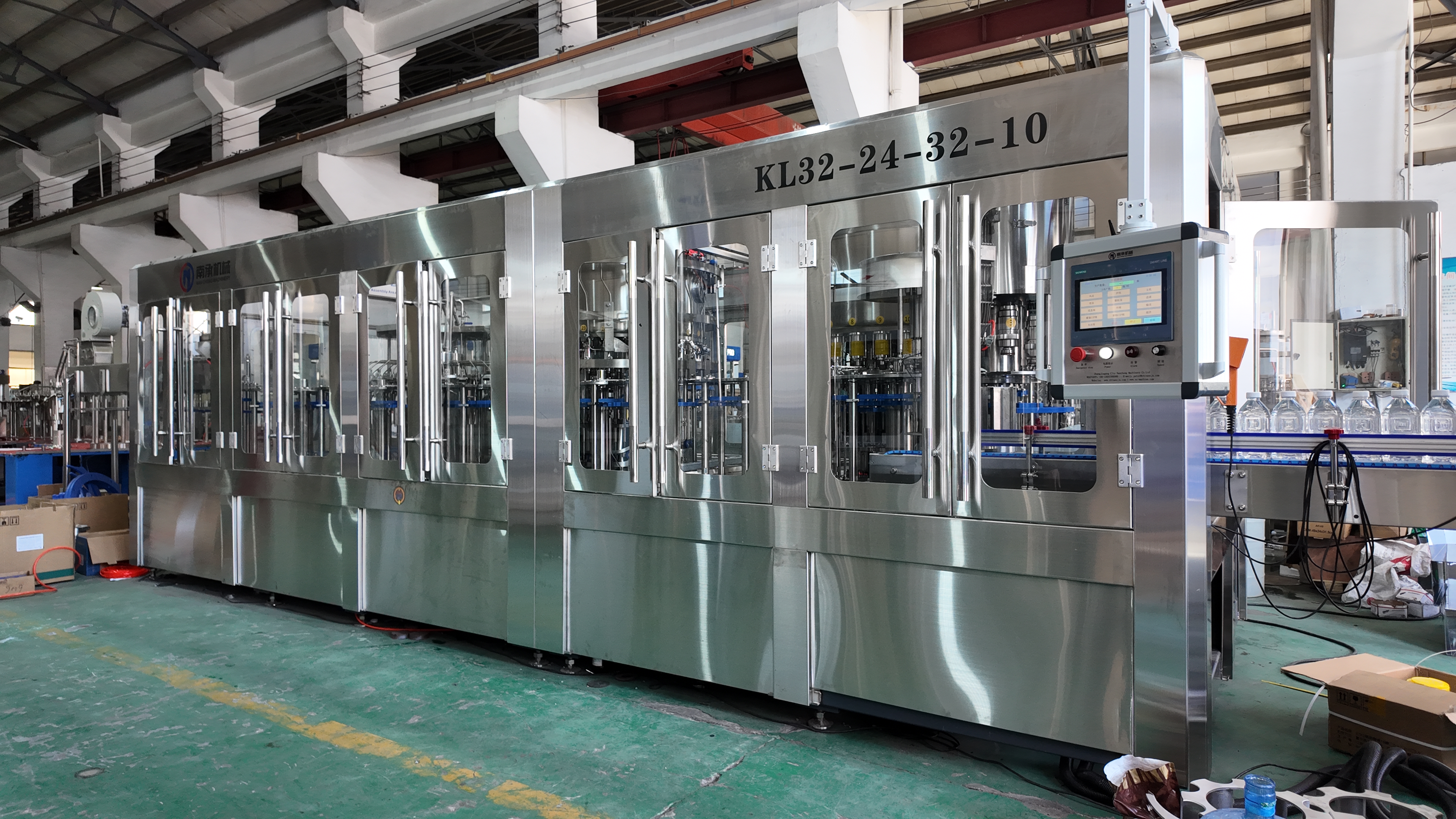

4. Pulp and Particle Juice Filling Machine

Juices containing fruit particles require specially designed dosing and filling systems.

A typical 4-in-1 configuration may combine:

1. Bottle rinsing

2. Particle or pulp dosing

3. Liquid juice filling

4. Bottle capping

Separating particle dosing from liquid filling improves dosing consistency and reduces the risk of clogged liquid valves.

However, not every pulp beverage requires a 4-in-1 machine. Fine, uniform pulp may be handled by a suitable large-bore liquid filling valve. Larger particles may require a separate piston or volumetric dosing carousel.

The final design must be based on actual product samples and filling tests.

Hot Filling vs. Aseptic Filling

The correct choice depends on the product, not on which technology appears more modern.

PET Bottles, Glass Bottles, or Aluminum Cans?

PET Bottles

PET is widely used for juice because it is lightweight, economical, break-resistant, and efficient for transportation.

Hot filling requires heat-resistant PET bottles. These bottles may use heat-set technology, vacuum panels, or other structural features to manage cooling-related pressure changes.

Aseptic filling may allow lighter PET bottles, but the bottle material and design must still be compatible with the selected sterilization method.

Glass Bottles

Glass offers strong oxygen-barrier performance and a premium appearance. It is often used for organic juice, hotel and restaurant products, cold-pressed-style beverages, and premium retail brands.

Still juice in glass bottles does not normally require counter-pressure filling. It may use gravity, vacuum, volumetric, or other suitable filling methods.

Counter-pressure filling is mainly required when the juice is carbonated.

Glass-bottle lines must also manage:

• Bottle weight

• Breakage

• Thermal shock

• Bottle inspection

• Closure type

• Cap vacuum

• Conveyor stability

Aluminum Cans

Cans protect beverages from light and oxygen and are suitable for energy drinks, functional beverages, sparkling juice, and ready-to-drink products.

A canning line uses a filling machine and mechanical can seamer rather than a screw capper.

Still juice may use gravity or volumetric filling. Carbonated juice requires pressure-controlled filling.

Can seam quality must be inspected carefully because the double seam determines whether the package remains sealed.

How to Select the Right Production Capacity

Production capacity should be selected according to realistic sales demand, working hours, bottle size, product changeovers, cleaning time, and future growth.

These ranges are general references rather than fixed industry rules.

BPH means bottles per hour, but the rated output is normally based on a specific bottle volume. A machine producing 12,000 bottles per hour in 500 ml bottles may operate at a lower bottle count when filling 1.5-liter containers.

You should also calculate actual line efficiency. CIP cleaning, flavor changes, bottle changes, cap shortages, label replacement, maintenance, and packing interruptions will reduce total daily output.

Key Features of Professional Juice Filling Equipment

Hygienic Design

Product-contact components should use food-grade stainless steel suitable for the beverage and cleaning chemicals.

SUS304 is widely used, while SUS316L may be selected for more demanding products or processing conditions.

The machine should minimize dead zones, product retention, exposed threads, and difficult-to-clean areas.

Automatic Product Recirculation

A hot filling machine should monitor product temperature continuously.

If the filling temperature falls below the validated limit, the control system should prevent unsafe filling and return the product to the heating or circulation system.

A specific double-seat valve design may be used, but it is not the only acceptable engineering solution.

CIP Compatibility

The filler should connect to a centralized Clean-in-Place system.

CIP cups or dummy bottles allow cleaning liquid to circulate through the filling valves. Cleaning parameters should include:

• Chemical concentration

• Cleaning temperature

• Flow velocity

• Circulation time

• Rinsing time

• Final rinse quality

Aseptic systems may also require sterilization procedures in addition to standard CIP cleaning.

Low-Foam Filling

Excessive turbulence can create foam, product overflow, inaccurate fill levels, and poor sealing.

The filling valve should provide controlled, low-turbulence product flow. Wall-guided filling may be used for products that foam easily.

Accurate Filling Control

Possible filling methods include:

• Gravity filling

• Level filling

• Volumetric filling

• Flow-meter filling

• Piston filling

• Weight filling

The correct method depends on product viscosity, value, particle content, temperature, and required accuracy.

Fast Changeovers

Factories producing several bottle sizes should look for:

• Quick-change starwheels

• Adjustable guide rails

• Neck-handling systems

• Stored HMI recipes

• Position indicators

• Tool-free change parts

Shorter changeovers increase useful production time.

Common Mistakes When Purchasing a Juice Filling Line

Buying a Modified Water Filling Machine

A water filler may lack suitable seals, hot-product circulation, hygienic valves, temperature controls, or effective CIP connections.

Minor modification does not automatically make a water filling machine suitable for juice.

Ignoring Formula Information

The supplier cannot select the correct filler without accurate information about pH, Brix, viscosity, pulp concentration, particle size, temperature, and foaming behavior.

Choosing Equipment Only by Price

A cheap machine may create higher long-term costs through product waste, unstable filling, bottle damage, high energy consumption, and frequent downtime.

Sourcing Too Many Separate Suppliers

Purchasing processing, filling, labeling, and packing equipment from unrelated vendors may create integration problems.

When the complete line fails to achieve the promised efficiency, each supplier may blame another machine.

Ignoring Utility Requirements

The factory must provide sufficient:

• Electrical power

• Steam

• Cooling water

• Chilled water

• Compressed air

• Treated water

• Drainage capacity

An undersized boiler, chiller, compressor, or cooling-water system can prevent the filling line from reaching its rated capacity.

How to Choose a Juice Filling Machine Manufacturer

A professional manufacturer should ask detailed questions before recommending a line.

You should provide:

• Beverage formula

• Product pH

• Brix value

• Viscosity

• Pulp concentration

• Particle dimensions

• Required shelf life

• Bottle material

• Bottle volume

• Bottle and cap drawings

• Required production speed

• Factory dimensions

• Local electricity standard

• Final packaging format

The manufacturer should then provide:

• Recommended process flow

• Machine configuration

• Factory layout

• Utility consumption

• Technical specifications

• Production assumptions

• Installation requirements

• Spare-parts list

• Training plan

• After-sales support plan

Nancheng Machinery can integrate water treatment, beverage preparation, sterilization, filling, labeling, packing, and conveyor equipment into a complete turnkey juice production line.

A turnkey solution can reduce interface risks and simplify factory planning, installation, commissioning, and future technical support.

Frequently Asked Questions

What is the best juice filling machine for a startup?

For many startups producing high-acid, shelf-stable juice drinks, a 2,000–4,000 BPH hot filling line is a practical starting point. The final recommendation must still be based on the formula, bottle type, distribution method, and available budget.

Can one line fill several juice flavors?

Yes. One line can normally process several flavors when their viscosity, temperature, and particle characteristics are similar. A validated CIP procedure is required between product changes.

Can one machine fill both clear juice and pulp juice?

Yes, but only when the machine is designed for both products. Clear juice may bypass a separate particle-dosing section, while pulp juice may require a large-bore valve or dedicated dosing system.

What temperature should be used for hot filling?

Many hot-filled beverages are filled at approximately 82°C to 95°C. However, the correct temperature depends on the formula, pH, microorganisms, bottle size, holding time, and required shelf life.

Why is a cooling tunnel required?

A cooling tunnel reduces the product and bottle temperature in controlled stages. It helps protect product quality, bottle shape, closure performance, label adhesion, and packing stability.

Can standard PET bottles be used for hot filling?

Normally, standard lightweight PET water bottles are not suitable. Hot filling usually requires a heat-resistant bottle designed to withstand the filling temperature and internal pressure changes during cooling.

How long can bottled juice remain on the shelf?

Shelf life depends on the formula, thermal process, hygiene, oxygen level, packaging barrier, storage temperature, and closure integrity. It must be confirmed through microbiological and shelf-life testing.

What information is needed for an accurate quotation?

Provide the product formula, pH, Brix, viscosity, particle information, bottle drawings, cap type, required capacity, factory dimensions, power supply, and final packaging format.

Conclusion: Invest in a Complete Production Solution

The best juice filling equipment is not necessarily the fastest or most expensive machine.

It is the system that matches your beverage formula, packaging material, shelf-life target, production capacity, factory utilities, operator experience, and long-term business plan.

Begin with the product. Then select the thermal process, filling method, container, capacity, and automation level.

A professionally designed juice filling line can reduce contamination risks, improve filling accuracy, protect product quality, lower operating costs, and support future expansion.

If you are planning a new juice bottling factory or upgrading an existing plant, Nancheng Machinery can provide customized production processes, factory layouts, equipment configurations, installation support, and turnkey juice filling solutions for PET bottles, glass bottles, and aluminum cans.
