From “Made in China” to “Created in China”: Inside Nancheng’s High-Precision Automatic Jam Filling Solutions

Have you ever watched strawberry jam being filled at industrial speed?

Empty jars arrive in neat rows. Filling nozzles descend. Thick jam flows into each container without splashing or dripping. The jars are capped, labeled, inspected, packed, and prepared for shipment—all within a few minutes.

It looks effortless.

But ask any food factory engineer and you will hear a different story: jam is one of the most difficult products to fill accurately.

It can be thick, sticky, aerated, hot, or packed with strawberry pieces, peach cubes, seeds, and pulp. Its viscosity changes with temperature. Its particles can block narrow valves. Its sticky texture can create long product strings between the filling nozzle and the container.

A suitable automatic jam filling machine must therefore do much more than move product from a tank into a jar. It must protect fruit integrity, maintain dosing accuracy, prevent dripping, support hygienic cleaning, control filling temperature, and connect smoothly with the capping and packaging equipment.

Zhangjiagang Nancheng Machinery Co., Ltd. develops high-precision linear filling systems and complete packaging lines for jam, fruit sauce, honey, paste, spreads, and other viscous food products.

This guide explains how a modern jam filling line works, which dosing technology is suitable for different products, and what food manufacturers should evaluate before purchasing equipment.

What Is an Automatic Jam Filling Machine?

An automatic jam filling machine is designed to measure and dispense a programmed quantity of jam or another viscous food product into bottles, jars, cups, or other rigid containers.

Unlike a basic liquid filler, jam filling equipment usually requires positive product displacement. Gravity alone is rarely sufficient because thick jam does not flow consistently through narrow pipes and filling valves.

Depending on the product and production target, the filling system may use:

• Servo-driven piston dosing

• Low-shear rotary lobe pumps

• Heavy-duty pneumatic pistons

• Weighing-based filling

• Flow-meter filling for suitable smooth products

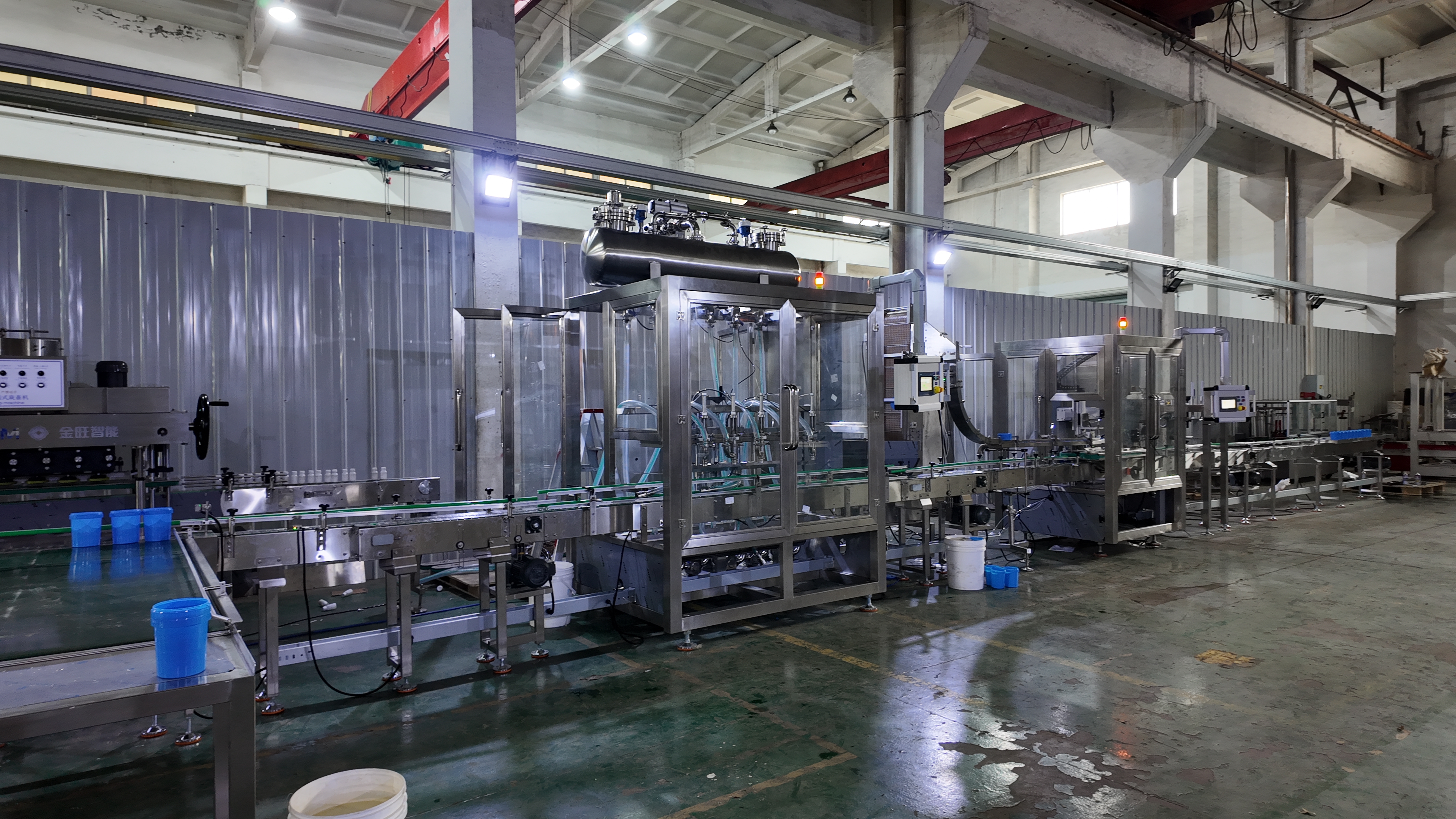

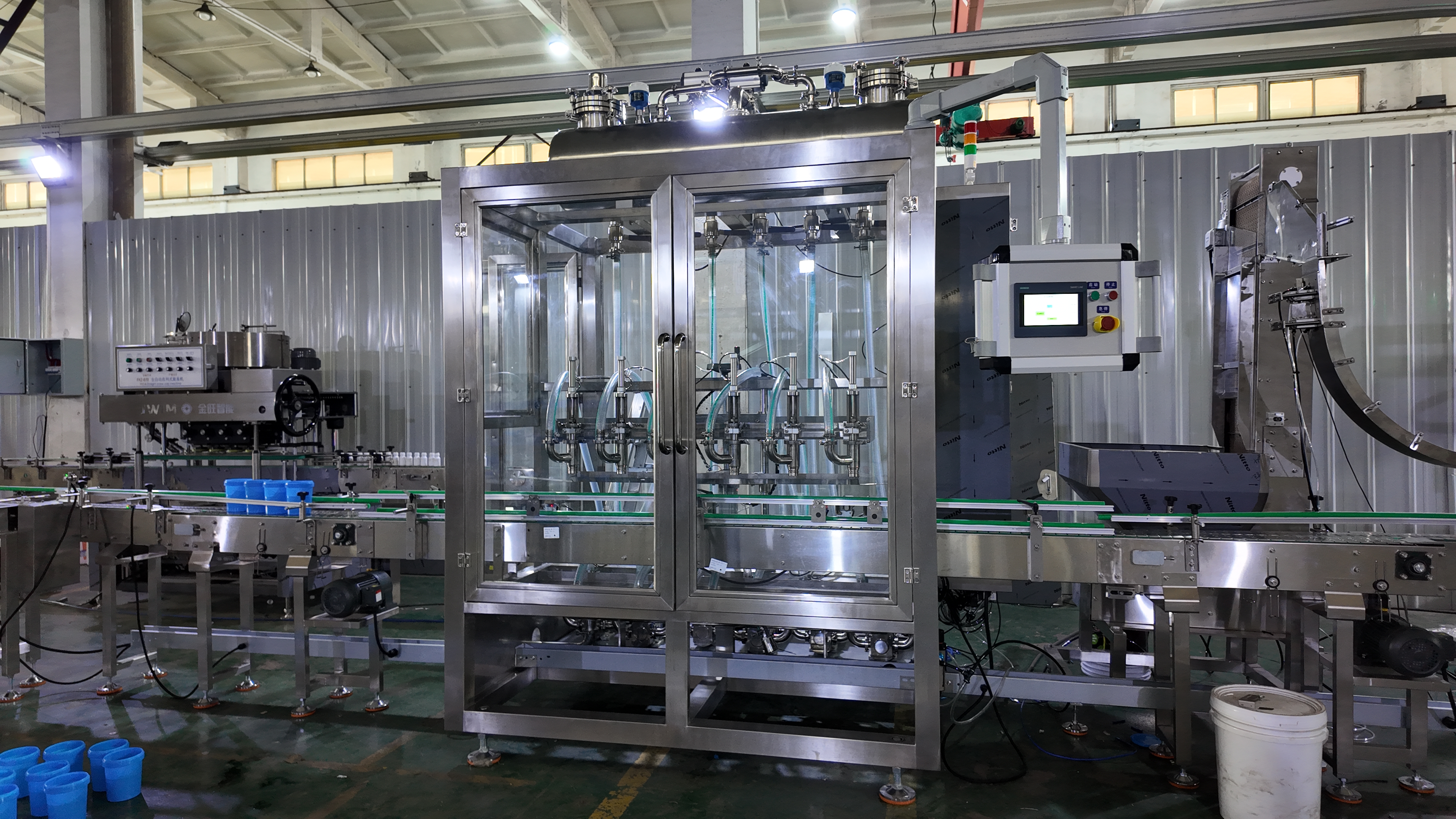

In a straight-line system, containers move along a conveyor and stop beneath several filling heads. The machine fills a group of containers at the same time before releasing them to the next station.

Linear jam fillers are especially suitable for small and medium-sized food factories because they offer flexible bottle changeover, accessible maintenance, and the ability to handle different product recipes.

Quick Answer: How Does a Jam Filling Machine Work?

Jam is transferred from a preparation or holding tank into the filling machine. Sensors detect the containers and confirm that they are correctly positioned.

The PLC then activates the piston or pump, sending a programmed dose through each filling nozzle. An anti-drip suck-back action cuts off the product cleanly. The filled containers are released and transported to the capping, labeling, inspection, and packing stations.

The complete cycle may take only a few seconds, but every stage must remain synchronized to maintain accuracy and production stability.

Why Jam Filling Is Technically Difficult

1. High Viscosity Creates Unstable Product Flow

Water and many beverages flow easily under gravity. Jam behaves differently.

Its resistance to flow depends on:

• Filling temperature

• Sugar concentration

• Fruit content

• Recipe formulation

• Particle size

• Product-pipe diameter

• Pump pressure

• Agitation conditions

Consider the difference between pouring warm honey and refrigerated honey. The product is technically the same, but the flow behavior is completely different.

Jam follows the same principle. A machine adjusted for product at 85°C may fill too slowly or inaccurately if the temperature falls significantly.

For this reason, a professional jam filling system may require:

• A jacketed holding tank

• Product agitation

• Insulated pipes

• Temperature sensors

• Heated filling manifolds

• Recipe-based filling-speed adjustment

The correct design must be based on viscosity at the actual filling temperature—not only on viscosity measured under laboratory conditions.

2. Traditional Pumps Can Damage Fruit Pieces

Fruit particles do not only create a risk of blockage. They can also be damaged during transfer and filling.

A conventional narrow-channel gear pump may crush soft strawberry pieces or peach cubes, turning visible fruit into pulp. This changes the texture, appearance, and consumer experience of the finished product.

For chunky jam, the objective is not simply to move the product. It is to preserve whole fruit integrity.

Nancheng can configure a jam filling system with:

• Low-shear rotary lobe pumps

• Large-port product valves

• Wide-diameter filling nozzles

• Reduced pipe bends

• Gentle product-transfer speeds

• Shorter product pathways

A low-shear rotary lobe pump uses synchronized lobes to move the product without the aggressive grinding action associated with some conventional pumping methods.

This makes it more suitable for products containing strawberries, blueberries, mango pieces, yellow peaches, aloe vera cubes, and other delicate ingredients.

However, the maximum acceptable particle size must be evaluated throughout the complete product path. A wide nozzle alone cannot prevent blockage if the upstream valve or pipe connection is too narrow.

3. Sticky Jam Causes Stringing and Dripping

One of the most visible problems in jam filling is product stringing.

After the filling cycle ends, a thin strand of jam may remain connected between the nozzle and the jar. When the conveyor moves, the strand can fall onto the bottle neck, cap-sealing surface, conveyor, or machine frame.

This can cause:

• Dirty containers

• Poor cap sealing

• Product waste

• Frequent machine cleaning

• Unsightly retail packaging

• Higher contamination risk

A simple shutoff valve may not be enough.

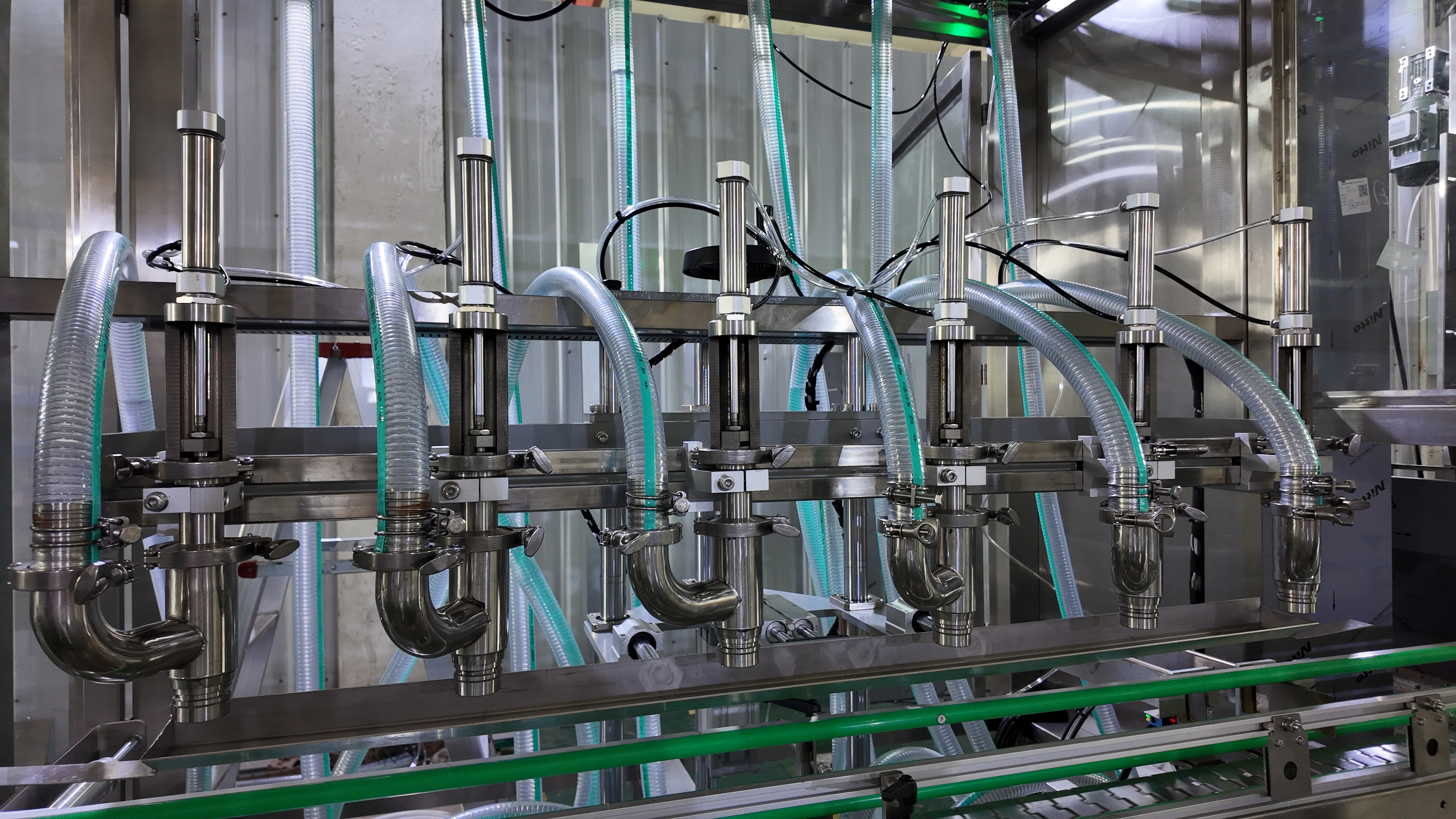

Nancheng’s filling systems can use a servo- or pneumatically controlled suck-back system. At the end of the filling cycle, the system creates a brief reverse movement that pulls the remaining product away from the nozzle tip.

This instantaneous reverse action helps cut high-viscosity product strings and reduces dripping.

For particularly sticky products, the machine may also use:

• Diving filling nozzles

• Programmable nozzle lifting

• Independent filling-speed stages

• Positive shutoff valves

• Enlarged nozzle outlets

• Adjustable suck-back volume

The correct settings should be established using the customer’s actual product.

4. Air Entrapment Can Reduce Accuracy

Jam may contain air introduced during cooking, mixing, or pumping.

Entrained air causes the apparent product volume to change. It can also produce foaming, uneven filling surfaces, and inconsistent net weight.

A vacuum cooking or deaeration process can reduce this problem before the jam reaches the filling machine.

During filling, bottom-up nozzles can enter the container and rise gradually as the product level increases. This reduces splashing and minimizes additional air incorporation.

5. Hot Filling Requires Coordinated Temperature Control

Many jam products are filled hot to support the validated preservation process.

If the product becomes too cool before filling, viscosity increases and production speed may fall. If it remains too hot for the selected container, the bottle or jar closure may deform or the seal may be affected.

A hot jam filling line therefore needs coordinated control of:

• Cooking temperature

• Holding temperature

• Transfer-pipe insulation

• Filling temperature

• Container heat resistance

• Time between filling and capping

• Cooling requirements

The equipment supplier should not determine the preservation temperature independently. Filling temperatures and holding times must come from the customer’s recipe validation, food-safety team, and process authority.

How an Automatic Jam Filling Machine Works

Step 1: Jam Preparation and Product Holding

Jam is normally prepared in a jacketed mixing or vacuum cooking tank.

The preparation system may include:

• Sugar dissolving

• Fruit mixing

• Heating

• Vacuum concentration

• Agitation

• Deaeration

• Temperature control

Once the product reaches the required formulation and temperature, it is transferred to an insulated holding tank or directly to the filling machine.

A controlled agitator may keep fruit pieces evenly distributed and reduce the risk of heavier particles settling at the bottom.

Step 2: Container Feeding and Positioning

Glass jars, PET bottles, or plastic containers enter from a loading table, bottle unscrambler, or rotary accumulation table.

Adjustable guide rails stabilize the containers while sensors monitor their position.

A bottle-separation mechanism creates the correct spacing beneath the filling heads. The “no bottle, no fill” function prevents product discharge when a container is missing.

Step 3: Product Dosing

The PLC activates the piston or rotary lobe pump after the containers are correctly positioned.

The touchscreen allows the operator to adjust:

• Filling volume

• Initial filling speed

• Main filling speed

• Final filling speed

• Nozzle lifting height

• Suck-back volume

• Pump rotation

• Piston stroke

Multiple filling stages are useful for reducing splashing and controlling product flow near the top of the container.

Step 4: Anti-Drip Cutoff

When the programmed dose is reached, the product valve closes.

The suck-back mechanism immediately reverses a small quantity of product, preventing long strings from forming at the nozzle tip.

The filling nozzles rise, and the containers are released to the next station.

Step 5: Capping and Vacuum Creation

For glass jars filled with hot jam, a vacuum capping machine is commonly used with metal twist-off caps.

Before or during capping, steam or another validated process may displace air in the jar headspace. As the product cools, a vacuum forms inside the sealed container.

Vacuum capping helps:

• Improve seal integrity

• Reduce oxygen inside the package

• Hold the lid securely

• Provide a visible closure indication

• Support the validated shelf-life process

Vacuum capping alone does not determine food safety or shelf life. The finished package must still be validated according to the recipe, thermal process, closure type, container design, and local regulations.

Step 6: Inspection, Labeling, and Packing

After capping, the containers may pass through:

• Vacuum inspection

• Cap-presence inspection

• Checkweighing

• Metal detection

• Labeling

• Inkjet or laser coding

• Shrink wrapping

• Carton packing

• Case sealing

• Palletizing

A rejected-container system can remove packages that fail the weight, cap, label, or vacuum inspection.

Piston Filling vs. Rotary Lobe Pump Filling

Servo Piston Filling

A servo piston filler uses a motor-controlled piston to draw product into a dosing cylinder and discharge it into the container.

Its advantages include:

• Strong displacement force

• Repeatable volumetric dosing

• Flexible recipe storage

• Good control of high-viscosity products

• Easy adjustment for different filling volumes

• Stable operation at moderate production speeds

Servo piston filling is commonly used for jam, honey, chili sauce, mayonnaise, tomato paste, peanut butter, and similar products.

For products containing fruit particles, the piston, valve, hose, and nozzle must all have sufficiently large passages.

Low-Shear Rotary Lobe Pump Filling

A rotary lobe pump transfers product through a chamber using two synchronized, non-contacting lobes.

Its benefits include:

• Gentle handling of soft particles

• Continuous and controllable product flow

• Reduced particle crushing

• Good compatibility with hot and viscous products

• Flexible electronic dosing

• Easier connection with centralized product-supply systems

Rotary lobe pump filling is often preferred when maintaining fruit texture is more important than achieving the lowest possible equipment cost.

Weighing Filling

A weighing filler measures the actual mass entering each container.

It is useful for:

• Large-volume containers

• High-value products

• Products with variable density

• Weight-controlled sales formats

• Bulk or food-service packaging

Weight filling may be slower than piston dosing, but it can provide strong control when the product is sold by net weight.

Flow-Meter Filling

Flow-meter filling can be suitable for homogeneous sauces and lower-viscosity fruit preparations.

However, very thick products, large fruit pieces, and entrained air may affect measurement stability or damage the meter.

Flow-meter technology should therefore be selected only after confirming the product’s viscosity, conductivity or flow behavior, particle content, and filling temperature.

Jam Filling Machine Selection Guide

These figures are preliminary selection references, not guaranteed machine limits.

Viscosity changes significantly with temperature and shear conditions. Particle handling also depends on softness, shape, concentration, and the smallest opening in the complete product circuit.

Before confirming the machine design, the supplier should evaluate:

• Actual product samples

• Product viscosity at filling temperature

• Maximum particle dimensions

• Particle concentration

• Container drawings or samples

• Required filling volume

• Target production speed

How Accurate Is a Jam Filling Machine?

Filling accuracy directly affects profitability.

Suppose a factory produces 12,000 jars per day and overfills each jar by only 3 grams. That equals 36 kilograms of product given away every day.

Over a full production year, the loss can become substantial.

Underfilling creates different risks:

• Regulatory non-compliance

• Retailer complaints

• Batch rejection

• Customer dissatisfaction

• Brand damage

Accuracy is influenced by more than the dosing device. It also depends on:

• Product temperature

• Air content

• Fruit distribution

• Tank level

• Filling speed

• Nozzle cutoff

• Pump pressure

• Equipment maintenance

A meaningful factory acceptance test should specify:

• Product name

• Container format

• Target volume or weight

• Permitted tolerance

• Test sample quantity

• Filling temperature

• Operating speed

• Measurement method

Avoid accepting vague statements such as “high accuracy” without defined test conditions.

Hot Filling and Vacuum Capping

For glass-jar jam applications, filling and capping should be treated as one integrated process.

A well-designed line may include:

1. Jacketed jam cooking or holding tank

2. Insulated product-transfer pipes

3. Temperature-controlled jam filler

4. Metal cap elevator and sorter

5. Steam injection or headspace treatment

6. Automatic vacuum capping machine

7. Vacuum or closure inspection

8. Container cooling system

The time between filling and capping should be minimized to maintain the required temperature and reduce uncontrolled air entry.

Capping torque and vacuum level should be monitored according to the selected jar and cap specifications.

The jar supplier, cap supplier, food technologist, and machine manufacturer should cooperate during testing. A technically correct filler cannot compensate for an incompatible cap, damaged jar finish, or unvalidated thermal process.

Cleaning and Hygienic Design

Food-grade stainless steel is important, but hygienic design involves much more than the material name.

The system should also consider:

• Internal surface finish

• Weld quality

• Dead spaces

• Product retention points

• Gasket compatibility

• Pipe drainage

• Ease of disassembly

• Access for inspection

Recommended Hygienic Features

A professional jam filling machine may include:

• Stainless-steel product-contact components

• 304 or 316L material according to the application

• Sanitary clamps and fittings

• Food-grade seals and hoses

• Drainable product-pipe routing

• Rounded product-contact surfaces

• Tool-free removal of selected parts

• Separated electrical and filling zones

• CIP-compatible components where applicable

Is Every Jam Filler Fully CIP-Capable?

No.

Some rotary lobe pump systems can be designed for highly automated Clean-in-Place circulation. Traditional piston fillers may require partial disassembly because product can remain around piston seals, cylinders, or valve chambers.

The supplier should clearly explain:

• Which parts are cleaned automatically

• Which parts require manual removal

• Which cleaning chemicals are acceptable

• How long cleaning takes

• How the equipment is inspected

• Whether allergen changeover is supported

Cleaning Time Affects Real Production Capacity

A machine may fill 3,000 bottles per hour but require several hours for disassembly and cleaning.

Therefore, food manufacturers should calculate usable daily output rather than brochure speed alone.

During factory testing, evaluate how quickly operators can:

1. Drain the remaining product

2. Rinse the product circuit

3. Open critical components

4. Inspect valves and gaskets

5. Complete cleaning

6. Reassemble the machine

7. Restart production

Container and Recipe Changeover

A flexible linear filler can handle multiple bottle sizes, but changeover is rarely limited to adjusting the guide rails.

Different containers may require changes to:

• Conveyor guides

• Bottle stoppers

• Filling-nozzle spacing

• Filling-nozzle height

• Container clamps

• Cap chutes

• Capping heads

• Sensors

• Labeling components

Different recipes may also require new settings for:

• Filling speed

• Product temperature

• Pump rotation

• Piston stroke

• Nozzle movement

• Suck-back volume

• Agitation speed

Ask the manufacturer for a written changeover procedure, change-parts list, estimated time, and required tools.

Complete Turnkey Jam Packaging Line

Nancheng Machinery does not only supply individual filling machines. It can configure a fully integrated turnkey jam packaging line based on the customer’s recipe, container, production capacity, factory layout, and automation target.

Upstream Processing Equipment

The preparation section can include:

• Jacketed mixing tanks

• Sugar dissolving tanks

• Vacuum cooking tanks

• Fruit blending systems

• Product holding tanks

• Agitators

• Deaeration systems

• Sanitary transfer pumps

• Heating and temperature-control units

Midstream Filling and Capping

The packaging core can include:

• Linear servo piston filler

• Low-shear rotary lobe pump filler

• Automatic bottle feeding

• Diving filling nozzles

• Suck-back anti-drip control

• Automatic cap sorting

• Glass-jar vacuum capping

• Plastic-bottle screw capping

• Vacuum and cap inspection

Downstream Inspection and Packaging

The final section can include:

• Online checkweigher

• Metal detector

• Labeling machine

• Date coding system

• Shrink sleeve labeler

• Carton erector

• Robotic or mechanical case packer

• Carton sealer

• Palletizing system

Why Choose One Turnkey Line Supplier?

Buying machines from several unrelated suppliers may appear cheaper initially, but integration problems can increase the real project cost.

Common issues include:

• Mismatched conveyor heights

• Inconsistent machine speeds

• Communication-signal failures

• Unclear responsibility for downtime

• Different spare-parts standards

• Repeated installation work

• Difficult after-sales coordination

A turnkey supplier coordinates the mechanical layout, control signals, production speed, utilities, installation, commissioning, training, and after-sales service as one project.

This gives the customer one clearly defined technical partner instead of several suppliers blaming one another when the line stops.

What Information Is Required for an Accurate Quotation?

A reliable jam filling machine price cannot be calculated from filling volume alone.

Provide the following information:

Product Details

• Product name and recipe

• Viscosity at filling temperature

• Filling temperature

• Maximum fruit-particle size

• Particle concentration

• Foaming tendency

• Required cleaning process

Container Details

• Container material

• Filling volume

• Bottle or jar dimensions

• Neck-finish drawing

• Cap sample

• Label type

• Container photographs or samples

Production Requirements

• Required bottles per hour

• Daily production target

• Number of products

• Number of container formats

• Factory space

• Electricity supply

• Compressed-air supply

• Steam and cooling-water availability

The more complete the project data, the more accurately the machine manufacturer can select pumps, valves, nozzles, motors, heating systems, and downstream equipment.

Jam Filling Machine FAQs

What Is the Best Filling Machine for Jam?

A servo piston filler is suitable for many smooth and highly viscous jams. A low-shear rotary lobe pump is often preferred for jam containing larger or delicate fruit pieces.

The final selection depends on viscosity, filling temperature, particle size, container volume, and required speed.

Can One Machine Fill Jam, Honey, and Sauce?

Yes, one machine can often handle several viscous products.

However, the pump, piston, valves, hoses, nozzles, heating system, and cleaning process must be compatible with every recipe.

Product testing is recommended before the final machine configuration is approved.

Can the Machine Preserve Whole Fruit Pieces?

Yes, when the product circuit is designed correctly.

Low-shear lobe pumps, large-port valves, wide nozzles, reduced transfer speed, and fewer narrow pipe bends help preserve strawberries, peach cubes, and other fruit pieces.

The actual result must be confirmed using the customer’s product.

How Does the Machine Prevent Jam From Dripping?

The filling system can use positive shutoff nozzles and a programmable suck-back action.

At the end of filling, a brief reverse movement pulls product away from the nozzle tip, reducing stringing and contamination around the jar neck.

Does Hot-Filled Jam Require Vacuum Capping?

Glass jars with metal twist-off caps commonly use vacuum capping.

Vacuum capping improves closure integrity and helps create a controlled internal vacuum after cooling. The complete packaging and thermal process must still be validated for the specific product.

Can the Jam Filling Machine Be Cleaned Automatically?

Some systems can support CIP cleaning, especially pump-based lines with sanitary piping.

Piston systems may require partial manual disassembly. The exact cleaning method should be confirmed before ordering.

How Much Does an Automatic Jam Filling Machine Cost?

The price depends on:

• Filling method

• Number of filling heads

• Filling range

• Product viscosity

• Fruit-particle size

• Heating requirements

• Cleaning design

• Container type

• Capping system

• Inspection equipment

• Downstream packaging scope

A complete turnkey jam line costs more than an individual filler but provides integrated production, installation, and technical responsibility.

Can Nancheng Jam Filling Machines Meet CE and FDA-Related Requirements?

Machines can be configured with CE-oriented electrical and mechanical safety protection and supplied with the documentation defined in the sales contract.

Product-contact parts may use certified food-grade 304 or 316L stainless steel, depending on the product, cleaning chemicals, and project requirements.

It is important to understand that the FDA does not normally “certify” an industrial filling machine as a complete unit. FDA-related compliance generally concerns food-contact materials, sanitary design, processing conditions, and the food manufacturer’s validated production system.

Buyers should specify required material certificates, component brands, electrical standards, documentation, and inspection requirements before the order is confirmed.

What Should Be Tested Before Shipment?

The factory acceptance test should include:

• Filling accuracy

• Production speed

• Fruit-particle integrity

• Nozzle dripping

• Bottle positioning

• Capping torque

• Vacuum performance

• Alarm functions

• Safety protection

• Cleaning access

• Changeover procedures

Testing with the buyer’s actual jam, jars, and caps provides the most meaningful results.

Final Thoughts: Do Not Buy a Jam Filler Based Only on Speed

The fastest machine is not always the most profitable machine.

A successful jam filling project must balance:

• Product integrity

• Filling accuracy

• Clean nozzle cutoff

• Hygienic design

• Reliable vacuum capping

• Fast cleaning

• Flexible changeover

• Stable line integration

Before comparing quotations, ask each supplier how the proposed system will handle your actual viscosity, fruit-particle size, filling temperature, container, closure, and cleaning process.

Nancheng Machinery combines high-precision dosing, low-shear product handling, vacuum capping, inspection, labeling, and automated packing into one integrated solution.

Whether you need a standalone automatic jam filling machine or a complete turnkey jam production and packaging line, the project should begin with four items:

Your product sample, container drawing, required output, and production process.

Share these details with Nancheng Machinery to receive a customized filling-line configuration, factory-layout proposal, and technical quotation for your jam, fruit sauce, honey, or viscous food project.
