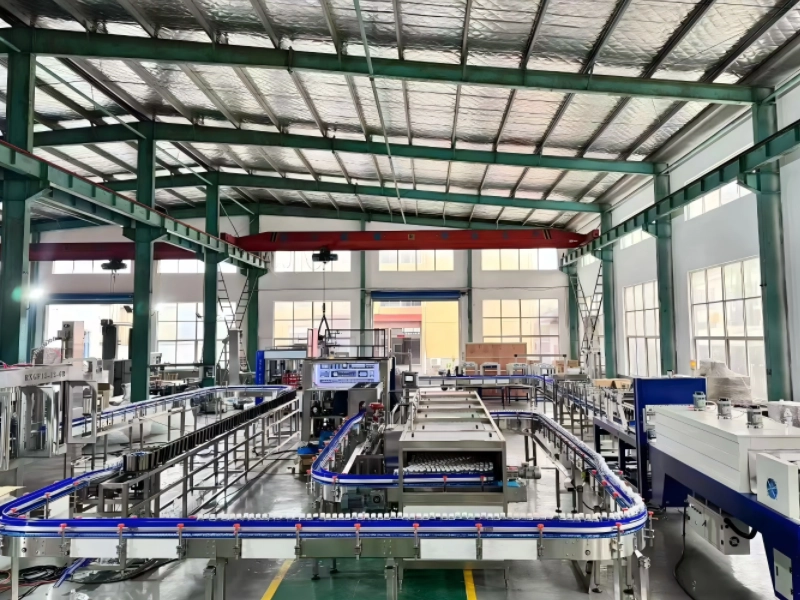

Juice Filling Machine Buying Guide for Production Lines

Choosing a juice filling machine may seem straightforward at first. You compare production speed, ask for several quotations, check the machine appearance, and select the supplier offering the best price.

But is that really enough?

In practice, the filling machine is one of the most important parts of a juice production line. A poor equipment match can cause unstable filling levels, excessive foam, pulp blockage, cap leakage, difficult cleaning, product waste, and frequent production stops.

The fastest machine is not always the best machine. The cheapest quotation may not deliver the lowest operating cost. Even a well-built filler can perform poorly if it is not designed for your beverage formula, filling temperature, bottle type, or production process.

The correct question is therefore not:

“Which juice filling machine is the best?”

A better question is:

“Which filling solution is best for my beverage, packaging format, target capacity, shelf-life requirement, and future business plan?”

This guide explains how to choose the right juice bottling machine, compare filling technologies, avoid common purchasing mistakes, and evaluate the complete production line rather than only one piece of equipment.

What Is a Juice Filling Machine?

A juice filling machine is automated equipment used to fill fruit juice, juice drinks, tea beverages, functional drinks, and other non-carbonated beverages into bottles or containers under controlled conditions.

A typical automatic machine may combine three main operations:

• Bottle rinsing

• Product filling

• Bottle capping

These functions are often integrated into a 3-in-1 rinsing, filling, and capping monoblock. Combining them reduces bottle transfers, saves factory space, improves synchronization, and lowers the risk of contamination between production stages.

However, the filler is only one part of a complete juice production line.

Depending on the beverage and packaging process, the complete line may also include:

• Water treatment

• Sugar dissolving

• Ingredient mixing

• Filtration

• Homogenization

• Vacuum deaeration

• Pasteurization or UHT treatment

• Product storage tanks

• Bottle blowing

• Bottle conveying

• Filling and capping

• Cooling or sterilization

• Labeling

• Date coding

• Secondary packaging

• Palletizing

• CIP cleaning

This is why buyers should not evaluate a juice filling machine as an independent unit. Its final performance depends on how effectively it connects with the beverage-processing system, bottle supply, capper, labeling machine, packing equipment, and factory utilities.

Why Is Juice Filling More Complicated Than Water Filling?

Water is generally easy to fill. It has low viscosity, contains no pulp, creates limited foam, and flows consistently through standard gravity filling valves.

Juice is different.

Depending on the formula, a juice beverage may contain:

• Fruit pulp

• Fibers

• Sugar

• Concentrate

• Stabilizers

• Vitamins

• Plant extracts

• Milk ingredients

• Suspended particles

• Fruit pieces

These ingredients can change the way the product flows, foams, settles, heats, cools, and responds to cleaning.

A filler designed for bottled water may work well with clear apple juice, but it may not be suitable for thick mango juice containing pulp. Likewise, a standard hot filling machine may not meet the hygienic requirements of a preservative-free beverage requiring aseptic processing.

The Four Product Factors That Matter Most

Before discussing machine models or production speeds, define the following four factors.

• Viscosity: Is the beverage water-like, moderately thick, or highly viscous? Higher viscosity may require larger pipelines, special pumps, longer filling times, or different valve designs.

• Particle Content: Is the beverage clear, cloudy, pulpy, or filled with fruit pieces? Particle size and concentration influence valve passage, tank agitation, product circulation, and CIP cleaning.

• Filling Temperature: Will the product be filled hot, at room temperature, under refrigeration, or in an aseptic environment? Temperature affects the filler, bottle material, capping system, conveyor design, and downstream treatment.

• Foaming Tendency: Does the beverage generate foam when pumped or when it enters the bottle? Excessive foam can reduce filling accuracy, contaminate the bottle neck, and limit production speed.

A Simple Engineering Rule

Engineering Rule: The more complex the beverage, the less useful a standard “one-machine-fits-all” quotation becomes. Different formulas may require customized valves, tank agitation, pumps, pipelines, filling programs, and cleaning procedures.

What This Means for Buyers

Before requesting a final quotation, provide the supplier with accurate product information. A professional manufacturer should understand the beverage before recommending the machine.

Main Types of Juice Filling Machines

There is no single filling technology suitable for every juice product. The correct choice depends on the formula, microbial control strategy, bottle type, target shelf life, and distribution method.

Hot Fill Juice Filling Machine

Hot filling is widely used for acidic juice drinks, fruit beverages, tea drinks, flavored water, and certain functional beverages.

In a typical hot filling process, the prepared beverage is pasteurized and transferred to the filling machine while still hot. After filling, the bottle is capped immediately. The package may then pass through a bottle-inverting section, cooling tunnel, drying unit, labeling machine, and packing system.

Hot filling is popular because it offers:

• A mature and widely understood production process

• Stable commercial production

• Good compatibility with many acidic beverages

• Lower technical complexity than full aseptic filling

• Long ambient shelf life when the process is properly designed

However, hot filling also has limitations.

High temperatures may affect:

• Fresh fruit flavor

• Natural aroma

• Product color

• Heat-sensitive vitamins

• Nutritional positioning

Hot-fill PET bottles must also be specifically designed to resist heat and vacuum deformation. Standard lightweight water bottles are usually unsuitable.

Hot filling is therefore a practical choice for many commercial juice products, but the product formulation and bottle design must be evaluated together.

Conventional Cold Filling

Conventional cold filling is used when a beverage enters the bottle at a relatively low temperature. It may be suitable for refrigerated products, short-shelf-life beverages, drinks containing approved preservatives, or products receiving additional treatment after filling.

Cold filling can help preserve:

• Fresh flavor

• Natural aroma

• Sensitive ingredients

• Premium product positioning

However, “cold filling” does not automatically mean “aseptic filling.”

A conventional cold filling line still needs a clearly defined preservation strategy. Depending on the product, this may include refrigeration, chemical preservatives, bottle disinfection, tunnel pasteurization, clean-room control, or short distribution periods.

When evaluating a cold filling proposal, ask the supplier:

What process prevents microbial growth and keeps the beverage commercially stable?

If that question cannot be answered clearly, the production concept is incomplete.

Aseptic Juice Filling Machine

Aseptic filling is an advanced solution for beverages requiring long ambient shelf life with limited thermal impact during the filling stage.

In an aseptic system:

1. The beverage is sterilized.

2. Product tanks and pipelines are sterilized.

3. Bottles or preforms are sterilized.

4. Caps are sterilized.

5. Filling takes place inside a controlled hygienic environment.

6. Sterile conditions are maintained throughout production.

Aseptic filling may be suitable for:

• Premium juice

• Sensitive functional beverages

• Preservative-free products

• Dairy-based fruit drinks

• Plant-based beverages

• Products requiring long shelf life

Its main advantages include better protection of flavor, color, and heat-sensitive components compared with conventional hot filling.

The trade-off is higher investment and more demanding operation. Aseptic filling requires strict process validation, environmental control, reliable sterilization, trained operators, automated cleaning, and detailed production records.

Do not select aseptic technology simply because it sounds more advanced. It should be chosen when the product value, shelf-life objective, sales volume, and distribution model justify the additional cost.

Pulp and Two-Stage Juice Filling

Juice containing pulp or fruit pieces requires special engineering consideration.

Small suspended pulp may pass through a properly selected filling valve. Larger particles or fruit pieces may require a two-stage filling system.

In a typical two-stage process:

• One filling section doses pulp or fruit pieces.

• A second filling section adds the liquid juice.

The system must control both the solid and liquid phases consistently. Otherwise, some bottles may receive too much pulp while others receive too little.

Important design factors include:

• Maximum particle size

• Pulp concentration

• Product viscosity

• Tank agitation

• Pump type

• Valve passage diameter

• Filling accuracy

• Product recirculation

• CIP accessibility

For pulp-containing products, the machinery manufacturer should evaluate samples, photographs, or complete formulation data before confirming the equipment configuration.

How Does an Automatic Juice Filling Machine Work?

Although different juice lines use different processing technologies, most automatic filling systems follow a similar sequence.

Step 1: Bottle Supply

Empty bottles enter the production line through a conveyor or air conveyor.

PET bottles may come directly from an automatic blow molding machine. Purchased bottles may enter through a bottle unscrambler. Glass bottles normally require ground conveyors and more stable bottle-handling systems.

Step 2: Bottle Rinsing or Preparation

Before filling, bottles are rinsed, cleaned, or disinfected according to the production process.

The exact treatment depends on whether the bottles are:

• Newly blown PET bottles

• Purchased empty bottles

• Reusable glass bottles

• Hot-fill containers

• Aseptic packages

Bottle preparation must be matched to the hygiene level of the product.

Step 3: Juice Filling

The filling valve opens and transfers the product into the bottle.

Depending on the beverage, the machine may use:

• Gravity filling

• Volumetric filling

• Flow-meter filling

• Piston filling

• Pressure-assisted filling

• Two-stage filling

Stable filling depends not only on the valve. It also depends on product temperature, tank level, supply pressure, foam control, bottle positioning, pump performance, and pipeline design.

Step 4: Bottle Capping

After filling, bottles are transferred immediately to the capping section.

A stable capper must control:

• Cap feeding

• Cap orientation

• Capping torque

• Bottle support

• Closure hygiene

• Missing-cap detection

Even when the filling level is accurate, poor capping can cause leakage, contamination, reduced shelf life, or damaged packaging.

Step 5: Cooling, Labeling, and Packaging

After capping, bottles may pass through:

• Bottle inversion

• Cap sterilization

• Cooling tunnel

• Bottle dryer

• Fill-level inspection

• Labeling machine

• Coding system

• Film wrapping or case packing

• Palletizing

The downstream equipment should be balanced with the filler so that bottles do not accumulate, fall, deform, or create unnecessary production stops.

How to Choose the Right Juice Filling Machine

A reliable selection process should begin with the beverage itself and then move outward to the process, bottle, capacity, automation, and complete line.

Step 1: Define Your Beverage Profile First

Prepare a technical product sheet for every beverage you plan to produce.

It should include:

• Beverage category

• pH

• Brix value

• Viscosity

• Pulp concentration

• Maximum particle size

• Filling temperature

• Foaming tendency

• Target shelf life

• Preservative use

• Storage conditions

• Cleaning requirements

Do not describe the product only as “fruit juice.”

Clear apple juice, orange juice with pulp, mango nectar, coconut drink, fruit-flavored tea, and dairy-based juice may require completely different production processes.

If several products will run on the same line, identify the most difficult formula. The equipment should be designed around the product with the highest viscosity, largest particles, strongest foaming tendency, or strictest hygiene requirement.

Step 2: Confirm the Preservation Method

The filling machine should be selected after the preservation process has been defined.

Possible preservation methods include:

• Hot filling

• Refrigerated distribution

• Preservatives

• Tunnel pasteurization

• UHT treatment

• Aseptic filling

• Short shelf-life production

The filler, bottle, cap, processing system, and downstream equipment must all support the same preservation strategy.

For example, selecting a standard cold filler and later deciding that the beverage needs a long ambient shelf life may require major modifications or complete equipment replacement.

Step 3: Match the Filler to Your Bottle and Cap

Common juice packaging formats include PET bottles, glass bottles, and HDPE containers.

PET bottles are lightweight, economical, and flexible in shape. However, hot-fill PET bottles require suitable heat resistance and structural design.

Glass bottles offer premium appearance and strong barrier performance, but they are heavier, more fragile, and more demanding on conveyors and handling equipment.

HDPE bottles may be selected for certain juice, dairy, or functional beverage applications. Their shape and neck design must match the bottle-handling system.

Provide the supplier with bottle and cap drawings showing:

• Bottle height

• Bottle diameter

• Neck finish

• Bottle weight

• Base design

• Label area

• Cap type

• Filled weight

Using the same neck finish does not mean every bottle can run without change parts. Different bottle diameters and heights may require adjustments or replacement components for star wheels, guides, neck supports, sensors, conveyors, and capping positions.

Step 4: Calculate a Realistic Production Capacity

Common juice filling line capacities may include:

• 3,000 bottles per hour

• 6,000 bottles per hour

• 12,000 bottles per hour

• 18,000 bottles per hour

• 20,000 bottles per hour or more

The correct capacity should be calculated from actual market demand rather than ambition alone.

Consider:

• Required bottles per day

• Number of working shifts

• Working days per year

• Bottle volume

• Product variety

• Cleaning time

• Changeover time

• Maintenance time

• Packaging efficiency

• Seasonal demand

• Future expansion

A machine rated at 12,000 BPH will not produce 12,000 bottles every hour of every working day. Cleaning, cap replacement, label changes, bottle changeovers, maintenance, and minor production stops reduce actual output.

Base your investment on realistic line efficiency, not only theoretical machine speed.

Step 5: Select the Right Automation Level

A semi-automatic juice filling machine may suit:

• Pilot production

• Small factories

• Local beverage brands

• Low-volume production

• Frequent manual operation

A fully automatic juice filling line is more suitable for:

• Commercial beverage factories

• Export-oriented production

• High daily output

• Reduced labor dependence

• Stable quality control

• Complete packaging integration

Useful automatic functions may include:

• PLC recipe management

• Automatic tank-level control

• No-bottle-no-fill protection

• Missing-cap alarms

• Filling-temperature monitoring

• Production counting

• Fault diagnosis

• CIP recipe control

• Remote technical support

Automation should match the factory’s workforce, maintenance capability, budget, and production targets. More automation is not always better if operators cannot maintain it properly.

Step 6: Inspect Hygienic Design and CIP Capability

Hygienic design directly affects product safety, cleaning time, production efficiency, and shelf-life stability.

A professional juice filling machine should use suitable food-grade materials in all product-contact areas. Pipelines should be drainable, seals should match the beverage and cleaning chemicals, and unnecessary dead zones should be minimized.

Ask the supplier to explain:

• Which parts are cleaned automatically

• How filling valves are cleaned

• Whether the filling tank has spray devices

• How return pipelines are covered

• How pulp accumulation is removed

• Which areas require manual cleaning

• How cleaning temperature and time are controlled

The phrase “CIP compatible” is not enough. The supplier should be able to describe the complete cleaning route.

Step 7: Evaluate the Complete Juice Production Line

A good filler cannot compensate for an unstable processing system or poorly matched packaging equipment.

The complete line should be evaluated as one integrated system, including:

• Water treatment capacity

• Ingredient preparation

• Product treatment

• Buffer tanks

• Filling speed

• Capping performance

• Conveyor control

• Labeling speed

• Packing speed

• Utility consumption

• Cleaning schedule

• Operator access

• Maintenance space

Request a complete factory layout and line-balance plan before production begins.

This is especially important when machines come from multiple suppliers. Without clear integration responsibility, one supplier may blame another when production problems occur.

Step 8: Compare Total Ownership Cost

The machine price is only part of the investment.

Compare the total cost of ownership, including:

• Purchase price

• Freight

• Installation

• Commissioning

• Factory utilities

• Labor requirements

• Product loss

• Bottle and cap waste

• Cleaning time

• Spare parts

• Maintenance

• Changeover time

• Downtime risk

• Future upgrades

A slightly higher initial investment may offer better long-term value if the line runs more efficiently, wastes less product, changes formats faster, and receives reliable technical support.

Quick Comparison of Juice Filling Options

Common Mistakes When Buying Juice Filling Equipment

Choosing Equipment Based Only on Price

The cheapest machine is not always the most economical.

A low-price machine may result in:

• Higher product loss

• Frequent downtime

• Poor filling accuracy

• Unstable capping

• Difficult cleaning

• Limited spare-parts support

Compare reliability and long-term operating cost, not only the purchase price.

Ignoring the Beverage Formula

A machine designed for clear liquid may not handle pulp, high viscosity, foam, or sensitive ingredients.

Finalize the product range before confirming the equipment design.

Buying Excessive Capacity

An oversized line increases equipment cost, energy use, floor-space requirements, and changeover losses.

Select a capacity that matches realistic demand while leaving reasonable room for growth.

Underestimating Product and Bottle Changeovers

Factories producing several flavors and bottle sizes must consider:

• CIP cleaning

• Recipe changes

• Bottle change parts

• Cap replacement

• Label replacement

• Conveyor adjustment

• Production restart time

Flexible production requires both software settings and mechanical planning.

Choosing an Inexperienced Supplier

A juice filling machine supplier should understand beverage processing, filling, capping, hygienic design, line balancing, utilities, layout, and after-sales service.

Manufacturing stainless-steel machinery is not the same as delivering a reliable beverage factory.

What Should You Ask a Juice Filling Machine Manufacturer?

Before ordering, ask the following questions:

1. Which filling technology do you recommend, and why?

2. How will the machine handle viscosity, foam, pulp, or fruit pieces?

3. What product data and bottle drawings do you require?

4. What production speed is realistic for each bottle format?

5. What line efficiency can be expected?

6. How does the CIP system clean the valves and pipelines?

7. Which spare parts are included?

8. How will installation and commissioning be supported?

9. What operator training is provided?

10. How is after-sales technical support delivered?

A reliable supplier should explain the engineering logic behind the proposal. If every beverage receives the same equipment recommendation, the solution may be driven by sales convenience rather than real production requirements.

Why Work With Nancheng Machinery?

Navigating all these variables requires an experienced engineering partner rather than only an equipment vendor.

Zhangjiagang Nancheng Machinery Co., Ltd. provides customized beverage processing and packaging solutions for juice, bottled water, tea drinks, carbonated beverages, and other liquid products.

The company can provide a turnkey juice production solution from water treatment to final packaging, including:

• Water treatment systems

• Sugar dissolving and blending systems

• Homogenization and deaeration

• Pasteurization equipment

• Bottle blowing machines

• Juice filling machines

• Capping systems

• Bottle conveyors

• Labeling machines

• Coding equipment

• Film wrapping and case packing

• Factory layout planning

• Installation and commissioning support

Instead of recommending the same machine to every customer, Nancheng Machinery evaluates the product formula, bottle design, target speed, factory layout, utility conditions, automation requirements, and future expansion plan.

The objective is not simply to deliver machinery. It is to build a practical, integrated production line that can operate efficiently after installation.

Frequently Asked Questions About Juice Filling Machines

What Machine Is Used for Juice Production?

A complete juice production line normally includes water treatment, ingredient preparation, mixing, filtration, product treatment, filling, capping, labeling, coding, and packaging. The exact configuration depends on the beverage formula and preservation method.

Can One Juice Filling Machine Produce Different Beverages?

Yes, within reasonable limits. Similar beverages may run on one line after recipe changes and CIP cleaning. Products with major differences in viscosity, pulp, filling temperature, or hygiene requirements may need different valves, pumps, tanks, or filling sections.

Can a Juice Filling Machine Handle Pulp?

Yes. The machine must be designed according to the maximum particle size, pulp concentration, viscosity, and required accuracy. Products containing large fruit pieces may require a two-stage filling system.

How Much Does a Juice Filling Machine Cost?

The price varies significantly according to capacity and technology. A 3,000 BPH conventional line has a very different investment level from a 20,000 BPH hot filling or aseptic line.

Bottle type, automation, product processing, labeling, packaging, and installation services also affect the total cost. For an accurate configuration and investment budget, provide your product details, bottle size, and target capacity to Nancheng Machinery’s engineering team.

Which Is Better: Hot Filling or Aseptic Filling?

Neither is universally better. Hot filling is mature, practical, and widely used for acidic beverages. Aseptic filling can better protect sensitive product characteristics but requires higher investment and stricter process control.

The right choice depends on the beverage, shelf life, market positioning, distribution conditions, production volume, and budget.

How Do I Choose a Reliable Juice Filling Machine Manufacturer?

Evaluate the supplier’s manufacturing experience, engineering capability, similar projects, factory quality control, technical documentation, installation service, spare-parts support, and response speed.

Choose a manufacturer that can explain the entire production process, not only the filling machine.

Final Thoughts

The right juice filling machine is not necessarily the fastest, cheapest, or most automated option.

It is the machine that matches:

• Your beverage formula

• Your preservation process

• Your packaging format

• Your target capacity

• Your hygiene requirements

• Your factory conditions

• Your future expansion plan

Start with the product. Confirm the process. Define the bottle. Calculate realistic capacity. Then evaluate the complete production line and its total operating cost.

When these decisions are made in the correct order, a juice filling line becomes more than a group of machines. It becomes a stable production system that protects beverage quality, reduces waste, improves efficiency, and supports long-term business growth.

For a customized juice production line proposal, provide Nancheng Machinery with your beverage type, bottle size, target output, filling temperature, pulp information, and available factory layout.
