Semi-Electronic vs. Mechanical Filling Valves: Which Is Better?

Choosing the right filling valve is one of the most important decisions when purchasing or upgrading a beverage production line.

Whether you produce bottled water, carbonated soft drinks, juice, tea, energy drinks, or beer, the filling valve directly affects:

• Filling stability

• Product loss and dripping

• Foam formation

• CO₂ retention

• Oxygen pickup

• Changeover time

• Cleaning efficiency

• Maintenance costs

Many buyers focus mainly on the rated speed of a filling machine. However, experienced engineers also evaluate the valve structure, filling principle, control method, hygienic design, product-contact materials, and maintenance accessibility.

The filling valve is often called the “heart of the filling machine” because it controls how the beverage enters the container and how the filling process stops.

Traditional mechanical filling valves remain reliable and economical for standard applications. Semi-electronic filling valves—more accurately described in many cases as PLC-controlled electro-pneumatic filling valves—offer greater control over filling sequences and operating parameters.

However, a semi-electronic valve is not automatically better. The correct choice depends on your beverage, container, production speed, number of SKUs, changeover frequency, maintenance capability, and investment budget.

What Is a Beverage Filling Valve?

A beverage filling valve is the main product-contact component that transfers liquid from a filling tank or product manifold into a bottle, jar, or other container.

Depending on the application, the valve may control or participate in:

• Liquid flow

• Bottle sealing

• Bottle evacuation or gas purging

• Pressurization

• Pressure equalization

• Air or gas return

• Fast and slow filling stages

• Final filling-level control

• Valve closing

• Controlled pressure release

• CIP circulation

Not every valve performs all these functions. The required filling sequence depends on the beverage and filling technology.

Bottled Water

Still water commonly uses gravity, atmospheric, or flow-meter filling.

The valve should provide high-speed operation, consistent filling levels, minimal dripping, hygienic product handling, and efficient cleaning.

Carbonated Soft Drinks

Carbonated beverages normally require counter-pressure or isobaric filling.

Before filling begins, the pressure inside the bottle is raised to approximately match the pressure in the product tank. This reduces the sudden pressure drop that can cause dissolved CO₂ to escape.

Correct pressure management helps reduce:

• Excessive foaming

• CO₂ loss

• Product overflow

• Unstable filling levels

• Beverage waste

Controlled pressure release after filling is also essential.

Juice and Tea

Juice and tea may use ambient filling, hygienic cold filling, hot filling, or aseptic filling.

Many hot-fill beverages are filled between approximately 82°C and 95°C, although the actual temperature must be determined according to the product formula, microbiological requirements, holding time, and packaging material.

Juices containing pulp or fibers require valves with sufficiently large passages, smooth flow paths, and suitable sealing structures.

Beer

Beer filling requires stable counter-pressure control and careful oxygen management.

The sequence may include bottle evacuation, CO₂ purging, pressurization, filling, settling, controlled depressurization, and immediate transfer to the capper or crowner.

Why Filling Valve Selection Matters

The valve affects product quality, operating costs, and Overall Equipment Effectiveness.

An unsuitable valve or incorrect filling configuration can lead to:

• Underfilled or overfilled bottles

• Product dripping

• Excessive foam

• CO₂ loss

• High oxygen pickup

• Frequent cleaning

• Seal damage

• Increased downtime

• Longer product changeovers

On a high-speed production line, even a small amount of product loss per bottle can become financially significant over a full year.

However, the valve should not be evaluated in isolation. Final performance also depends on:

• Product temperature

• Carbonation level

• Tank pressure

• Product-supply stability

• Beverage viscosity

• Bottle dimensions

• Machine speed

• Capping synchronization

• Valve calibration

• Maintenance condition

A high-quality valve cannot fully compensate for unstable upstream processing or incorrect operating parameters.

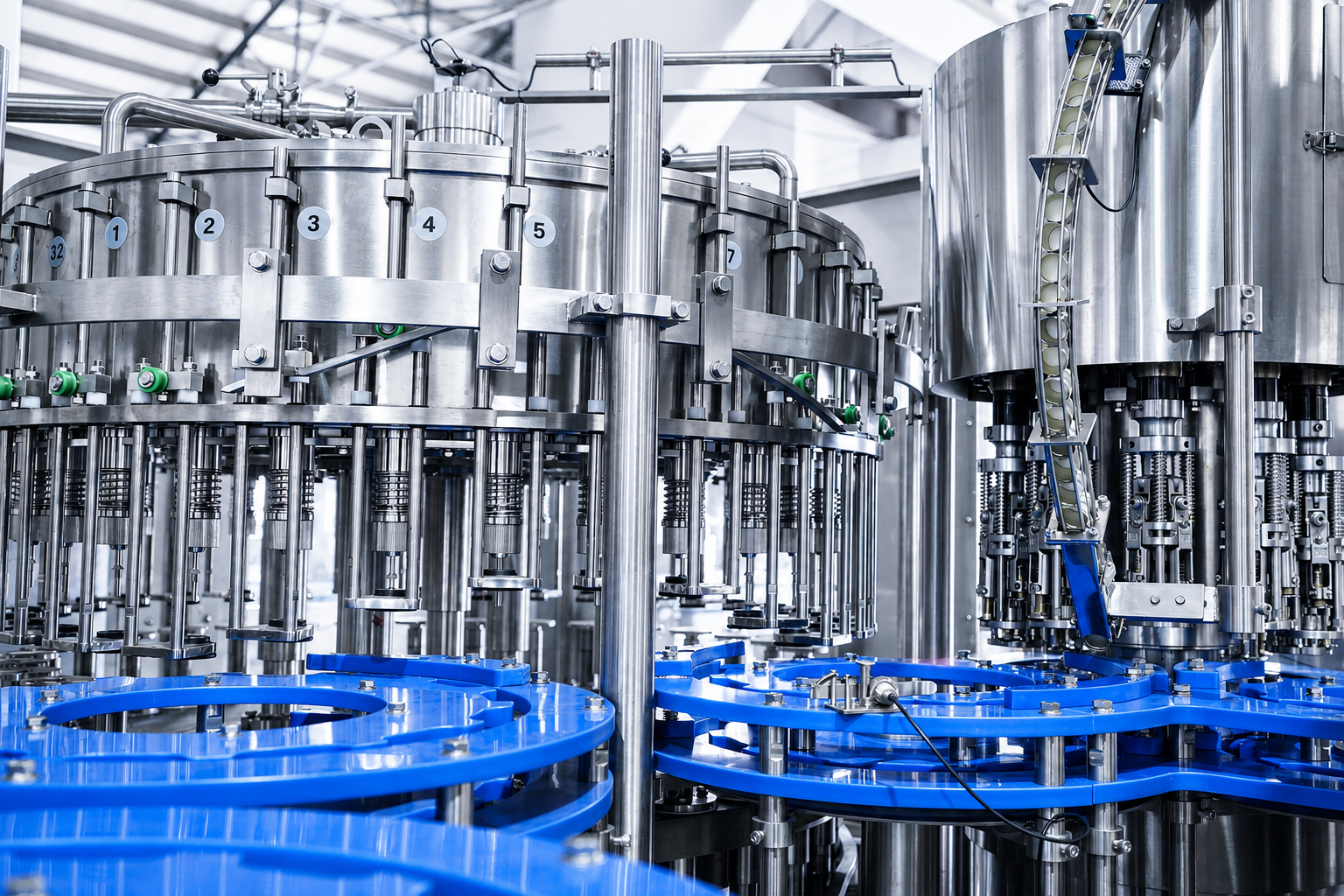

What Is a Mechanical Filling Valve?

A traditional mechanical filling valve relies mainly on physical mechanisms to activate and complete the filling cycle.

Depending on the design, it may use:

• Cams

• Springs

• Bottle lifters

• Mechanical actuators

• Vent tubes

• Sealing gaskets

• Pressure-balancing passages

A simplified sequence is:

Bottle positioning → Bottle sealing → Valve activation → Product filling → Level control → Valve closing → Bottle discharge

How Does It Work?

First, the bottle enters the filling carousel and is positioned beneath the valve.

A lifting mechanism or neck-handling system holds the bottle in the correct position. For counter-pressure filling, the bottle must seal tightly against the valve gasket.

A cam, lifter, or mechanical actuator then starts the filling sequence. In a carbonated beverage system, the bottle is normally pressurized before the product valve opens.

The beverage flows into the bottle. Filling speed depends on the valve passage, tank pressure, product temperature, viscosity, air-return efficiency, and bottle geometry.

In a traditional level-filling system, the liquid eventually reaches the vent tube or air-return opening. Air or gas can no longer escape, so the filling process stops at a defined level.

Advantages

• Proven and mature technology

• Relatively simple construction

• Lower initial investment

• Straightforward mechanical maintenance

• Reliable during long production runs

• Suitable for dedicated products and bottle formats

Limitations

• More mechanical adjustment during changeovers

• Limited recipe-based process control

• Mechanical components wear over time

• Troubleshooting depends on technician experience

• Less flexible for changing process conditions

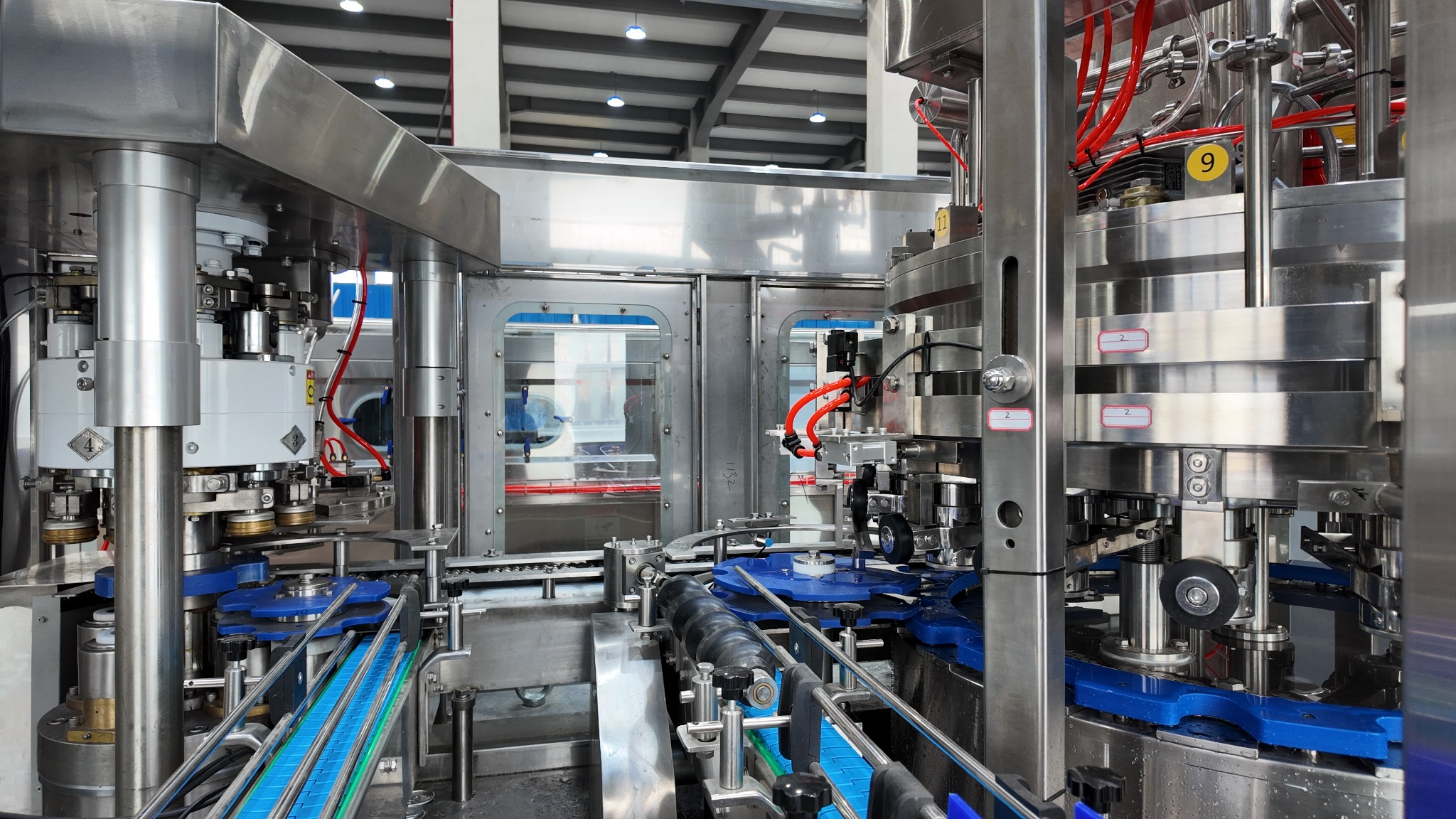

What Is a Semi-Electronic Filling Valve?

The term semi-electronic filling valve is not fully standardized.

In most beverage filling machines, it refers to a mechanical valve body whose operating sequence is controlled partly or primarily by:

• A PLC

• Solenoid valves

• Pneumatic actuators

• Bottle-detection sensors

• Position sensors

• Electronic timing signals

A more precise description is often PLC-controlled electro-pneumatic filling valve.

A semi-electronic design does not necessarily eliminate all cams, springs, or mechanical parts. The exact configuration varies by manufacturer.

The control system may manage:

• Bottle detection

• Valve opening

• Pressurization time

• Filling duration

• Fast and slow filling stages

• Settling time

• Pressure-release time

• Recipe selection

• No-bottle-no-fill control

An Important Clarification

“Semi-electronic” describes how the valve is controlled. It does not automatically describe how the filling quantity is measured.

A semi-electronic valve may use:

• Level filling

• Timed filling

• Flow-meter filling

• Weight filling

Therefore, buyers should not assume that every semi-electronic valve includes a flow meter, load cell, or real-time volumetric measurement system.

How Does a Semi-Electronic Valve Work?

A typical sequence is:

Bottle detection → PLC authorization → Pneumatic activation → Filling control → Electronic closing signal → Bottle discharge

Bottle Detection

A sensor confirms that a bottle is correctly positioned beneath the valve.

When no bottle is detected, the PLC prevents the filling sequence from starting, reducing unnecessary product discharge.

Recipe Selection

The operator selects the required beverage and container format through the HMI.

A stored recipe may include:

• Pressurization time

• Valve-opening time

• Fast-filling duration

• Slow-filling duration

• Settling time

• Snifting time

• Tank-pressure setpoint

Recipe selection makes process adjustment easier, but it does not eliminate every mechanical changeover.

Changing bottle formats may still require adjustments or replacement of guide rails, star wheels, lifting components, neck-handling parts, capping parts, and downstream format parts.

Electro-Pneumatic Control

The PLC sends signals to solenoid valves or pneumatic actuators. These components control the product, gas, and pressure-release passages according to the programmed sequence.

For carbonated beverages, the stages may include:

1. Bottle sealing

2. Bottle pressurization

3. Pressure equalization

4. Product filling

5. Settling

6. Controlled depressurization

7. Bottle release

Electronic control can improve repeatability, but performance still depends on valve design, seal condition, actuator response, sensor reliability, product stability, and correct parameter settings.

Semi-Electronic vs. Mechanical Filling Valves

Which Valve Is Better for Bottled Water?

For a dedicated bottled-water line producing one or two standard formats, a mechanical gravity valve often provides the best balance of speed, reliability, maintenance simplicity, and investment cost.

Semi-electronic control may be useful when the factory requires:

• Centralized recipe management

• Individual valve-status monitoring

• Automated production-data collection

• More detailed fault alarms

• Integration with higher-level control systems

However, electronic control does not automatically improve water quality. Buyers must also evaluate hygienic tank design, product-contact materials, CIP coverage, drainability, and the cleanliness of the filling environment.

Which Valve Is Better for Carbonated Beverage Filling?

Carbonated beverages are particularly sensitive to temperature and pressure fluctuations. Even a small change can cause dissolved CO₂ to escape, leading to foam, beverage loss, inconsistent filling levels, and reduced carbonation.

A reliable carbonated beverage filling machine must manage:

• Beverage temperature

• Carbonation level

• Filling-tank pressure

• Bottle pressure

• Pressure equalization

• Liquid-entry speed

• Settling time

• Controlled pressure release

Mechanical Valves for CSD

Mechanical counter-pressure valves are practical when:

• One formula is produced for long periods

• Beverage temperature remains stable

• Carbonation rarely changes

• Bottle formats are limited

• Operators understand mechanical adjustment

They remain an economical solution for dedicated CSD lines with long, stable production runs.

However, valve performance must be coordinated with the entire carbonated beverage filling line, including beverage preparation, chilling, carbonation, filling, capping, labeling, and packaging.

Semi-Electronic Valves for CSD

Semi-electronic valves provide more flexible control over:

• Pressurization time

• Product-valve opening

• Fast and slow filling stages

• Settling time

• Snifting time

This is useful when switching between beverages with different carbonation levels, sugar contents, temperatures, or foaming characteristics.

Operators can store different recipes in the HMI and adjust process timing without extensively modifying the valve-control mechanism.

However, electronic control cannot fully compensate for:

• Warm product

• Unstable carbonation

• Incorrect tank pressure

• Damaged bottles

• Worn seals

• Incorrect snifting settings

• Unstable product supply

Consistent CSD filling still depends on correct beverage preparation, efficient chilling, stable carbonation, reliable capping, and synchronized line operation.

Which Valve Is Better for Juice and Tea?

Mechanical valves are economical for long production runs of clear juice, filtered tea, and standard hot-filled beverages with stable viscosity.

Semi-electronic valves are more flexible when operators need to change:

• Filling time

• Valve-opening sequence

• Product recirculation timing

• Hot-fill parameters

• Beverage recipes

However, electronic control does not prevent physical blockage caused by fruit pulp or fibers.

For pulp-containing juice, buyers should prioritize:

• Large product passages

• Smooth internal flow paths

• Minimal dead spaces

• Suitable valve-seat geometry

• Appropriate seal materials

• Effective CIP circulation

• Confirmed particle-handling capacity

The manufacturer should confirm valve suitability according to the actual pulp concentration and maximum particle size.

Which Valve Is Better for Beer?

A well-designed mechanical counter-pressure valve can provide stable filling performance on a dedicated beer line.

Semi-electronic valves offer more adjustable control over evacuation, CO₂ purging, pressurization, filling, settling, and controlled pressure release.

This may be useful when producing beer styles with different carbonation and foaming characteristics.

However, beer quality also depends on filling temperature, pre-evacuation efficiency, CO₂ purging, dissolved oxygen, Total Package Oxygen, foam control, CIP performance, and the distance between filling and capping.

Valve-control technology alone does not determine final beer quality.

Are Semi-Electronic Valves More Accurate?

Not necessarily.

Filling accuracy depends primarily on how the filling quantity is measured.

Level Filling

A vent tube or return-air passage determines the final liquid height. This provides a consistent visual level when bottle dimensions are stable.

Timed Filling

The valve remains open for a programmed period. Accuracy may be affected by pressure, viscosity, temperature, valve condition, and flow fluctuations.

Flow-Meter Filling

A flow meter measures the liquid delivered into each container. It is useful when accurate volume control and flexible bottle formats are required.

Weight Filling

A load cell measures the product weight. This method is often selected for high-value, viscous, or non-free-flowing products.

A well-maintained mechanical level valve may provide better consistency than a poorly configured timed electronic valve.

How to Choose the Right Valve

Before purchasing a filling machine, provide the supplier with complete information.

Product Information

Confirm:

• Beverage type

• Viscosity

• Filling temperature

• Carbonation level

• Sugar content

• Pulp concentration

• Maximum particle size

• Foaming tendency

Container Information

Provide:

• Container material

• Volume

• Neck finish

• Dimensions

• Bottle weight

• Pressure resistance

• Minimum and maximum formats

PET bottles, glass bottles, and aluminum cans may require different machine structures.

Production Requirements

Specify:

• Required bottles per hour

• Number of SKUs

• Changeover frequency

• Operating hours

• Required automation level

• Future expansion plans

Maintenance Capability

Evaluate whether your technicians can maintain PLCs, sensors, solenoids, pneumatic actuators, and communication systems.

Advanced control is useful only when the factory can maintain it effectively.

Hygiene and CIP

Ask the supplier about:

• Product-contact materials

• Surface finish

• Seal materials

• Dead-space control

• Drainability

• CIP flow paths

• Cleaning temperature and pressure

Using 316L stainless steel may be beneficial for certain products and cleaning conditions, but it is not automatically required for every beverage application.

Frequently Asked Questions

Are semi-electronic valves more hygienic?

Not automatically. Hygiene depends mainly on valve geometry, surface finish, seal design, drainability, dead-space control, and CIP coverage.

Can semi-electronic valves reduce waste?

They may improve sequence repeatability, no-bottle-no-fill control, valve timing, and fault monitoring. Actual savings depend on the complete system and operating conditions.

Are mechanical valves obsolete?

No. Mechanical valves remain reliable, economical, easy to maintain, and suitable for stable production.

Can one valve fill water, juice, and CSD?

Usually, these products require different filling principles. A flexible machine may handle multiple beverages, but additional process systems, format parts, and technical compromises may be required.

Which valve costs less to maintain?

Mechanical valves usually have simpler maintenance requirements. Semi-electronic valves include more sensors, solenoids, actuators, cables, and control components.

Final Recommendation

Choose a mechanical filling valve when production runs are long, products remain stable, bottle formats rarely change, maintenance simplicity is important, and investment must be controlled.

Choose a semi-electronic valve when the factory produces multiple SKUs, process parameters change frequently, recipe management is important, and the maintenance team can support PLC, pneumatic, and electrical systems.

The most important question is not:

“Which valve is more advanced?”

It is:

“Which valve design, filling principle, and control method best match our beverage, container, production plan, and maintenance capability?”

A properly selected mechanical valve can outperform an incorrectly configured semi-electronic valve. Likewise, a well-engineered semi-electronic valve can provide valuable flexibility, repeatability, and diagnostic visibility for a modern multi-product beverage factory.
