Soft Drink Can Machine: The Complete Guide to Can Filling Lines for Carbonated Beverages

A soft drink can machine may sound like a single piece of equipment. In a real beverage factory, however, it is a connected production system covering water treatment, syrup preparation, blending, carbonation, can handling, isobaric filling, double seaming, inspection, warming, packing, and palletizing.

Why does this distinction matter?

Because buying a fast filler does not automatically create a productive canning line. If the carbonator cannot maintain stable CO₂ levels, the cans foam during filling. If the seamer is poorly matched to the can end, the finished product may leak. If the packer cannot keep up, the complete line will never reach the filler’s rated output.

This guide explains how a complete carbonated soft drink canning line works, which machines are required, and how to select a system that fits your product, capacity, factory, and long-term business plan.

What Is a Soft Drink Can Machine?

Quick Answer

A soft drink can machine is an industrial system designed to fill carbonated beverages into aluminum or metal cans and close them with can ends.

The core equipment is normally an isobaric can filler and a double-seaming machine. Depending on the project scope, the complete line may also include:

• Water treatment

• Sugar dissolving and syrup preparation

• Beverage blending and carbonation

• Empty-can depalletizing

• Can rinsing

• Lid feeding

• Can warming or tunnel pasteurization

• Fill-level and seam inspection

• Date coding and drying

• Tray, film, or carton packing

• Palletizing and stretch wrapping

Typical applications include cola, soda, sparkling water, tonic water, carbonated energy drinks, flavored sparkling beverages, and other canned CSD products.

Is a Can Filler the Same as a Complete Canning Line?

No.

A can filler handles only the filling stage. A complete canning line connects beverage preparation, primary packaging, and secondary packaging into one coordinated production system.

This difference is important when comparing quotations. One supplier may offer only a filler-seamer, while another may include carbonation, depalletizing, inspection, warming, packing, installation, and commissioning.

Always compare the complete equipment scope rather than only the headline machine price.

How Does a Soft Drink Can Filling Line Work?

A complete CSD canning line can be divided into three connected areas:

1. Beverage preparation

2. Can filling and seaming

3. Inspection and end-of-line packaging

Each section must provide stable conditions for the next one.

1. Water Treatment and Syrup Preparation

The process begins with water.

Even when the finished product contains sugar, flavor, acid, and carbon dioxide, water remains the main ingredient. Its hardness, alkalinity, mineral composition, taste, and microbiological quality can directly affect product consistency.

Depending on the raw-water analysis, the treatment system may include multimedia filtration, activated carbon filtration, softening, reverse osmosis, UV sterilization, or ozone treatment.

Sugar is then dissolved in a heated tank and filtered to remove foreign material or undissolved particles. Concentrates, flavors, sweeteners, acids, preservatives, and other ingredients are added according to the recipe.

A reliable preparation system should help maintain:

• Stable Brix

• Correct acidity

• Repeatable mixing ratios

• Consistent product temperature

• Controlled dissolved-air levels

• Accurate batch traceability

A sophisticated soft drink can machine cannot correct an unstable beverage entering the filler. Product consistency must begin in the preparation room.

2. Blending, Deaeration, Cooling, and Carbonation

The prepared syrup is blended with treated water in a batch tank or continuous mixer. The blending system controls the syrup-to-water ratio and helps maintain stable Brix and flavor.

Excess dissolved air may be removed before carbonation. Deaeration improves carbonation stability and can help reduce oxidation-related flavor changes.

The beverage is then temperature-conditioned and carbonated under controlled pressure.

Why Is Temperature Important?

Carbon dioxide dissolves more easily in a colder beverage. For this reason, many traditional CSD lines are designed around low filling temperatures. Colder product generally reduces foaming and makes carbonation easier to control.

However, filling temperature should not be judged only by whether the filler uses mechanical or electronic valves.

The ability to fill carbonated beverages at a relatively high temperature is a system-level capability. It depends on:

• Mixer and carbonator performance

• Product-temperature stability

• Dissolved-air control

• Target carbonation level

• Carbonation and saturation pressure

• Product pressure at the filler inlet

• Filling-valve flow-path design

• Pressure-equalization time

• Venting and snifting control

• Can headspace

• Transfer time from filling to seaming

A well-designed mechanical isobaric filler can also perform stable CSD filling under higher-temperature conditions. Likewise, an electronic filler will still foam if the beverage temperature, carbonation pressure, or valve process is unstable.

Electronic control may provide easier recipe adjustment and more flexible timing, but it does not create warm-filling capability by itself.

The equipment supplier should therefore guarantee performance under clearly defined conditions, including product type, CO₂ level, temperature, can format, rated speed, and ambient environment.

3. Empty-Can Depalletizing and Conveying

Empty aluminum cans are usually supplied in palletized layers. An automatic depalletizer removes the cans layer by layer and feeds them into the conveyor system.

Although empty cans look simple, they are light and easily damaged. Excessive conveyor pressure can cause dents, instability, or jams. Poor guide adjustment may also lead to fallen cans and frequent line stops.

The conveyor design should control:

• Can accumulation

• Guide-rail pressure

• Transfer stability

• Conveyor speed

• Can spacing

• Recovery after short stops

A depalletizer should not merely match the nominal filler speed. It should also have enough recovery capability to refill the buffer after minor interruptions.

4. Can Rinsing

Before filling, the cans pass through a rinser or can-cleaning system.

Depending on the hygiene plan, cans may be cleaned with treated water, sterile water, filtered air, or ionized air. The correct method depends on the beverage, factory environment, packaging risk, and local regulatory requirements.

Residual rinse water should be controlled because excessive liquid remaining inside the can may dilute the beverage and affect fill accuracy.

The rinser should also provide stable drainage and avoid damaging or deforming lightweight cans.

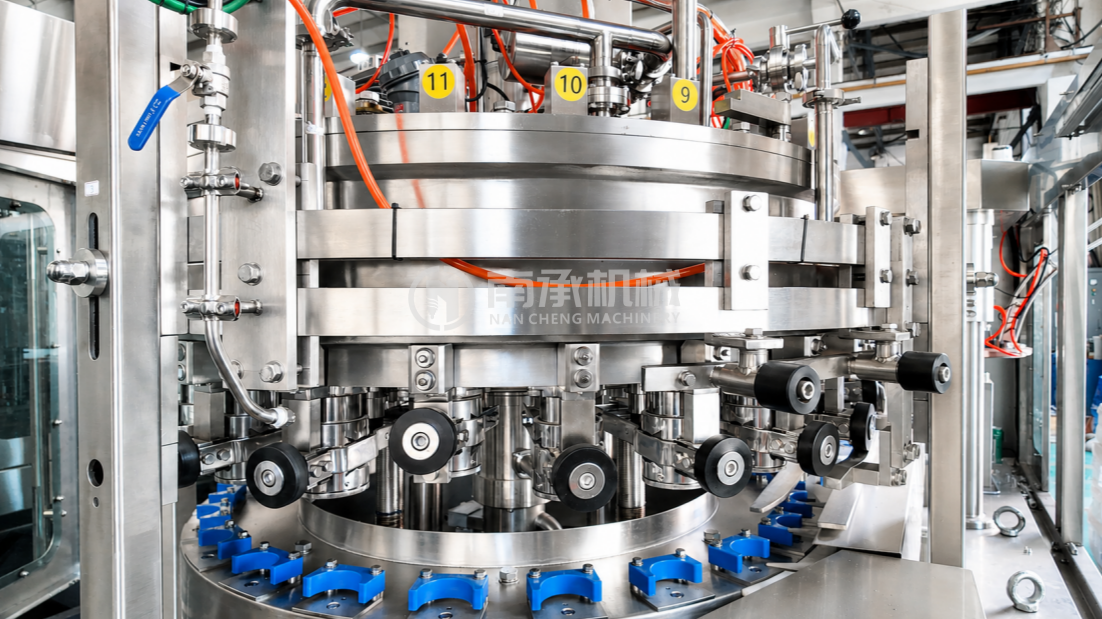

5. Isobaric Can Filling

Carbonated soft drinks cannot be filled in the same way as still water.

When a carbonated beverage experiences a sudden pressure drop, dissolved CO₂ escapes from the liquid. Foam rises quickly, filling accuracy becomes unstable, and product may overflow from the can.

An isobaric filler reduces this pressure difference before the main filling stage.

Typical Isobaric Filling Sequence

The can is first positioned and sealed against the filling valve. CO₂ may then be introduced to displace part of the air inside the can.

The pressure inside the can is raised until it approaches the pressure in the filling system. Once pressure is balanced, the beverage enters the can in a controlled flow.

The liquid is often directed along the internal wall to reduce turbulence. When the target filling level or volume is reached, the valve closes.

Pressure is then released gradually through the snifting process before the can leaves the filler.

This controlled sequence helps:

• Reduce sudden CO₂ breakout

• Limit foaming

• Improve filling consistency

• Reduce beverage loss

• Stabilize can transfer

• Protect product quality

The filling stage is the core of a carbonated beverage filling machine, but its performance depends on the preparation and carbonation systems operating upstream.

What Determines CO₂ Retention During Filling?

CO₂ retention is not determined only by the filler model.

Important factors include product temperature, carbonation pressure, dissolved air, filling-valve geometry, equalization time, product flow speed, can headspace, snifting control, conveyor vibration, and the time between filling and seaming.

For example, even a highly advanced filler may lose carbonation if the open can travels too far before reaching the seamer. Similarly, stable carbonation cannot be maintained if the product temperature fluctuates continuously.

When comparing suppliers, ask for performance conditions rather than general statements such as “low foam” or “high CO₂ retention.”

The supplier should clearly define:

• Beverage temperature

• Target CO₂ volume

• Can size

• Product characteristics

• Filling speed

• Filling accuracy

• Test duration

• Product-loss criteria

6. Lid Feeding and Double Seaming

After filling, the open can must be closed as quickly and smoothly as possible.

A lid feeder separates and delivers can ends to the seamer. The end is placed on the filled can before the can body flange and can-end curl are mechanically interlocked.

The seamer normally uses first-operation and second-operation rolls to form the double seam around a chuck.

This is not the same as capping a PET bottle. The seam is a precisely formed metal structure that must match the specification of the can body and can end.

Why Is the Double Seam So Important?

The double seam protects the beverage from leakage, contamination, carbonation loss, and oxygen ingress.

A line may achieve perfect filling accuracy but still produce an unsafe or unstable product if the seam is incorrect.

Seam quality depends on:

• Can-body dimensions

• Can-end specification

• Metal thickness

• Chuck profile

• First-operation roll profile

• Second-operation roll profile

• Lifter pressure

• Machine alignment

• Lubrication

• Tool wear

What Should Be Inspected?

A seam-quality program may evaluate seam height, seam thickness, countersink depth, body hook, cover hook, overlap, tightness, and wrinkles.

Plants may use manual measuring tools, seam teardown equipment, optical scanners, or automatic inspection systems.

Inspection results should be recorded by seaming head. This allows maintenance teams to identify whether one individual head is gradually moving out of specification.

Factory Acceptance Testing Warning

Do not approve a canning line only because it successfully fills water.

Water does not reproduce the pressure, foam, temperature, and carbonation behavior of a real CSD product. Whenever practical, testing should use the actual can body, can end, seaming tooling, and representative beverage conditions.

7. Can Warming, Inspection, Coding, and Packing

Cold-filled cans may develop condensation when they enter a warm and humid production area.

Condensation can affect:

• Inkjet-code adhesion

• Label application

• Tray strength

• Carton strength

• Shrink-film appearance

• Pallet stability

A can warmer gradually raises the surface temperature before coding and packing.

A can warmer should not be confused with a tunnel pasteurizer. A warmer mainly controls condensation. A tunnel pasteurizer applies a defined thermal process for microbiological or shelf-life purposes.

After warming or drying, the line may include fill-level inspection, lid-presence detection, pressure inspection, seam inspection, code verification, reject systems, tray packing, film wrapping, carton packing, palletizing, and stretch wrapping.

Core Equipment in a Complete Soft Drink Canning Line

Mechanical vs. Electronic Can Filling Technology

Mechanical and electronic fillers can both be used successfully for carbonated soft drinks. The correct choice depends on the operating requirements rather than on a simple judgment that one technology is always better.

A mechanical isobaric filler can provide excellent results when recipes, can formats, and production conditions remain stable.

An electronic or flowmeter filler may be more suitable for plants producing multiple beverages, frequently changing carbonation levels, or requiring precise volumetric control.

The buyer should compare the two technologies under the same beverage temperature, CO₂ level, can size, production speed, and ambient conditions.

How to Choose the Right Line Capacity

Capacity planning should begin with the required annual saleable output—not with the fastest machine listed in a supplier’s catalogue.

The project team should first define:

• Annual sales demand

• Scheduled working days

• Number of shifts

• Production hours per shift

• Number of product recipes

• Number of can formats

• Cleaning frequency

• Changeover frequency

• Expected whole-line OEE

• Seasonal peak demand

• Future growth plans

Use Whole-Line OEE, Not Filler Efficiency

OEE reflects the combined effect of equipment availability, operating performance, and quality output.

For capacity planning, the OEE assumption should represent the complete production line. It should not refer only to the filler.

A filler may operate efficiently while the full line loses production because of:

• Depalletizer stops

• Lid-feed interruptions

• Seamer adjustments

• Product changeovers

• Cleaning cycles

• Inspection rejects

• Warmer congestion

• Packer film changes

• Palletizer stops

Using an unrealistically high efficiency assumption can result in an undersized line. Using an excessively low assumption may lead to unnecessary capital investment.

The selected OEE target should be based on product complexity, automation level, operator experience, maintenance capability, and production schedule.

Separate Growth Capacity from Operating Losses

Future growth should be treated as a separate planning decision.

Do not hide growth capacity inside an unexplained jump from the minimum required speed to a much larger machine. Instead, define whether the additional capacity is intended for:

• New regional markets

• Seasonal demand

• Additional working shifts

• New can sizes

• New beverage recipes

• Contract packing

• Future factory expansion

A larger line may be justified, but the reason should be clear.

Oversizing can also create disadvantages. The preparation system may operate in inefficient batches, the packer may be underused, and frequent short production runs may reduce overall efficiency.

Request a Complete Line-Speed V-Graph

The supplier should provide a V-Graph or line-speed balance showing the relationship between the main machines.

The filler-seamer is normally used as the reference point. Upstream and downstream equipment may be designed with additional recovery speed so that the line can recover after short interruptions.

However, there is no universal overspeed percentage for every project.

The correct speed relationship depends on:

• Buffer capacity

• Machine reliability

• Stop frequency

• Can stability

• Packaging format

• Conveyor layout

• Changeover strategy

• Expected recovery time

The depalletizer, warmer, packer, and palletizer should not simply have the same printed speed as the filler. Their practical capacity and recovery behavior must be evaluated.

Capacity Planning Principle

Choose the production line according to annual saleable demand, realistic whole-line efficiency, documented growth plans, and complete line balancing. Do not select it only from the rated speed of the filling machine.

Can Formats, Ends, and Changeover Planning

Common can formats include standard, sleek, and slim cans. Volumes may range from small energy-drink cans to larger soft-drink cans.

However, volume alone does not determine machine compatibility.

Two cans with the same nominal volume may have different diameters, heights, flange dimensions, or can ends.

Same Diameter but Different Height

This is generally the easier changeover.

The line may require height adjustment, guide-rail adjustment, recipe selection, and packer changes. If the cans use the same diameter and can end, the seamer tooling may remain unchanged.

Different Diameter or Different Can End

This is a more complex conversion.

The machine may require:

• New star wheels

• New guide parts

• New centering components

• Different seamer chucks

• Different seaming rolls

• Modified lid chutes

• New inspection settings

• New packer change parts

Before ordering, provide actual can drawings, tolerance sheets, can-end codes, samples, target fill volume, headspace requirements, and package specifications.

Do not state only that the machine must handle cans from a certain minimum to maximum volume. The supplier needs exact dimensions and specifications.

Utilities and Factory Layout

A complete soft drink can machine project requires more than electrical power.

Typical utilities include treated water, chilled water or glycol, food-grade CO₂, compressed air, hot water, steam when required, cleaning chemicals, drainage, and wastewater treatment.

The engineering team should confirm:

• Local voltage and frequency

• Electrical and safety standards

• Compressed-air pressure and quality

• Food-grade CO₂ supply

• Seasonal cooling requirements

• Hot-water or steam demand

• Raw-water availability

• Wastewater discharge

• Floor loading

• Ceiling height

• Drainage slope

• Maintenance access

The factory layout should separate ingredient preparation, empty-can storage, hygienic filling, quality control, packing, and finished-product logistics.

Maintenance space must be designed around the filler, seamer, pumps, motors, packer, and conveyors.

For a new beverage factory, an integrated carbonated beverage filling line can reduce interface problems between process equipment, filling machines, conveyors, and packaging systems.

How Much Does a Soft Drink Can Machine Cost?

There is no reliable fixed price without a detailed project scope.

A compact filler-seamer cannot be compared directly with a turnkey line that includes water treatment, syrup preparation, carbonation, depalletizing, warming, inspection, packing, palletizing, installation, and training.

The main cost factors include:

• Required cans per hour

• Mechanical or electronic filling technology

• Number of filling valves

• Number of seaming heads

• Can sizes and can-end types

• Depalletizing automation

• CO₂ purging requirements

• Inspection equipment

• Warmer or pasteurizer

• Packing format

• Palletizing automation

• Component brands

• Electrical standards

• Certification requirements

• Freight and installation

• Operator training

• Spare parts

• After-sales support

Compare quotations according to the complete line scope and expected operating cost.

Ask every supplier to identify exclusions, utility consumption, supported formats, change parts, recommended spare parts, installation responsibilities, and the production conditions behind the rated output.

Common Mistakes When Buying a Soft Drink Can Machine

Buying Only by Filler Speed

A high-speed filler cannot compensate for a slow depalletizer, unstable seamer, undersized warmer, or unreliable packer.

Request a complete line-speed balance.

Ignoring the Seamer Specification

The seamer is not a standard capper. Confirm the can end, tooling, seam measurements, changeover requirements, spare parts, and inspection method.

Assuming Electronic Valves Automatically Allow Warm Filling

Electronics may improve control flexibility, but filling temperature depends on the complete carbonation and filling process.

Evaluate the whole system.

Testing Only with Water

Water testing cannot fully represent carbonated beverage behavior. Conduct representative product testing whenever possible.

Forgetting Condensation

Cold cans can create packaging and coding problems in humid climates. Evaluate whether warming and drying are required.

Ordering Before Confirming the Can

Changing the can diameter or end after machine design may require new seamer tooling, guides, star wheels, conveyors, and packing parts.

Using an Unrealistic OEE Target

An optimistic OEE target can result in insufficient annual output. A very conservative target can lead to unnecessary investment.

Base the planning assumption on the complete production environment.

Soft Drink Can Machine Maintenance

Daily Operating Checks

Operators should monitor product temperature, filling pressure, foam, CO₂ consistency, fill level, lid feeding, seam condition, conveyor stability, and rejected cans.

Leaks, unusual noise, repeated stops, and abnormal alarms should be recorded rather than ignored.

Scheduled Maintenance

Maintenance teams should regularly inspect filling-valve seals, centering components, pressure instruments, flowmeters, seamer chucks, rolls, lifters, bearings, conveyors, and CIP coverage.

Seam teardown results should be trended by seaming head.

PLC recipes and machine parameters should also be backed up. Critical wear parts should be kept in stock according to the supplier’s recommendation.

Maintenance should be trend-based. A gradual increase in foam, fill variation, seam thickness, or transfer stops may reveal a developing problem before it causes a major shutdown.

How to Choose a Soft Drink Can Machine Manufacturer

A professional manufacturer should ask detailed technical questions before sending a final quotation.

Prepare the following information:

1. Beverage type and recipe characteristics

2. Target Brix and carbonation level

3. Expected filling temperature

4. Can drawings and samples

5. Can-end specifications

6. Required production output

7. Annual sales target

8. Working shifts

9. Number of SKUs

10. Changeover frequency

11. Tray, film, or carton format

12. Factory dimensions

13. Available utilities

14. Local electrical and safety standards

15. Installation and training requirements

Ask the supplier to provide a process flow, equipment list, preliminary layout, line-speed balance, utility table, supported-format list, factory acceptance test plan, spare-parts recommendation, warranty terms, and after-sales scope.

A serious supplier should explain the operating conditions required to reach the rated output. It should not offer only a machine model and price.

Frequently Asked Questions

What Is the Best Filling Method for Carbonated Soft Drinks in Cans?

Counter-pressure, also called isobaric filling, is the standard method. It reduces the pressure difference between the can and product system before filling, helping control foam and retain carbonation.

What Is a Filler-Seamer Monoblock?

It is an integrated machine that fills cans and closes them in one synchronized system. The short transfer distance helps reduce product loss and improve can control.

Can a Mechanical Filler Handle Higher-Temperature CSD Filling?

Yes, when the carbonation system, product pressure, valve design, equalization, venting, and snifting process are correctly engineered.

Mechanical or electronic control alone does not determine the allowable filling temperature.

Does Every Canning Line Need a Can Warmer?

No. A warmer is mainly required when cold-filled cans develop condensation that affects coding, labeling, trays, cartons, or pallet stability.

Is a Can Warmer the Same as a Pasteurizer?

No. A warmer raises the can surface temperature to reduce condensation. A pasteurizer applies a controlled thermal treatment for product stability.

Can One Line Fill Standard, Sleek, and Slim Cans?

Yes, provided that the necessary change parts and seamer tooling are included. Changes in diameter and can end are more complex than height-only changes.

What Determines the Real Output of the Line?

Real output depends on the filler-seamer, depalletizer, conveyors, warmer, inspection equipment, packer, palletizer, cleaning schedule, changeovers, operators, and maintenance performance.

What Affects Soft Drink Can Machine Price Most?

Capacity, filling technology, seamer configuration, can formats, automation, processing equipment, inspection, packing, component brands, installation, and after-sales services are the main cost factors.

Conclusion: Choose a Complete Canning System

A successful soft drink can machine project depends on the entire production chain.

Water treatment and beverage preparation determine product consistency. The mixer, carbonator, cooling system, and filler work together to control carbonation and foam. The seamer protects shelf life. Inspection systems remove defective cans, while balanced packaging equipment converts filled cans into saleable products.

Do not choose a line only by filler speed, valve type, or initial price.

The best solution is the one that matches your annual demand, product recipes, can formats, factory utilities, operator skills, packaging plan, quality requirements, and future growth strategy.

Nancheng Machinery supplies standalone can-filling equipment and complete carbonated beverage production lines. Provide your beverage type, target output, can drawings, can-end specification, package format, and factory dimensions to receive a preliminary process flow, equipment list, layout, and utility plan.
