Double Filter for Beverage Production

Double Filter Syrup Filter is a dual-stage, high-precision filtration system designed for juice, tea, flavored drinks, energy drinks, and all sugar syrup processing. It removes fine impurities, enhances clarity, and stabilizes the product flavor before filling.

Model:
NC-DF
Brand:
NANCHENG
Function:
Juice Mixing
Material:
SUS304/316
Control:
Electric Auto Control
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Wooden carton
Driven type:
Electric
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

Product Description

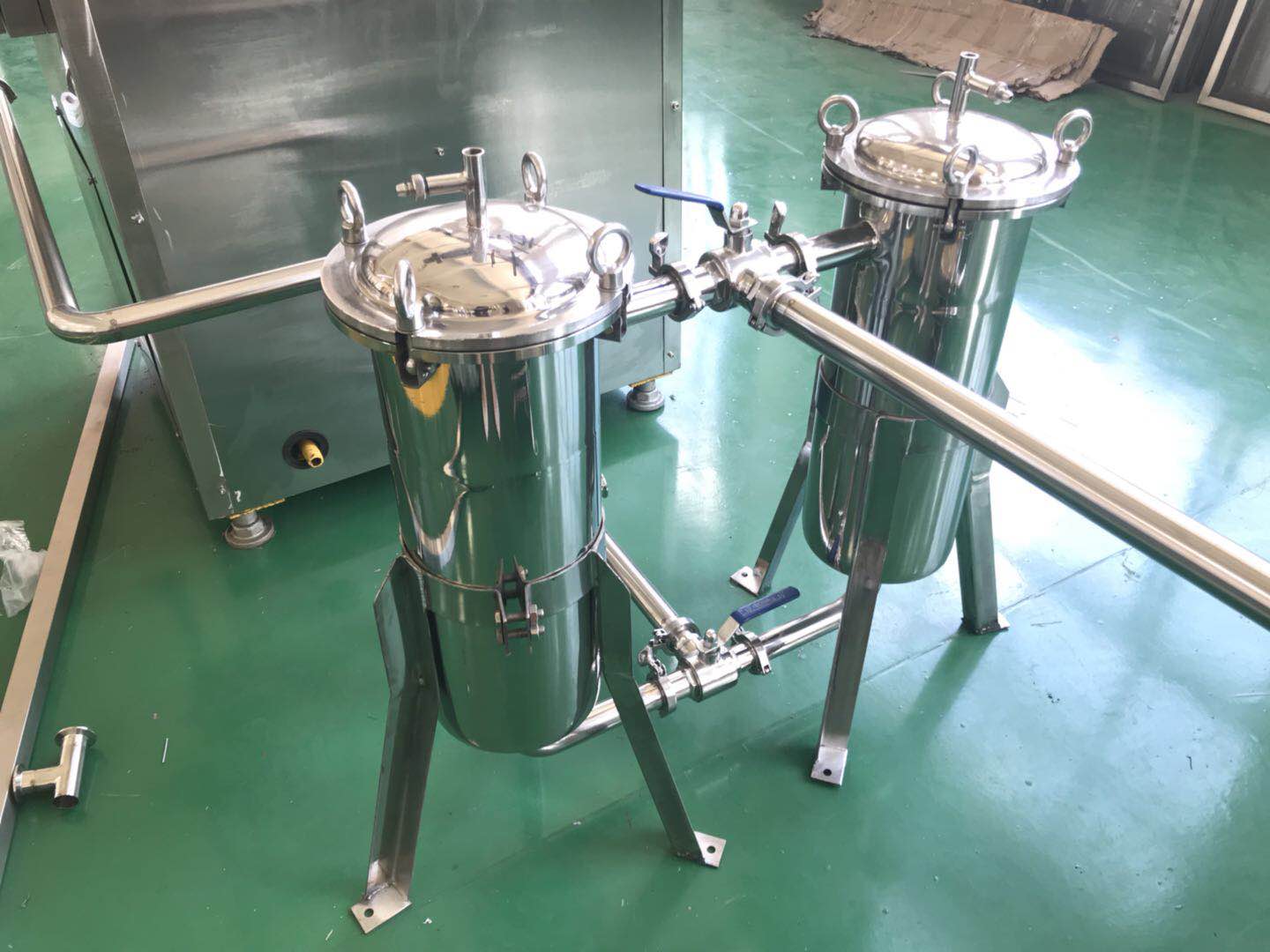

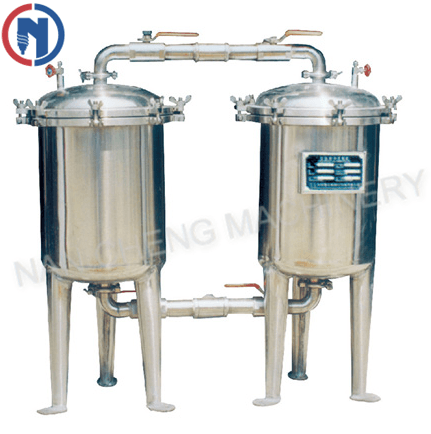

Double Filter / Syrup Filter for Beverage Production

Our Double Filter Syrup Filter is a dual-stage, high-precision filtration system designed for juice, tea, flavored drinks, energy drinks, and all sugar syrup processing. It removes fine impurities, enhances clarity, and stabilizes the product flavor before filling.

Engineered for beverage factories requiring high-quality syrup filtration, this system ensures continuous operation, easy maintenance, and food-grade hygiene.

What Is a Double Filter (Dual-Stage Syrup Filter)?

A Double Filter, also known as a dual-stage syrup filtration system, is installed in beverage production lines to clarify syrup, remove particles, and prevent contamination during mixing and filling.

It uses two inline stainless steel filters to achieve higher accuracy and reliability compared with a single filter.

This equipment is essential for:

Juice production lines
Tea beverage plants
Sugar syrup preparation systems
Milk, coffee, and flavor drinks
Energy drinks and vitamin beverages
Honey or high-viscosity liquid filtration

Key Features of the Double Filter / Syrup Filter

1. Dual-Stage High-Efficiency Filtration

First filter removes large particles
Second filter ensures ultra-fine purification
Prevents blockage and protects downstream equipment

2. Food-Grade Stainless Steel Construction

Made from SUS304/316L
Corrosion-resistant and sanitary
Suitable for all beverage syrups and ingredients

3. Wide Application in Beverage Industry

Ideal for juice, tea, syrup, liquid sugar, concentrated juice, flavors, extracts
Ensures stable and glossy syrup quality

4. Easy Opening, Cleaning & Filter Replacement

Quick-clamp design
Supports multiple filter meshes
Easy to maintain even during continuous production

5. Stable Operation & Long Service Life

Reinforced structure
High pressure tolerance
Reliable for 24/7 beverage factory use

Advantages of Our Syrup Filtration System

Improves product clarity and taste consistency
Prevents pump and pipe blockage
Reduces downtime and maintenance cost
Compatible with all CIP cleaning systems
Customizable flow rate and filter mesh size
Supports inline integration with mixing & filling lines

How the Double Filter Works

Step-by-Step Filtration Process

Syrup enters Filter No.1 → Removes large particles and solids
Flows into Filter No.2 → Removes micro-impurities and fine residues
Clean, clarified syrup is discharged to mixing or storage tank
CIP cleaning ensures strict hygiene and effortless sanitization

Technical Specifications of the Double Filter / Syrup Filter

Item	Specification
Material	SUS304 / SUS316L
Filtration Stages	2-Stage Inline Filtration
Filter Mesh Options	1μm – 200μm
Working Pressure	0.2 – 0.6 MPa
Temperature Range	0–95°C
Flow Rate	Custom 1–20T/H
Seal Type	Silicone / EPDM
Connection	Clamp / Flange / Thread

Applications of the Double Filter / Syrup Filter

✔ Juice syrup

✔ Tea syrup

✔ Liquid sugar

✔ Fruit concentrate

✔ Flavored beverages

✔ Coffee and milk tea

✔ Herbal / plant extract drinks

✔ Honey and viscous liquid filtration
