Hot Filling Machine: Pneumatic Vs Cam Lifting Structures for Juice Production

Views: 0     Author: Site Editor     Publish Time: 2026-08-25      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

When beverage manufacturers compare a hot filling machine, production capacity, filling valve technology, bottle size and price normally receive the most attention. The lifting structure is often treated as a minor mechanical specification.

For conventional rotary contact fillers, however, the lifting mechanism has a direct influence on bottle positioning, sealing stability, mechanical loading, compressed-air demand and long-term maintenance.

The two structures most commonly compared are pneumatic lifting and mechanical cam lifting.

The usual market explanation is simple: pneumatic lifting is flexible and economical, while cam lifting is more precise and suitable for higher speeds. There is some engineering logic behind that distinction, but it is incomplete.

The actual choice depends on how the bottle is supported, whether the filling valve requires bottle-to-valve sealing, the filling principle, PET bottle rigidity at elevated temperature, production speed, number of filling stations, annual operating hours and available factory utilities.

For a professional buyer, the question should therefore not be:

“Is pneumatic lifting better than cam lifting?”

It should be:

“Which lifting architecture provides the most stable filling condition for my bottle, beverage and production speed at an acceptable total cost of ownership?”

This guide explains that decision from an engineering and B2B purchasing perspective.

Pneumatic vs Cam Lifting: Quick Answer

Pneumatic lifting uses compressed-air cylinders to create the vertical movement required to position a bottle or filling assembly. It offers relatively easy force adjustment and mechanical flexibility, but the movement is influenced by air pressure, airflow, cylinder condition and the compressibility of air.

Cam lifting converts carousel rotation into a mechanically defined vertical movement through a fixed cam track and follower. Because the trajectory is determined by mechanical geometry rather than air pressure, the movement is generally more repeatable during continuous high-cycle operation.

For lower- and medium-output lines, frequent format changes and applications where pneumatic flexibility is valuable, pneumatic lifting can be a practical solution.

For higher-speed conventional contact filling, particularly where hot PET bottles require consistent bottle-to-valve engagement over long production runs, a properly designed cam-guided system with controlled spring compensation generally provides a more stable mechanical platform.

This is an engineering tendency rather than a universal BPH rule. Machine speed must still be validated with the actual bottle and beverage.

First, What Does “Lifting Structure” Actually Mean?

This definition needs to be clear before comparing the two technologies.

In this article, lifting structure refers to the mechanical system used during rotary carousel operation to bring the bottle and filling valve into the required filling position.

Depending on machine architecture, this can mean raising the bottle from below, moving a neck-support assembly, lowering or raising the filling valve, or combining controlled vertical movement with a spring-loaded centering mechanism.

This should not be confused with filling-valve actuation.

A filling valve itself may be opened and closed pneumatically even when bottle movement is controlled by a mechanical cam. Conversely, a machine can use pneumatic bottle lifting while the actual filling volume is controlled by a flow meter or another electronic system.

When reviewing a quotation, the phrase “pneumatic filling valve” therefore does not automatically mean “pneumatic bottle lifting.”

This distinction becomes even more important with modern contactless hot fillers. Some electronic volumetric systems do not require the bottle to rise and seal tightly against the filling valve at all. In those machines, traditional pneumatic-versus-cam bottle lifting becomes much less important than the filling-valve and bottle-handling architecture.

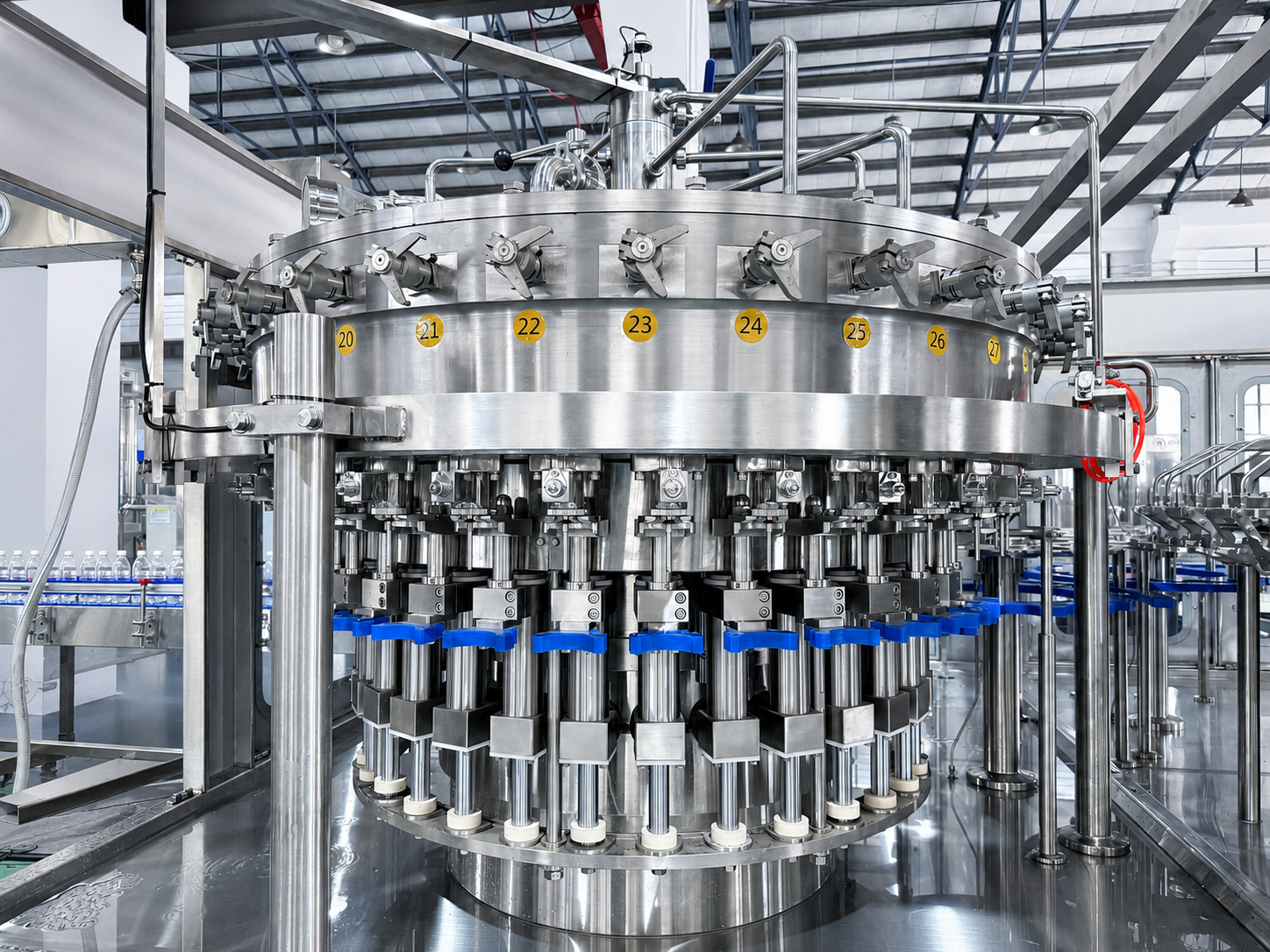

Pneumatic vs Cam Lifting

Why Lifting Stability Matters More in Hot Filling

Hot juice filling creates a very different mechanical condition from filling cold bottled water.

Many acidic juice and tea products are filled at elevated temperatures, commonly around 85–95°C depending on the validated beverage process. At these temperatures, heat-resistant PET is less rigid than it is at ambient temperature.

The bottle must therefore be positioned accurately without excessive axial compression.

This is where lifting-system design becomes important.

If the bottle is raised too aggressively, excessive force can deform the bottle shoulder, neck or base. If the engagement force is too low or inconsistent, the bottle may not maintain the required relationship with the sealing gasket or filling valve.

At low cycle rates these effects can often be controlled relatively easily. As carousel speed increases, however, acceleration, deceleration, pressure fluctuation and the available mechanical dwell time become more significant.

For conventional contact hot filling, the ideal lifting system therefore needs two characteristics at the same time: accurate vertical positioning and controlled compliance.

That is one reason high-speed mechanical systems often combine a defined cam trajectory with spring compensation rather than relying on completely rigid metal-to-metal movement.

How Pneumatic Lifting Works

A pneumatic lifting system converts compressed air into linear motion through a cylinder.

During carousel rotation, the pneumatic actuator moves the bottle support or related filling component into its working position. Pressure is then maintained during the relevant part of the filling cycle before the mechanism returns to its lower position.

The design is attractive because the available force can be changed through pressure regulation and cylinder sizing. It is also mechanically straightforward and uses components familiar to most factory maintenance teams.

The important limitation is that compressed air is not a rigid transmission medium.

Air can compress. Pressure can fluctuate. Flow through valves and tubing takes time. Cylinder seals wear. At higher cycle frequencies, these factors become increasingly important.

Where Pneumatic Lifting Performs Well

Pneumatic lifting is particularly useful when production speeds are moderate, multiple bottle formats need to be accommodated and the plant already has sufficient compressed-air infrastructure.

The ability to change working pressure can also be useful during commissioning because the mechanical engagement force can be adjusted without redesigning a complete cam profile.

This flexibility makes pneumatic lifting attractive for many regional beverage factories and multi-SKU production environments.

However, describing pneumatic lifting as inherently “gentler” on hot PET bottles is too simplistic.

The adjustable pressure is an advantage during setup, but the compressibility of air also means that the position and force relationship is not as mechanically fixed as a cam-guided movement.

At higher speeds, sudden resistance, pressure variation or insufficient airflow can produce small changes in cylinder response. With a softened hot-fill PET bottle, those changes can affect bottle engagement and sealing stability.

The correct conclusion is therefore:

Pneumatic lifting provides useful adjustability, but its performance depends strongly on air-system stability and dynamic control.

How Cam Lifting Works

A cam lifting system converts the rotation of the filling carousel directly into vertical movement.

A follower or roller moves along a stationary machined cam profile. As the carousel rotates, the geometry of the cam determines exactly where the bottle begins to rise, how quickly it moves, how long it remains in the filling position and how it returns.

Unlike pneumatic movement, the trajectory does not depend on cylinder filling time or pressure stability.

This creates what engineers often describe as kinematic control: the position of the lifting assembly is defined primarily by mechanical geometry.

For conventional high-cycle rotary machines, this provides a significant advantage in repeatability.

Why Cam Lifting Is Often Preferred for Higher-Speed Hot Filling

The main benefit is not simply that the cam is “stronger.”

Its advantage is that the motion can be engineered.

The rising section can be designed to accelerate the bottle smoothly. The upper section can provide the required filling dwell. The descending section can reduce bottle speed progressively before transfer.

When an appropriate spring or compensation system is added, the mechanism combines defined vertical positioning with controlled bottle-to-valve loading.

This is especially valuable for hot PET bottles.

Instead of asking compressed air to simultaneously determine movement, final position and sealing force, the cam determines the motion path while the spring or compensation device manages limited bottle-height variations and contact load.

That separation of functions can provide more consistent engagement during high-speed continuous operation.

Pneumatic vs Cam Lifting: Engineering Comparison

Evaluation Area

Pneumatic Lifting

Cam Lifting

Motion Source

Compressed-air actuator

Central cam track and mechanical follower

Motion Character

Compliant and pressure-dependent

Mechanically defined trajectory

Position Repeatability

Dependent on air stability, cylinder and controls

High when cam, roller and guides are in good condition

Hot PET Engagement

Adjustable but more sensitive to dynamic pressure variation

Stable trajectory with spring compensation

High-Speed Suitability

Suitable when pneumatic system is correctly sized

Generally preferred for repetitive high-speed contact filling

Air Consumption

Continuous demand when lifting cylinders cycle

Very low for the lifting movement itself

Force Adjustment

Relatively easy through pneumatic settings

Primarily mechanical/spring based

Changeover

Can provide useful adjustment flexibility

Depends on machine height adjustment and change-part design

Typical Wear

Cylinder seals, valves, tubing, regulators

Cam surfaces, rollers, bearings and guides

Maintenance

Pneumatic troubleshooting

Mechanical inspection and lubrication

TCO Sensitivity

Compressor energy, leakage and pneumatic wear

Mechanical wear, lubrication and component replacement

The table reflects general engineering tendencies. It should not be used to impose a universal speed boundary on every hot filling machine.

How the Lifting Structure Affects Filling Accuracy

It is correct to say that the lifting mechanism does not directly meter the beverage.

It is not correct to conclude that it therefore has no meaningful influence on filling accuracy.

The relationship depends heavily on the filling technology.

Level Filling and Micro-Negative-Pressure Filling

In a conventional gravity or micro-negative-pressure level filler, the relationship between the bottle neck, sealing gasket, return-air path and vent tube can determine the final liquid level.

If the bottle is not positioned consistently, or if the sealing pressure varies enough to create micro-leakage, the gas-return condition can change.

This can lead to unstable liquid levels even when the filling valve itself is mechanically correct.

In this type of machine, lifting repeatability indirectly but significantly influences filling performance.

Cam-guided movement can therefore provide an advantage when stable bottle-to-valve engagement is critical.

Electronic Volumetric or Net-Weight Filling

The situation changes when filling quantity is measured by an electromagnetic flow meter, mass flow meter or load cell.

In these systems, filling volume or weight is measured independently.

Bottle positioning still matters for safe product transfer and clean operation, but the lifting structure has less influence on the final measured quantity.

This distinction is important because buyers should never compare two filling machines only by their lifting structure without first confirming the filling principle.

Pneumatic vs Cam Lifting

Pneumatic vs Cam Lifting for Hot-Fill PET Bottles

Hot-fill PET deserves special attention because the bottle is mechanically weakest during the filling stage.

Pneumatic lifting can be tuned by adjusting pressure, which is useful during commissioning and format changes. But because compressed air acts as a compliant medium, the system is more sensitive to pressure variation and dynamic resistance.

Cam lifting uses a defined motion path. When combined with suitable spring compensation and correct bottle support, the machine can maintain a more consistent vertical relationship without relying on fluctuating air pressure to determine the final position.

For high-cycle conventional hot filling, this often makes cam lifting the more robust mechanical solution.

That does not mean pneumatic lifting is unsuitable for PET.

For lower and medium production speeds, particularly when the machine handles several bottle formats and the compressed-air system is properly sized, pneumatic lifting can provide good production performance.

The decision should be based on the actual bottle's heat resistance, top-load capability, neck geometry, filling-valve interface and target production speed.

High-Speed Suitability: Avoid a False BPH Rule

Many equipment comparisons draw a hard line: pneumatic below a certain BPH and cam above it.

That is useful for marketing, but too crude for engineering.

A rotary filler's capacity is determined by the complete filling cycle. The number of filling valves, bottle volume, valve flow rate, product viscosity, required filling time, carousel diameter, filling angle and capping capacity all influence the final BPH.

A 500 mL juice bottle and a 2 L bottle may have very different achievable speeds on the same filler.

Therefore, it is reasonable to say that pneumatic lifting is more common on small- and medium-capacity machines, while cam-guided lifting becomes increasingly attractive as rotary speed and cycle frequency increase.

It is not technically sound to say that every pneumatic machine above a fixed BPH is incorrect.

The final proof should come from FAT using the actual bottle and production specification.

The Hidden Difference: Compressed-Air Consumption

This is one of the most important TCO differences between the two structures.

A pneumatic filler does not use compressed air only once during start-up.

If the lifting structure has an individual pneumatic actuator at each filling station, every station repeatedly charges and exhausts air as the carousel rotates.

A rotary filler may contain dozens of filling positions. When every actuator cycles continuously during production, total airflow can become a meaningful factory utility load.

The real question is therefore not simply:

“What air pressure does the machine require?”

A specification saying 0.6 MPa tells the buyer very little about operating cost.

The more useful specification is the actual compressed-air consumption at rated production speed, preferably stated in Nm³/min or another standardized flow unit.

This matters because pneumatic power involves several conversion stages. Electricity drives the compressor, the compressor generates pressurized air, the air passes through treatment and distribution systems, and finally the cylinder converts that stored pneumatic energy back into mechanical movement.

Losses occur throughout this chain.

Cam lifting takes the vertical movement mechanically from the main machine drive, so it avoids most of the pneumatic demand associated specifically with bottle lifting.

For a factory with many filling heads and long annual operating hours, this difference can influence compressor sizing as well as electricity consumption.

Why Compressor Capacity Should Be Evaluated Before Purchase

A common project mistake is to confirm only the required air pressure.

A compressor may be capable of producing the required pressure while still being unable to maintain sufficient airflow when the complete line runs simultaneously.

Bottle blowing, filling, capping, labeling and packing equipment may all consume compressed air.

A hot filling project using pneumatic lifting should therefore be checked against the plant's total simultaneous air demand, not the filler in isolation.

If the existing compressor is already close to capacity, choosing an air-intensive lifting architecture can create an additional capital expense that is not visible in the filling-machine quotation.

This is why TCO calculations should include utility infrastructure and not only machine electricity.

Maintenance: Different Problems, Not No Problems

Pneumatic and cam lifting systems fail in different ways.

A pneumatic system gradually develops problems through seal wear, internal cylinder leakage, solenoid-valve response, tubing leakage, regulator instability or contamination in the compressed-air circuit. Individual parts are often relatively inexpensive and familiar to maintenance technicians, but the system can contain many repeated components.

Cam systems concentrate more of the movement into mechanical components. The cam surface, follower rollers, bearings, guide shafts and lubrication condition require inspection.

A well-designed cam system can provide long periods of stable service, but incorrect alignment or insufficient lubrication can accelerate wear significantly.

The correct purchasing question is therefore not which system requires “no maintenance.”

It is which system matches the factory's maintenance capability and operating pattern.

Format Changeover: Pneumatic Is Flexible, but Cam Is Not Necessarily Inflexible

Pneumatic lifting has a legitimate flexibility advantage because pressure and certain actuator settings can be adjusted without changing a mechanical motion profile.

This can be useful for contract bottlers or beverage manufacturers producing multiple SKUs.

However, bottle-format changeover involves much more than the lifting cylinder.

Star wheels, neck guides, rinser handling components, bottle supports, cap-handling parts and conveyor guides may all need adjustment or replacement.

Modern cam-driven fillers can also use central machine-height adjustment and quick-change bottle-handling parts.

For buyers, the meaningful KPI is therefore actual changeover time, rather than assuming pneumatic is automatically fast and cam automatically slow.

A supplier offering multiple bottle formats should demonstrate at least one real format change during FAT.

Pneumatic vs Cam Lifting

Context Check: Factors That Can Overshadow the Lifting Structure

The lifting mechanism matters, but it should not dominate the entire purchasing decision.

Three areas can have an even greater influence on hot-fill production performance.

First is filling-valve technology. Clear juice and tea are easier to handle than beverages containing pulp or fibers. Valve passage, product flow and filling method must be matched to the beverage.

Second is temperature control and hot-product recirculation. During a slowdown or stop, the beverage inside the filling circuit can lose heat. A professional hot filling system therefore needs suitable temperature monitoring and return logic so that product outside the validated filling condition is not packaged normally.

Third is CIP and hygienic design. Juice, tea extract and sugar-containing beverages leave organic residues, so the filling tank, product circuit, return line and valves must be designed for effective cleaning.

These issues are important, but they should be treated as system-level checks rather than repeatedly mixed into the pneumatic-versus-cam comparison.

For more detail on complete hot juice equipment, see Nancheng's juice filling machine solutions.

Contact Filling vs Contactless Filling: Know When Lifting Matters Less

Another important purchasing distinction is whether the bottle actually needs to seal against the filling valve.

Traditional hot fillers often rely on physical bottle-to-valve contact.

Modern electronic volumetric fillers can use contactless filling, with the liquid quantity controlled by a flow meter rather than a mechanically established liquid level.

In such systems, the bottle may not need the traditional vertical lifting movement at all.

This changes the buying logic completely.

If a supplier proposes an electronic contactless filler, the buyer should focus more heavily on flow-meter accuracy, valve response, bottle transfer, hygienic design and control architecture.

In other words, Pneumatic vs Cam is a critical question mainly for machine architectures where controlled vertical engagement is part of the filling process.

Pneumatic vs Cam Lifting: Total Cost of Ownership

Purchase price should not be evaluated independently from operating conditions.

For pneumatic lifting, TCO includes compressor electricity, air treatment, leakage, cylinder seals, pneumatic valves and possible additional compressor capacity.

For cam lifting, TCO includes precision mechanical components, lubrication, follower bearings, guide wear and eventual mechanical replacement.

Operating hours make a major difference.

A regional producer running one shift a day may place greater value on initial investment and format flexibility.

A high-volume plant running long campaigns places more value on predictable high-cycle operation, utility efficiency and reduced production interruptions.

This is why the same lifting structure should not be recommended automatically to every customer.

How Much Does a Hot Filling Machine Cost?

The keyword hot filling machine cost has strong commercial search intent, but it is also easy to answer badly.

There is no meaningful universal price because “hot filling machine” can mean a standalone filler, a 3-in-1 monoblock or a complete juice production line.

As a broad purchasing reference, basic or smaller automatic hot-fill equipment can begin in the tens of thousands of US dollars. Medium-capacity rotary hot filling equipment typically moves into a higher investment range, while a properly integrated juice processing, filling and packaging line can extend from well above US$80,000 into several hundred thousand dollars depending on scope.

Public equipment marketplaces show exactly why caution is necessary: listings described as “complete juice lines” currently range from around US$10,000 at the low end to more than US$250,000 for larger systems, while one publicly listed 18,000 BPH configuration is around US$83,000–85,000. Those numbers are useful only as market references because equipment scope varies dramatically.

A buyer should therefore compare the technical boundary of supply, not the headline price.

A filler-only quotation cannot be compared directly with a system that includes processing, pasteurization, bottle blowing, cooling, labeling and packaging.

For a broader overview of integrated equipment configurations, Nancheng's beverage bottle filling machine page provides different filling technologies and line applications.

Does Cam Lifting Cost More Than Pneumatic Lifting?

In many conventional machine designs, a precision cam-driven structure can increase the initial mechanical cost because it requires accurately machined cam tracks, followers, bearings and guides.

However, there is no credible universal rule such as “cam always costs 30% more.”

The price difference depends on valve quantity, carousel size, machining quality, component brands, automation level and complete machine architecture.

More importantly, a lower machine purchase price can be offset later by higher compressed-air demand or more frequent pneumatic maintenance.

The correct comparison is to request both configurations against the same bottle, filling principle, output and acceptance standard.

Only then does the price difference have engineering meaning.

Which Structure Should a Juice Producer Choose?

For a small or medium beverage factory producing several bottle formats, with moderate production speed and reliable compressed-air infrastructure, pneumatic lifting can provide a good combination of flexibility, accessible maintenance and initial investment.

As cycle frequency rises and production shifts toward long, continuous runs, the mechanical advantages of cam lifting become more significant.

For conventional contact hot filling of PET bottles, a well-designed cam trajectory combined with spring compensation generally offers more consistent vertical positioning and sealing conditions at higher rotary speeds.

This does not make pneumatic lifting an inferior technology.

It means the two systems have different optimum operating windows.

The more professional decision framework is therefore based on production speed, bottle rigidity, filling principle, annual operating hours, SKU frequency and factory utilities rather than on price alone.

How to Verify the Lifting System During FAT

FAT is where marketing claims should become measurable machine performance.

The test should use the customer's actual bottle, or a production-equivalent bottle, whenever practical.

For pneumatic lifting, the buyer should observe whether bottle engagement remains stable when the complete line is running, whether air pressure drops under simultaneous load, whether cylinders move smoothly and whether leakage or unstable response appears during prolonged operation.

For cam lifting, attention should be given to follower movement, vibration, noise, lubrication, alignment and the transition between lifting, dwell and lowering sections.

For both systems, the most valuable test is sustained production at the agreed operating condition.

The buyer should also evaluate bottle deformation, filling-level consistency, valve leakage, transfer stability and restart behavior.

A short demonstration at maximum machine speed is not a meaningful substitute for a properly defined FAT.

How to Specify the Machine in an RFQ

A professional RFQ should give the supplier enough information to engineer the lifting structure instead of simply choosing one from a standard catalog.

The most important data are the beverage type, filling principle, filling temperature, bottle material, bottle drawing, bottle weight, neck finish, bottle volume, required output, number of formats, daily operating hours and available compressed-air conditions.

For level-type hot filling, buyers should additionally ask how bottle-to-valve sealing is maintained and how the lifting structure affects the return-air or vent-tube condition.

For pneumatic machines, request actual air consumption at rated production.

For cam-driven machines, request details of the cam, follower, spring compensation, lubrication method and changeover mechanism.

This makes quotations much easier to compare technically.

Why Nancheng Machinery for Hot Juice Filling Projects

Nancheng Machinery does not treat pneumatic versus cam lifting as an isolated sales feature.

The lifting structure should be selected after the beverage, bottle, filling method and required line output are defined.

For conventional hot-fill PET applications, Nancheng can evaluate bottle rigidity at filling temperature, bottle-to-valve engagement, filling-valve design, carousel speed and available utility conditions before determining the more appropriate mechanical structure.

For projects that require a complete factory rather than only the filler, Nancheng can coordinate beverage preparation, pasteurization, bottle handling, hot filling, capping, cooling, labeling and packaging as one production system.

This system-level approach is especially important because a high-speed filler alone does not create a high-speed production line. The upstream processing system and downstream cooling and packaging equipment must be capacity-matched.

Nancheng's turnkey beverage production line engineering approach is intended to coordinate these sections around the customer's actual product, bottle and required BPH rather than treating each machine as an independent purchase.

Nancheng's Engineering Approach: Select by Application, Not by Marketing Label

For lower and medium production speeds, especially where customers run multiple formats and value straightforward pneumatic maintenance, pneumatic lifting can remain a practical solution.

For higher-cycle conventional hot filling where repeatable engagement, lower lifting-air demand and mechanically controlled motion become more important, cam lifting deserves stronger consideration.

Nancheng's engineering evaluation should therefore focus on the customer's actual operating profile.

A buyer producing one PET bottle format for long campaigns may receive a different recommendation from a contract bottler changing between several formats every week.

The objective is not to sell the more expensive structure.

The objective is to avoid paying for complexity that the factory does not need—or choosing a simpler architecture that later becomes a limitation when production volume increases.

Final Recommendation

Pneumatic and cam lifting are both proven technologies, but they should not be treated as technically equivalent under every operating condition.

Pneumatic lifting offers adjustment flexibility, standardized components and a relatively straightforward mechanical concept. Its main engineering limitation is that compressed air is a compliant and energy-intensive transmission medium, making performance more dependent on pressure, airflow and component condition as cycle frequency increases.

Cam lifting provides a mechanically defined trajectory and direct synchronization with the filling carousel. When paired with appropriate spring compensation, it provides stable bottle engagement and repeatable movement, which makes it particularly attractive for higher-speed conventional hot filling.

For level-type filling systems, this mechanical stability can also improve filling consistency indirectly by maintaining a more reliable bottle-to-valve sealing condition.

The correct purchasing decision should therefore be based on speed, bottle rigidity, filling technology, annual production hours, format strategy, compressed-air capacity and total cost of ownership.

For B2B buyers, the strongest supplier is not the manufacturer that simply says “cam is better” or “pneumatic is cheaper.”

It is the manufacturer that can explain why a specific structure is suitable for the actual bottle and process—and then verify that choice under agreed FAT conditions.

Frequently Asked Questions

Is Cam Lifting Better Than Pneumatic Lifting for Hot Filling?

For conventional high-cycle contact filling, cam lifting generally provides more repeatable motion and more stable bottle engagement. Pneumatic lifting remains practical for many lower- and medium-capacity or multi-format applications.

Why Can Pneumatic Lifting Be Less Stable at High Speed?

Compressed air is compressible, and cylinder response depends on pressure, airflow and valve condition. As cycle frequency increases, these variables can have a greater effect on movement consistency.

Does the Lifting Structure Affect Filling Accuracy?

Yes, indirectly. In level or micro-negative-pressure filling, stable bottle-to-valve sealing helps maintain the correct venting and liquid-level cut-off condition. In flow-meter or net-weight filling, its influence on measured fill quantity is smaller.

Which Lifting Structure Is Better for Hot PET Bottles?

For higher-speed conventional contact hot filling, cam-guided movement with controlled spring compensation generally provides more consistent engagement. Pneumatic systems can also work well when bottle strength, air supply and machine speed are properly matched.

Does Cam Lifting Use Less Compressed Air?

Yes, for the lifting movement itself. Cam lifting takes its motion mechanically from the machine drive, while pneumatic lifting repeatedly charges and exhausts cylinders during production.

Is There a Fixed BPH Limit for Pneumatic Lifting?

No. Capacity also depends on valve quantity, bottle size, filling time, product characteristics and machine geometry. Higher speeds generally strengthen the case for mechanical cam synchronization, but FAT should determine actual suitability.

How Much Does a Hot Filling Machine Cost?

Smaller automatic systems may cost tens of thousands of US dollars, while integrated industrial juice lines can exceed US$100,000 and reach several hundred thousand dollars depending on capacity, process equipment and automation scope.

What Should I Compare Between Two Hot Filling Machine Quotations?

Compare the same bottle, beverage, filling technology, guaranteed output, lifting architecture, compressed-air consumption, CIP scope, changeover requirements and FAT criteria. Price comparison without equal technical scope is misleading.

Table of Content list

Ready to Build Your Beverage Plant?

Tell us your capacity, bottle type, and budget – we’ll design a complete solution for you.
PRODUCTS
WHY NANCHENG

logo_PROPAK-WEST-AFRICA-2026
PROPAK WEST AFRICA 2026
  2026.09.08-09.10
The Landmark Center
Water Corporation Drive Off Ligali Ayorinde Oniru,Victoria Island Lagos, Nigeria
Booth No.:2C13
CUSTOMER SUPPORT
INFO
+86 18261871098
9 Tongxin Road, Leyu town, Zhangjiagang City, Jiangsu Province, China
© COPYRIGHT 2025 ZHANGJIAGANG NANCHENG MACHINERY CO., LTD. ALL RIGHTS RESERVED.
