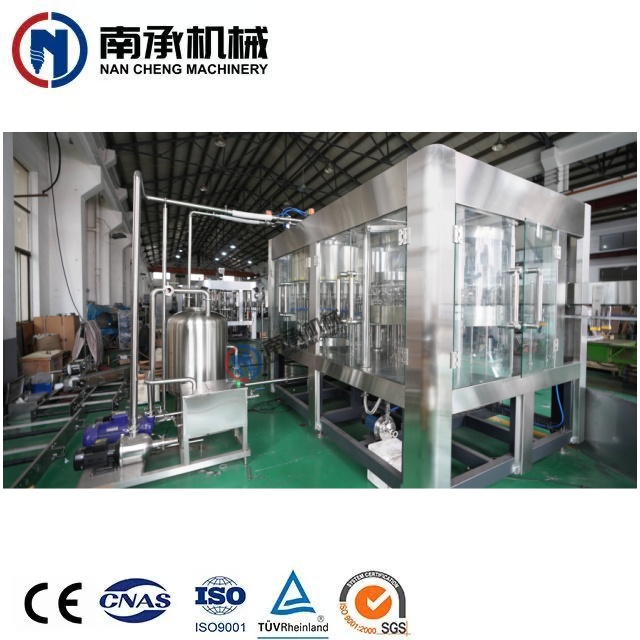

8000BPH Beverage Bottle Filling Machine

The beverage filling production line is the heart of any drink manufacturing plant. It ensures clean, accurate, and efficient filling of beverages into PET or glass bottles, suitable for water, juice, tea, energy drinks, or carbonated soft drinks.

Model:
RXGF18-18-6
Brand:
NANCHENG
Function:
Washing Filling Capping
Material:
SUS304/316
Control:
PLC+ Touch Screen
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Bottles
Driven type:
Electric and pneumatic
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

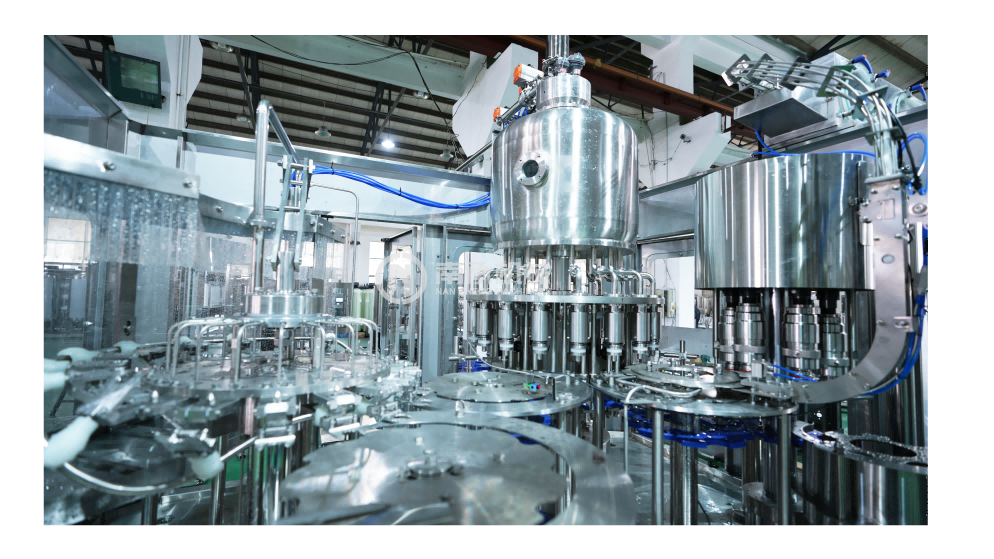

Video of Beverage Production Process

Watch how our beverage bottle filling machine works through the entire beverage production process — including rinsing, filling, and capping stages.

This video showcases the high efficiency, smooth bottle transfer, and hygienic operation of the automatic beverage filling machine. Each part of the line is precisely designed to maintain beverage quality and production stability.

Introduction of Beverage Bottle Filling Machine

The beverage bottle filling machine is the core equipment in modern beverage production plants. It is specially designed for filling water, juice, tea, energy drinks, soft drinks, and other liquid beverages into PET or glass bottles with high efficiency and precision.

As one of the leading beverage filling machine manufacturers, Nancheng Machinery provides complete automatic solutions that integrate rinsing, filling, and capping in one system.

Our automatic beverage filling machine guarantees hygienic processing, stable operation, and high output — ensuring your beverage production line runs smoothly and continuously.

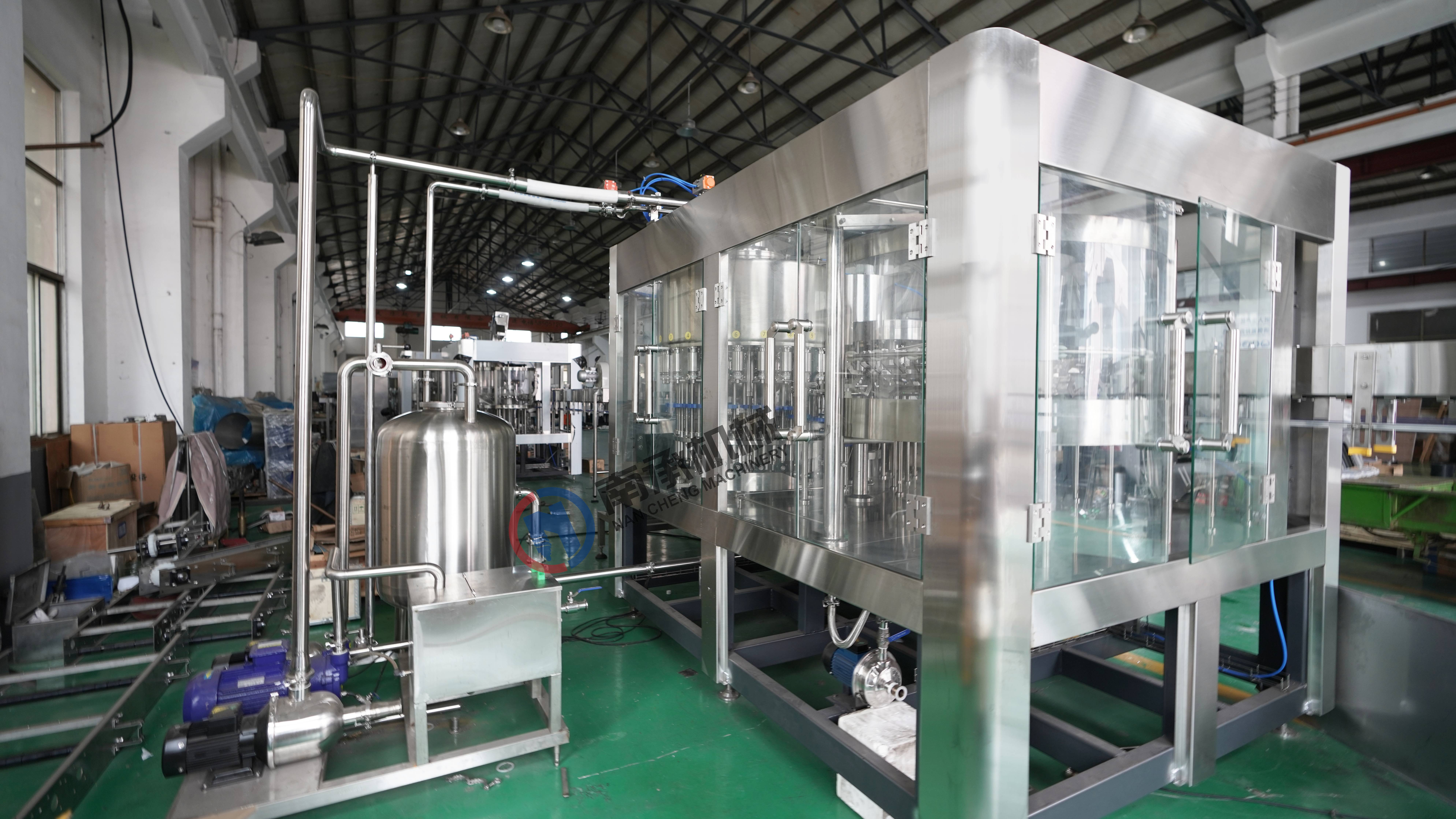

Beverage Bottle Filling Machine

Beverage Production Process with Beverage Bottle Filling Machine

The beverage production process consists of several key stages — from water treatment and mixing to bottle rinsing, filling, and capping.

The beverage bottle filling machine plays a vital role in ensuring each bottle is clean, accurately filled, and perfectly sealed.

1. Rinsing Part

In this stage, bottles are automatically transferred into the rinsing system, where food-grade water nozzles thoroughly clean the inner and outer surfaces of bottles.

Made of stainless steel 304/316, ensuring durability and hygiene.
No bottle – no rinse function prevents water waste.
High-speed bottle clamp rotation system ensures complete cleaning.

This process ensures the bottles are completely sanitized before filling — essential for high-quality beverage production.

2. Filling Part

The filling section of the automatic beverage filling machine uses advanced filling valves to ensure accurate liquid levels and prevent leakage.

Depending on your product type, Nancheng offers gravity filling, isobaric filling, or hot filling systems.

Precision control valves ensure consistent volume for every bottle.
CIP system (Clean-in-Place) ensures fast and reliable internal cleaning.
Optional temperature and CO₂ control for carbonated or hot beverages.

This stage is designed to maintain beverage flavor and minimize oxygen content, ensuring a long shelf life and stable product quality.

3. Capping Part

The capping unit automatically places and tightens the caps using magnetic torque control to avoid over-tightening.

Automatic cap sorting and feeding for high-speed performance.
Cap detection sensors ensure no missing or loose caps.
Compatible with plastic caps, aluminum caps, and crown caps.

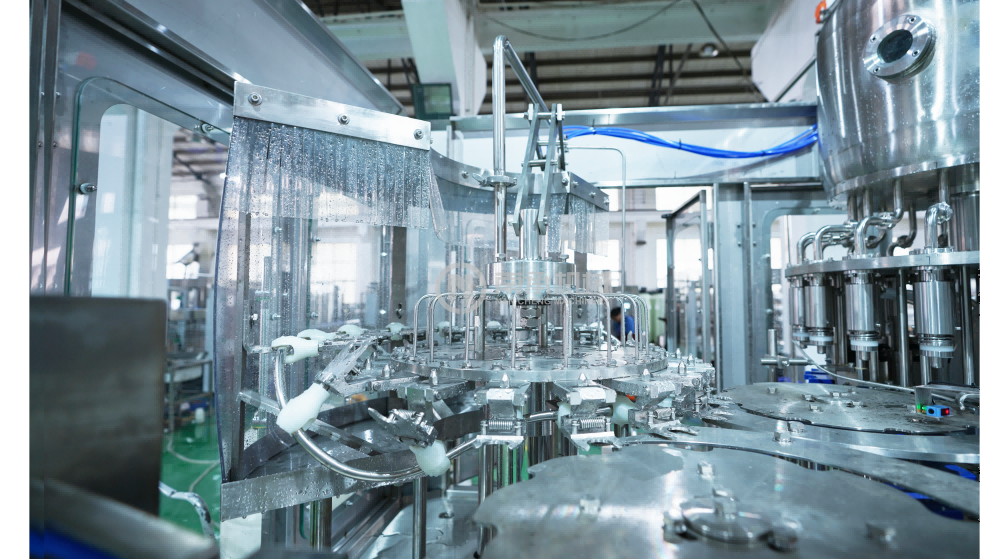

Beverage Bottle Filling Machine Rinsing system

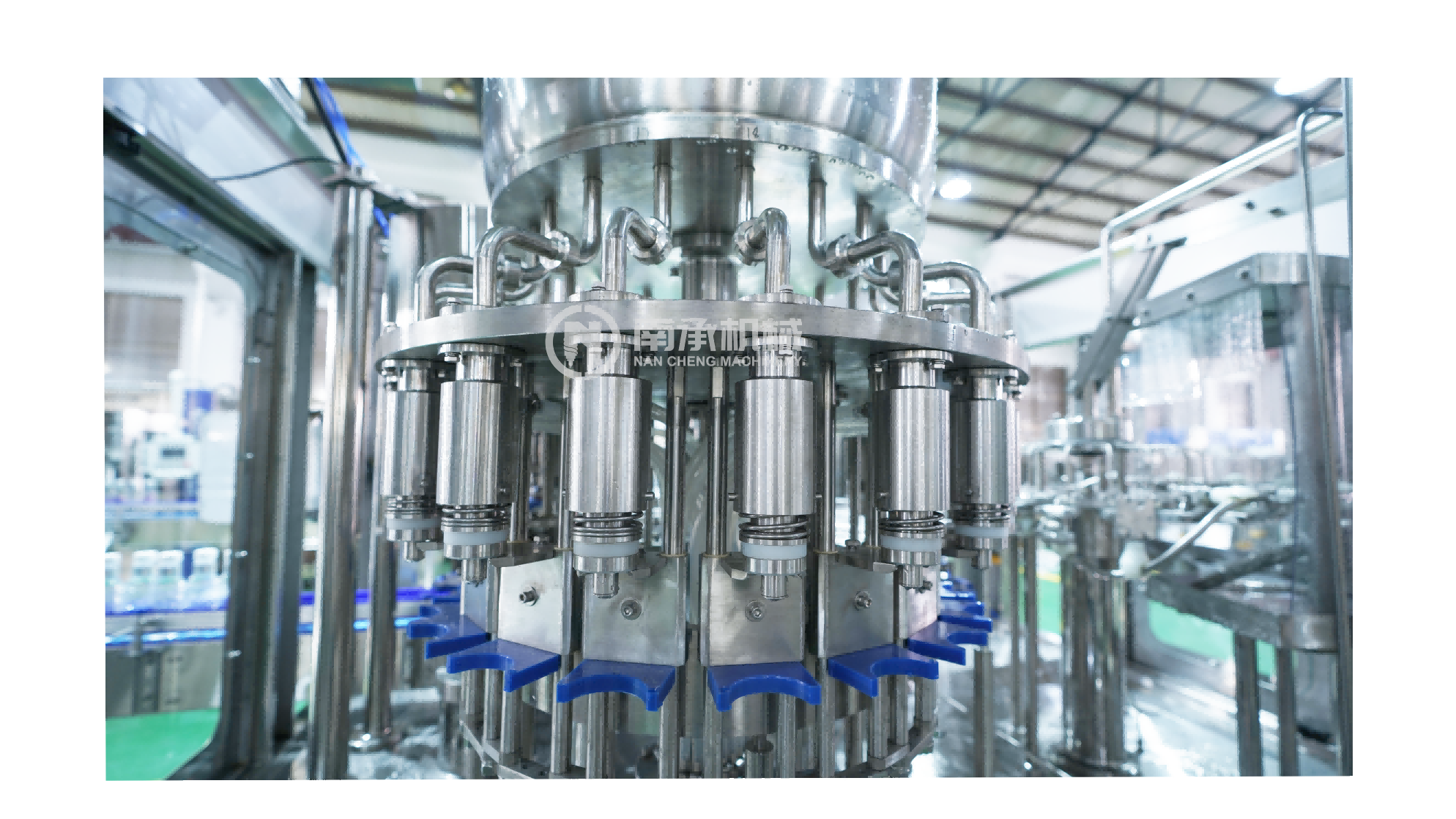

Beverage Bottle Filling Machine Filling system

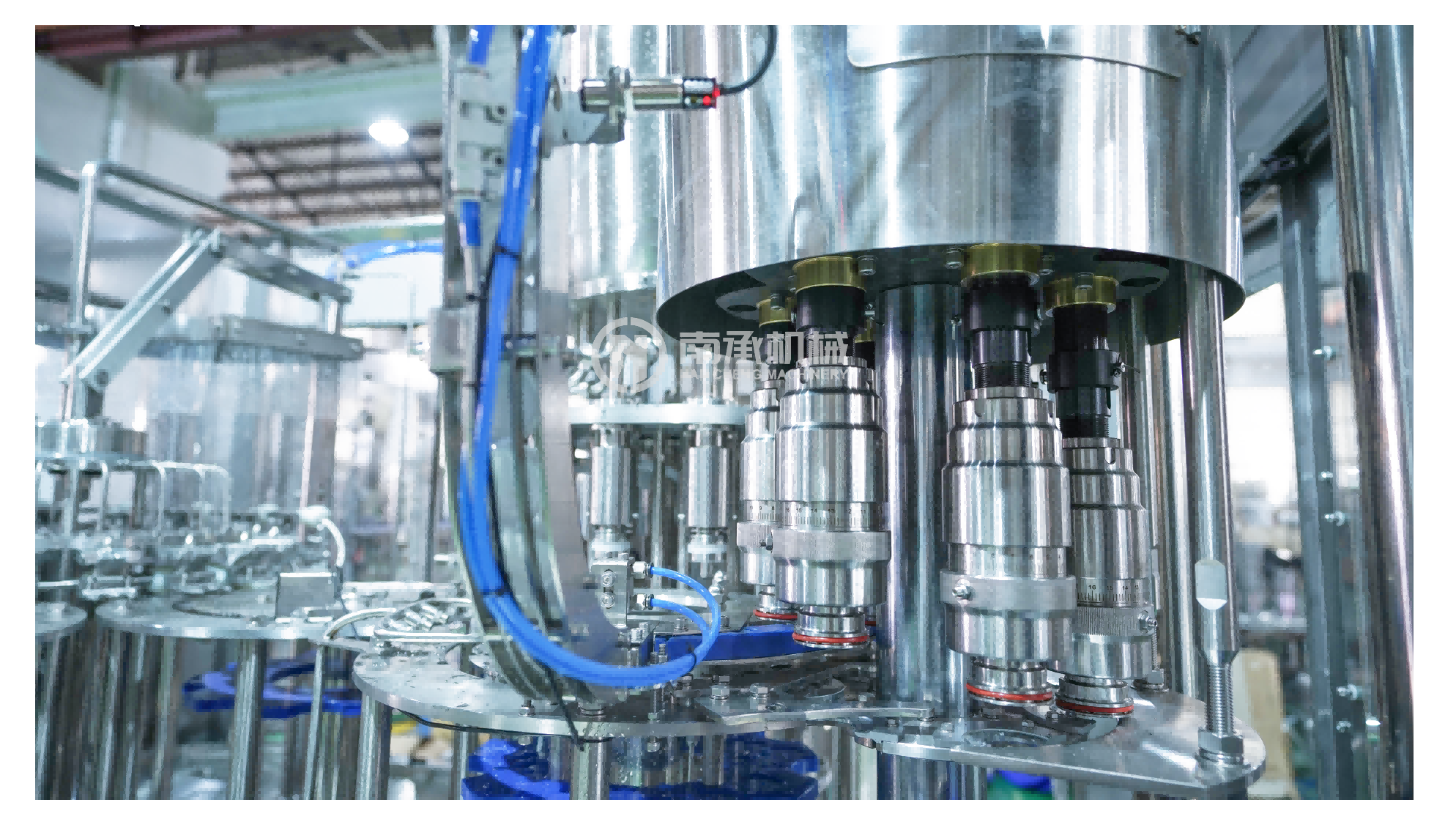

Beverage Bottle Filling Machine Capping system

RXGF18-18-6 Beverage Bottle Filling Machine TECHINCAL PARAMETERS

MODEL OF AUTOMATIC JUICE FILLING MACHINE	RXGF18-18-6
Capacity	8000 bottles/h based on 500ml
Working stations	Washing 18 heads, Filling 18 heads, Capping 6 heads
Filling Temperature	Normal temperature
Filling Type	Constant Pressure Filling
Suitable bottle type	￠20-￠100 H=170-320
Man motor power	15KW
Overall machine power	16KW
Control Type	PLC
Dimension	295021502200MM
Weight	2900KG
Voltage	Customize according to different country voltage

RXGF18-18-6 Beverage Bottle Filling Machine ELECTRICAL CONFIGURATION

Name	Brand
Drive motor	ABB
PLC	SIEMENS
Frequency device	SIEMENS
Touch Screen	SIEMENS
Photoelectric switch	OMRON
Telemecanique	OMRON
Contactor	SCHNEIDER
Circuit breaker	DELIXI
Floatless level control	OMRON

Beverage Bottle Filling Machine ELECTRICAL CONFIGURATION

Complete Line Solution with Beverage Bottle Filling Machine

Beverage Bottle Filling Machine-Production-Line

When investing in a beverage bottle filling machine, choosing a complete and well-designed production line is the key to long-term success.

At Nancheng Machinery, we don’t just supply a single machine — we deliver a turnkey beverage filling production line that covers every stage of beverage manufacturing, from raw water processing to final product packaging.

Our complete line solution ensures consistent product quality, efficient operation, and easy scalability for all beverage types including bottled water, juice, soft drinks, tea, beer, and energy drinks.

PET Bottle Blow Molding Machine

Beverage Bottle Filling Machine pet bottle blow molding machine

Semi automatic blow molding machine for you choose

For PET bottle packaging, Nancheng offers a fully automatic bottle blowing machine integrated with the filling system.

Uses servo control and energy-saving infrared heating.
Produces bottles of various shapes and sizes (200ml–2L).
Synchronizes directly with the beverage bottle filling machine, reducing contamination and labor costs.

The bottle blowing system ensures smooth bottle supply and high-speed production efficiency.

Water Treatment System

Beverage Bottle Filling Machine water treatment

Every successful beverage begins with pure, safe water.

Nancheng provides advanced water treatment systems that include multi-media filtration, activated carbon filtration, reverse osmosis (RO), and UV or ozone sterilization.

Ensures high water purity for beverage production.
Automatically monitors TDS and pH levels.
Constructed with stainless steel 304/316 for long-term reliability.

This guarantees the base water used in your beverage filling production line meets international beverage standards.

Automatic Bottled juice production fruit juice blending system

The mixing system including:

Electrical heating/ steam
heating sugar melting tank
Syrup Pump
Mixing tank
Stainless steel pump
Double filter
Homogenizer
Double layers heating tank
CIP cleaning system
UHT sterilizer

Before filling, ingredients such as water, sugar syrup, flavors, or CO₂ are blended in a hygienic mixing system.

Syrup preparation tanks and mixing units precisely control ratios and temperature.
Optional high-pressure CO₂ mixer for carbonated beverage production.
Automatic CIP cleaning system for sanitary operation.

This stage ensures taste consistency and accurate formula control — essential for juice, soda, or flavored beverage lines.

Automatic Shrink Sleeve Labeling Machine

Beverage Bottle Filling Machine labeling machine

Once bottles are filled and sealed, they move to the labeling unit.

Nancheng offers various labeling machines for different packaging styles:

Shrink sleeve labeling machine for PET bottles.
OPP hot melt labeling machine for high-speed production.
Self-adhesive labeling machine for glass bottles or premium products.

Each labeling system is synchronized with the beverage filling production line to maintain continuous flow and accurate positioning.

Bottle Shrink Packing Wrapping Machine

Beverage Bottle Filling Machine pe film packing machine

Beverage Bottle Filling Machine l type pe film packing machine

Automatic l type shrink packing wrapping machine for you choose

The final step of the complete beverage filling line is packaging.

Nancheng provides fully automated shrink wrapping machines, carton packers, and robotic palletizing systems for safe and efficient final product handling.

Supports film wrapping, carton box packaging, or tray packaging.
Customizable palletizing layout to fit your factory space.
Strong, export-ready packaging to ensure product safety during shipment.

Company Profile

WHY NANCHENG MACHINEY AS YOUR OUR AUTOMATIC JUICE FILLING MACHINE MANUFACTURER

Beverage Bottle Filling Machine MANUFACTURER

Why Choose Nancheng Beverage Filling Machine Manufacturers

Professional Manufacturer: Over 20 years of experience in beverage machinery.
High Efficiency: Stable performance and minimal downtime.
Global Service: Exported to more than 60 countries with on-site installation.
Certified Quality: CE, SGS certified equipment.
Customization: We design your beverage filling production line according to beverage type, bottle size, and capacity.

When you choose Nancheng, you’re not just buying a beverage bottling machine for sale — you’re choosing a reliable production partner that ensures every drop of your beverage reaches consumers in perfect condition.

We Supply Your Factory Design Service

We Supply Your Bottle Design Service

Beverage Bottle Filling Machine-Bottle Design

FAQ

FAQ of Beverage Bottle Filling Machine

Q1: What is a beverage bottle filling machine and how does it work?

A: A beverage bottle filling machine is specialized equipment used to rinse, fill, and cap PET or glass bottles in one integrated system. It’s part of a beverage filling production line, where bottles pass automatically through rinsing, high-precision filling valves, and capping stations. The process ensures hygiene, accuracy, and efficiency in beverage production.

Q2: What types of beverages can the beverage filling machines handle?

A: Our beverage filling machines can handle a wide range of products, including bottled water, fruit juice, tea, soft drinks, carbonated beverages, energy drinks, and flavored water. Depending on your product type, Nancheng provides automatic beverage filling machines designed for gravity, isobaric, or hot filling applications.

Q3: What is the capacity range of Nancheng beverage bottle filling machines?

A: Nancheng offers beverage bottle filling machines with production capacities from 2,000 to 36,000 bottles per hour or more. Each beverage filling production line can be customized according to your plant scale, bottle type, and beverage formulation.

Q4: Can the beverage bottle filling machine fill both PET and glass bottles?

A: Yes. Our automatic beverage filling machine can be configured for PET bottles, glass bottles, and aluminum bottles. The changeover between bottle types is fast and simple, ensuring flexible production and reduced downtime.

Q5: Is Nancheng a beverage filling machine manufacturer or supplier?

A: Nancheng is a professional beverage filling machine manufacturer with over 20 years of experience. We provide turnkey beverage filling production line solutions, including water treatment, bottle blowing, filling, labeling, and packaging systems — all CE and ISO certified.

Q6: What makes Nancheng beverage bottling machines reliable for long-term use?

A: Every Nancheng beverage bottling machine for sale is made of food-grade stainless steel, equipped with advanced PLC control and intelligent sensors. These features ensure stable performance, hygienic production, and easy maintenance, making our beverage filling machines ideal for high-volume factories worldwide.

Q7: Can the beverage bottle filling machine be customized?

A: Absolutely. We design each beverage bottle filling machine according to your beverage formula, bottle design, and capacity target. Whether you need a small automatic beverage filling machine for startups or a full beverage filling production line for industrial scale, Nancheng can tailor the right solution for your project.

Q8: What after-sales service is provided for beverage filling machines?

A: Nancheng provides installation guidance, operator training, spare parts supply, and lifetime technical support for every beverage bottle filling machine. Our engineers can assist on-site or remotely to ensure your beverage filling production line runs smoothly and efficiently.

Q9: How do I purchase a beverage bottling machine for sale from Nancheng?

A: You can contact Nancheng directly through our website or email to get a custom quotation for your beverage bottling machine for sale. Our sales engineers will recommend the best beverage bottle filling machine model and complete line layout based on your product type, factory size, and budget.
