16000bph pet bottle juice filling machine

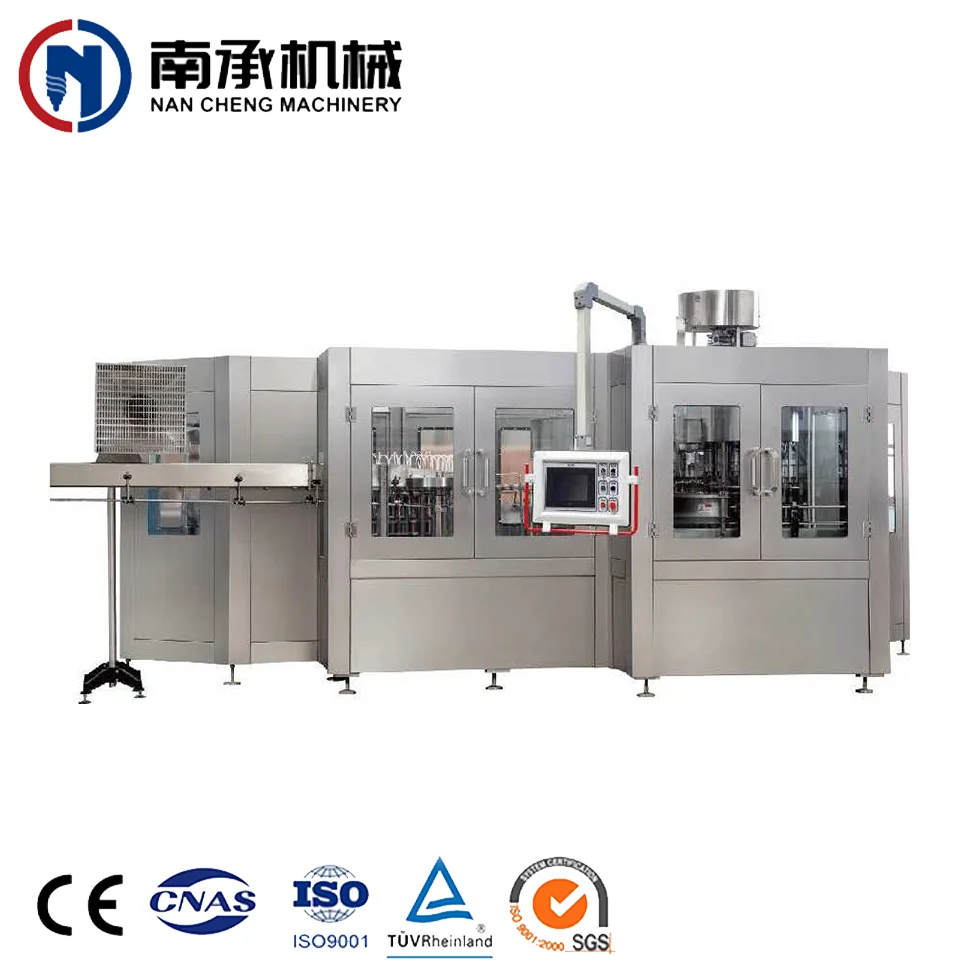

The 16000BPH PET bottle juice filling machine is a high-speed, fully automated solution designed for modern beverage manufacturers. Engineered by Nancheng Machinery, this machine integrates rinsing, hot filling, and capping into one hygienic 3-in-1 system, providing precise control, high capacity, and long-term durability.

Model:
RXGF40-40-12
Brand:
NANCHENG
Function:
Washing Filling Capping
Material:
SUS304/316
Control:
PLC+ Touch Screen
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Bottles
Driven type:
Electric and pneumatic
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

VIDEO OF PET BOTTLE JUICE FILLING MACHINE

Watch the PET bottle juice filling machine in operation — showcasing the full process of rinsing, hot filling, and capping. This advanced machine ensures consistent quality, precise temperature control, and hygienic bottling — ideal for medium and large-scale juice factories seeking efficiency and automation.

INTRODUCTION OF PET BOTTLE JUICE FILLING MACHINE

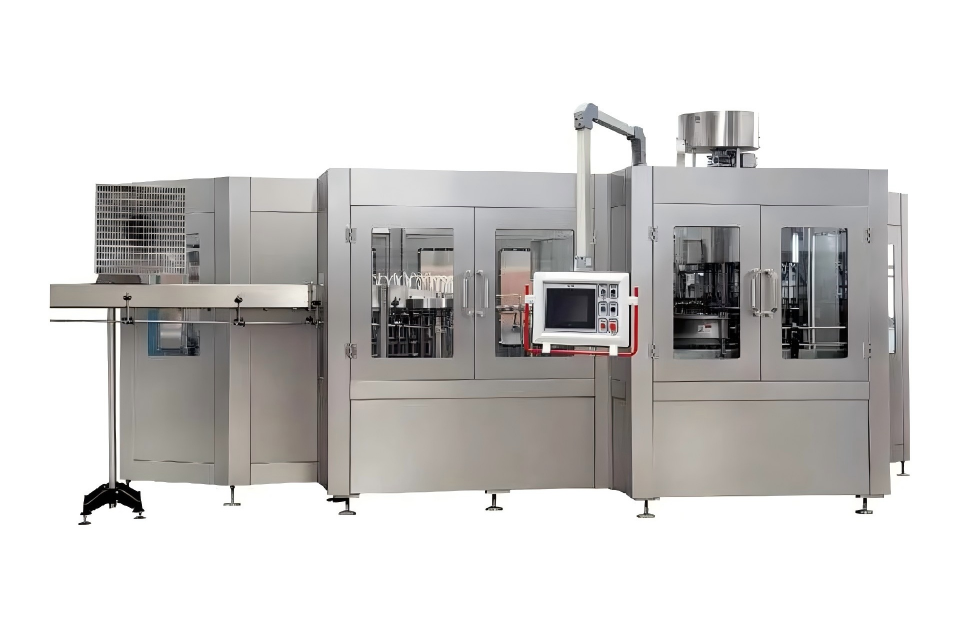

PET BOTTLE JUICE FILLING MACHINE

The PET bottle juice filling machine adopts the latest hot filling technology, ensuring high-temperature sterilization and oxygen-free filling to preserve juice freshness and extend shelf life. During production, beverages such as fruit juice, tea drinks, and vitamin water are processed through UHT sterilization at 85–95°C, then filled rapidly to minimize oxidation.

Each juice filling and packing machine integrates a CIP cleaning system, automatic circulation for temperature maintenance, and precise liquid control — guaranteeing hygienic and stable production. Whether you’re producing fruit-based beverages, herbal teas, or flavored drinks, this machine provides reliable performance and flexible capacity.

WORKING PROCESS OF PET BOTTLE JUICE FILLING MACHINE

1. Dilution & Mixing

Concentrated juice is diluted with purified water according to the formula, then blended with sugar syrup and auxiliary materials to achieve the desired taste and consistency.

2. Filtration & Homogenization

The juice undergoes multi-stage filtration to remove impurities, followed by homogenization under 20–25MPa pressure for a smooth, stable texture.

3. Pasteurization & Sterilization

The blended liquid passes through a UHT sterilizer at 130–135°C for 4–6 seconds, ensuring microorganisms are fully destroyed while maintaining flavor.

4. Hot Filling & Capping

The hot juice filling machine fills at 85–95°C, then caps immediately under controlled torque to ensure tight sealing and prevent contamination.

5. Cooling & Inspection

The filled bottles are inverted for sterilization, cooled to 38±2°C, and inspected under light to ensure perfect hygiene and clarity.

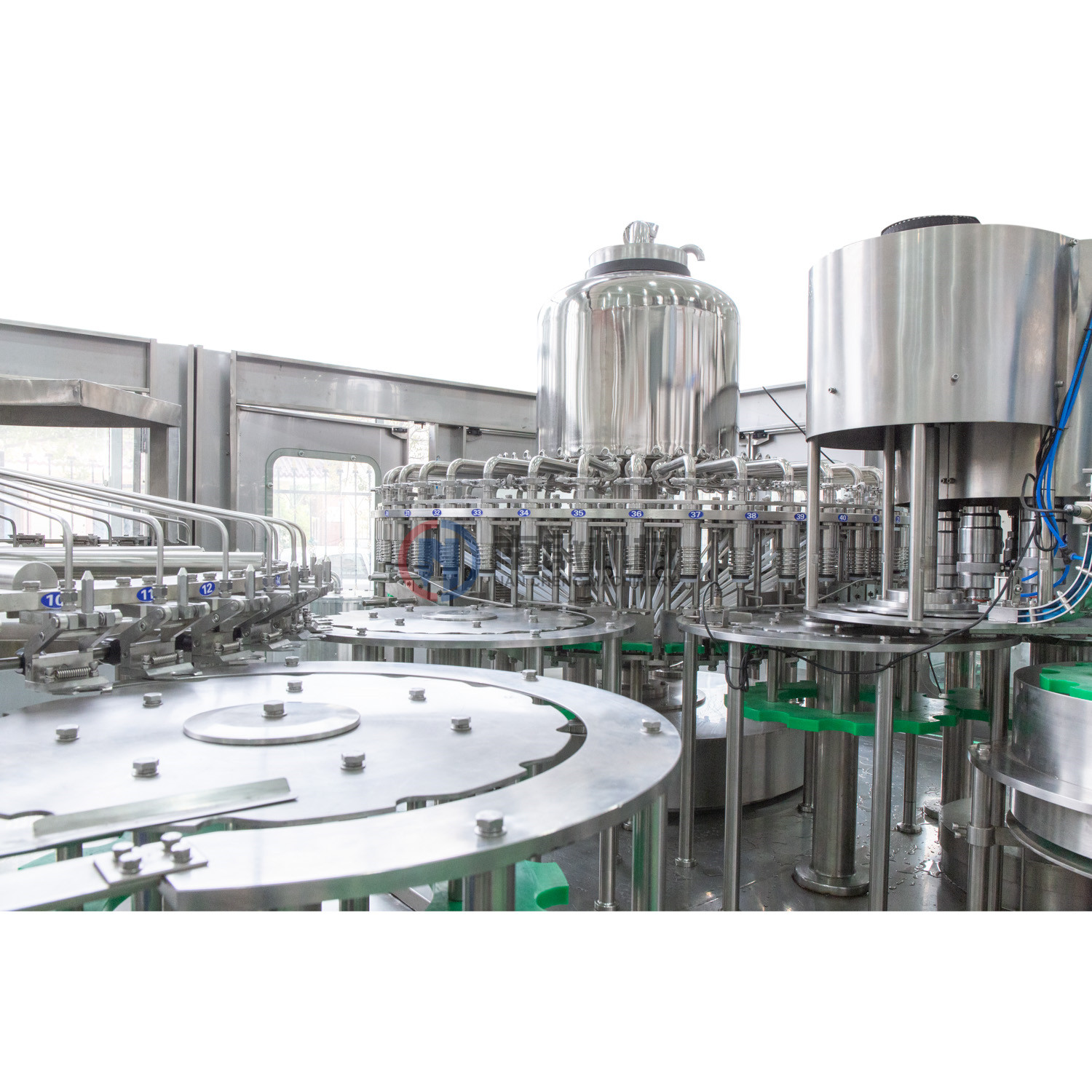

WASHING, FILLING & CAPPING PARTS OF JUICE FILLING MACHINES

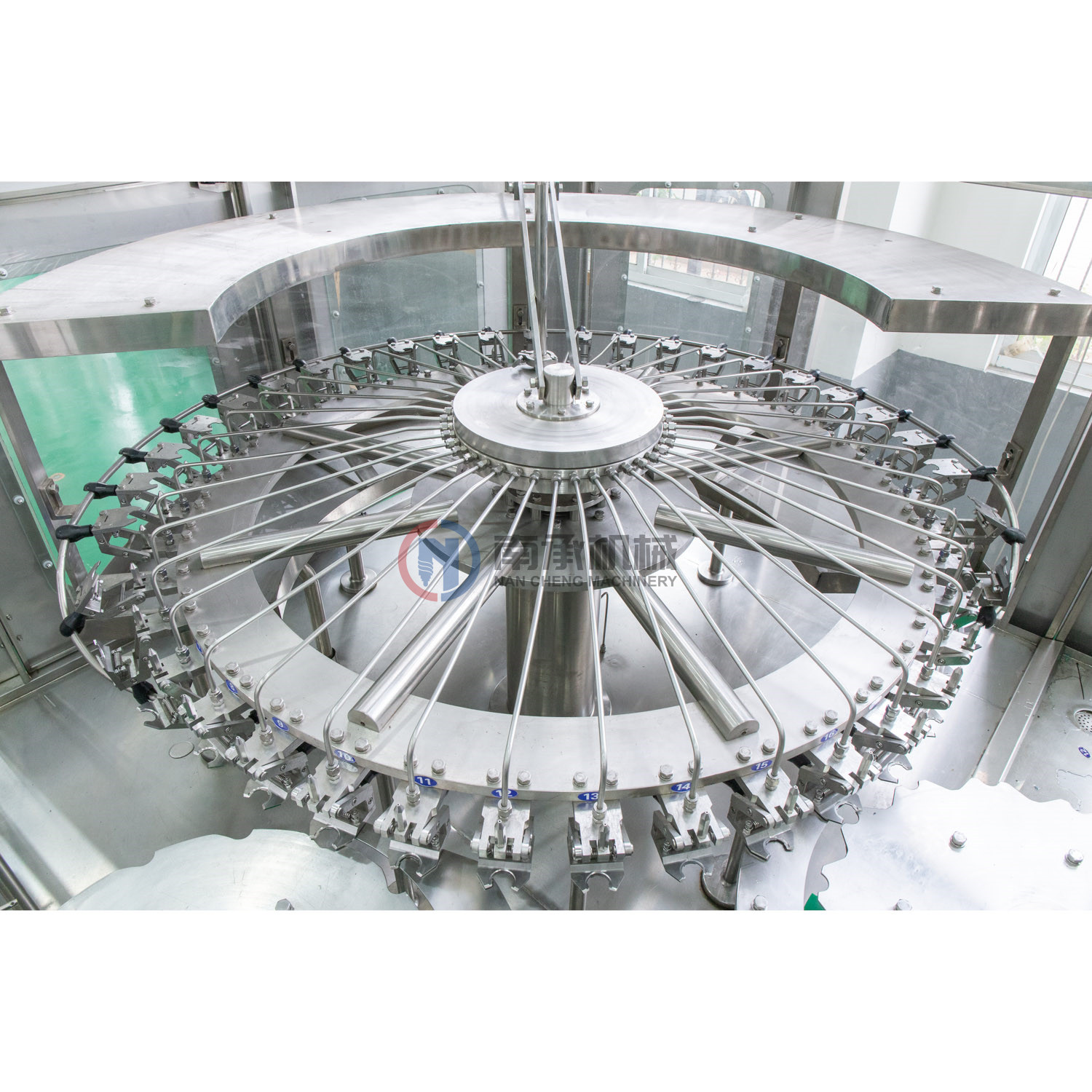

Washing Section

Equipped with 304 stainless steel grippers and high-efficiency nozzles, the rinsing unit ensures 360° cleaning in just 4 seconds. Adjustable rotary parts accommodate different bottle sizes, while water recycling minimizes consumption.

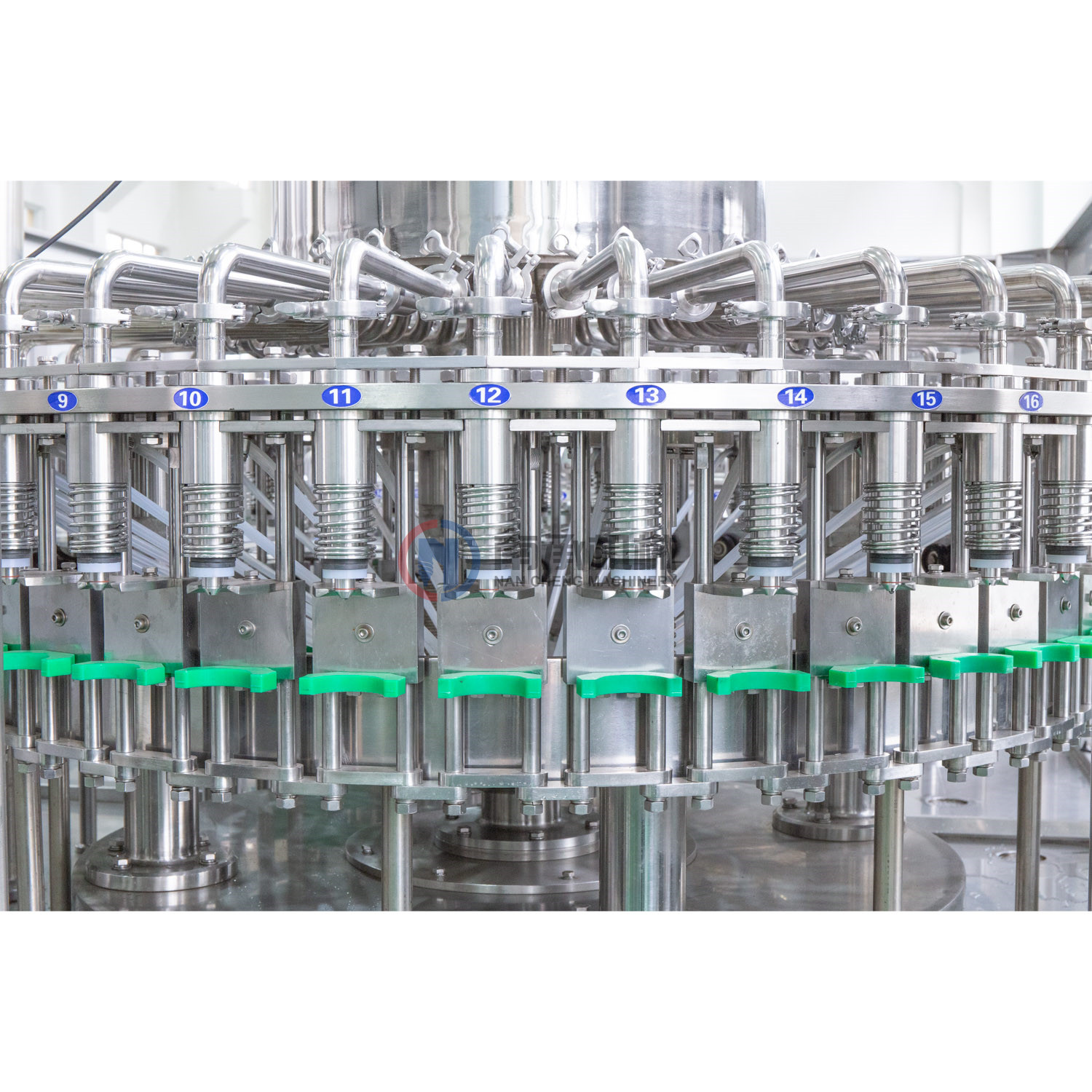

Filling Section

The filling system adopts precision mechanical valves for fast, accurate, and sanitary hot filling. An integrated CIP unit automatically cleans pipelines and tanks, while the magnetic level control maintains consistent liquid levels.

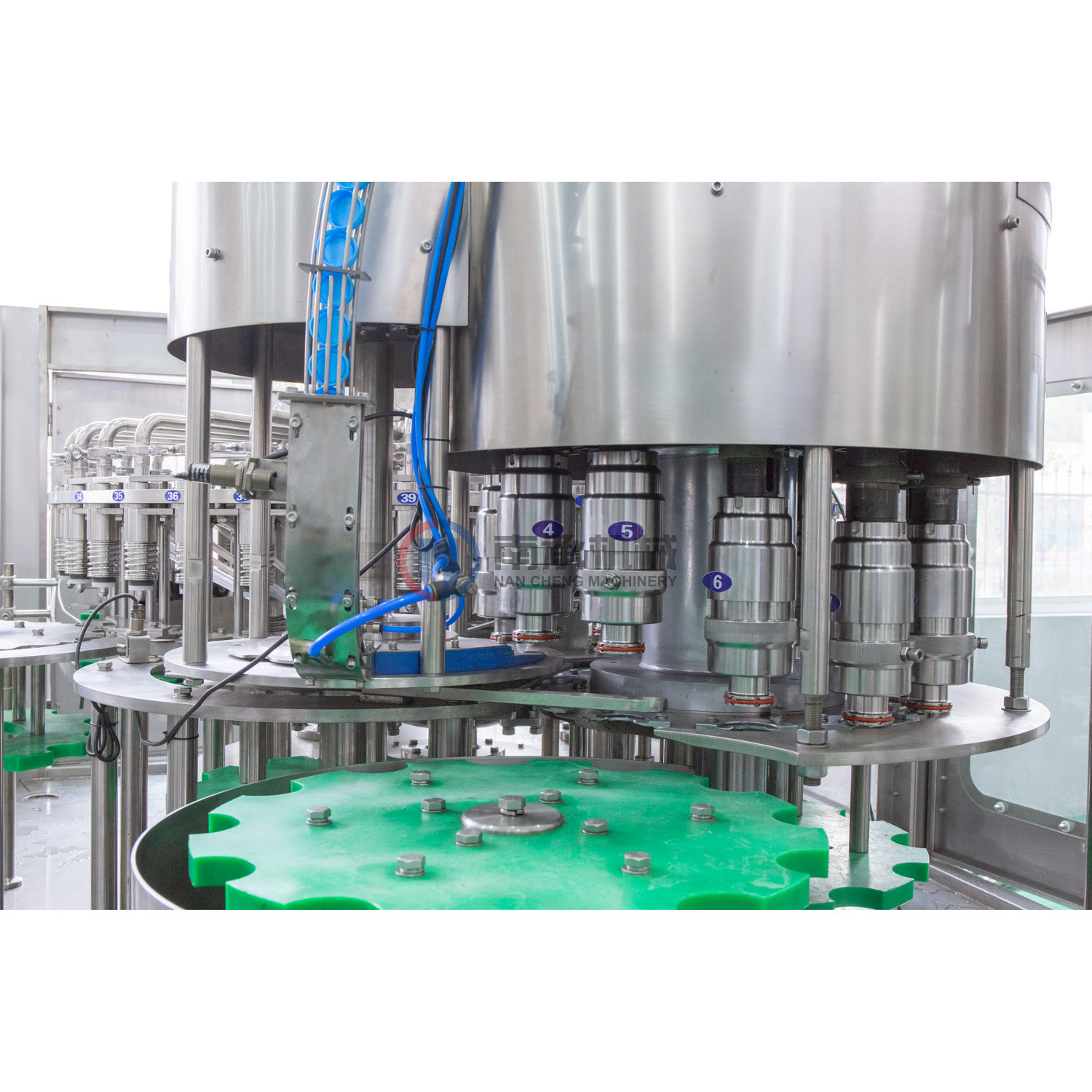

Capping Section

Advanced magnetic torque capping heads guarantee 99.999% accuracy. The cap sorting and detection system prevents reverse caps, ensuring perfect sealing. The dual-purpose head design fits both flat and sports caps.

PET BOTTLE JUICE FILLING MACHINE washing part

PET BOTTLE JUICE FILLING MACHINE filling part

PET BOTTLE JUICE FILLING MACHINE capping part

RXGF40-40-12 PET BOTTLE JUICE FILLING MACHINE TECHINCAL PARAMETERS

MODEL OF PET BOTTLE JUICE FILLING MACHINE	RXGF40-40-12
Capacity	16000 bottles/h based on 500ml
Working stations	Washing 40 heads, Filling 40 heads, Capping 12 heads
Filling Temperature	Normal temperature
Filling Type	Constant Pressure Filling
Suitable bottle type	￠20-￠100 H=170-320
Man motor power	17.5KW
Overall machine power	18KW
Control Type	PLC
Dimension	420033002300MM
Weight	4500KG
Voltage	Customize according to different country voltage

RXGF40-40-12 PET BOTTLE JUICE FILLING MACHINE ELECTRICAL CONFIGURATION

Name	Brand
Drive motor	ABB
PLC	SIEMENS
Frequency device	SIEMENS
Touch Screen	SIEMENS
Photoelectric switch	OMRON
Telemecanique	OMRON
Contactor	SCHNEIDER
Circuit breaker	DELIXI
Floatless level control	OMRON

ELECTRICAL CONFIGURATION

COMPLETE LINE SOLUTION WITH PET BOTTLE JUICE FILLING MACHINE

PET BOTTLE JUICE FILLING MACHINE Juice-Production-Line

Our PET bottle juice filling machine can be integrated into a full automatic juice bottling line, including:

Water treatment system – Multi-stage filtration, RO, UV, and ozone sterilization for clean, safe processing water.
Juice preparation and mixing system – Includes sugar dissolving, pasteurization, blending, and homogenization for consistent flavor and quality.
Bottle blowing machine – Produces PET bottles on-site, ensuring uniform quality and reduced transportation costs.
Air conveyor system – Smooth and hygienic bottle transfer between machines.
Rinsing, filling & capping unit – The 3-in-1 system for high-speed, hygienic production.
Labeling & date coding machine – For professional branding and traceability.
Shrink wrapping or carton packaging machine – Ensures efficient packaging for retail and distribution.

PET Bottle Blow Molding Machine

PET BOTTLE JUICE FILLING MACHINE-pet bottle blow molding machine

Semi automatic blow molding machine for you choose

Water Treatment System

PET BOTTLE JUICE FILLING MACHINE-water treatment

Automatic Bottled juice production fruit juice blending system

The mixing system including:

Electrical heating/ steam
heating sugar melting tank
Syrup Pump
Mixing tank
Stainless steel pump
Double filter
Homogenizer
Double layers heating tank
CIP cleaning system
UHT sterilizer

Automatic Shrink Sleeve Labeling Machine

PET BOTTLE JUICE FILLING MACHINE-labeling machine

Bottle Shrink Packing Wrapping Machine

PET BOTTLE JUICE FILLING MACHINE-pe film packing machine

PET BOTTLE JUICE FILLING MACHINE-l type pe film packing machine

Automatic l type shrink packing wrapping machine for you choose

Company Profile

ABOUT NANCHENG MACHINERY – LEADING JUICE FILLING MACHINE MANUFACTURER

PET bottle juice filling machines

Founded in 2005, Nancheng Machinery is a professional juice filling machine manufacturer specializing in PET bottle juice filling machines, automatic juice bottling lines, and complete juice production line solutions.

With over 15 years of experience, Nancheng has successfully delivered more than 2,000 beverage production projects to 80+ countries across Asia, Africa, Europe, and the Middle East. Our production base in Zhangjiagang, China, spans 8,000㎡ and is equipped with CNC machining centers, stainless steel fabrication workshops, and advanced testing facilities.

Every juice filling and packing machine is built to European standards and certified by CE, ISO, and SGS. We use world-class components — Siemens PLC, ABB motor, SKF bearings, and Schneider electricals — to ensure precision, durability, and stability.

As a complete juice production line manufacturer, Nancheng offers full turnkey solutions: from water treatment and juice preparation systems to filling, labeling, and packaging equipment. Our machines feature energy-saving design, hygienic construction, and customizable configurations from 2000BPH to 48000BPH.

Beyond manufacturing, Nancheng provides installation, operator training, and lifetime technical support, ensuring long-term success for your beverage production. Choosing Nancheng means partnering with a reliable team dedicated to innovation, quality, and global service excellence.

We Supply Your Factory Design Service

We Supply Your Bottle Design Service

Bottle Design

FAQ

FAQ OF PET BOTTLE JUICE FILLING MACHINE

Q1: What types of beverages can the PET bottle juice filling machine handle?

A1: The PET bottle juice filling machine is designed for a wide range of hot-fill beverages, including fruit juice, tea drinks, energy beverages, vitamin water, and functional drinks. It uses advanced hot filling technology (85–95°C) to preserve natural flavor, color, and nutrients while ensuring shelf stability.

Q2: Can this juice filling and packing machine work with different PET bottle sizes and shapes?

A2: Yes. The automatic PET bottle juice filling machine supports bottle volumes from 250ml to 2000ml and can be easily adjusted to fit different shapes using quick-change bottle molds. This flexibility makes it ideal for juice production lines targeting multiple product SKUs.

Q3: How does the hot filling system control temperature and maintain product quality?

A3: The juice filling and packing machine features an intelligent temperature control system that keeps the filling temperature steady between 85°C and 95°C. This ensures product sterilization and prevents oxidation. The system also includes CIP automatic cleaning and UHT sterilization, making the hot juice filling process hygienic, reliable, and efficient.

Q4: What kind of after-sales service does Nancheng Machinery provide?

A4: As a professional juice filling machine manufacturer, Nancheng provides comprehensive after-sales support, including overseas installation and commissioning, operator training, lifetime technical assistance, and genuine spare parts supply. Our global service network ensures that every automatic juice filling and packing line operates with maximum uptime and efficiency.

Q5: Can Nancheng supply a complete PET bottle juice production line?

A5: Absolutely. Nancheng offers turnkey juice bottling solutions — from water treatment, juice mixing and blending, PET bottle blowing, rinsing-filling-capping, labeling, to final shrink packaging. As a trusted juice production line manufacturer, we integrate all equipment into a unified automatic juice bottling line, ensuring high hygiene standards, energy efficiency, and consistent output.

Q6: What are the advantages of choosing Nancheng’s PET bottle juice filling machine?

A6: Nancheng’s PET bottle juice filling machines are CE-certified and built with stainless steel 304/316 contact parts, Siemens PLC, ABB motors, and SKF bearings. They feature high-speed performance (up to 16,000BPH), precise filling accuracy, and long-term stability, making them a top choice for beverage factories seeking dependable juice bottling equipment.
