Product Description
It demonstrates a full tea filling line, showing the sequence from bottle preparation to finished product.
You can clearly see high-speed operations, ideal for using in your product-page to build confidence in your “tea bottle filling machine” and “automatic tea filling machine” claims.
Although not specific to your exact model, it provides a visual reference of what a professional “tea filling line” looks like — helpful for prospects.

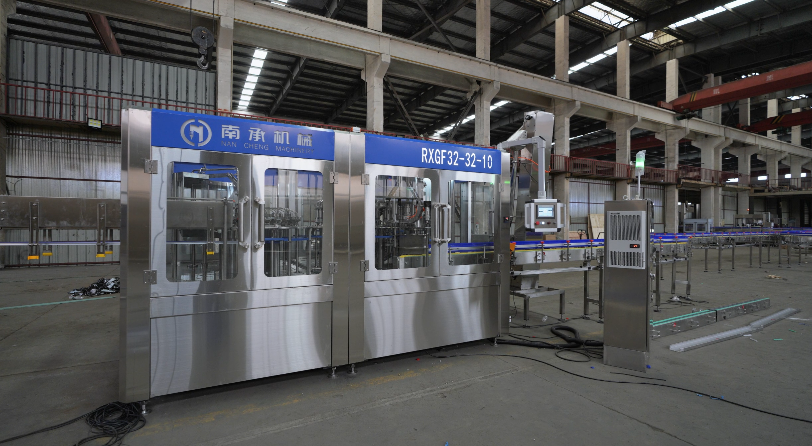

The tea filling machine is an advanced beverage filling system designed specifically for filling hot tea, iced tea, herbal tea, and other tea-based drinks into PET or glass bottles.
As a trusted beverage equipment supplier, Nancheng Machinery provides high-performance automatic tea filling machines that integrate bottle rinsing, hot filling, and capping into a single, compact, and fully automated unit.
Our tea bottle filling machine ensures hygienic production, high accuracy, and stable operation, making it ideal for both large-scale tea drink factories and new beverage startups.
The tea filling line is specially engineered for hot and cold tea beverage production, including bottled green tea, black tea, fruit tea, and lemon iced tea.
This complete process guarantees product freshness, precise filling temperature, and excellent sealing performance.

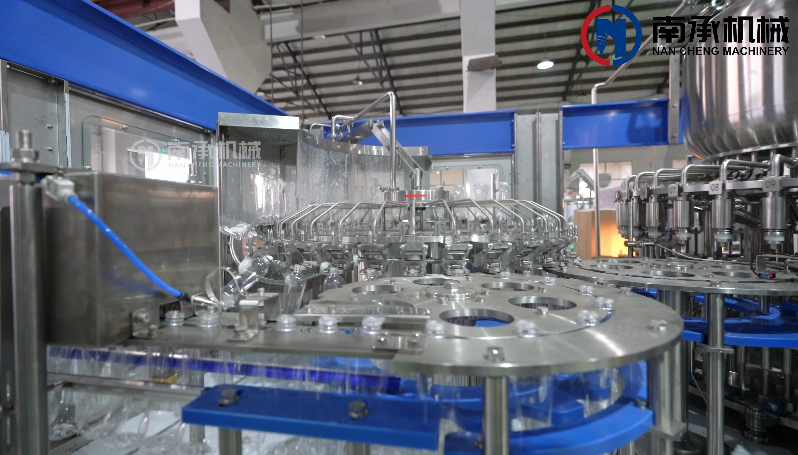

Before filling, bottles are thoroughly rinsed to remove dust or residues using high-pressure sterile water.
304/316 stainless steel nozzles for long-lasting hygiene.
Automatic bottle gripping and inversion system for 360° cleaning.
No bottle – no rinse function ensures efficient water use.
The rinsing system ensures every bottle entering the tea filling machine is perfectly clean and ready for high-temperature tea filling.

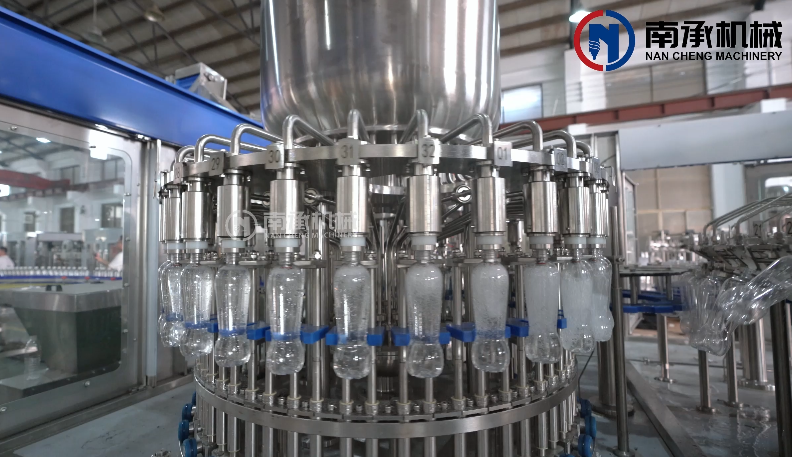

The filling section of the tea filling machine uses a hot filling process, designed to preserve the tea’s flavor and freshness while ensuring sterility.
Hot filling temperature: 85–92°C (adjustable).
High-precision valves for consistent filling levels.
CIP automatic cleaning system for easy maintenance.
Optional deaeration system to prevent oxidation and maintain tea color.
Whether you’re producing hot tea or cold ice tea, the automatic tea filling machine maintains product integrity and reduces contamination risk.

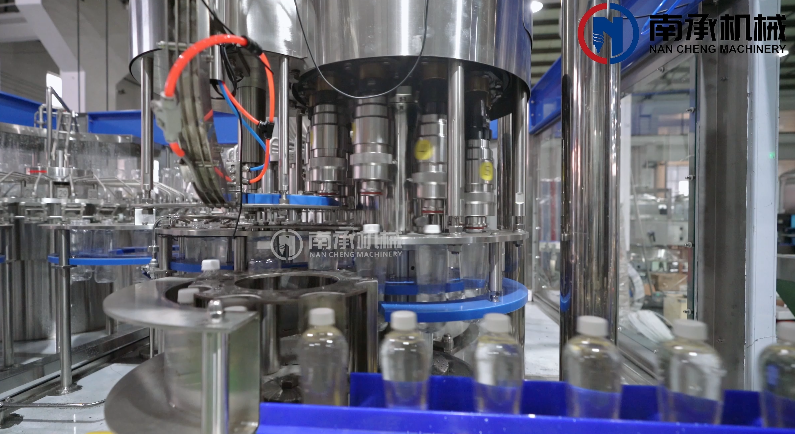

The capping unit seals bottles instantly after filling to prevent contamination.
Magnetic torque capping heads ensure uniform sealing torque.
Cap sorter and elevator for automatic feeding.
Compatible with plastic screw caps and aluminum caps.
Cap absence detection ensures every bottle is properly sealed.
This precise capping process guarantees product safety and shelf stability for your bottled tea.

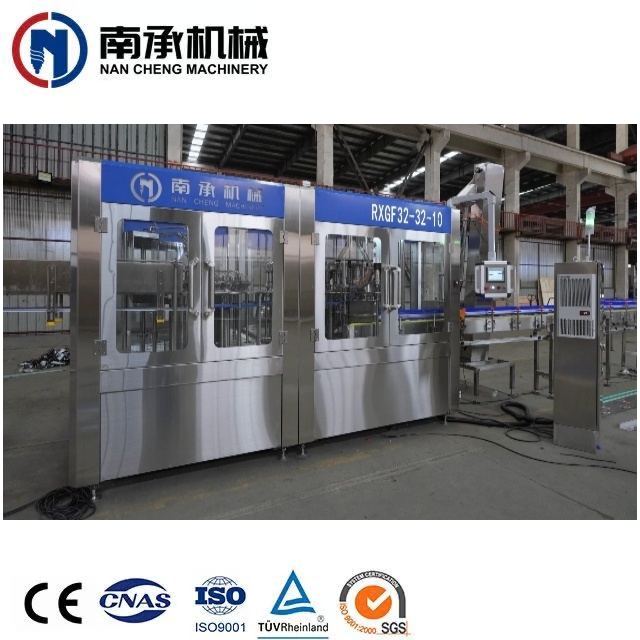

MODEL OF TEA FILLING MACHINE | RXGF32-32-10 |
Capacity | 13000 bottles/h based on 500ml |
Working stations | Washing 32 heads, Filling 24 heads, Capping 8 heads |
Filling Temperature | Normal temperature |
Filling Type | Constant Pressure Filling |
Suitable bottle type | ￠20-￠100 H=170-320 |
Man motor power | 16KW |
Overall machine power | 17KW |
Control Type | PLC |
Dimension | 3720*3300*2300MM |
Weight | 3500KG |
Voltage | Customize according to different country voltage |
| Name | Brand |
| Drive motor | ABB |
| PLC | SIEMENS |
| Frequency device | SIEMENS |
| Touch Screen | SIEMENS |
| Photoelectric switch | OMRON |
| Telemecanique | OMRON |
| Contactor | SCHNEIDER |
| Circuit breaker | DELIXI |
| Floatless level control | OMRON |
Nancheng provides not only a high-quality tea filling machine, but also a complete turnkey tea filling line — a fully integrated system covering tea preparation, filtration, sterilization, filling, labeling, and packaging.
Our automatic tea filling machines are engineered to handle both hot-fill tea and cold ice tea, maintaining flavor, freshness, and shelf stability.
With over 20 years of experience in beverage technology, Nancheng offers a comprehensive tea bottle filling machine solution that ensures efficiency, hygiene, and precision throughout the entire production process.
Every tea drink starts with pure, high-quality water.
Nancheng’s water treatment system includes sand filtration, activated carbon filtration, reverse osmosis, and UV or ozone sterilization to guarantee crystal-clear water for tea extraction.
Automatic control of flow and pressure
Stainless steel construction for durability
Suitable for mineral water, purified water, and flavored beverages
This ensures that your tea filling line meets international beverage quality standards.
At the heart of every great tea beverage is a consistent and aromatic brewing process.
Our tea brewing system is designed for controlled extraction of tea leaves, herbs, or concentrates, ensuring the best flavor and color.
Equipped with temperature-controlled brewing tanks
Supports blending of syrup, flavors, and additives
Integrated CIP automatic cleaning system
Suitable for both hot tea and cold ice tea filling machines
The prepared tea liquid is then filtered and temporarily stored in an insulated holding tank before moving to the filling section.
To maintain product safety and shelf life, the brewed tea undergoes a series of controlled thermal processes:
Plate heat exchanger for uniform heating
Ultra-high temperature sterilization (UHT) to kill microorganisms
Cooling unit adjusts filling temperature based on hot-fill or ice tea requirements
This step ensures the beverage entering the tea bottle filling machine is clean, stable, and ready for high-speed bottling.
The tea filling machine is the core of the entire line. It integrates three key processes:
Rinsing Part: Bottles are automatically washed using sterile water to remove impurities.
Filling Part: The automatic tea filling machine precisely fills the bottles at controlled temperatures (85–92°C for hot tea or 20–25°C for iced tea).
Capping Part: Seals bottles immediately after filling to prevent contamination.
Key Features:
High-speed rotary structure for stable operation.
Food-grade stainless steel contact parts.
PLC + touchscreen control for automatic adjustment.
“No bottle, no fill” and “no cap, no capping” protection systems.
The tea bottle filling machine ensures every bottle is filled accurately, sealed tightly, and retains the authentic tea aroma.
After filling and capping, bottles move to the labeling stage.
Nancheng offers several labeling options suitable for tea filling lines of different capacities:
Shrink sleeve labeling machine for PET bottles.
Hot melt OPP labeling machine for high-speed operations.
Self-adhesive labeling machine for glass tea bottles.
Optional inkjet or laser coding machines mark batch numbers, manufacturing dates, and expiry dates — ensuring traceability and compliance.
In the final stage, the tea bottles are packed for transportation and distribution.
Our packaging system includes:
Shrink wrapping machine for film packs (6, 12, 24 bottles).
Carton packing machine for export packaging.
Automatic palletizer for stacking and wrapping pallets.
The entire system operates synchronously with the tea filling line, minimizing labor and maximizing production speed.
The whole tea filling line is managed by an advanced PLC and HMI control system.
Centralized control of temperature, filling volume, and speed.
Real-time display of production data and fault alarms.
Remote monitoring and maintenance support.
This automation ensures the automatic tea filling machine operates efficiently, safely, and with minimal downtime.
Semi automatic blow molding machine for you choose

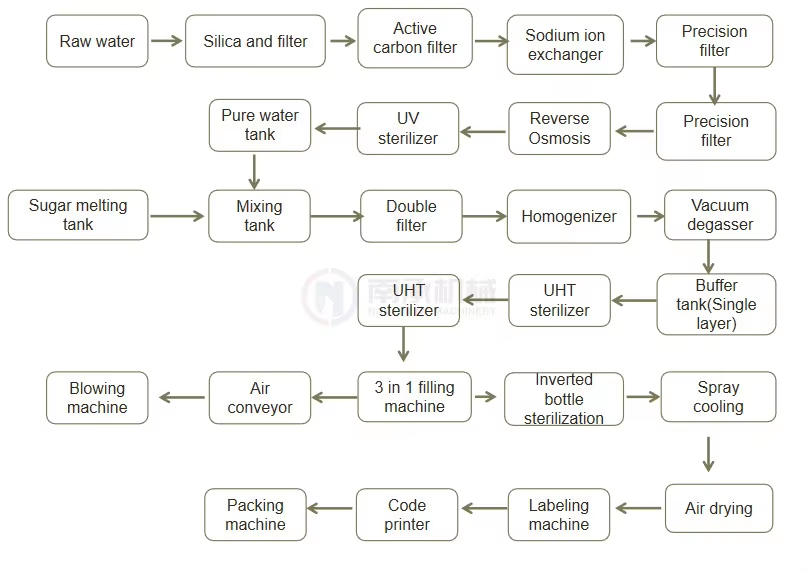

Automatic Bottled juice production fruit juice blending system
The mixing system including:
Electrical heating/ steam
heating sugar melting tank
Syrup Pump
Mixing tank
Stainless steel pump
Double filter
Homogenizer
Double layers heating tank
CIP cleaning system
UHT sterilizer
Automatic l type shrink packing wrapping machine for you choose
Company Profile
Choosing the right tea filling machine is crucial for ensuring consistent product quality, efficient operation, and long-term reliability. At Nancheng Machinery, we deliver more than just a machine — we provide a complete solution for your beverage production success.
With over two decades of experience, Nancheng has become one of the leading tea filling machine manufacturers in China.
Our deep understanding of beverage technology enables us to design equipment suitable for all kinds of tea — green tea, black tea, milk tea, herbal tea, and ice tea filling machine applications.
Nancheng’s automatic tea filling machines are equipped with advanced temperature control and sterilization systems, ensuring safe filling for both hot-fill and cold-fill tea.
Whether your production line requires 85°C hot tea filling or 20°C ice tea bottling, our system ensures minimal flavor loss and maximum freshness.
From bottle rinsing to capping, every process is PLC-controlled with smart sensors for precise synchronization.
Our tea bottle filling machines feature:
High-speed rotary filling valves
“No bottle, no fill” protection
Automatic cleaning (CIP) systems
Touchscreen interface for easy operation
This automation significantly reduces labor costs and human error, improving production efficiency.
All contact parts are made of SUS304 or SUS316 stainless steel, designed to meet international hygiene standards.
The entire tea filling line is easy to clean and maintain, ensuring contamination-free production.
We design tailor-made solutions for each customer.
You can choose bottle type (PET, glass, or aluminum), bottle size (250ml–2L), and production capacity (from 2,000 to 36,000 bottles/hour).
Every tea filling machine is engineered to fit your production layout perfectly.
Nancheng provides installation, commissioning, operator training, and lifetime technical support.
We serve more than 60 countries, offering 24/7 after-sales service to ensure your tea filling line runs smoothly.
By producing core components in-house, we ensure stable quality and competitive cost.
Investing in a Nancheng tea filling machine means long-term reliability, low maintenance, and fast ROI for your beverage business.
FAQ
Our tea filling machines are suitable for various beverages including green tea, black tea, oolong tea, fruit tea, milk tea, and ice tea.
We offer both hot tea filling machines for sterilized beverages and cold tea filling machines for chilled drinks.
Hot tea filling (85–92°C) ensures product sterilization and longer shelf life, while cold or ice tea filling machines operate at 20–25°C for drinks requiring fresh flavor retention.
Both systems are available in Nancheng’s automatic tea filling machine range.
Our tea bottle filling machines can work with:
PET bottles (for mass production and low cost)
Glass bottles (for premium tea products)
Aluminum bottles (for ready-to-drink tea cans)
We also design custom bottle molds and capping systems to fit your brand.
We manufacture tea filling lines with different capacities:
Small scale: 2,000–5,000 bottles/hour
Medium scale: 8,000–15,000 bottles/hour
Large scale: 20,000–36,000 bottles/hour
All systems can be upgraded or expanded based on your future production needs.
Every Nancheng tea filling line is equipped with a CIP (Clean-In-Place) system that automatically cleans tanks, pipes, and filling valves without disassembly.
This ensures hygiene, saves labor, and minimizes downtime.
Our automatic tea filling machines are equipped with Siemens PLC, touchscreen HMI, and sensor-based control systems.
This allows precise control of temperature, volume, and speed, improving filling accuracy and reducing waste.
Yes. Nancheng offers full tea filling production lines, including:
Water treatment system
Tea brewing and mixing unit
UHT sterilization system
Tea filling machine (rinser, filler, capper)
Labeling & packing system
You can start your tea production business with a single, complete solution.
Simply send us your production requirements — beverage type, bottle size, capacity (BPH), and filling temperature — and our engineers will design a custom tea filling machine solution with full technical parameters and pricing.
