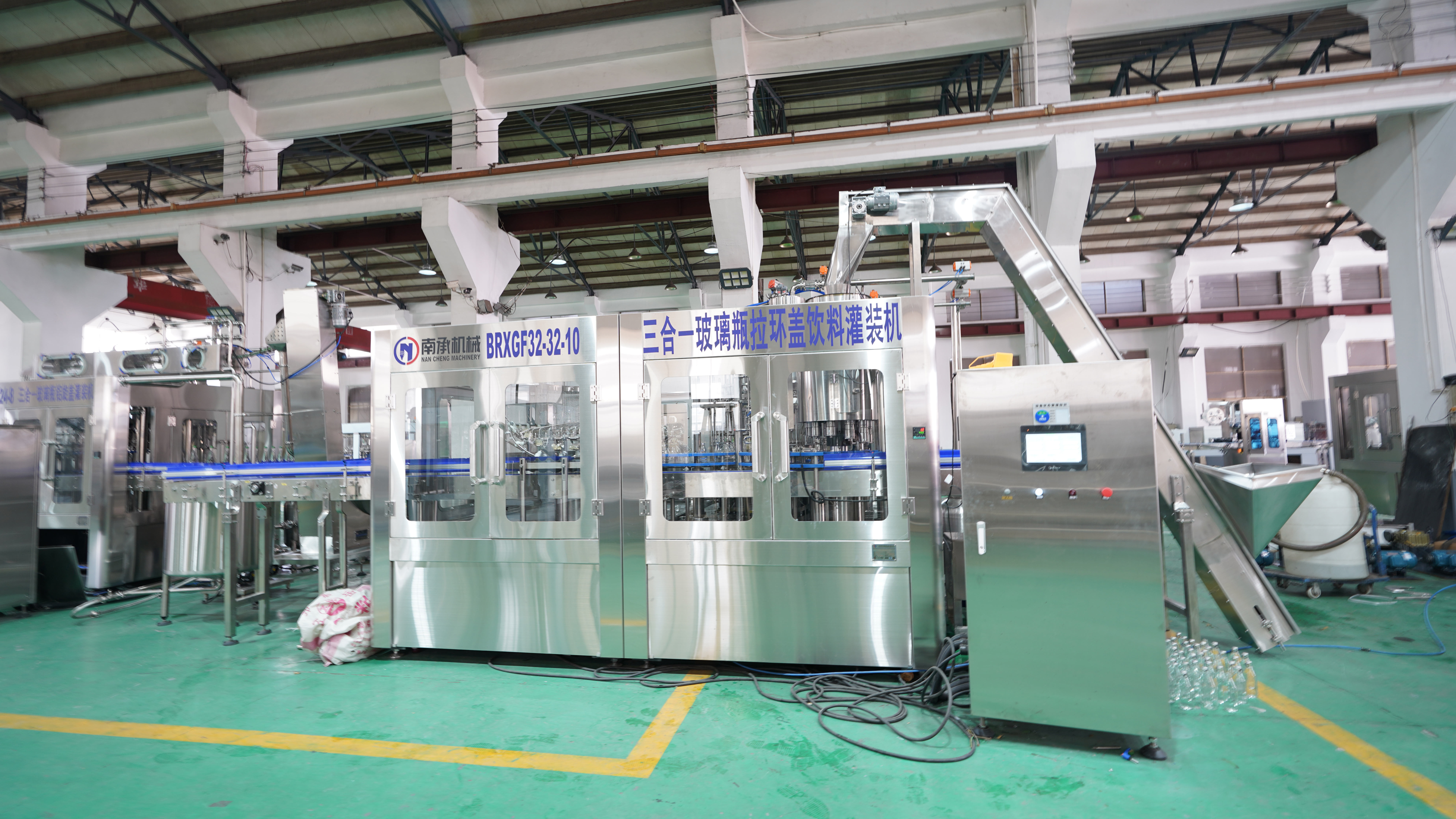

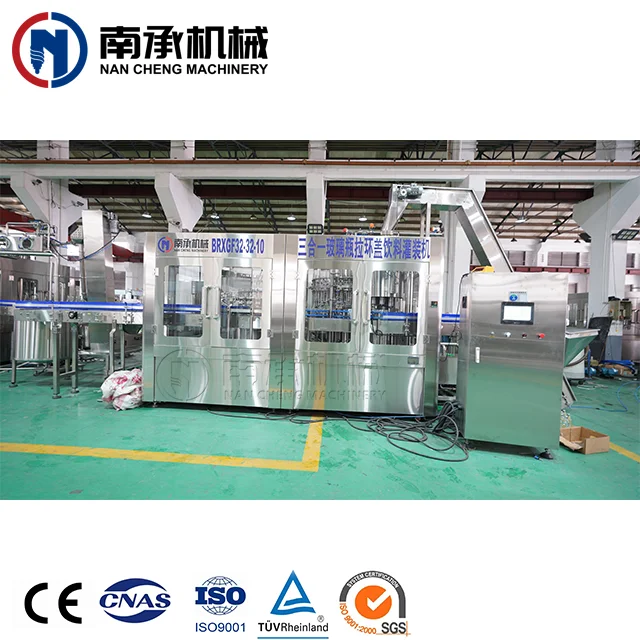

12000BPH Glass Bottle Milk Filling Machine

The glass bottle milk filling machine by Nancheng Machinery is a fully automatic solution for filling fresh milk, pasteurized milk, and flavored milk into glass or PET bottles with high precision and hygiene.This advanced automatic milk filling machine integrates rinsing, filling, and capping in one unit, suitable for dairy plants of all scales.

Model:
BGF 32-32-8
Brand:
NANCHENG
Function:
Washing Filling Capping
Material:
SUS304/316
Control:
PLC+ Touch Screen
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Bottles，cans
Driven type:
Electric and pneumatic
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

Video of Milk Filling Machine

Watch how our milk filling machine works — from bottle rinsing, filling, to capping — in one smooth, automated process. The entire line is PLC-controlled to ensure consistency and minimal product loss.

Introduction of Milk Filling Machine

The milk filling machine is a highly efficient and hygienic solution designed for filling fresh milk, pasteurized milk, flavored milk, yogurt drinks, and other dairy-based liquids into bottles or containers.

As a professional beverage equipment manufacturer, Nancheng Machinery provides complete milk filling lines that meet international standards of food safety, accuracy, and production efficiency.

Our automatic milk filling machine is ideal for both small-scale dairy plants and large commercial milk processing factories. Whether you use glass bottles or PET bottles, Nancheng ensures your milk products are filled safely, cleanly, and efficiently.

Milk Production Process with Rinsing, Filling & Capping

rinsing part

filling part

capping part

The milk bottle filling machine integrates three synchronized parts to deliver precise, hygienic, and stable bottling performance:

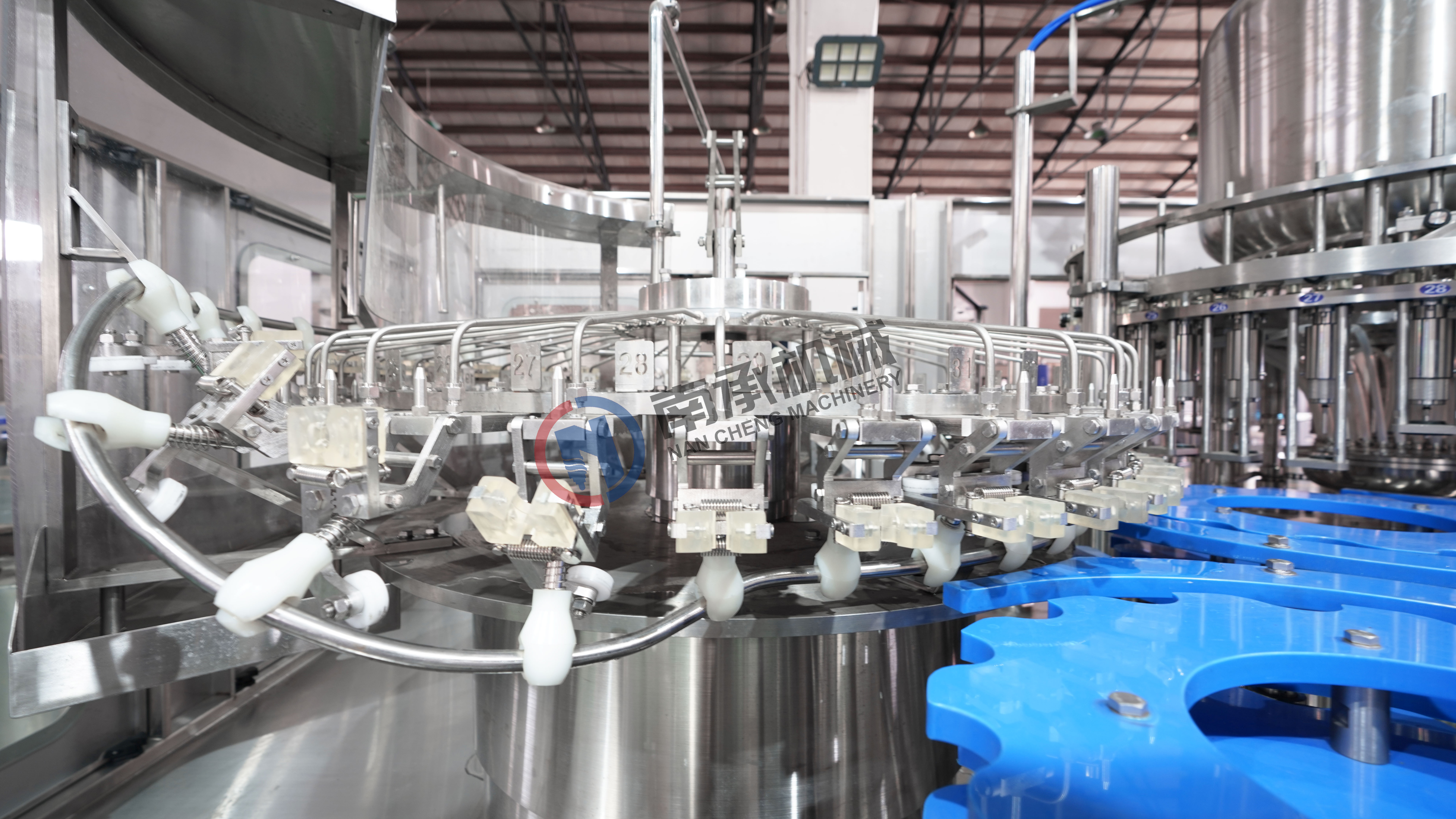

1. Rinsing Part

Bottles are automatically rinsed with sterilized water or air.
Internal and external bottle cleaning ensures hygiene before filling.
Applicable for both glass bottle milk filling machines and PET bottles.

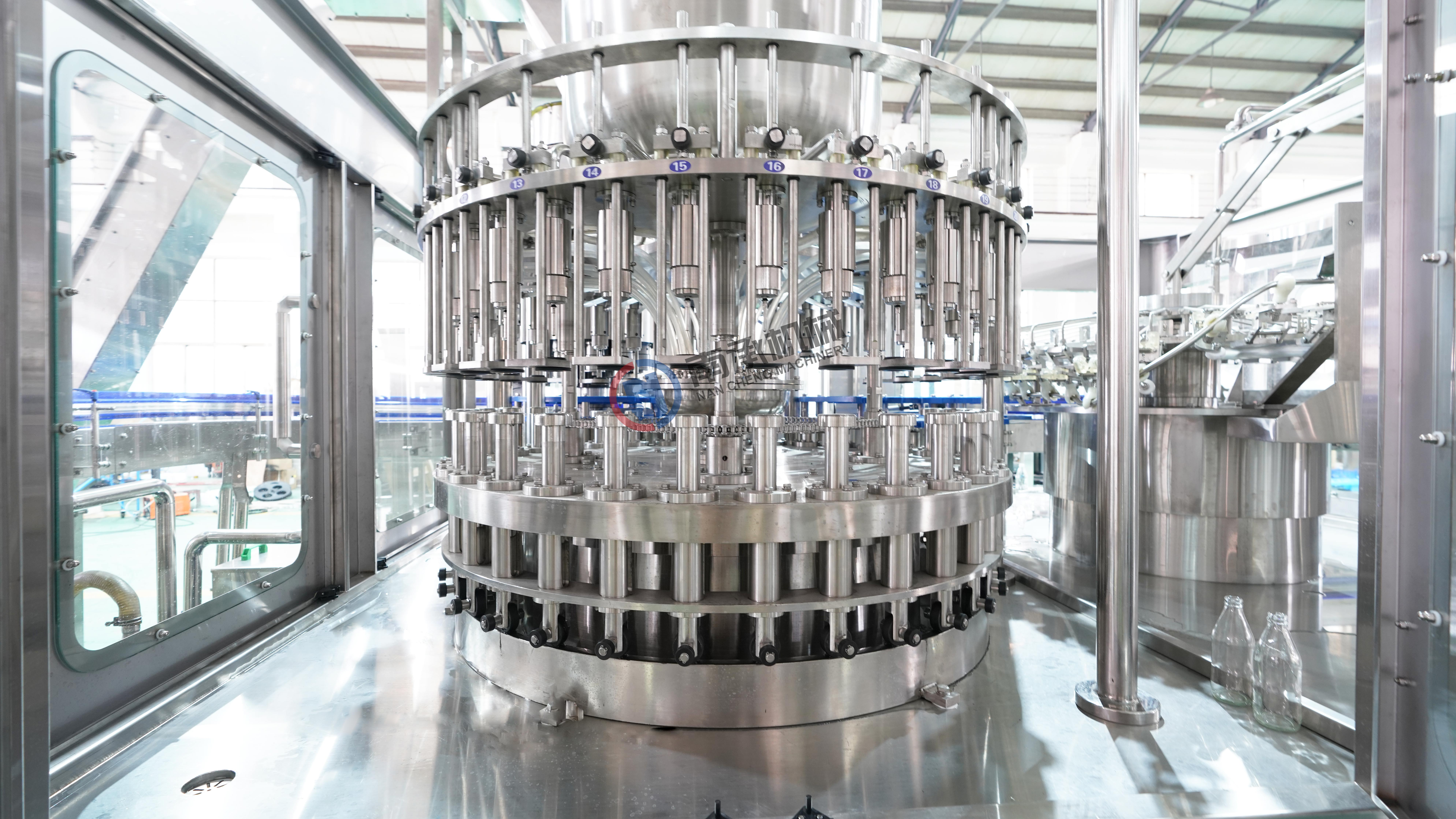

2. Filling Part

The liquid milk filling machine uses high-precision valves designed to minimize foam and prevent spillage.
It supports cold-fill (2–6°C) and warm-fill (25–35°C) processes for different milk types.
The automatic milk filling machine ensures accurate liquid volume with no wastage.

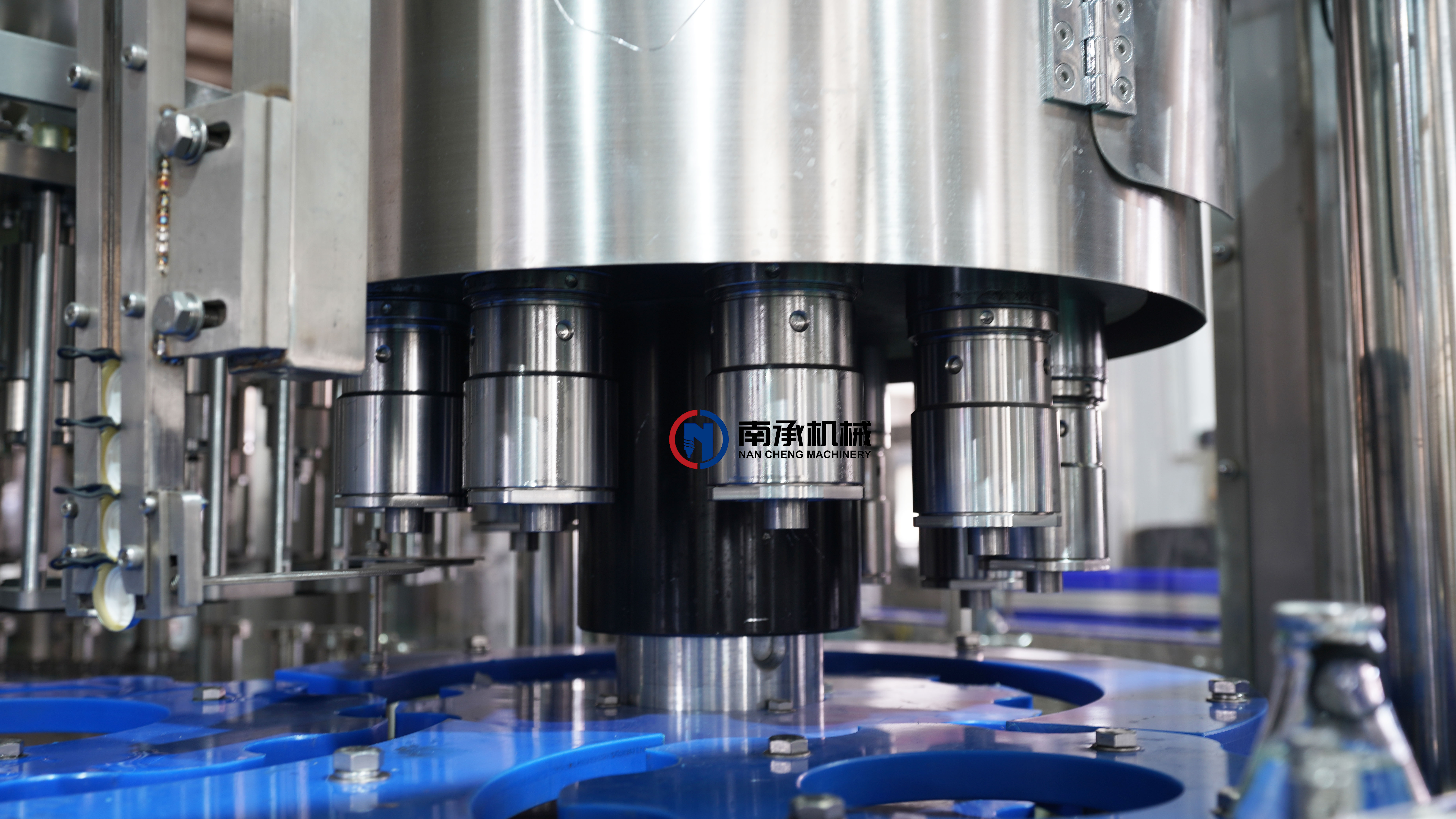

3. Capping Part

Capping heads automatically pick and seal aluminum, plastic, or twist caps.
The design guarantees airtight sealing to extend milk shelf life.
Each milk filling machine in glass bottle includes adjustable torque control to prevent over-tightening or leakage.

Characteristics of Milk Filling Machines

1. Hygienic Design for Dairy Applications

Our milk filling machines are made from high-grade stainless steel with sanitary welds, ensuring bacteria-free operation.

The pipeline system is designed according to CIP/SIP standards, enabling full automatic cleaning and sterilization.

2. Hot and Cold Filling Flexibility

Whether you’re producing pasteurized milk, cold milk, or flavored milk, Nancheng’s system adapts easily with temperature-controlled filling valves.

3. High Precision & Stability

Servo-driven filling valves ensure consistent volume accuracy within ±1%.

The automatic milk filling machine runs smoothly even at high speed, reducing downtime and product loss.

4. Customizable & Energy Efficient

We design custom milk filling lines based on your production capacity, layout, and bottle type.

All systems feature low power consumption, reliable operation, and simple maintenance.

5. Global Technical Support

Nancheng offers turnkey installation, training, and long-term technical service in over 60 countries.

Our engineers ensure your liquid milk filling machine operates efficiently with minimum maintenance cost.

Glass Bottle Milk Filling Machine Specification

Item	Description
Product Name	Glass Bottle Milk Filling Machine
Application	Fresh milk, pasteurized milk, flavored milk, yogurt drinks
Bottle Type	Glass bottle (150ml–1000ml), optional PET or HDPE
Capacity (BPH)	2,000 – 12,000 Bottles Per Hour (customizable)
Filling Type	Hot filling (75–85°C) or Cold filling (2–6°C)
Filling Accuracy	±1%
Rinsing System	Automatic bottle rinsing with sterile water or air
Filling System	Gravity or pressure filling valves for liquid milk
Capping System	Automatic cap sorter and sealing for aluminum / plastic caps
Material	SUS304 / SUS316 food-grade stainless steel
Control System	Siemens PLC + Touchscreen HMI
Operation Mode	Fully automatic with “no bottle, no fill, no cap” safety
Cleaning System	CIP (Clean-in-Place) automatic internal cleaning
Power Supply	380V / 50Hz / 3 Phase (customizable)
Compressed Air Requirement	0.6–0.8 MPa
Cooling System	Optional plate or tubular cooler
Main Features	Compact 3-in-1 structure (rinse–fill–cap), hygienic design, high filling accuracy
Certification	CE, SGS
Warranty	1 year with lifetime technical support

Main Configuration and Brand List of Glass Bottle Milk Filling Machine

No.	Component	Function Description	Brand / Origin
1	PLC Control System	Central control for automatic operation of rinsing, filling, and capping	Siemens (Germany)
2	Touchscreen (HMI)	User interface for parameter setting and monitoring	Siemens / WEINVIEW (Taiwan)
3	Filling Valve	High-precision gravity/pressure valve for liquid milk; hygienic design	Nancheng Customized / Italy Design
4	Capping Head	Automatic cap sorting and sealing for aluminum / plastic caps	Nancheng / Magnetic Torque Type
5	Main Motor & Frequency Inverter	Power drive for bottle carousel with variable speed control	ABB (Switzerland) / Delta (Taiwan)
6	Air Cylinder & Pneumatics	Bottle lifting, capping pressure control, and valve actuation	SMC (Japan) / Airtac (Taiwan)
7	Electrical Components	Circuit breakers, relays, and contactors for stable operation	Schneider (France)
8	Bearing & Gear System	Smooth rotation and long lifespan of filling carousel	SKF (Sweden)
9	Water Pump & Milk Pump	For rinsing water circulation and milk transfer	CNP (China) / Grundfos (Denmark)
10	Conveyor Motor	Synchronizes bottle flow through rinsing, filling, and capping stations	SEW (Germany)
11	Bottle Rinsing Nozzle	Sterile water spray for cleaning inside of glass bottles	304 Stainless Steel Custom Type
12	CIP Cleaning System	Fully automatic cleaning system for pipes, tanks, and valves	Nancheng Standard Design
13	Frame Material	Entire structure and contact parts made of food-grade stainless steel	SUS304 / SUS316 (China / Japan)
14	Sensor & Photoelectric Switch	Bottle detection, counting, and “no bottle no fill” protection	Omron (Japan)
15	Lubrication System	Automatic centralized lubrication for rotating parts	SKF / Nancheng Design
16	Cap Sorting System	Automatic cap feeding and orientation	Nancheng Automatic Feeder
17	Electrical Cabinet	Integrated control cabinet with IP65 protection	Stainless Steel Enclosure
18	Safety Protection	Emergency stop, overload protection, and safety doors	Comply with CE Standards

Complete Line Solution with Milk Filling Machine

Nancheng offers a complete milk filling line — not just a single machine, but a fully integrated dairy production system from raw milk processing to packaging.

1. Milk Reception and Filtration

Fresh milk is filtered and cooled immediately upon arrival to remove impurities and stabilize quality.

Equipped with a cooling tank and milk pump.
Maintains product freshness before pasteurization.

2. Pasteurization and Homogenization

Plate heat exchanger ensures uniform pasteurization (72–85°C).
Homogenizer breaks fat molecules for better texture and consistency.
This process guarantees smooth, stable milk suitable for filling.

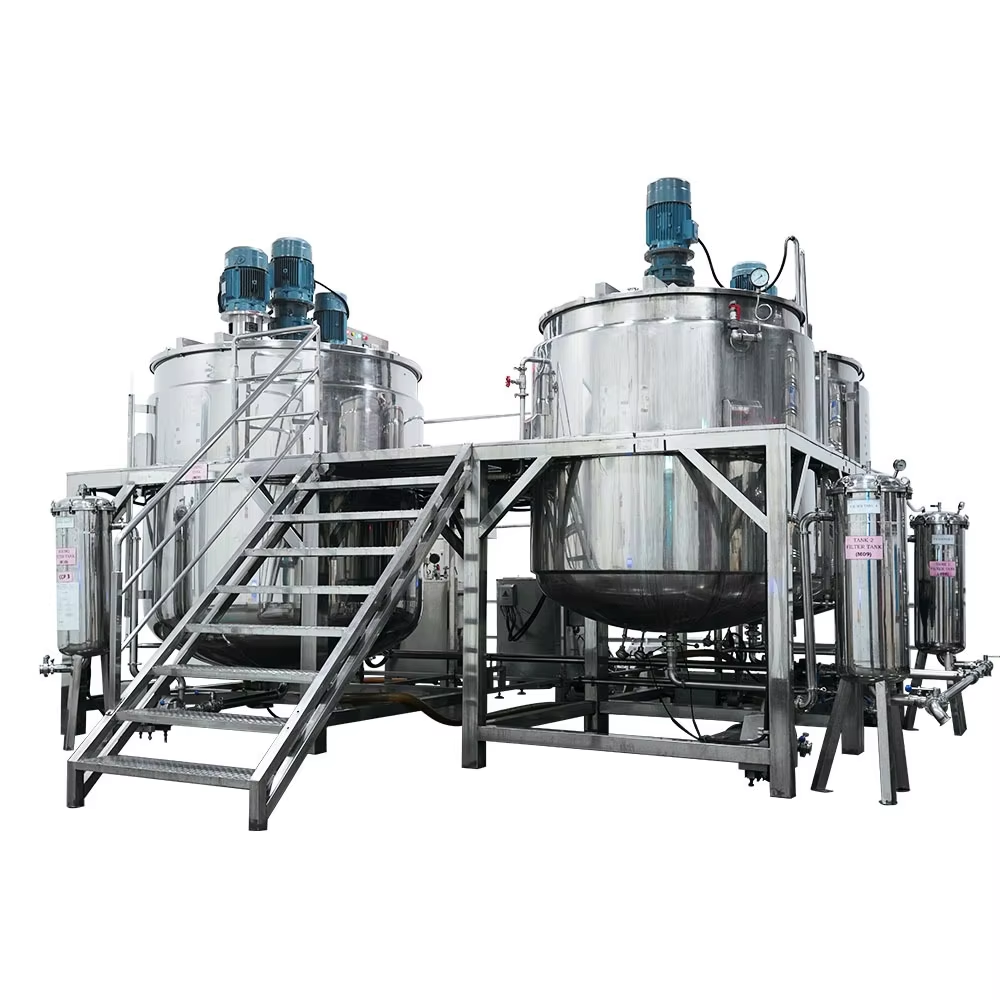

3. Storage & Buffer Tanks

Made from food-grade SUS304/316 stainless steel.
Double-layer insulation for temperature stability.
Equipped with level sensors and automatic agitation.

4. Milk Filling Machine

The heart of the production line — the automatic milk filling machine:

Fills up to 36,000 bottles/hour.
No bottle, no fill, no cap protection system.
Compatible with milk filling machine in glass bottle, PET, or HDPE.
Servo control ensures steady and accurate filling for all liquid milk products.

5. Labeling & Coding System

After filling, bottles are labeled with product information and date codes.

Options: shrink sleeve, self-adhesive, or hot melt labeling.
Inkjet or laser coders mark batch numbers and expiry dates.

6. Packaging System

Shrink wrapping machine for plastic film packaging.
Carton packing machine for safe transport.
Optional palletizing system for automatic stacking.

This complete milk filling line offers high automation, easy operation, and consistent output — perfect for modern dairy producers.
