+86 182 6187 1098
XGF14-12-5
NANCHENG
Washing Filling Capping
SUS304/316
PLC+ Touch Screen
Mitsubishi/Siemens/Schneider
Engineers Available To Service Machinery Overseas
CE TUV
Bottles
Electric and pneumatic
Automatic
Food, Beverage, Commodity
High-accuracy
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Jiangsu, China
| Quantity: | |
|---|---|
Product Description
Watch our drinking water filling machine in action. The video demonstrates the full 3-in-1 process: high-pressure bottle rinsing, precise volumetric filling, and automatic capping. Built with food-grade stainless steel, the system ensures smooth and continuous production while maintaining the highest hygiene standards. This seamless operation guarantees reliable output for bottled water factories worldwide.

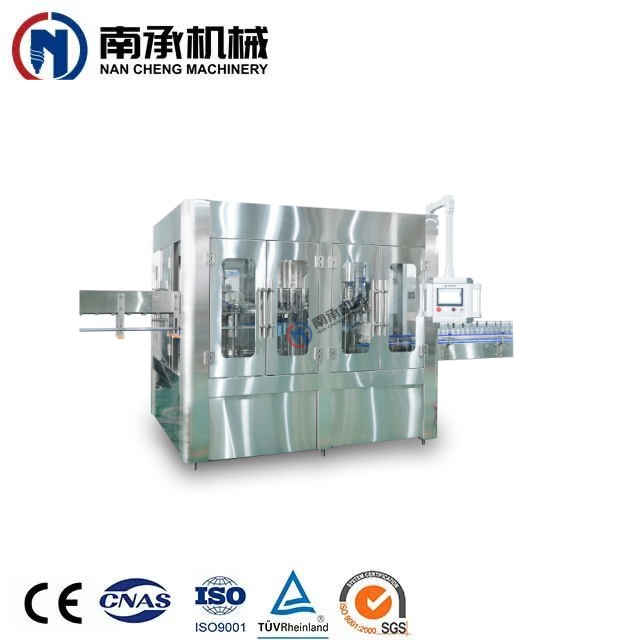

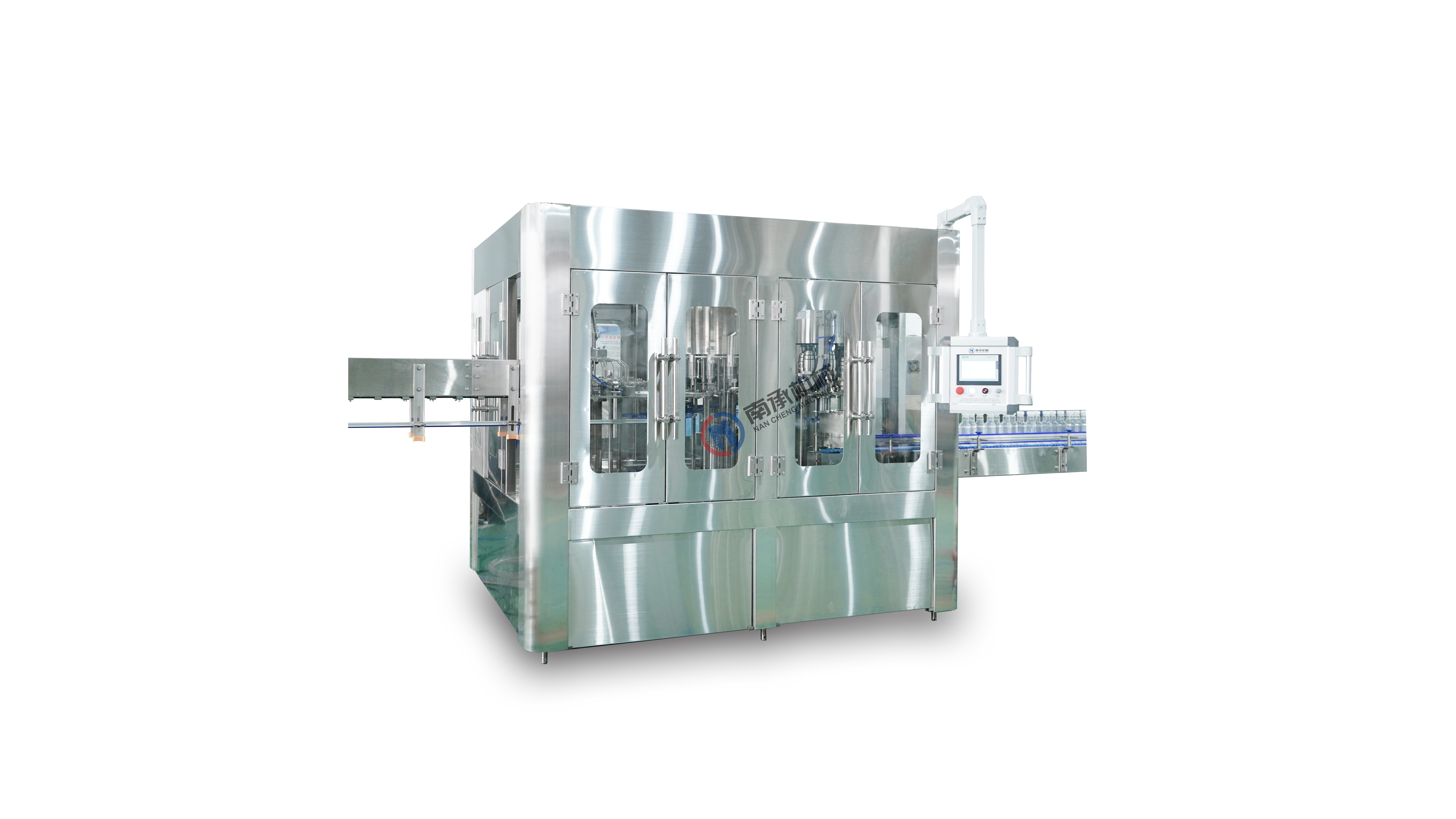

The drinking water filling machine from Nancheng Machinery is a reliable solution for bottled water production. With its rotary system, it integrates rinsing, filling, and capping into one compact frame. Designed for hygienic processing and stable performance, the machine offers a long service life and competitive pricing, making it ideal for both new investors and established water plants.
Combines rinsing, filling, and capping in one unit, reducing floor space and improving efficiency.
Rotary technology ensures continuous bottling with up to 60 bottles per minute.
All water-contact parts are made of stainless steel 304/316 for safe bottled water production.
Factory pre-adjustments and user-friendly controls make it suitable even for beginners.
With an affordable price and long-term durability, it delivers strong value for plants of all sizes.

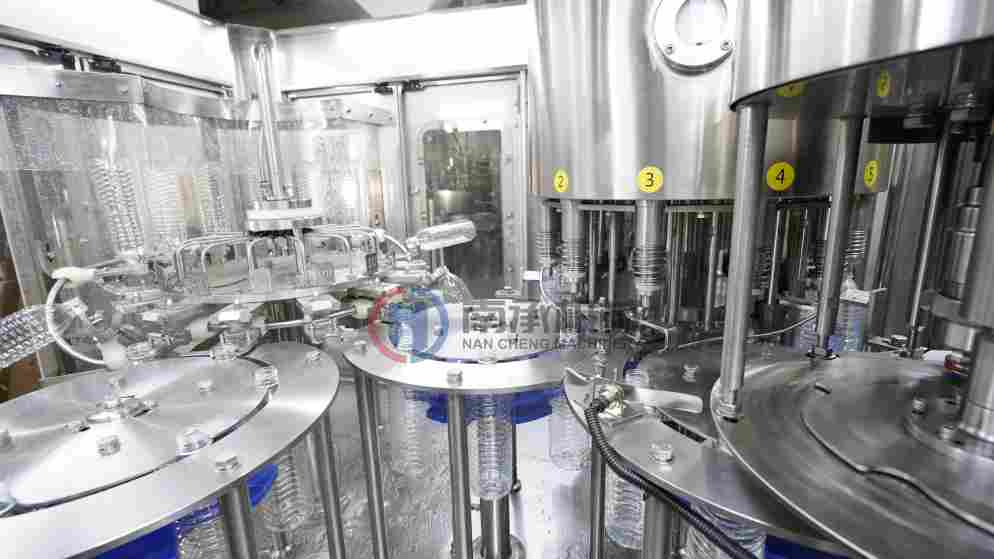

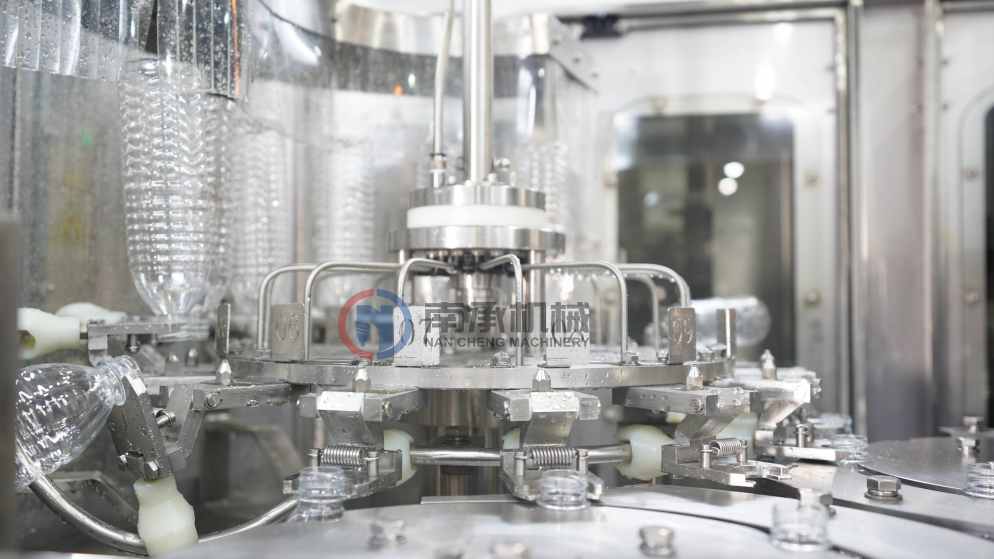

Empty bottles are clamped and rinsed with purified water using 360° high-pressure nozzles.
Features:
Thorough internal cleaning
Food-grade rinsing water system
Automatic bottle positioning

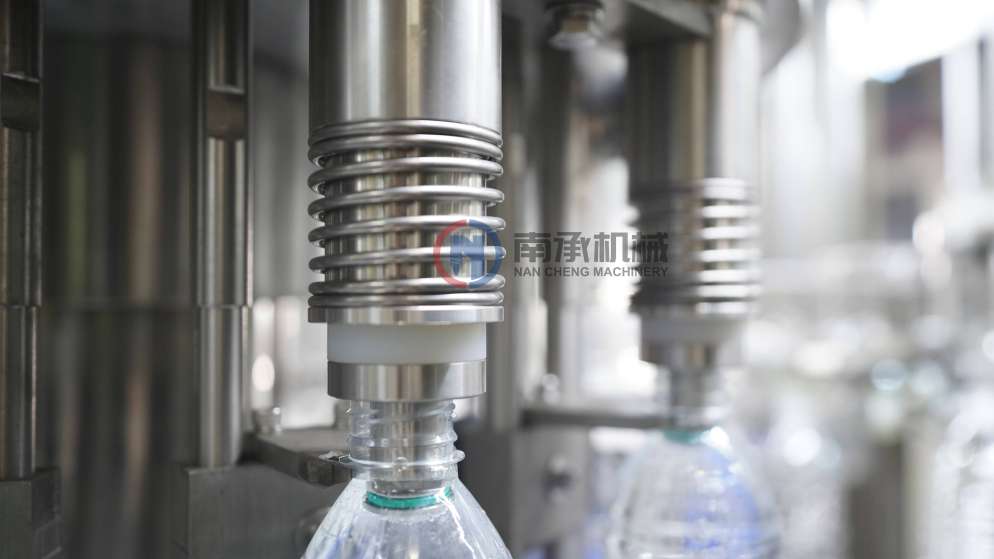

Bottles are transferred to the filling carousel, where advanced filling valves ensure precise filling.
Features:
High-precision volume control
Smooth, foam-free filling
Adaptable to different bottle sizes

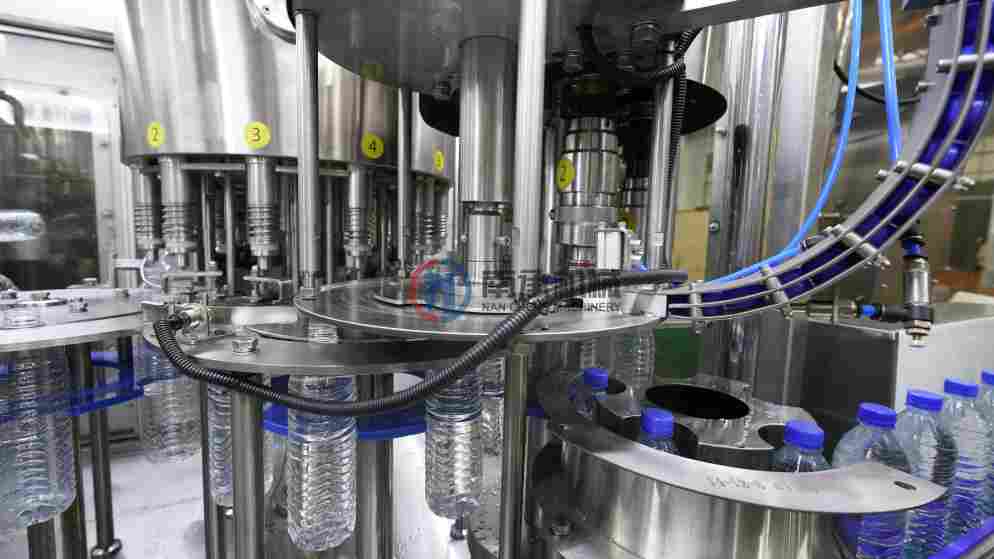

Caps are automatically sorted, placed, and tightened with consistent torque.
Features:
Magnetic capping head for uniform sealing
Automatic cap sorting and feeding
Anti-overload safety protection
MODEL OF DRINKING WATER FILLING MACHINE | XGF14-12-5 |
Capacity | 4000 bottles/h based on 500ml |
Working stations | Washing 14 heads, Filling 12 heads, Capping 5 heads |
Filling Temperature | Normal temperature |
Filling Type | Constant Pressure Filling |
Suitable bottle type | ￠50-￠115 H=190-320 |
Air consumption | 0.5m3/min |
Washing water pressure | 0.2Mpa |
Man motor power | 4KW |
Overall machine power | 5KW |
Filling Water | 2-3T/H |
Consume Water | 1.6T/H |
Control Type | PLC |
Dimension | 2300*1650*2200MM |
Weight | 2000KG |
Voltage | Customize according to different country voltage |
| Name | Brand |
| Drive motor | ABB |
| PLC | SIEMENS |
| Frequency device | SIEMENS |
| Touch Screen | SIEMENS |
| Photoelectric switch | OMRON |
| Telemecanique | OMRON |
| Contactor | SCHNEIDER |
| Circuit breaker | DELIXI |
| Floatless level control | OMRON |

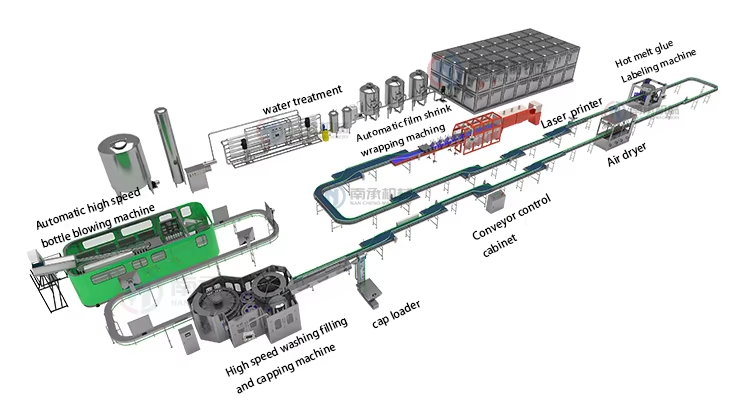

1. Bottle blowing system to make PET plastic bottles ( Semi automatic / Fully automatic )
2. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
3. Air conveyor for empty bottle loading
4. 3 in 1 monoblock Rinser-filler-capper machine
5. Labeling machine(PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. End packaging ( PE film shrink wrapping machine / Carton packing machine )
Transforms PET preforms into bottles of various shapes and capacities, seamlessly connected to the filling line.
Advanced purification with multi-stage filtration, RO, UV, and ozone sterilization ensures safe and stable water quality.
Includes labeling, shrink wrapping, and carton packing to enhance product appearance and logistics convenience.
Company Profile
Company Name: Zhangjiagang Nancheng Machinery Co., Ltd.
Established: 2010
Location: Zhangjiagang Economic Development Zone, Jiangsu, China
Business Scope: Water treatment, beverage pre-treatment, PET bottle blowing, water filling lines, carbonated beverage lines, juice & hot filling lines, labeling & packaging.
Main Products: Water filling machines, juice filling machines, carbonated drink lines, bottle blowing machines, labeling machines, packaging equipment.
Core Strengths:
20+ years of beverage machinery experience
Complete turnkey solutions
Exported to 80+ countries
CE & ISO certified, high automation, hygienic design
FAQ
It is equipment that integrates bottle rinsing, water filling, and capping, ensuring hygienic and efficient production.
Small-scale (2,000–4,000BPH), medium-speed (6,000–12,000BPH), and high-speed (20,000BPH+).
PET, plastic bottles, with quick mold changes for different sizes (200ml–2L).
Food-grade stainless steel, automatic rinsing, and advanced filling valves with optional UV/ozone sterilization.
Yes, machines are pre-adjusted with touchscreen and PLC control for easy operation.
A complete line includes water treatment, bottle blowing, filling, labeling, and packaging.
Over 10 years or longer with regular maintenance.
Yes, installation guidance, operator training, one-year warranty, lifetime support, and spare parts supply.
