36000BPH Complete Water Packaging Line

Bottled Water Production Project Video



A Bottled Water Production Project video gives a clear visual understanding of how bottled water is processed, filled, and packaged for commercial use.

Through a detailed view of each production step—from water purification to final packaging—it becomes easier to grasp the complexity and precision behind a modern water bottling line.

In the video, you can see how automated systems coordinate to ensure smooth bottle movement, accurate filling, hygienic sealing, and perfect labeling.

Such a demonstration helps potential investors and operators evaluate production efficiency, layout design, and automation level before setting up their own project.

Introduction: The Power of a Complete Water Packaging Line

In today’s competitive beverage market, success depends on speed, consistency, and hygiene.

A complete water packaging line for 36,000 bottles per hour (BPH) delivers all three — integrating state-of-the-art automation, precision engineering, and smart monitoring technology.

This turnkey solution covers every stage of bottled water production — from water purification to packaging — ensuring your plant operates efficiently, meets international hygiene standards, and delivers continuous 24-hour production with minimal downtime.

For large-scale producers, national brands, and international bottling operations, this is the line that defines industrial performance.

What Is a Complete Water Packaging Line?

A complete water packaging line is a fully engineered, turnkey solution that unifies all production steps into a synchronized system.

It combines mechanical precision, advanced control technology, and hygienic design to ensure smooth operation from raw water intake to finished bottle output.

A standard 36,000BPH system includes:

1. Water Treatment System

• Multi-stage filtration, reverse osmosis, UV sterilization, and ozone disinfection.

• Designed to produce water meeting WHO, FDA, and CE standards.

• Automatic backwash and regeneration for stable operation and minimal maintenance.

2. High-Speed Bottle Blowing Machine

• Fully servo-driven, energy-saving infrared heating system.

• Supports 200ml–2000ml PET bottles.

• Intelligent mold temperature control and air recovery system reduce energy use by 30%.

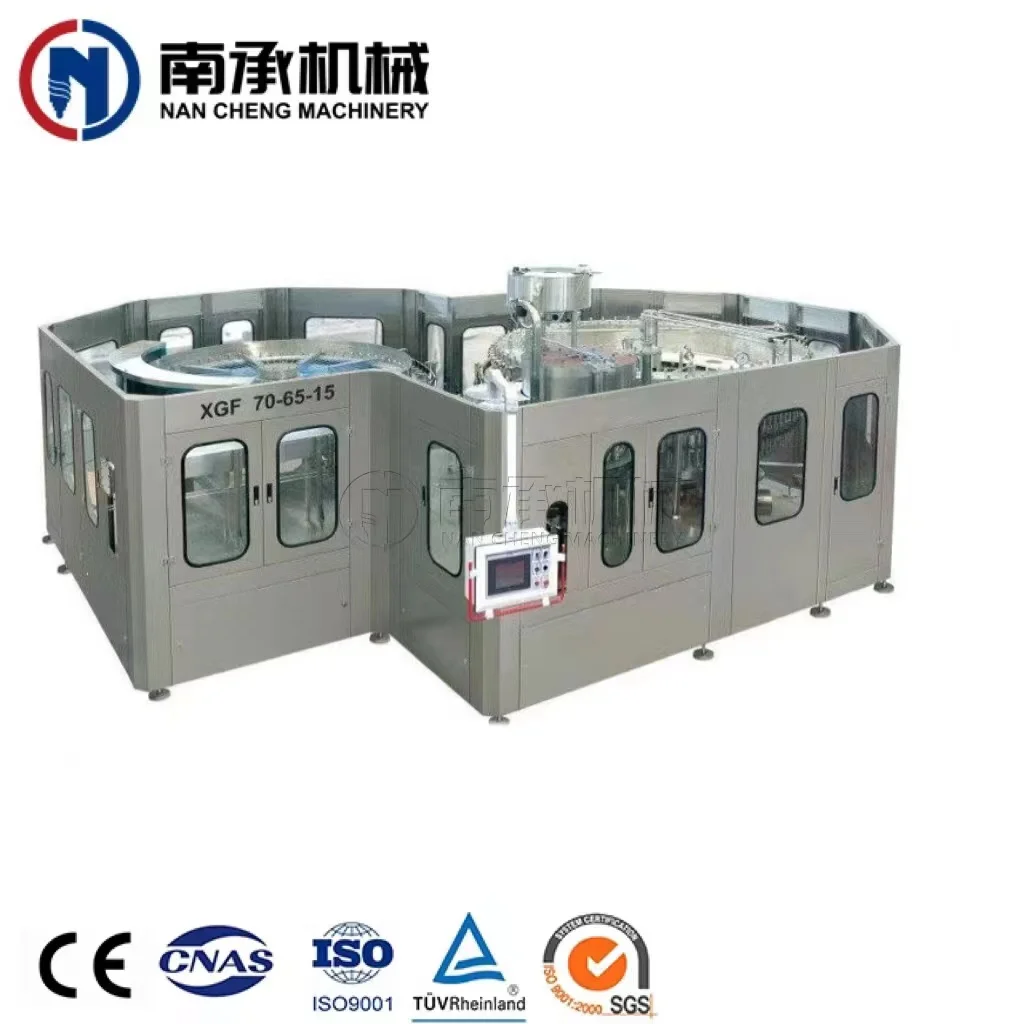

3. Rinsing–Filling–Capping (RFC) Monoblock

• The heart of the complete bottled water production line.

• Features 60 rinsing heads, 60 filling valves, and 15 capping heads.

• Fills up to 36,000 bottles/hour (500ml) with precision ±0.5%.

• Fully enclosed stainless steel design with positive pressure air filtration.

• CIP (Clean-In-Place) automatic cleaning system ensures 100% hygiene compliance.

4. Labeling & Coding Section

• High-speed OPP hot-melt labeling machine or shrink sleeve applicator.

• Integrated inkjet coding for batch traceability.

• Automatic label correction and sensor alignment at 36,000BPH throughput.

5. Shrink Wrapping / Carton Packaging System

• Fully automatic grouping, film sealing, and shrink wrapping.

• Servo-controlled synchronization with the filling line.

• Optional robotic palletizing system for end-of-line automation.

3D Layout Design of 36,000BPH Complete Water Packaging Line

Each turnkey project begins with a customized 3D layout design.

Our engineers analyze your factory dimensions, workflow direction, and utilities (water, power, air) to build the most efficient layout.

The 3D model allows you to visualize every production stage — from water inlet to finished pallet — before installation.

This helps ensure:

• Optimized bottle flow and reduced line congestion.

• Shorter pipeline routing for energy efficiency.

• Safe and ergonomic operator space.

For large water factories, layout design also includes utility integration (chiller, compressor, air dryer, CIP system, and central control station).

High-Performance Features of the 36,000BPH Bottled Water Production Line

• High-Speed Servo Filling Technology – Maintains precision even at maximum speed.

• Double-layer rinser with recycled water control, saving up to 20% of rinse water.

• HEPA air filtration inside the filling zone for aseptic-level cleanliness.

• Automatic bottle inspection: rejects uncapped, underfilled, or mislabeled bottles in real time.

• Energy-efficient drive systems using Siemens motors and Schneider inverters.

• Centralized PLC control (Siemens/Delta) with 10-inch HMI touchscreen.

These innovations make the line capable of continuous operation 24/7, ideal for high-volume bottling plants aiming at national or export markets.

Quality Assurance and Hygiene Standards

All components in contact with water or bottles are made of food-grade stainless steel (SUS304/316L) and comply with CE standards.

Each machine undergoes strict factory acceptance testing (FAT) before shipment.

The production environment is designed with:

• Anti-contamination air systems (HEPA filtration)

• Automatic sterilization before and after each batch

• Full CIP and SIP functionality

This ensures every drop of water is filled safely, maintaining purity and freshness.

Smart Automation and Remote Monitoring

The 36,000BPH complete water packaging line is equipped with Industry 4.0-ready technology.

A cloud-connected system enables remote diagnostics, data analytics, and predictive maintenance.

Operators can monitor line performance, filling accuracy, and energy usage from a centralized dashboard or mobile device.

This intelligent system significantly reduces downtime and improves overall equipment effectiveness (OEE).

water purification system

water filling machine

bottle blowing machine

labeling machine

bottle unscrambler

laser printer

pe film packing machine

carton caser

In-Depth Details of Bottled Water Production Project for Sale

A Bottled Water Production Project is designed to deliver consistent output under stable working conditions.

Most systems can handle bottles ranging from 200 ml to 2 liters and are compatible with PET, glass, or HDPE containers.

The filling temperature can be adjusted according to production needs, and advanced control systems automatically regulate pressure, speed, and liquid volume.

Optional modules such as date coding, film wrapping, and carton packaging can be added for a complete production solution.

In addition, modern production lines are designed with environmental considerations — lower water consumption, reduced CO₂ emissions, and recyclable materials.

washing part

filling part

capping part

air conveyor

flat conveyor

3 in 1 filling

Technical Specifications of Bottled Water Production Project

Recommend Products

Why Choose Nancheng Complete Water Packaging Line

Nancheng specializes in high-capacity turnkey bottled water lines, providing engineering solutions tailored for each client’s factory and production goals.

With over 20 years of experience in the beverage machinery industry, Nancheng delivers:

• Customized high-speed systems (up to 36,000BPH)

• Energy-efficient operation and long service life

• Full automation with smart monitoring and control

• Professional global after-sales service and training

Our mission is to help clients build world-class bottled water factories that meet both today’s demands and tomorrow’s challenges.

FAQ of 36,000BPH Complete Water Packaging Line

1. What is a 36,000BPH complete water packaging line?

A 36,000BPH complete water packaging line is a fully automated, turnkey solution capable of producing 36,000 500ml bottles per hour. It integrates water treatment, PET bottle blowing, rinsing, filling, capping, labeling, and packaging into a synchronized production system. The line is designed for large-scale industrial water factories and high-volume beverage producers.

2. What types of water can this line produce?

The system supports:

• Purified water

• Mineral water

• Spring water

• Alkaline water

It can be adapted for various water sources (municipal, well, spring) and meets CE drinking water standards.

3. What bottle sizes and types are supported?

• PET bottles: 200ml–2L standard bottles

• HDPE or glass bottles: optional customization

• 5-gallon barrels: available for bulk water production

The system automatically adjusts filling valves and capping heads to handle multiple formats without slowing production.

4. How long does installation and commissioning take?

Typical installation and commissioning takes 4–6 weeks, depending on factory size and utility connections.

Our engineers provide on-site supervision, training, and full system testing before handover to ensure smooth operation from day one.

5. What are the advantages of choosing a turnkey solution?

• One-stop solution: all machines are pre-tested and integrated

• Fast deployment and reduced setup time

• Fully automated and monitored production

• High hygiene standards (SUS316L stainless steel, HEPA air filtration, CIP cleaning)

• Remote monitoring and predictive maintenance options

6. What technical controls are included?

• Centralized PLC + HMI touchscreen for real-time monitoring

• Automatic fault detection and alarms

• Smart batch control for filling volume and capping torque

• Optional IoT integration for remote data access and production analytics

7. What maintenance is required?

• Routine cleaning and sterilization with CIP system

• Inspection of filling valves, capping heads, and conveyors

• Regular lubrication of motors and mechanical parts

• Periodic calibration of sensors for filling accuracy

With proper maintenance, the line is capable of continuous 24/7 production with minimal downtime.

8. How customizable is the 36,000BPH line?

Fully customizable:

• Bottle shape, size, and volume

• Label type (PVC, OPP, shrink sleeve)

• Packaging style (shrink wrapping, carton packing, robotic palletizing)

• Automation level and IoT connectivity

Every turnkey project is engineered according to the client’s factory layout, production goals, and future expansion plans.

9. Why invest in a 36,000BPH complete water packaging line?

• High-speed production for national or export markets

• Reduced labor cost through full automation

• Minimal water and energy waste, increasing cost efficiency

• Consistent product quality with full hygiene compliance

• Scalable solution to support business growth
