10000bph Automatic Water Filling Machine

VIDEO OF AUTOMATIC WATER FILLING MACHINE

Watch the 10000BPH automatic water filling machine in action, showcasing its advanced 3-in-1 rinsing, filling, and capping process. The video demonstrates how empty bottles are first washed with high-pressure sterile water, then accurately filled using gravity/pressure filling technology, and finally sealed with precision torque-controlled capping.

This presentation highlights why our fully automatic water filling machine ensures hygiene, efficiency, and reliability in bottled water production. With stable performance and high output, it is the preferred choice for businesses seeking a cost-effective solution at a competitive automatic water filling machine price.

INTRODUCTION OF AUTOMATIC WATER FILLING MACHINE

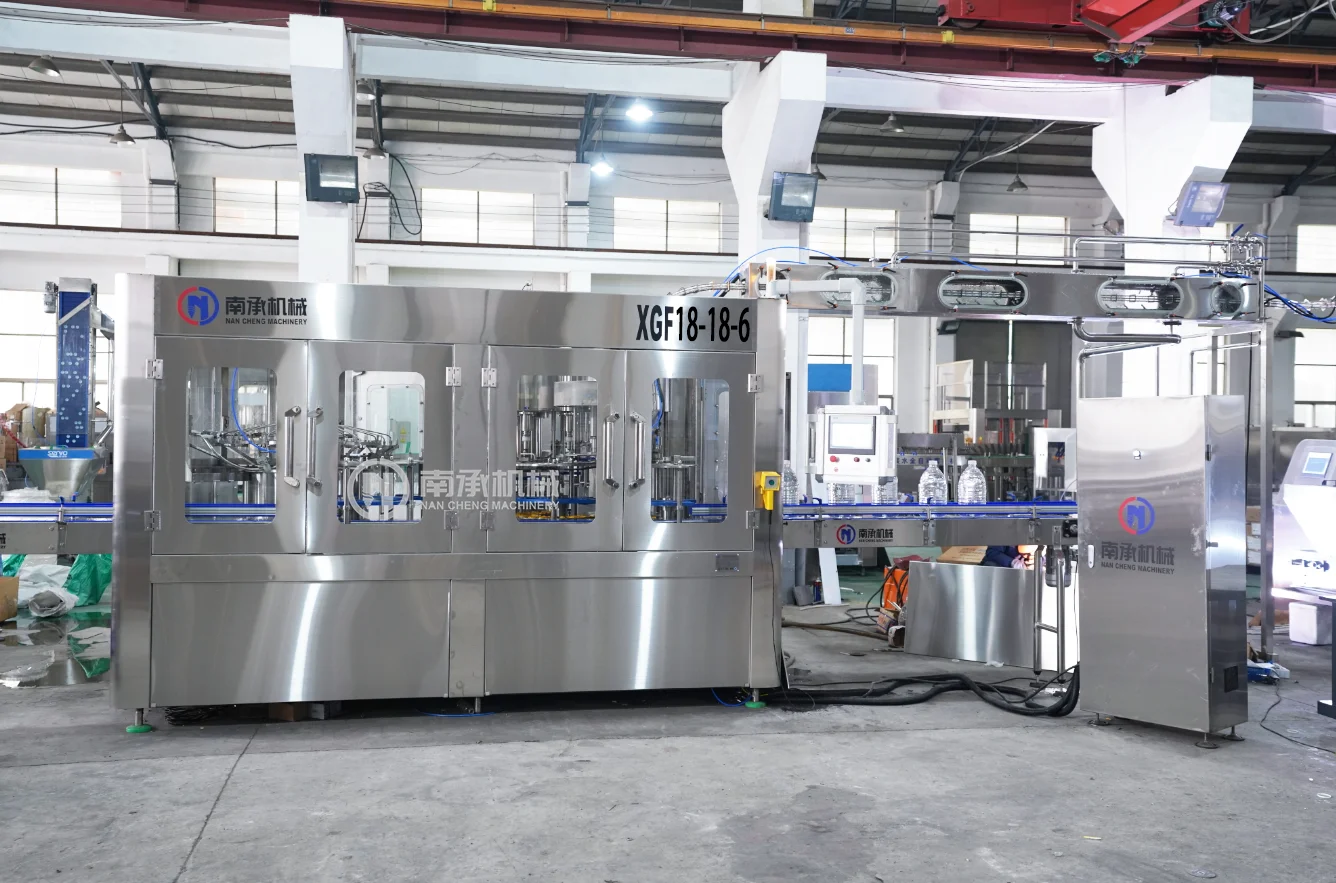

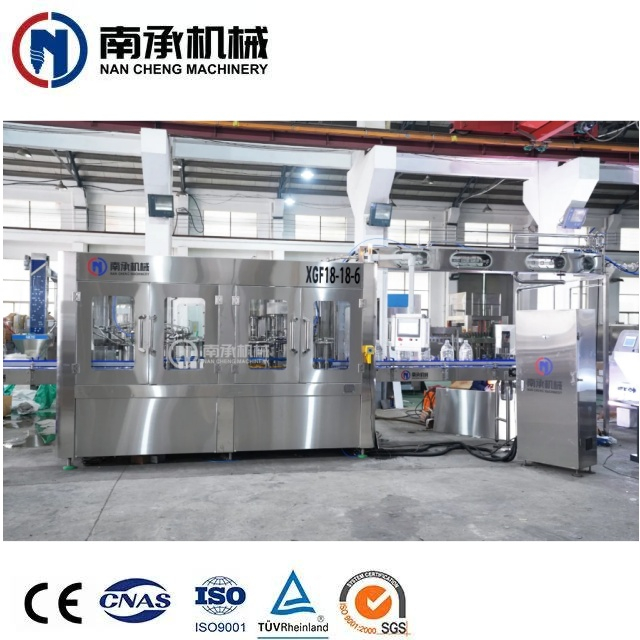

The 10000BPH automatic water filling machine is specially designed for medium and large-scale bottled water production lines. Built with food-grade stainless steel, PLC control, and advanced filling valves, it guarantees accuracy, durability, and long-term stable operation.

Whether you are considering an auto water filling machine for your startup or upgrading to a fully automatic water filling machine for large-scale production, Nancheng provides the most reliable and affordable solutions in the market.

KEY FEATURES & ADVANTAGES OF AUTOMATIC WATER FILLING MACHINE

1. High speed output

Capable of producing 10,000 bottles per hour (based on 500ml), ensuring efficiency for growing water bottling businesses.

2. 3-IN-1 integrated system

Combines bottle rinsing, water filling, and cap sealing in a single unit, minimizing space requirements and maximizing productivity.

3. Advanced filling technology

Adopts precise volumetric filling with anti-leakage nozzles, suitable for different bottle sizes, guaranteeing hygiene and accuracy.

4. Fully automatic control

Equipped with PLC + touchscreen interface, operators can easily adjust parameters and monitor performance, making it a fully automatic water filling machine with minimal manual intervention.

5. Hygiene & durability

Made with food-grade stainless steel (SUS304/316), resistant to corrosion, and compliant with international sanitation standards.

WORKING PROCESS OF AUTOMATIC WATER FILLING MACHINE

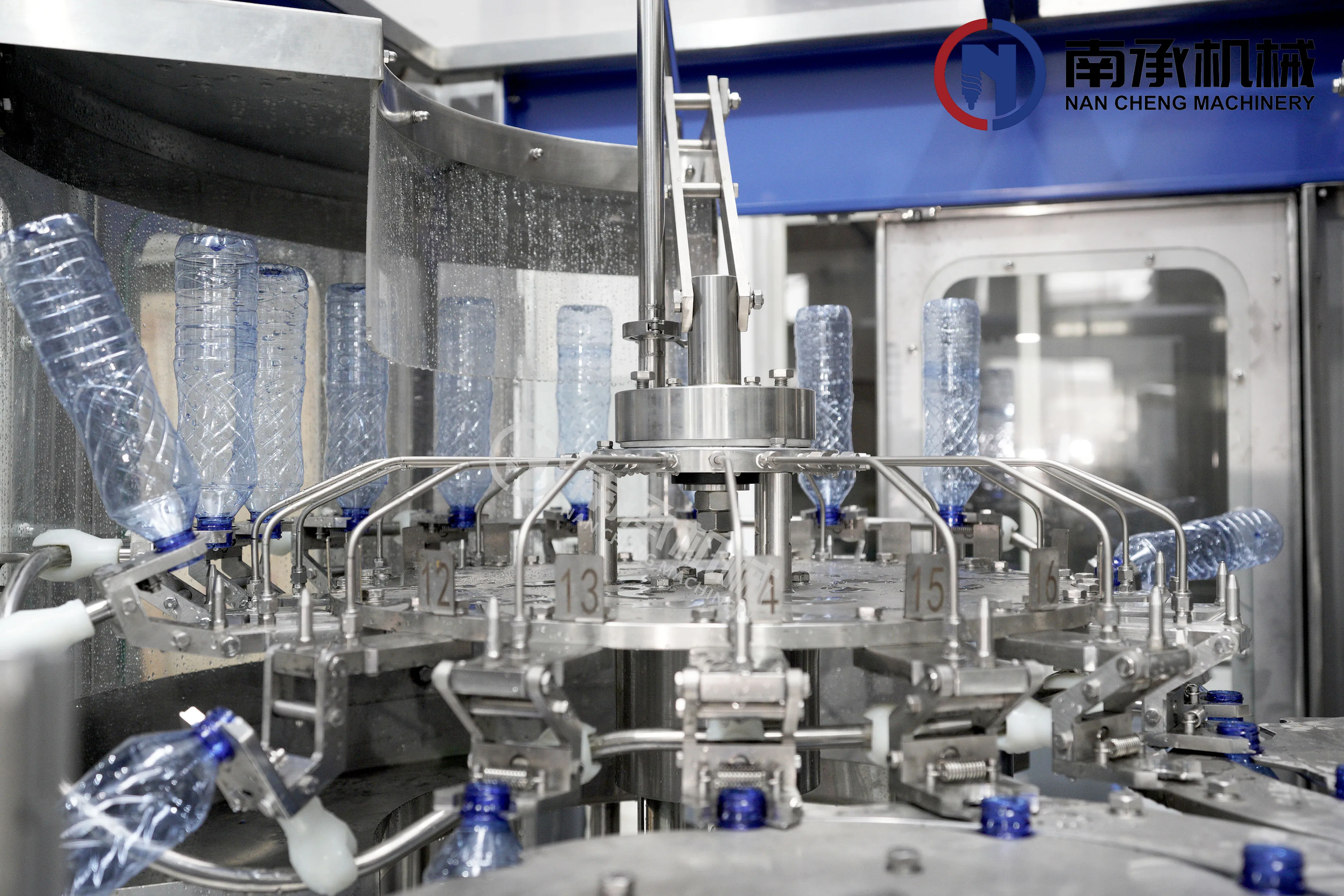

Bottle rinsing

Empty bottles are automatically transferred into the rinsing station, where they are washed with high-pressure sterile water.

Features:

• Rotary rinsing system for continuous operation and high efficiency

• Multiple rinsing heads ensure every bottle is thoroughly cleaned

• No bottle, no rinse design prevents water waste

• Contact-free spraying to maintain hygiene and avoid contamination

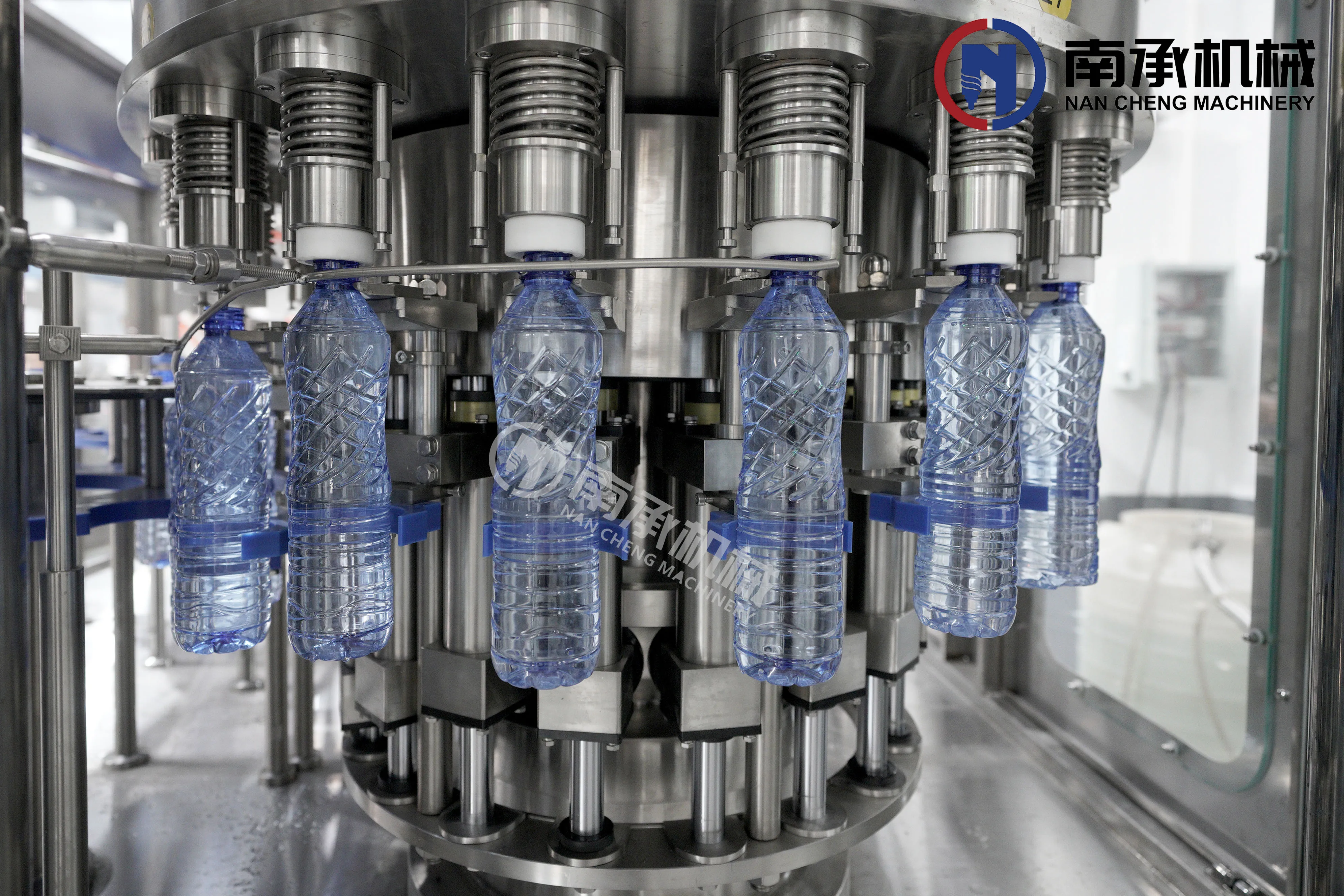

Water filling

The automatic water filling machine uses a gravity/pressure filling method for precise water dosing. This ensures that every bottle is filled accurately without spillage, supporting different bottle sizes.

Features:

• Advanced filling valves with anti-leakage design

• High-speed filling with stable liquid level control

• Food-grade stainless steel construction for hygiene and durability

• Flexible adjustment for 200ml–2L PET bottles

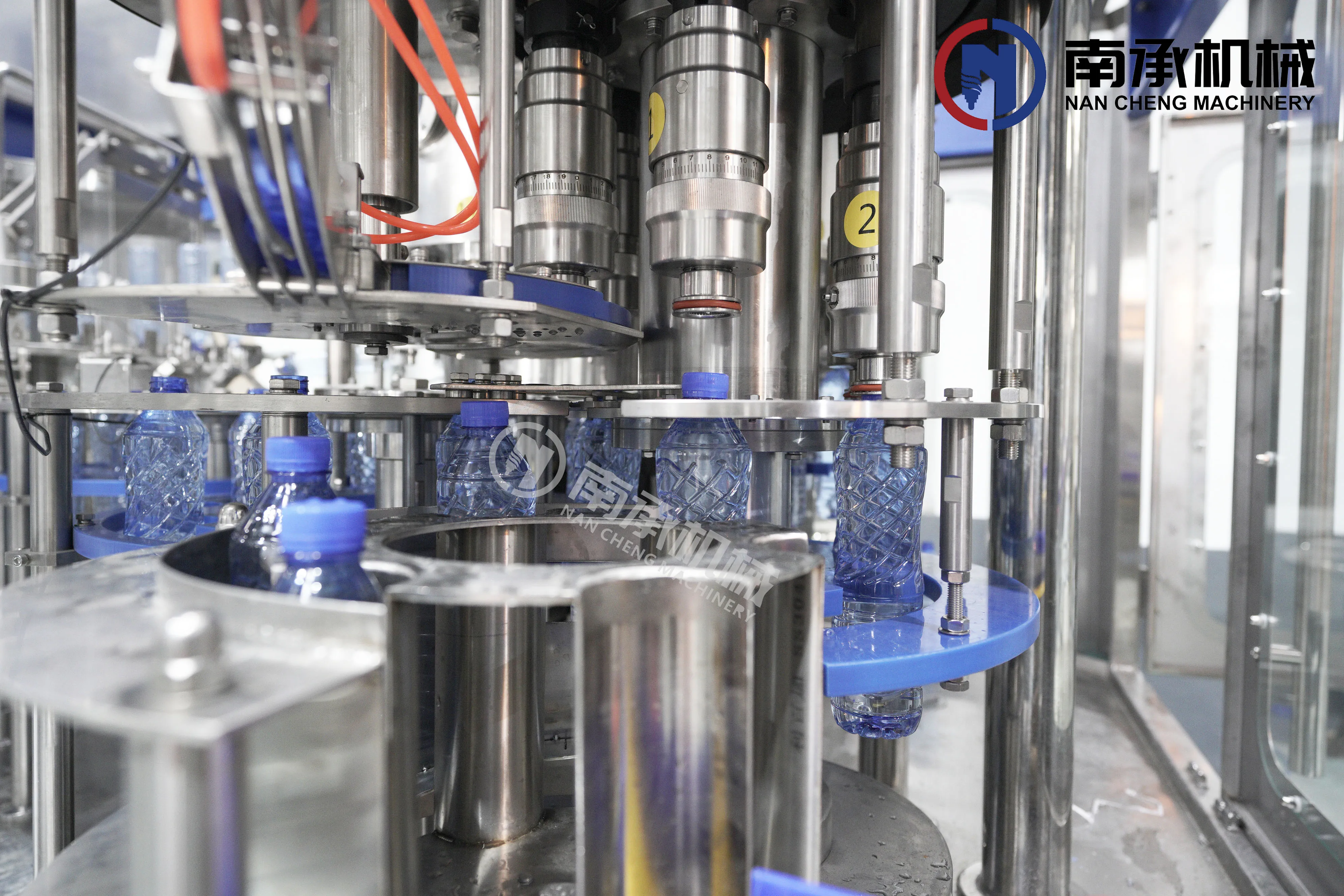

Bottle capping

After filling, bottles are transferred to the capping station, where caps are automatically sorted, sterilized, and sealedwith precise torque control.

Features:

• Magnetic capping head to avoid cap damage and ensure tight sealing

• Cap sterilization system guarantees food safety

• No bottle, no cap design prevents waste and misoperation

• High reliability, reducing downtime in large-scale production
