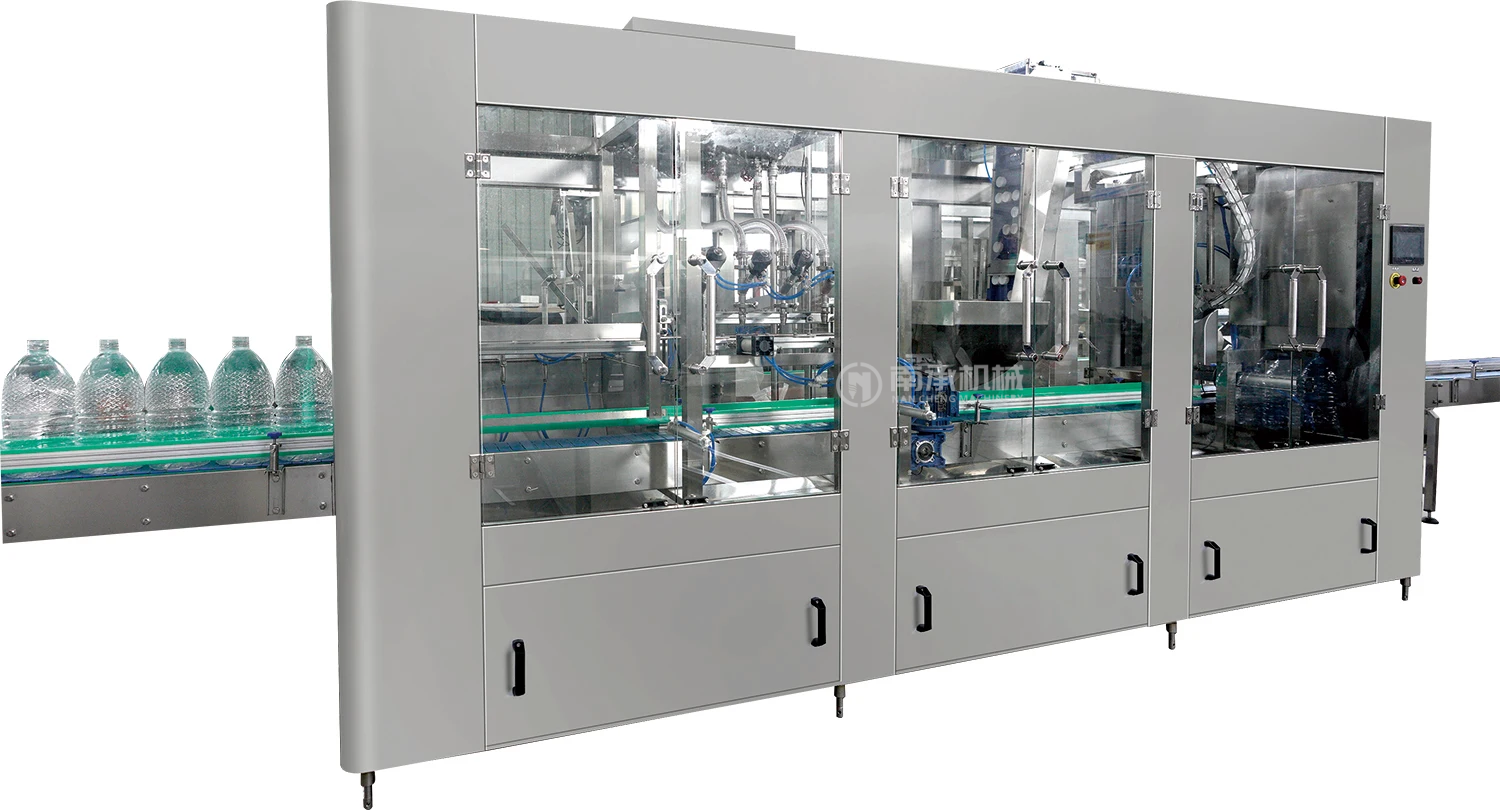

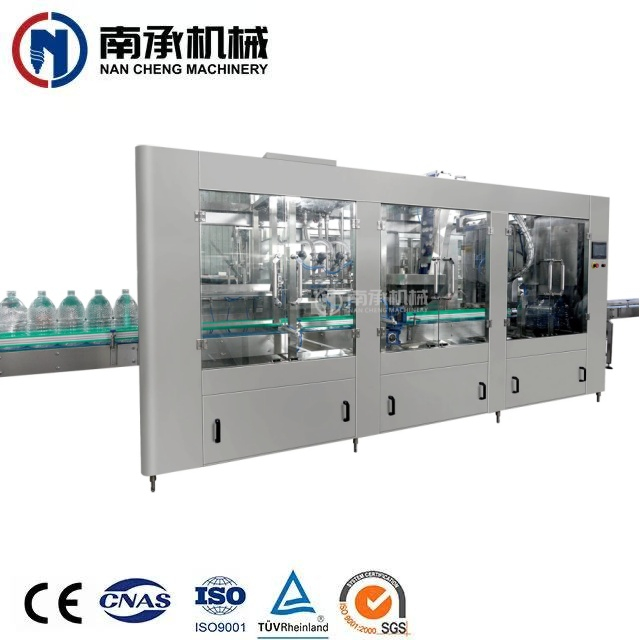

5-10 Liter Water Filling Machine

Nancheng provides a complete 5–10 liter water filling production line, integrating water treatment, bottle blowing, rinsing, filling, capping, labeling, and packaging systems — ensuring smooth, automated, and efficient bottling. The 5–10 liter linear water filling machine supports PET, PC, and HDPE bottles from 3L to 10L, with flexible mold changes for different shapes.

Model:
XGF4-4-1L
Brand:
NANCHENG
Function:
Washing Filling Capping
Material:
SUS304/316
Control:
PLC+ Touch Screen
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Bottles
Driven type:
Electric and pneumatic
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

VIDEO OF 5–10 LITER WATER FILLING MACHINE

Watch how our 5–10 liter water filling machine efficiently completes bottle rinsing, filling, and capping for large-capacity containers. With its hygienic design and smart automation, it’s the perfect solution for mineral water and purified water production.

INTRODUCTION OF 5–10 LITER WATER FILLING MACHINE

The 5–10 liter water filling machine is specially designed for large bottled water plants. This fully automatic linear filling system provides precise volumetric control, high productivity, and reliable operation. It is ideal for 3L to 10L PET, PC, or HDPE bottles, meeting growing market demands for family-size and commercial water packaging.

Using advanced flow meter filling technology, the machine guarantees accurate volume, no leakage, and consistent product quality. With Siemens PLC and touchscreen interface, operators can easily monitor production and adjust settings for different bottle specifications.

WORKING PROCESS OF 5–10 LITER LINEAR WATER FILLING MACHINE

The 5–10 liter linear water filling machine adopts an advanced linear-type design that allows flexible bottle size adjustment and high-speed, hygienic operation — perfect for medium and large-scale water production plants. Unlike rotary systems, the linear filling structure is simpler to maintain, easy to expand, and ideal for 5L to 10L PET bottles or 5-gallon containers.

Here’s how the process works step by step:

1. Bottle Feeding and Positioning

Empty bottles are automatically transferred to the conveyor line and precisely positioned by a photoelectric sensor and servo-controlled system. The linear conveying design ensures smooth and stable bottle transport without scratches or jams.

Key advantage: No need to change star wheels — simply adjust the guide rails to handle different bottle heights or diameters.

2. Automatic Bottle Rinsing

Each bottle enters the rinsing station, where multiple rinsing heads spray sterile water or disinfectant solution inside the bottles. The rinsing process is fully programmable, with adjustable time and pressure. After cleaning, the bottles are drained to remove residual water.

Highlight: The inner and outer bottle surfaces are rinsed simultaneously, ensuring a high level of hygiene before filling.

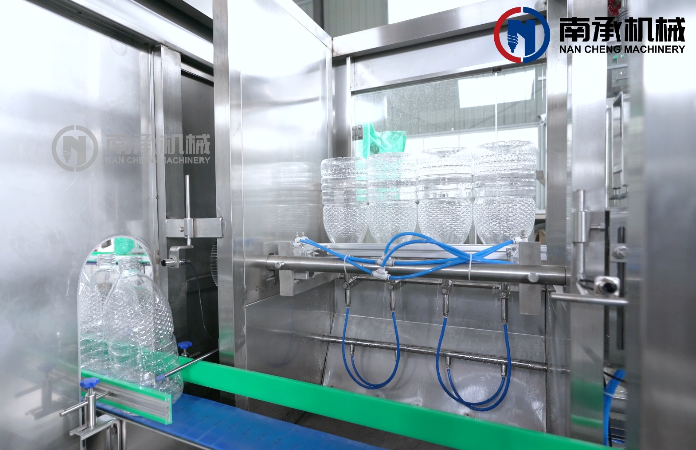

5–10 LITER WATER FILLING MACHINE-Bottle Rinsing

3. Precision Water Filling

The clean bottles move to the filling section, which uses gravity or volumetric filling technology to ensure accurate water level control. Each filling valve is made of SUS304/316 stainless steel and operates with high precision to prevent dripping and foaming.

The linear filling system can be customized for different capacities (from 600 to 3000BPH), depending on bottle size and customer requirements.

Advantage: Smooth filling process, easy parameter adjustment, and minimal product loss.

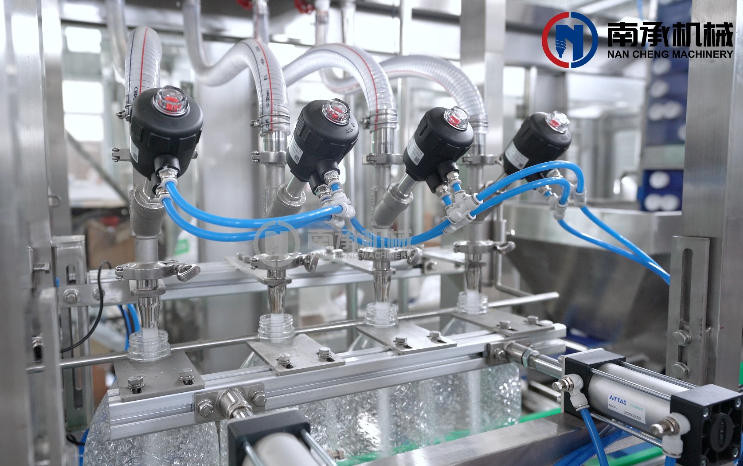

5–10 LITER WATER FILLING MACHINE-Water Filling

4. Capping and Sealing

Filled bottles are automatically conveyed to the capping unit, where the caps are sorted, sterilized, and placed accurately onto the bottle mouth. The servo-driven capping heads tighten each cap with consistent torque, ensuring a leak-proof and tamper-evident seal.

Note: The system supports both screw caps and press caps, depending on your packaging needs.

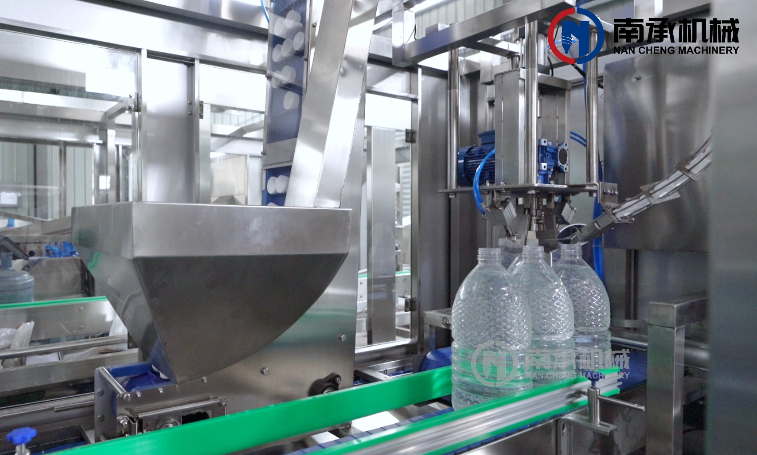

5–10 LITER WATER FILLING MACHINE-Capping and Sealing

5. Final Bottle Inspection and Conveying

After capping, each bottle passes through a quality inspection station where sensors detect fill level, cap position, and contamination. Qualified bottles are sent to labeling or packaging, while defective ones are automatically rejected.

Result: Every product that leaves the machine meets international hygiene and safety standards.

TECHNICAL PARAMETERS OF 5–10 LITER WATER FILLING MACHINE

Model	Capacity (BPH)	Filling Heads	Filling Type	Bottle Volume	Bottle Material	Filling Accuracy	Air Pressure (MPa)	Power (kW)	Dimension (mm)	Weight (kg)
NC-L5L-2	600–800	2	Flow meter filling	3L–10L	PET / PC / HDPE	±0.5%	0.6–0.8	3.5	2000×1200×1800	800
NC-L5L-4	1200–1500	4	Flow meter filling	3L–10L	PET / PC / HDPE	±0.5%	0.6–0.8	5.5	2500×1500×1800	1000
NC-L5L-6	1800–2000	6	Flow meter filling	3L–10L	PET / PC / HDPE	±0.3%	0.6–0.8	7.5	3000×1800×1900	1300
NC-L5L-8	2500–3000	8	Flow meter filling	3L–10L	PET / PC / HDPE	±0.3%	0.6–0.8	9	3500×2000×2000	1500

Note: All parameters can be customized based on bottle size, filling volume, and production capacity.

ELECTRICAL CONFIGURATION OF 5–10 LITER LINEAR WATER FILLING MACHINE

Component	Brand	Origin / Feature
PLC Controller	Siemens	Germany – Intelligent automation and process control
Touch Screen (HMI)	Siemens	Germany – User-friendly interface and data monitoring
Frequency Converter	Schneider	France – Stable speed regulation and motor protection
Main Motor	ABB	Switzerland – High efficiency, durable, low noise
Pneumatic Components	Airtac / SMC	Taiwan / Japan – Precise air control and reliability
Bearings	SKF	Sweden – Long lifespan and smooth operation
Electrical Components	Schneider	France – Global-standard protection and durability
Flow Meter	E+H / Siemens	Germany – High precision volumetric filling
Pump	CNP / Grundfos	China / Denmark – Energy-efficient and hygienic water circulation
Frame Material	SUS304 Stainless Steel	Anti-corrosion, food-grade design
Seals & Gaskets	EPDM / Silicon	FDA-grade, high-temperature resistant

COMPLETE LINE SOLUTION WITH 5–10 LITER LINEAR WATER FILLING MACHINE

A 5–10 liter water filling machine performs best when integrated into a complete large-bottle water production line. Nancheng Machinery provides a turnkey solution — from raw water treatment to final palletizing — ensuring efficiency, hygiene, and stable output across every stage of production.

Our complete 5–10L water filling line includes the following major systems:

1. Water Treatment System

Raw water passes through a series of purification processes including sand filtration, activated carbon filtration, reverse osmosis (RO), and UV sterilization. This system guarantees that the water meets international bottled water quality standards.

Advantage: Stable water quality, customizable mineral balance, and fully automatic control.

2. Bottle Blowing or Feeding System

Depending on your packaging type, the line can include either:

Automatic bottle blowing machine – for PET bottles from preforms (customizable for 5L–10L).
Automatic bottle unscrambler – for pre-made bottles.

Highlight: Intelligent heating and high-pressure blowing ensure strong, lightweight bottles with consistent quality.

3. Linear Water Filling and Capping Machine

This is the core unit of the line — integrating rinsing, filling, and capping in one frame. The linear structure allows easy bottle size adjustment and space-saving installation.

Feature: Fully enclosed stainless-steel frame, servo-driven operation, and smart PLC control for precise filling accuracy and minimal human intervention.

4. Labeling System

After filling, bottles enter the labeling station, where they can be applied with PVC shrink sleeve labels, OPP hot-melt labels, or adhesive labels, depending on your branding needs.

Advantage: Smooth label application, perfect bottle alignment, and quick label roll change.

5. Shrink Wrapping or Carton Packaging

The packaging section provides flexible options:

Shrink wrapping machine for bundling 2–4–6 bottles.
Carton packing machine for high-end bottled water distribution.

Highlight: Compact layout, low energy use, and high automation level for efficient secondary packaging.

6. Conveyor System and Palletizing

All sections are connected by intelligent conveyor systems, enabling automatic bottle transfer and flow control. The final palletizing unit stacks finished products neatly for storage or transport.

Advantage: Stable conveying speed, smooth transitions, and minimal downtime.

7. Smart Control & Integration

The entire 5–10 liter water filling production line is managed by a centralized Siemens PLC control system, featuring real-time monitoring, automatic fault detection, and data recording.

Benefit: One operator can manage the entire line with high precision and safety.

PET Bottle Blow Molding Machine

Water Treatment System

5–10 LITER WATER FILLING MACHINE-water treatment

Automatic Shrink Sleeve Labeling Machine

5–10 LITER WATER FILLING MACHINE-labeling machine

Company Profile

ABOUT NANCHENG MACHINERY – YOUR RELIABLE FILLING SOLUTION PARTNER

WHY NANCHENG MACHINEY AS YOUR SMALL WATER BOTTLING MACHINE MANUFACTURER

Founded in 2005, Nancheng Machinery is a professional manufacturer specializing in water filling machines, 5–10 liter water filling machines, and complete bottled water production lines. With over 15 years of experience in the beverage machinery industry, Nancheng has become one of China’s leading suppliers of automatic liquid filling systems, exporting to more than 80 countries worldwide — including Southeast Asia, Africa, the Middle East, and Europe.

Our manufacturing base in Zhangjiagang covers over 8,000㎡, equipped with advanced CNC machining centers, laser cutting systems, and precision testing laboratories. Each linear 5–10L water filling machine is designed and assembled under strict CE, ISO, and SGS quality standards, ensuring every component meets international hygiene and performance requirements.

At Nancheng, we understand that large bottle water production requires durability, accuracy, and hygiene. That’s why our 5–10 liter linear water filling machines adopt:

High-grade stainless steel construction for corrosion resistance and long lifespan.
Siemens PLC control and ABB servo drive for precise filling accuracy.
Modular design for easy maintenance and bottle size adjustment.
Integrated CIP cleaning system for complete sanitation and reduced downtime.

Nancheng doesn’t just sell machines — we provide complete turnkey solutions for your factory. From factory layout design, bottle and label customization, water treatment, filling, labeling, and packaging, we ensure a seamless production process tailored to your business needs.

We also supply on-site installation, operator training, and lifetime technical support, making us your trusted partner in building a sustainable and profitable bottled water production business.

Our mission is simple — to help every customer build an efficient, hygienic, and smart filling line that delivers consistent performance and premium bottled water quality.

Choose Nancheng Machinery, and get a partner who values precision, innovation, and long-term success as much as you do.

We Supply Your Factory Design Service

We Supply Your Bottle Design Service
