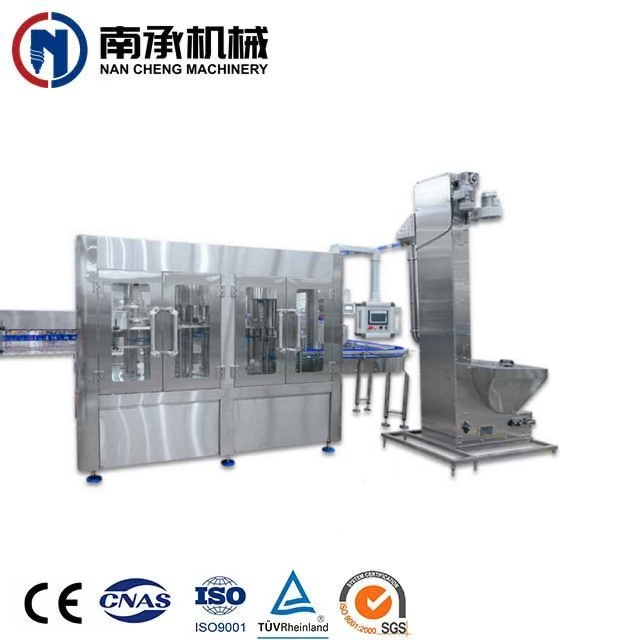

Coconut Water Filling Machine

The coconut water filling machine from Nancheng Machinery is engineered to meet the highest standards of hygiene, accuracy, and automation. Designed specifically for natural coconut water, flavored coconut beverages, and mixed coconut drinks, it guarantees freshness and product integrity throughout the filling process.

Model:
XGF18-18-6R
Brand:
NANCHENG
Function:
Washing Filling Capping
Material:
SUS304/316
Control:
PLC+ Touch Screen
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Bottles
Driven type:
Electric and pneumatic
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

VIDEO OF COCONUT WATER FILLING MACHINE

See our coconut water filling machine in action: from rinsing to hot-fill / precision filling to capping. Watch how raw coconut water is handled with hygiene, speed, and accuracy — ideal for your coconut water production line. This peek inside the machine shows the sterile water washing, temperature-controlled filling, and high-speed capping, giving you confidence in the machine’s performance and quality.

INTRODUCTION OF COCONUT WATER FILLING MACHINE

The coconut water filling machine from Nancheng Machinery is specially designed for filling pure coconut water, flavored coconut beverages, and mixed coconut-based drinks. This system combines washing, filling, and capping into one compact 3-in-1 unit, ensuring efficient, sanitary, and precise bottling.

Coconut water is a delicate natural beverage that requires strict temperature and sanitation control. Our coconut water bottling machine uses advanced ultra-clean technology and temperature-controlled filling, effectively preserving the drink’s freshness, nutrients, and natural taste.

Whether you produce natural coconut water, sugar-added coconut drinks, or coconut milk-based beverages, this machine ensures stable performance and consistent quality for every bottle.

COCONUT WATER FILLING MACHINE

KEY FEATURES & ADVANTAGES OF COCONUT WATER FILLING MACHINE

The coconut water filling machine from Nancheng Machinery is engineered to meet the highest standards of hygiene, accuracy, and automation. Designed specifically for natural coconut water, flavored coconut beverages, and mixed coconut drinks, it guarantees freshness and product integrity throughout the filling process.

1 Hygienic & Food-Grade Design

All parts in contact with the product are made of SUS304 or SUS316L stainless steel, ensuring complete corrosion resistance and compliance with food safety standards. The closed filling environment and sterile air filtration system prevent secondary contamination.

2 Precise Temperature-Controlled Filling

Coconut water is sensitive to heat — therefore, our coconut water bottling machine uses hot filling technology (85–90°C) with precise temperature monitoring. This maintains natural flavor and nutrients while achieving sterilization.

3 Intelligent Operation with Siemens PLC

The system is equipped with Siemens PLC control, touch-screen HMI, and automatic fault diagnostics. Operators can easily adjust parameters for bottle size, fill level, and speed, ensuring smooth production.

4 High Filling Accuracy

Each filling valve is designed for stable flow and zero-drip performance. The filling accuracy can reach ±1%, minimizing product loss and improving cost efficiency.

5 Flexible Bottle Compatibility

The machine can handle PET bottles, glass bottles, and aluminum bottles of various shapes and capacities (200ml–2000ml). Fast mold changeover allows quick adaptation to different product lines.

6 Automatic Cleaning (CIP/SIP System)

Integrated Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems allow fully automated internal cleaning and sterilization — saving time, labor, and water.

7 Energy-Efficient and Durable Construction

Optimized mechanical design with ABB motor, SKF bearing, and Schneider electrical components ensures long lifespan, energy savings, and minimal maintenance requirements.

8 Customizable for Your Production Line

Whether you are building a small coconut water production plant or a large bottling factory, Nancheng can tailor capacity (from 2000BPH to 24000BPH), layout, and automation level to meet your needs.

WORKING PROCESS OF COCONUT WATER BOTTLING MACHINE

COCONUT WATER FILLING MACHINE Bottle Rinsing Section

COCONUT WATER FILLING MACHINE Coconut Water Filling Section

COCONUT WATER FILLING MACHINE Capping Section

The working process of the coconut water filling and capping machine follows a seamless 3-in-1 or 4-in-1 operation, combining rinsing, filling, capping, and optionally sterilization. Each stage is designed to protect the beverage’s freshness and extend its shelf life.

1 Bottle Rinsing Section

Empty bottles are fed into the rinsing system via an air conveyor.
Stainless steel grippers hold the bottles firmly without touching the bottleneck threads.
High-pressure sterile water is sprayed inside each bottle to remove dust and impurities.
Rinsing time and water volume are adjustable according to bottle size.

2 Coconut Water Filling Section

Clean bottles are transferred to the filling carousel where gravity or pressure filling is performed depending on product type.
Temperature sensors ensure coconut water is filled at constant 85–90°C, preserving nutrients and taste.
Each filling valve stops automatically when the liquid level reaches the set height, ensuring accuracy and preventing overflow.

3 Capping Section

The filled bottles enter the automatic capping turret.
Caps are sorted and sterilized with UV or steam before being placed.
Magnetic torque control ensures consistent cap tightness — preventing leaks without damaging the closure.
The sealed bottles exit smoothly onto the discharge conveyor.

4 Bottle Cooling & Inspection (Optional)

After capping, bottles pass through a cooling tunnel to quickly lower the product temperature.
This prevents flavor degradation and extends shelf life.
A light inspection system checks for liquid level accuracy, seal integrity, and bottle appearance before packaging.

TECHNICAL PARAMETERS OF COCONUT WATER FILLING MACHINE

Model	Filling Heads	Capacity (BPH)	Bottle Volume (ml)	Filling Temperature (°C)	Power (kW)	Dimension (mm)
XGF12-12-6	12	3000	200–1000	85–90	3.5	2500×1800×2300
XGF18-18-6	18	5000	200–1500	85–90	5.5	2900×2100×2300
XGF24-24-8	24	8000	250–1500	85–90	6.5	3300×2500×2350
XGF32-32-10	32	12000	250–2000	85–90	8.5	3800×2800×2450
XGF40-40-12	40	16000	250–2000	85–90	10.5	4200×3200×2500

ELECTRICAL CONFIGURATION OF COCONUT WATER FILLING MACHINE

Component	Brand	Origin	Function / Advantage
PLC Controller	Siemens	Germany	Intelligent control, high stability
Touch Screen	Siemens / WEINVIEW	Germany / Taiwan	User-friendly interface and fault display
Main Motor	ABB	Switzerland	Energy efficient and durable
Bearing	SKF	Sweden	Long lifespan and precision operation
Frequency Converter	Danfoss	Denmark	Smooth speed adjustment
Pneumatic Components	SMC / Airtac	Japan / Taiwan	Reliable bottle handling
Electrical Parts	Schneider	France	High safety and performance

COMPLETE LINE SOLUTION WITH COCONUT WATER BOTTLING MACHINE

COCONUT WATER FILLING MACHINE-Production-Line

Nancheng Machinery not only provides a coconut water filling machine, but also delivers a complete coconut water production line — from raw water treatment to final packaging. Each stage is designed for efficiency, hygiene, and long-term reliability, helping you build a world-class coconut water bottling plant.

1 Water Treatment System

Ensures that all process water meets beverage-grade standards. The system includes sand filter, activated carbon filter, RO membrane purification, and UV sterilization, providing pure and safe water for coconut processing and blending.

2 Coconut Water Preparation System

Raw coconut water is filtered, blended, and optionally pasteurized. The system can include mixing tanks, sugar dissolving tanks, homogenizer, and plate heat exchanger to maintain flavor and quality.

Precise Brix and acidity control guarantees consistency across each batch of production.

3 Bottle Blowing Machine

For PET packaging, Nancheng offers fully automatic bottle blowing machines that produce high-quality bottles on-site. Mold customization allows flexible design for coconut water PET bottles from 250ml to 2000ml.

4 Rinsing, Filling & Capping Unit

This is the core of the coconut water bottling line — combining rinsing, filling, and capping in one hygienic block.

Filling temperature: 85–90°C hot filling
Capacity: 2000BPH–24000BPH
Bottle types: PET / Glass / Aluminum

5 Labeling & Date Coding Machine

Automatic OPP, sleeve, or adhesive labeling system for professional branding. Integrated inkjet or laser date coding ensures traceability and compliance with global beverage standards.

6 Bottle Cooling Tunnel

Cooled water circulates through the tunnel to lower the temperature after hot filling. This stabilizes product taste and prevents deformation of PET bottles.

7 Packaging System

Choose between shrink wrapping, film packaging, or carton packing for final retail presentation. Optional robotic palletizer can be integrated for automatic stacking and wrapping.

8 CIP System & Sterilization Equipment

Automated CIP (Cleaning in Place) and SIP (Sterilization in Place) systems maintain internal hygiene of tanks, pipes, and valves.

This ensures every drop of coconut water meets the strictest international standards.

9 Factory Layout & Turnkey Support

Nancheng offers factory layout design, bottle design service, and installation guidance to help customers set up a full-scale coconut water production plant quickly and cost-effectively.

PET Bottle Blow Molding Machine

COCONUT WATER FILLING MACHINE-pet bottle blow molding machine

Semi automatic blow molding machine for you choose

Water Treatment System

COCONUT WATER FILLING MACHINE-water treatment

Automatic Bottled juice production fruit juice blending system

The mixing system including:

Electrical heating/ steam
heating sugar melting tank
Syrup Pump
Mixing tank
Stainless steel pump
Double filter
Homogenizer
Double layers heating tank
CIP cleaning system
UHT sterilizer

Automatic Shrink Sleeve Labeling Machine

COCONUT WATER FILLING MACHINE-labeling machine

Bottle Shrink Packing Wrapping Machine

COCONUT WATER FILLING MACHINE-pe film packing machine

COCONUT WATER FILLING MACHINE-l type pe film packing machine

Automatic l type shrink packing wrapping machine for you choose

Company Profile

ABOUT NANCHENG MACHINERY – YOUR RELIABLE COCONUT WATER BOTTLING LINE PARTNER

Founded in 2005, Nancheng Machinery is a trusted beverage machinery manufacturer specializing in coconut water filling machines, coconut water bottling machines, and complete coconut water production lines for global beverage brands.

With over 20 years of experience and 2,000+ successful installations across Asia, Africa, the Middle East, and Europe, Nancheng has earned its reputation as a professional supplier of automatic beverage filling equipment.

Our factory in Zhangjiagang, China, spans over 8,000㎡, equipped with CNC machining centers, stainless steel welding workshops, and precision testing laboratories. Every coconut water filling machine is manufactured under CE and SGS certifications, ensuring safety, durability, and hygiene.

Why Choose Nancheng Coconut Water Filling Machine

Complete turnkey solutions: From water treatment to packaging, we supply a full coconut water production line customized to your needs.
High automation & precision control: Integrated Siemens PLC, ABB motor, and Schneider electrical components guarantee stability and energy efficiency.
Strong adaptability: Suitable for PET, glass, and aluminum bottles with capacities from 200ml–2000ml and speed from 2000BPH–24000BPH.
OEM customization: We design factory layout, bottle mold, and labeling styles to help you build your unique coconut water brand.
Global after-sales network: Nancheng provides installation, training, spare parts, and lifetime technical support to ensure long-term performance.

At Nancheng Machinery, we are more than a manufacturer — we are your strategic partner for coconut water bottling success, committed to delivering reliable machinery, consistent quality, and long-term value for your beverage business.

We Supply Your Factory Design Service

We Supply Your Bottle Design Service

ABOUT NANCHENG MACHINERY – YOUR RELIABLE COCONUT WATER BOTTLING LINE PARTNER-Bottle Design

FAQ

FAQ OF COCONUT WATER FILLING MACHINE

Q1: What types of bottles can the coconut water filling machine handle?

A1: Our coconut water filling machine is compatible with PET bottles, glass bottles, and aluminum bottles ranging from 200ml to 2000ml. For larger sizes or customized bottle shapes, we provide mold design and quick-change systems for flexible production.

Q2: Can this machine fill both pure coconut water and mixed beverages?

A2: Yes. The coconut water bottling machine can handle 100% pure coconut water, as well as flavored coconut water, coconut juice blends, and electrolyte-infused drinks, ensuring stable quality and extended shelf life.

Q3: What’s the ideal filling temperature for coconut water?

A3: The hot filling system operates between 85–90°C, which effectively eliminates microorganisms while preserving the drink’s natural flavor and nutrients. Temperature control is automatic via a Siemens PLC system.

Q4: Can the coconut water filling line be integrated with other beverage production lines?

A4: Absolutely. Our coconut water filling production line can be seamlessly combined with other juice, tea, or water bottling lines, sharing water treatment, labeling, and packaging systems — maximizing your factory’s flexibility and efficiency.

Q5: How does Nancheng ensure product hygiene and food safety?

A5: Every coconut water filling machine includes a CIP/SIP automatic cleaning system, 316L stainless steel contact parts, and closed-loop sterilization pipelines. The design strictly meets CE, ISO, and SGS standards for beverage-grade production.

Q6: What after-sales services does Nancheng Machinery provide?

A6: Nancheng offers on-site installation, operator training, lifetime technical support, and spare parts supply. Our engineers provide remote troubleshooting and preventive maintenance to ensure your line runs continuously with minimal downtime.

Q7: Can Nancheng supply a full turnkey coconut water production solution?

A7: Yes. We design and supply complete coconut water bottling lines, including water treatment, juice preparation, UHT sterilization, bottle blowing, filling, labeling, and packaging machines — all tailored to your production capacity and factory layout.
