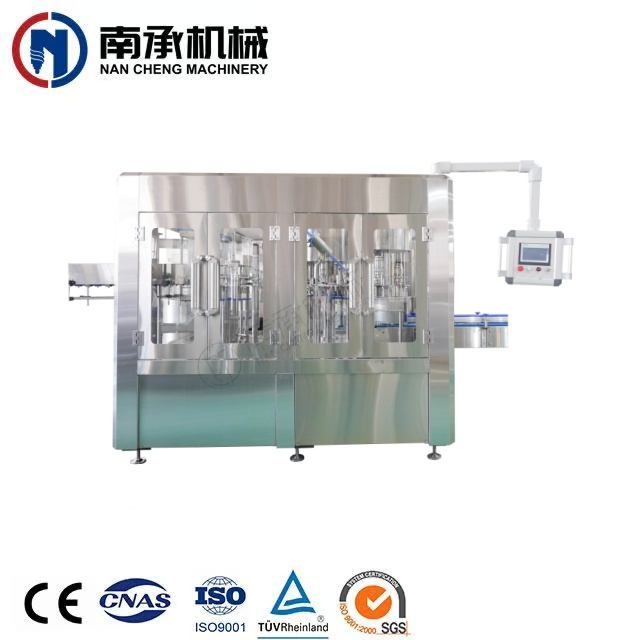

5000bph Pet Bottle Water Filling Machine

Nancheng Machinery provides high-quality pet bottle water filling machines and complete water production solutions. Our machines integrate rinsing, filling, and capping in one compact system, ensuring hygienic, accurate, and efficient bottled water production. Built with durable SUS304/316 stainless steel and user-friendly PLC controls, they deliver stable performance for startups and established factories alike, offering cost-effective, reliable, and customizable solutions for global beverage manufacturers.

Model:
XGF8-8-3S
Brand:
NANCHENG
Function:
Washing Filling Capping
Material:
SUS304/316
Control:
PLC+ Touch Screen
PLC:
Mitsubishi/Siemens/Schneider
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Certification:
CE TUV
Packaging type:
Bottles
Driven type:
Electric and pneumatic
Automatic grade:
Automatic
Application:
Food, Beverage, Commodity
Key selling points:
High-accuracy
Core components:
motor, Pump, PLC, Gear, Bearing, Gearbox, Other
Place of origin:
Jiangsu, China

Quantity:
Availability:





Inquire

Product Description

VIDEO OF PET BOTTLE WATER FILLING MACHINE

Watch our PET bottle water filling machine in full operation, showcasing the complete 3 - in - 1 process of rinsing, filling, and capping. The video demonstrates how empty PET bottles are first thoroughly rinsed with purified water, then accurately filled with high - precision valves, and finally capped with leak - proof sealing technology.

This compact rotary system enables continuous bottling without downtime, providing a stable production capacity ranging from 2,000 to over 24,000 bottles per hour, depending on the model. All water - contact components are made of SUS304/316 stainless steel, ensuring hygiene, durability, and long - term reliability.The video also highlights the full production line, including the bottle blowing machine, the PET bottle water filling machine, labeling system, and packaging equipment, presenting a complete, efficient, and reliable solution for bottled water factories.

INTRODUCTION OF PET BOTTLE WATER FILLING MACHINE

The PET bottle water filling machine from Nancheng Machinery is a compact, fully automatic solution for bottled water production. It integrates rinsing, filling, and capping in one rotary system, providing hygienic and efficient operation for PET bottles from 200ml to 2L.

Built with food - grade SUS304/316 stainless steel contact parts and high - precision filling valves, it ensures accurate filling and minimal wastage. The rotary rinsing system guarantees 360° bottle cleaning, while the automatic capping unit provides stable, leak- proof sealing.

With production capacities from 2,000 to over 24,000 BPH, this pet bottle water filling machine is suitable for small startups and large - scale factories.

KEY FEATURES & ADVANTAGES OF PET BOTTLE WATER FILLING MACHINE

The PET bottle water filling machine integrates rinsing, filling, and capping in one compact rotary unit, saving space and labor.

All water - contact parts are made of SUS304/316 stainless steel, ensuring hygiene, safety, and durability.

High - precision filling valves guarantee accurate liquid levels and minimize product loss.

Rotary technology provides continuous, stable, and efficient production compared to linear models.

PLC touchscreen control makes the machine easy to operate, even for new operators.

Compatible with PET bottles from 200ml to 2L, offering flexibility for different production needs.

A cost - effective investment with reliable performance, suitable for both small and large bottled water factories.

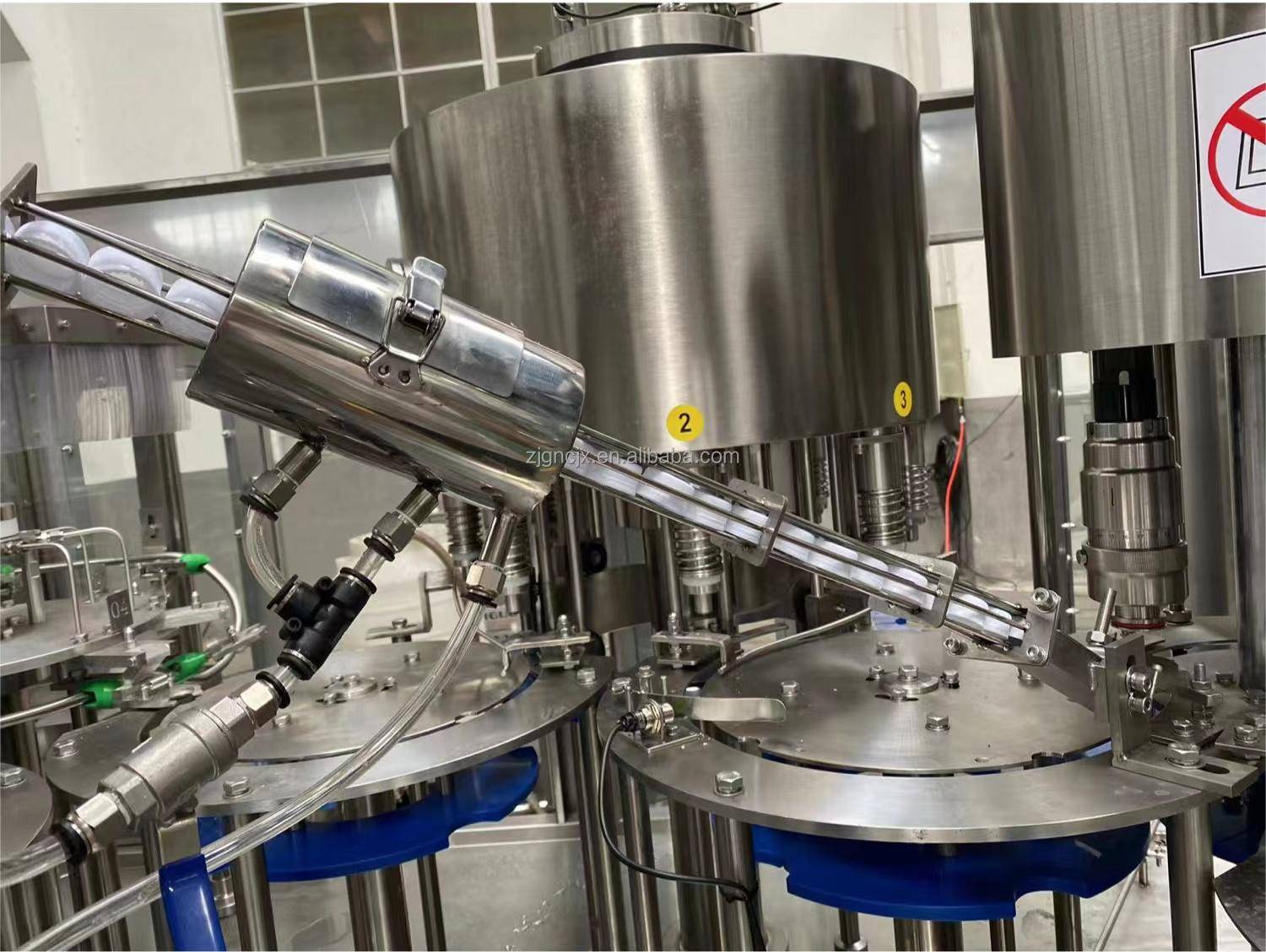

PET bottle water filling machine 3 in 1

5000BPH PET BOTTLE WATER FILLING MACHINE Working Process

Bottle Rinsing: Empty PET bottles are clamped and rinsed with high - pressure nozzles for 360° cleaning. Water recycling and no - contact design ensure hygiene and reduce operating costs.

Water Filling: Bottles move to the filling carousel, where high - precision valves provide accurate filling and prevent spillage. Smooth, foam - free filling ensures stable production.

Bottle Capping: Caps are automatically sorted, placed, and sealed using magnetic torque heads. Optional UV sterilization enhances hygiene, while the rotary mechanism maintains stable output.

Final Discharge: Finished bottles are conveyed to labeling and packaging systems, ensuring smooth transfer and ready- for - market products.

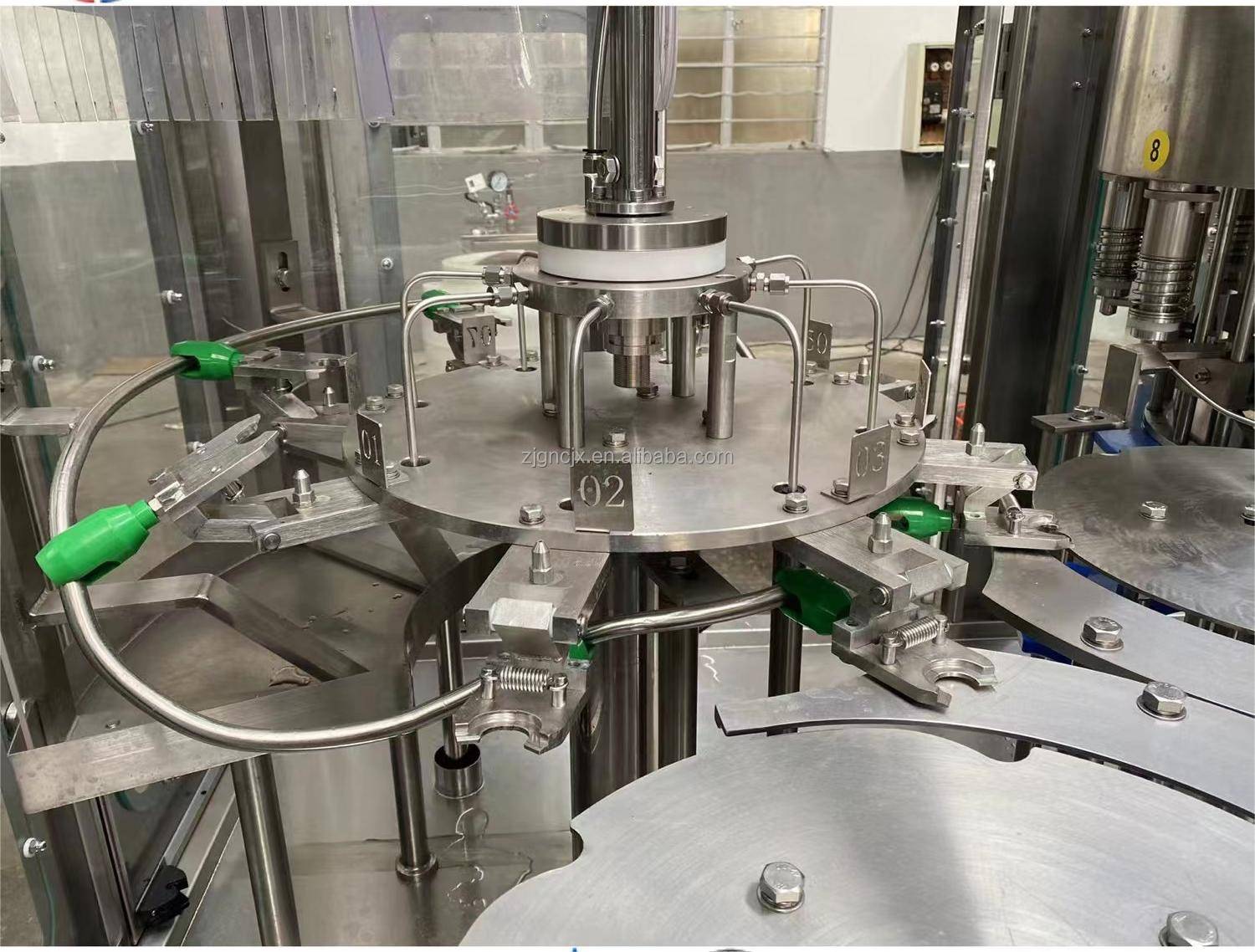

Bottle Rinsing Features

Rotary rinsing system ensures continuous, efficient cleaning.
High-pressure nozzles provide 360° rinsing.
Food-grade SUS304 clamps hold bottles firmly.
No-contact bottle mouth design prevents contamination.
Automatic rinse water recycling lowers costs.
Flexible design handles PET bottles from 200ml to 2L.

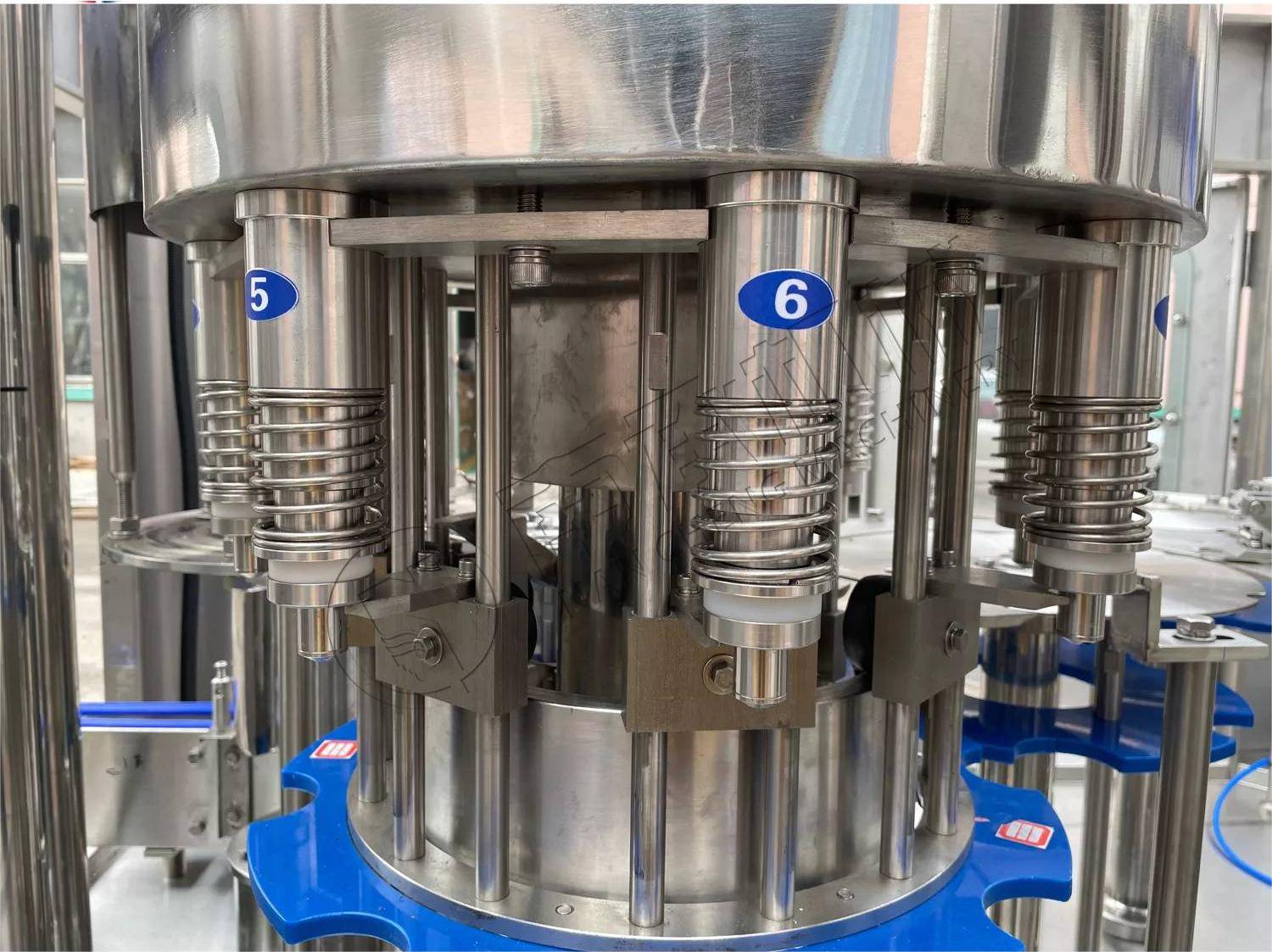

PET bottle water filling machine filling part

Water Filling Features

Rotary filling system ensures fast and stable operation.
High-precision filling valves maintain accurate water levels.
Foam-free filling prevents spillage.
SUS304/316 contact parts ensure hygiene.
“No bottle, no filling” design prevents wastage.
Adjustable filling range for 200ml–2L bottles.
Energy-efficient motors ensure long-term performance.

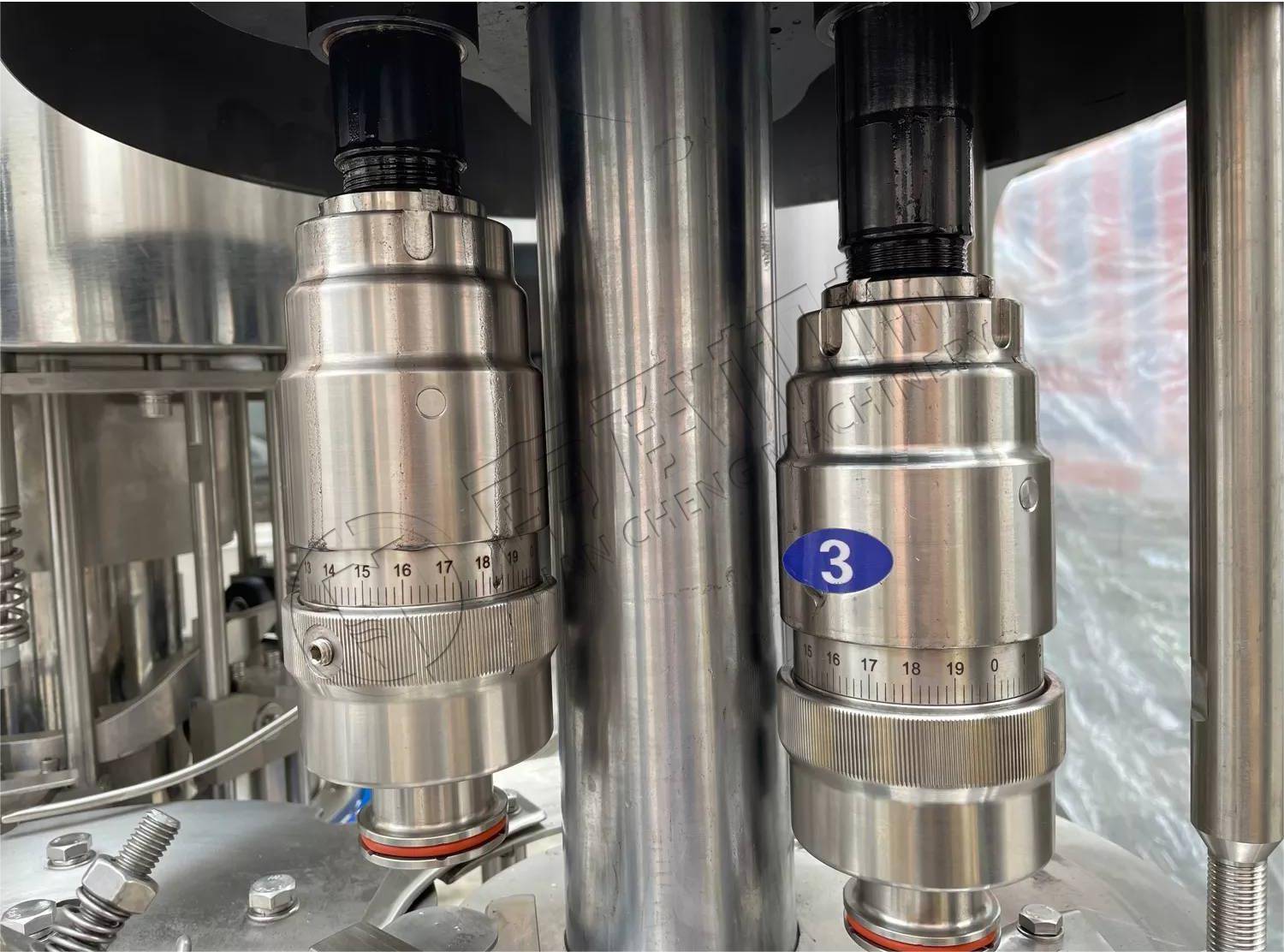

PET bottle water filling machine capping part

Capping Part Features

Automatic cap sorter & feeder for smooth delivery.
Magnetic torque heads provide tight, leak-proof sealing.
SUS304 stainless steel structure ensures durability.
“No bottle, no capping” prevents misoperation.
Cap sterilization option available (UV or disinfectant).
High-speed rotary capping ensures stable 2000BPH+ output.
Compatible with different PET necks and plastic caps.

5000BPH PET BOTTLE WATER FILLING MACHINE Technical Parameters

MODEL OF PET BOTTLE WATER FILLING MACHINE	XGF8-8-3S
Capacity	5000 bottles/h based on 500ml
Working stations	Washing 8 heads, Filling 8 heads, Capping 3 heads
Filling Temperature	Normal temperature
Filling Type	Constant Pressure Filling
Suitable bottle type	￠50-￠115 H=190-320
Air consumption	0.5m3/min
Washing water pressure	0.2Mpa
Man motor power	3KW
Overall machine power	4KW
Filling Water	2-4T/H
Consume Water	2T/H
Control Type	PLC
Dimension	250018002200MM
Weight	2000KG
Voltage	Customize according to different country voltage

5000BPH PET BOTTLE WATER FILLING MACHINE ELECTRICAL CONFIGURATION

Name	Brand
Drive motor	ABB
PLC	SIEMENS
Frequency device	SIEMENS
Touch Screen	SIEMENS
Photoelectric switch	OMRON
Telemecanique	OMRON
Contactor	SCHNEIDER
Circuit breaker	DELIXI
Floatless level control	OMRON

PRODUCTION LINE FLOW CHART OF PET BOTTLE WATER FILLING MACHINE

Complete water production line

A complete water production line turns raw water into bottled drinking water, ready for distribution. It typically includes:

Water Treatment System – Filtration, RO, UV sterilization, and ozone treatment.

Bottle Blowing Machine – Produces PET bottles from preforms.

Drinking Water Filling Machine – Rinses, fills, and caps bottles accurately.

Labeling Machine – Applies labels neatly (wrap - around or shrink sleeve).

Packaging Equipment – Shrink - wrapping, carton packing, palletizing.

Air Dryer / Blower System (optional) – Dries bottles after rinsing.

Control & Monitoring System – PLC or touchscreen interface for stable operation.

PET BOTTLE WATER FILLING MACHINE-water treatment

Water Treatment System

Used in municipal, industrial, and household applications, ensuring safe and sustainable water quality.

PET BOTTLE WATER FILLING MACHINE-bottle blowing machine

PET Bottle Blow Molding Machine

Heats PET preforms and shapes them into bottles using compressed air.

PET BOTTLE WATER FILLING MACHINE-labeling machine

OPP Labeling Machine

Applies OPP labels with clarity, durability, and moisture resistance.

PET BOTTLE WATER FILLING MACHINE-pe film packing machine

Bottle Shrink Packing Wrapping Machine

Uses PE film to pack bottles after filling, labeling, and capping. Features PLC control, automatic feeding, shrinkage, and cooling for stable, energy-saving operation.

Company Profile

WHY NANCHENG MACHINEY AS YOUR PET WATER BOTTLE FILLING MACHINE MANUFACTURER

About Nancheng Machinery

Founded in Zhangjiagang, China, Nancheng Machinery specializes in designing and manufacturing water and beverage equipment. We provide complete solutions for bottled water production, carbonated beverages, and other drink lines.

Our products include PET bottle blowing machines, water filling machines, labeling equipment, and complete bottling lines. Combining advanced technology, high- quality materials, and precise engineering, Nancheng Machinery ensures reliable, efficient, and hygienic solutions for customers worldwide.

Committed to innovation, quality, and customer satisfaction, we help startups and established factories achieve consistent production, reduced costs, and long - term success.

We Supply Your Factory Design Service

We Supply Your Bottle Design Service

FAQ

FAQ OF PET BOTTLE WATER FILLING MACHINE

Q1: What is a pet bottle water filling machine?

A pet bottle water filling machine is an automated solution that rinses, fills, and caps PET bottles with drinking water, ensuring hygiene and consistent quality.

Q2: What bottle sizes can it handle?

The machine works with PET bottles from 200ml to 2L and can be quickly adjusted for different sizes.

Q3: What is the production speed?

Depending on the model, a pet bottle water filling machine can achieve 2,000–24,000 bottles per hour, suitable for both small and large factories.

Q4: How much does a drinking water filling machine cost?

The drinking water filling machine price varies with capacity, configuration, and optional features. Nancheng Machinery provides cost - effective, tailored solutions.

Q5: Is it easy to operate and maintain?

Yes. Equipped with PLC control and a touchscreen interface, the machine is simple to run. Routine maintenance involves cleaning and basic inspections.

Q6: Can it be customized?

Yes. Optional features include UV cap sterilization, advanced filling valves, and integration with labeling or packaging systems.
