2000BPH Water Bottling Machine

VIDEO OF SMALL WATER BOTTLING MACHINE

The small water bottling machine offers a steady output of around 2000 bottles per hour based on 500ml water bottles, ensuring stable and reliable production. It is especially suitable for beginners, as all parameters are well-adjusted before leaving the factory, requiring no additional settings. Designed with rotary rinsing, filling, and capping, the machine enables continuous bottling without the downtime often seen in linear models. Compact yet efficient, this three-in-one solution combines washing, filling, and capping in one unit, saving space and reducing labor. By delivering consistent quality at an affordable price, the small water filling machine is an excellent choice for small to medium beverage plants looking for efficiency and convenience.Watch a full 2000BPH small water filling machine line in action, including bottle blowing machine,small water filling machine, air dryer, shrink sleeve labeling machine, and PE film packing machine, showing an efficient and reliable solution for bottled water production.

INRODUCTION OF SMALL WATER BOTTLING MACHINE

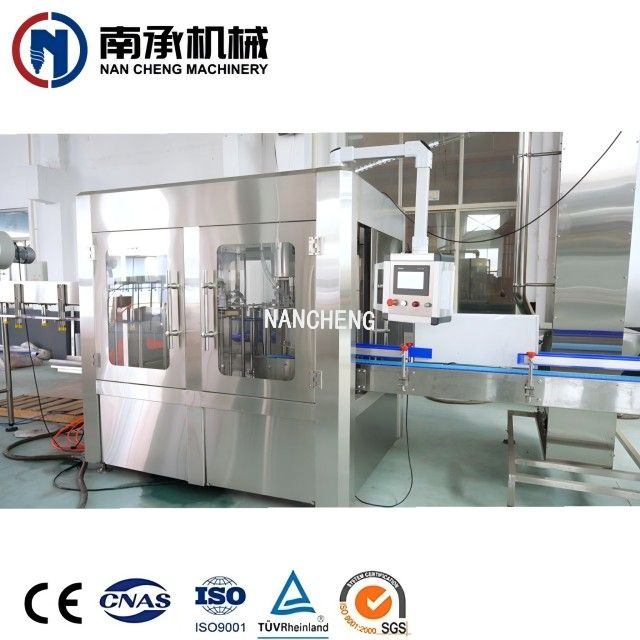

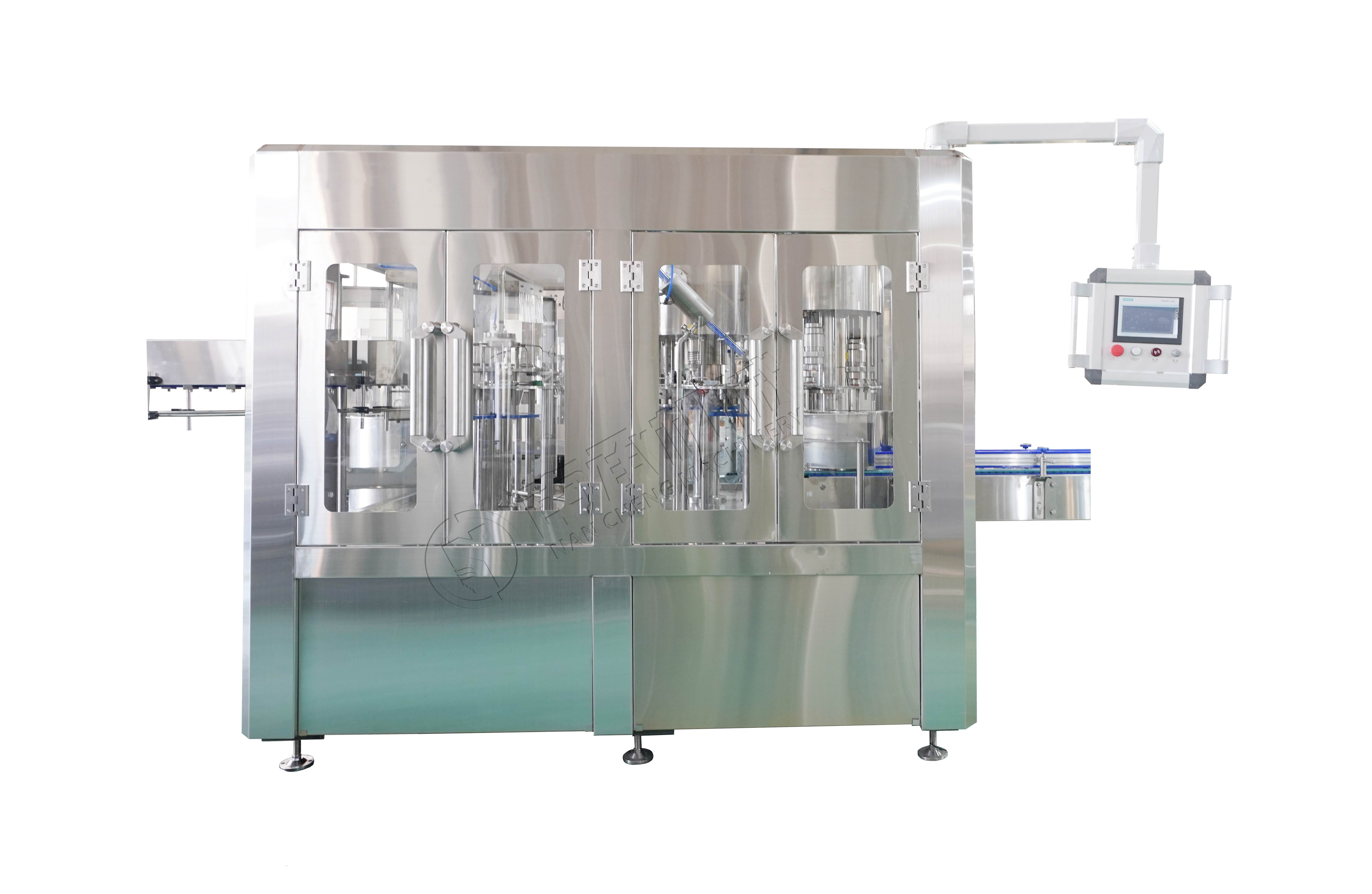

The 2000BPH Small Water Bottling Machine from Nancheng Machinery is a compact, efficient, and cost-effective solution for small to medium-sized bottled water production. Designed with integrated rinsing, filling, and capping functions, it delivers a smooth and hygienic production process for PET bottles ranging from 200ml to 2L.

Built with SUS304/316 stainless steel contact parts and equipped with high-precision filling valves, the machine ensures accurate water levels with minimal wastage. Its advanced rinsing system with high-pressure nozzles guarantees 360° bottle cleaning, while the automatic cap sorting and sealing unit provides fast, stable, and leak-proof performance.

With a capacity of 2000 bottles per hour, this small water bottling machine combines durability, energy-efficient motors, and user-friendly PLC touchscreen controls to help startups and growing water factories achieve consistent quality, reduced costs, and long-term production reliability.

XGF8-8-3 WATER BOTTLING MACHINE MAIN FEATURES

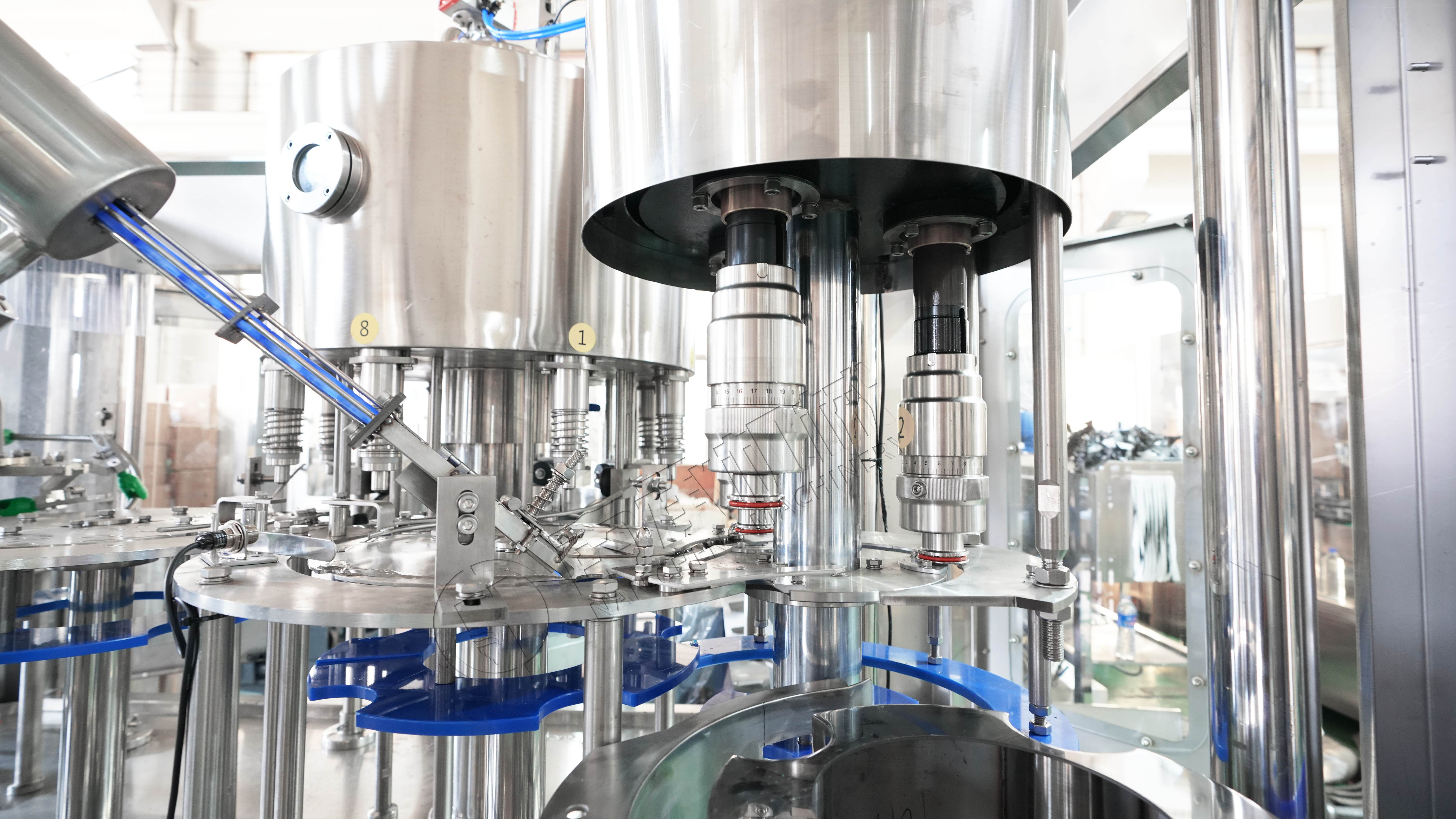

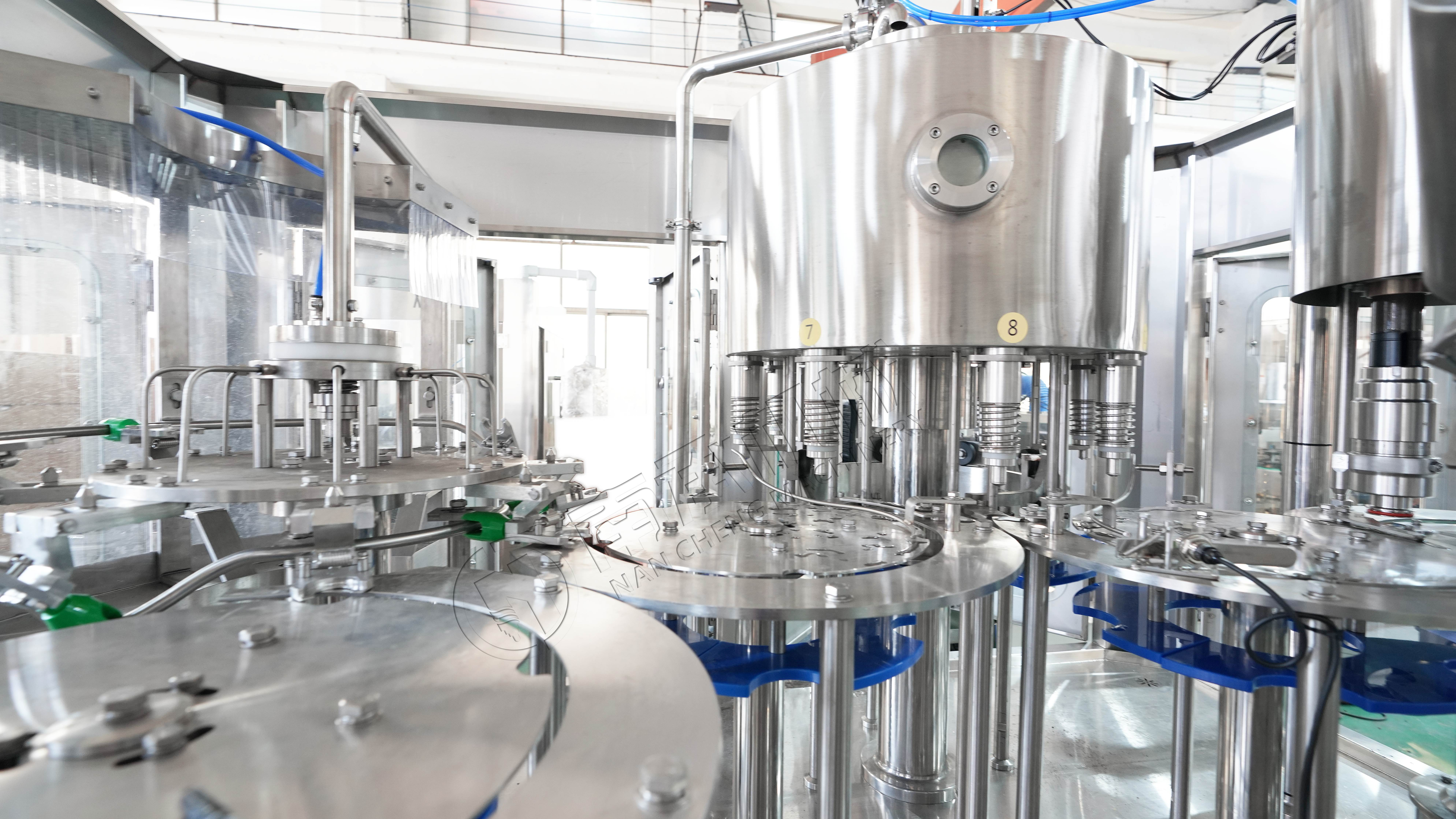

The compact 3-in-1 small water bottling machine integrates rinsing, filling, and capping in one unit, saving space and ensuring efficiency.

All contact parts of the 2000BPH water bottling machine are made of SUS304/316 stainless steel, guaranteeing hygiene and durability.

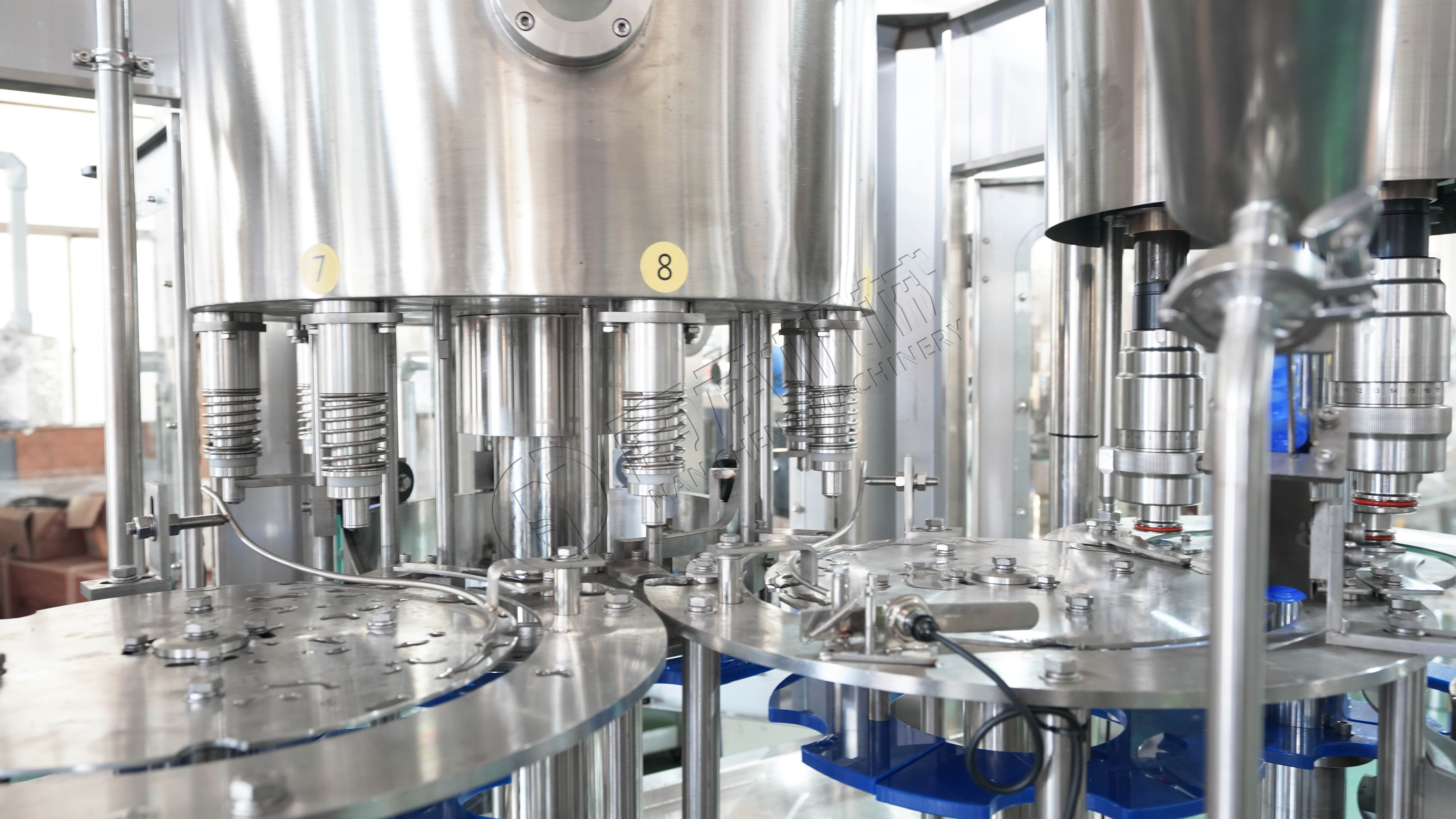

This PET bottle filling line uses high-precision filling valves for accurate water levels and minimal product wastage.

The rinsing system of the small bottle water bottling machine applies 360° high-pressure spraying, ensuring every bottle is thoroughly cleaned.

The automatic capping system of the 2000BPH water bottling equipment includes cap sorting and leak-proof sealing for reliable performance.

The PET water filling line is equipped with PLC control and a touchscreen interface, making operation and monitoring simple.

This small water filling machine adopts energy-efficient motors, designed for long-term stable production.

The 2000BPH PET bottle bottling machine offers flexible compatibility with bottles from 200ml to 2L.

With a capacity of 2000 bottles per hour, this small water bottling line is ideal for small to medium-sized factories.

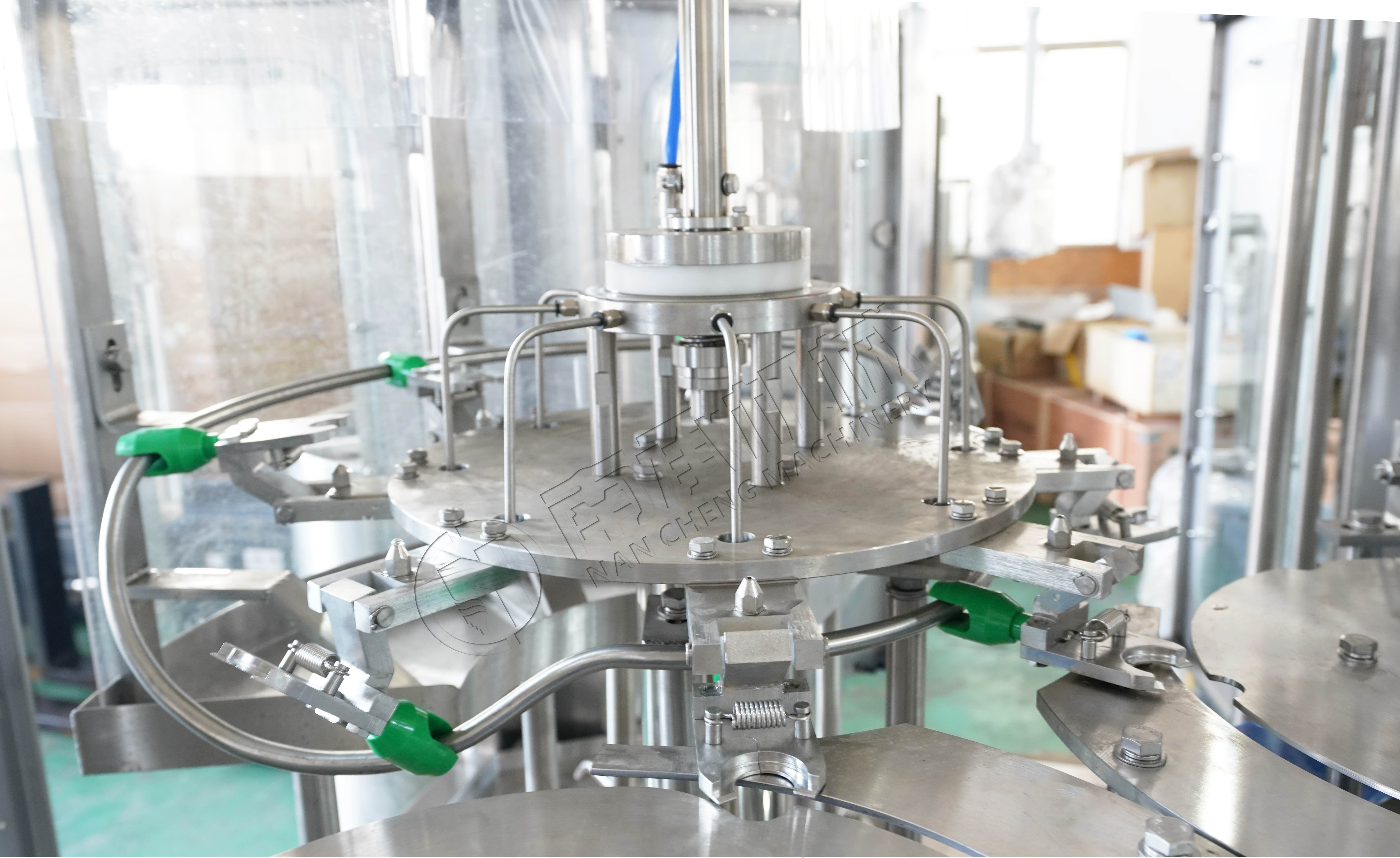

Washing Part Features

- Rotary bottle rinsing system – Ensures continuous and efficient operation.

- High-pressure nozzles – Provide 360° internal and external cleaning of bottles.

- Food-grade SUS304 stainless steel clamps – Firmly hold bottles without damaging them.

- No-contact design – Bottle mouths are protected from direct clamp contact, ensuring hygiene.

- Precise water spray control – Reduces water consumption while maintaining cleaning effectiveness.

- Automatic rinse water recycling – Lowers operational cost and supports sustainability.

- Adjustable bottle compatibility – Suitable for PET bottles from 200ml to 2L.

XGF8-8-3 SMALL WATER BOTTLING MACHINE TECHINCAL PARAMETERS

XGF8-8-3 SMALL WATER BOTTLING MACHINE ELECTRICAL CONFIGURATION

PRODUCTION LINE FLOW CHART OF SMALL WATER BOTTLING MACHINE

Complete water production line

1. Bottle blowing system to make PET plastic bottles ( Semi automatic / Fully automatic )

2. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)

3. Air conveyor for empty bottle loading

4. 3 in 1 monoblock Rinser-filler-capper machine

5. Labeling machine(PVC sleelve labeling machine/OPP hot melt glue labeling machine/Self-adheisive labeling machine )

6. Cap loader load caps

7. Code printer (Ink-jet printer/ laser-jet printer)

8. End packaging ( PE film shrink wrapping machine / Carton packing machine )

PET Bottle Blow Molding Machine

Fully automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Semi automatic blow molding machine for you choose

Water Treatment System

The water treatment system includes:raw water pump, sand filter, active carbon filter, sodium ion filter, control cabinet, precision filter, one stage RO device, RO output pure water tank, ozone system.

Raw water can from lake, river, well, etc.

All the machines made of sus304/316, and have independent control cabinet.

Automatic Shrink Sleeve Labeling Machine

Automatic Shrink Sleeve Labeling Machine, is a high tech back-end packaging equipment, mainly for the dry product's set of standard contract, after the label can be directly into the stage of using the set of standard machine set of standard film can have abundant product information, set the contraction after can stick with the product shape, can further improve the quality of product packaging common dry product label case are: cotton swabs cookie jar caddy yarn ball pen toys stationery bottles of milk powder cans tape, etc

Bottle Shrink Packing Wrapping Machine

The shrink packing system is for package the bottles after filling capping and labeling by PE film.The shrink packing machine is linear type packing.

Applying imported PLC procedure automatic control,stable performance,and accurate control. Enjoying full-automatic function of feeding, tube management, shrinkage, and cooling shape fixing flow.

Film transportation is adopted with sensor switch control,adjustable deliver film length, and can reduce wastage.

Elect motor is adopted with imported transducer to control, realizing unlimited speed regulating.

Advanced spiral wind circulating structure, three-layer insulation treatment, and energy conservation.

Reinforced cooling shape fixing channel to ensure packaging products shape quickly and convenient storage and transportation.

Bottle entering, Automatic unscrambling bottle, Pushing bottle, Heat sealing,Saw cutting, Pressing PE, Shrink, Cooling.
